Description:
1-USED MOTOMAN ARC WORLD 6000 MIG WELDING CELL WITH MOTOMAN EA1900N ROBOT
AND NX 100 CONTROLLER
SERIAL NUMBER S7Q753-1-2
DATE OF MFG. 09/2007
STK#104846
==================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
1-MOTOMAN ARC WORLD 6000 MIG ROBOTIC MIG WELDING CELL WITH
MOTOMAN EA1900N ROBOT AND NX100 CONTROLLER, FRONIUS WELDER,

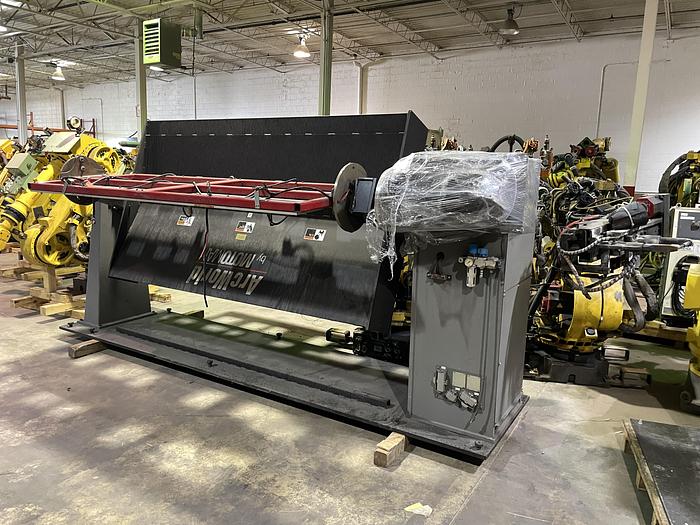

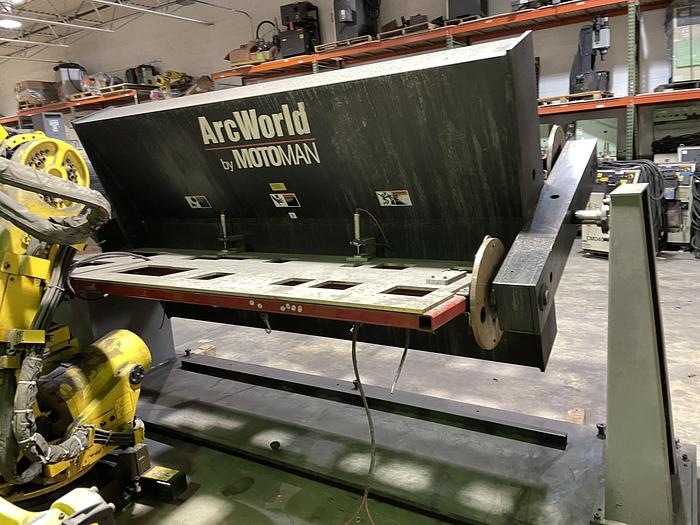

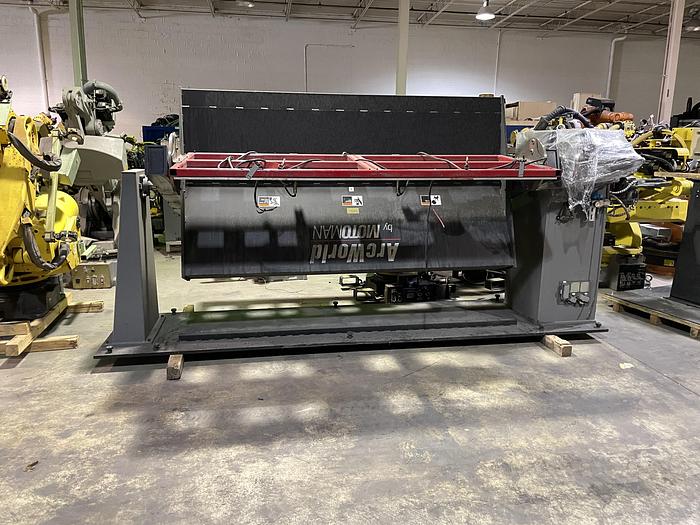

FRONIUS WIRE FEEDER, AND FERRIS WHEEL STYLE DUAL TRUNNION POSITIONER.
THE CAPACITY OF EACH SIDE OF THE FERRIS WHEEL TRUNION MEASURING EXISTING
FIXTURIING:
BETWEEN CENTERS EACH SIDE 100"
SWING 37 1/12"
ABOUT THE ROBOT:

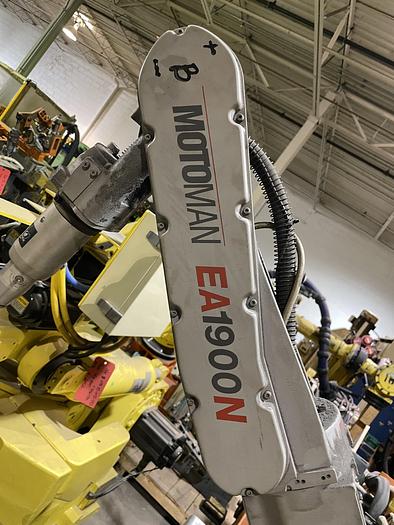

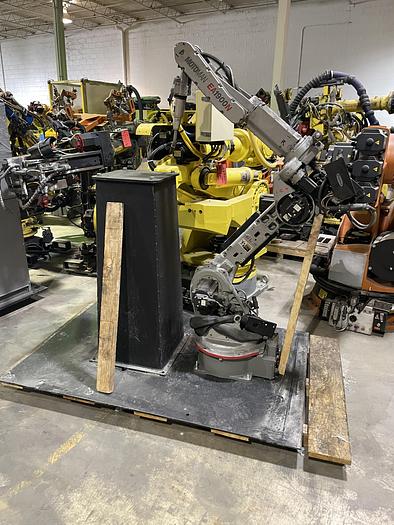

The Motoman EA1900N is a high-performance welding robot that features an internal cable design that was patented to eliminate cable flip. The standard EA1900N NX100 is floor mounted. The EA1900N from Motoman offers high quality welding with a sturdy arc and optimum torch positioning. There is also a reduction in programming time, which allows manufacturers to integrate the robot into their production even quicker. And with its slim design, the EA1900N can be set up without taking up a lot of space. The used EA1900N NX100 robot uses the NX100 controller which is capable of controlling multiple robots. The use of this controller reduces the cost of integration and eliminates the possibility of robot collisions.
Robot Specifications:
Axes: 6
Payload: 3kg
H-Reach: 1904mm
Repeatability: Plus/minus 0.08mm
Robot Mass: 280kg
Structure: Articulated
Mounting: Floor
Robot Motion Speed:
J1 170 deg/s (2.97 rad/s)
J2 170 deg/s (2.97 rad/s)
J3 175 deg/s (3.05 rad/s
J4 340 deg/s (5.93 rad/s\
J5 340 deg/s (5.93 rad
J6 520 deg/s (9.08 rad/s)
Robot Motion Range:
J1 Plus/minus 18 deg
J2 +155 deg - 110 deg
J3 +255 deg - 165 deg
J4 Plus/minus 150 deg
J5 +180 deg to 45 deg
J6 Plus/minus 200 deg
Applications:
Arc Welding Robots
MAG Welding Robots
Orbital Welding Robots
Oxyacetylene Welding Robots
Plasma Welding Robots
Submerged Arc Welding Robots
EQUIPPED WITH:
MOTOMAN NX 100 ROBOT
MOTOMAN TEACH PENDAND
MOTOMAN ROBOT CONNECTIONS CABLES
MOTOMAN ARC WORLD 6000 I SERIES ROBOTICS MIG WELDING CELL
FRONIUS WELDING POWER SUPPLY
FRONIUS WIRE FEEDER
FENCING FOR CELL
FOB TRUCK, 300 EAST SECOND STREET, IMLAY CITY, MI 48444
THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.
RAB INDUSTRIES, INC.
Specifications:
Manufacturer YASKAWA MOTOMAN
Model MOTOMAN ARC WORLD 6000 WELDING CELL
Year 2007
Condition Used
Serial Number S7Q753-1-2
Stock Number 104846
Axes 6
Payload 3kg
H-Reach 1904mm
Repeatability plus/minus 0.08mm
Robot Mass 280kg
Structure Articulated
Mounting Floor
Manufacturer Motoman
Robot Model Yaskawa Motoman EA-1900N
