Description

Overview

Type: Horizontal Band Saws (Semi-Automatic)

Manufacturer: ACRA

Model: BS 330 SSA

Year: 2021

Stock #: 8636

Status: For Sale

Serial #: 21W042832

Country: United States

Description 13" X 18" Mitering Bandsaw, Semi-Automatic, 45 degrees left and 60 Degrees right. Quick action Vise, Centralized controls, Coolant system, Blade Brush, 1,1/4" Blade, 3 HP variable speed drive, 1,892Lbs.

Equipped With

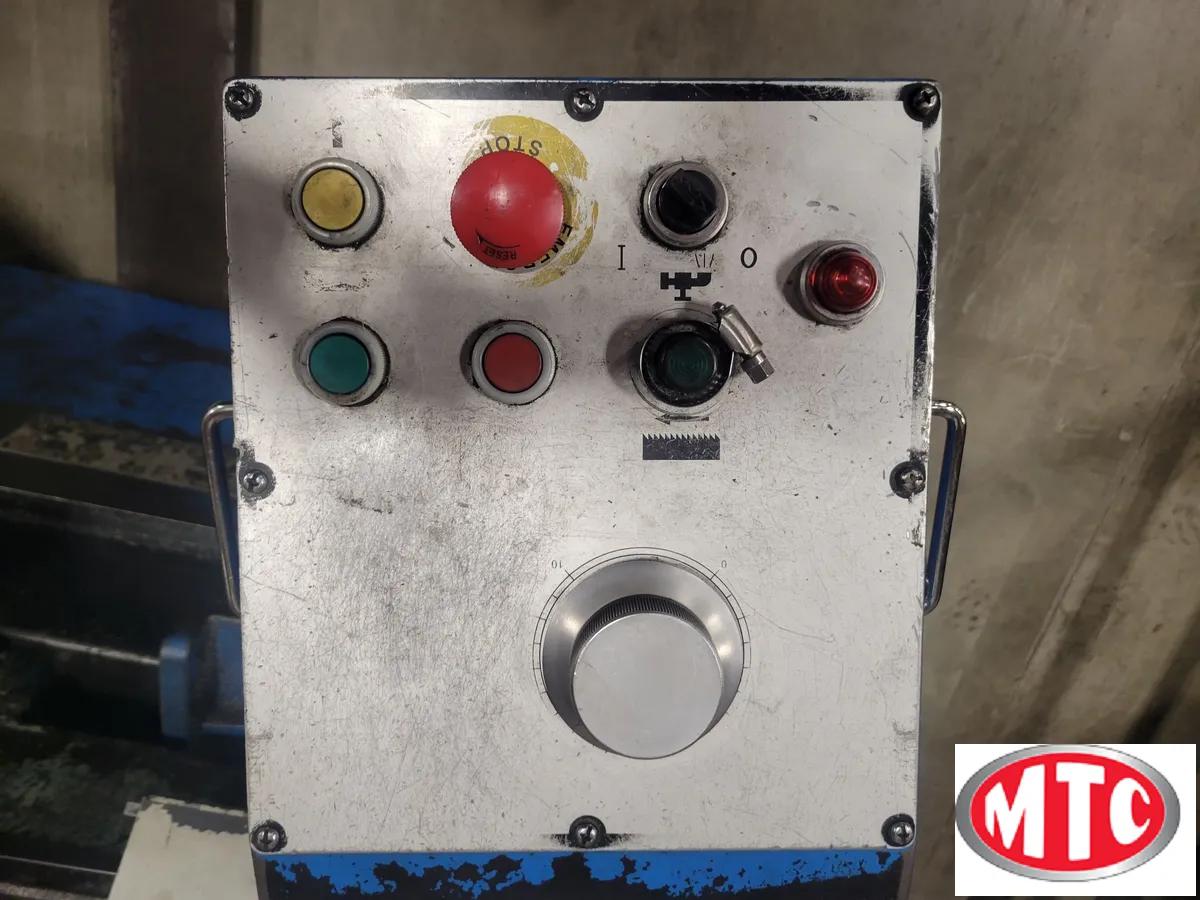

Blade, Blade brush, Carbide blade guides, Coolant system, Semi-Auto head raise, central control panel, Manuals and toolbox

Specifications

Rect-Cap (H) 13"

Rect-Cap (W) 18.875"

Rounds-Cap 13"

Square-Cap 11.5"

Power 3 hp

Type (Auto, Manual, Semi) Semi

Blade Width 1.25"

Blade Thickness 0.35"

Blade Length 162"

Dimensions 90 in x 40 in x 65 in

Weight 1,892 Lbs.

Description

Acra BS330SSA Semi-Auto Variable Speed Mitering Horizontal Band Saw features the following:

 Standard with Variable Speed, Semi-Auto operation, and Mitering.

Large Hand wheel And Build-In Gauge for Easy Blade Tension.

 Built in Coolant and Coolant is Distributed Through the Blade Guides.

 Carbide Tungsten Blade Guide Supported by Bridge Type Portable Frame.

 Blade Brush is Build-In and Self Propelled.

 Quick Positioning Clamping Vise with Fully Adjustable Jaws the Rapid Action Vice.

 Semi-Automatic operation.

 Heavy Cast Iron Construction.

BS330SA Semi-Auto Variable Speed Horizontal Bandsaw

Specifications:

90 Degree:

Round: 13 in

Rectangle: 11-1/2 in x 18-7/8 in

45 Degree:

Round: 10-1/2 in

Rectangle: 11 in x 10-1/2 in

Blade Size: 1.25 in x 0.035 in x 161.5 in

Blade Speed: Variable 50 to 250 FPM

Main Motor: 3 HP

Voltage: 230/460V AC~3 Phase

Standard Equipment:

 Built in Coolant.

 Self-propelled Built-In Blade Brush.

 Quick Positioning Clamping Vise w/Fully Adjustable Jaws.

 Removable Chip Tray.

 Mitering.

 Large Handwheel And Build-In Gauge for Easy Blade Tensioning.

 Built in Coolant, And Coolant Is Distributed Through The Blade Guides.

 Carbide Tungsten Blade Guide Supported by Bridge.

 Type Portable Frame.

 Rapid Action Vice with 90 To 60 Full Mitering.

Weight 1892 lbs

Dimensions 90 in x 40 in x 65 in

ACRA BS 330 SEMI-AUTO HORIZONTAL BANDSAW
