Type: Vertical Machining Centers
Manufacturer: GANESH
Model: VFM-2416
Year: 2016
Stock #: 323223
Status: Pending Sale
Description

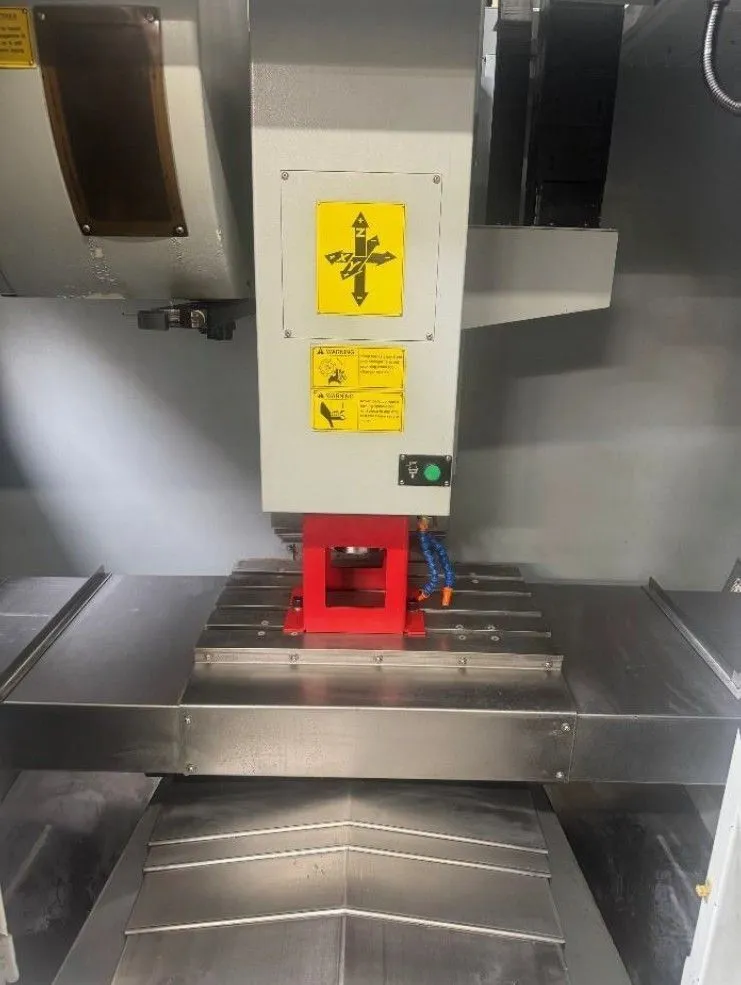

GANESH VFM-2416 Vertical Machining Center
New in 2016
Travels: 24 in X, 15.75 in Y, 17.72 in Z,
10 hp, 12,000 RPM
Specifications
X 24 in
Y 15.75 in
Z 17.72 in
Power 10 hp
RPM 12,000 RPM
# ATC 24
Taper 40
Table-W 15.75 in
Table-L 25.59 in
# Axis 3
Control CNC (Mitsubishi M830)
GEN MILL-2416 TECHNICAL SPECIFICATIONS: **All OEM Specifications are for reference only. All specs and Equipped-with Items must be confirmed by the buyer.**
AXIS TRAVEL
X-Travel 24.01 in 610mm
Y-Travel 15.75 in 400mm
Z-Travel 17.72 in 450mm
Spindle Nose to Table Surface 5.11 in to 22.83 in 130 to 580mm
Spindle Center to Z-axis way covers 15.35 in 390mm (throat dimension)
TABLE Hardened & ground table and T-slots
Table Size (LxW) 25.59 in x 15.75 in 650mm X 400mm
T-slot width (3 T-slots total) 18 mm on 100mm centers
Max. Table Load 882 lbs. 400 kgs load
SPINDLE
Spindle Motor S1/S2/S3=5.5/7.5/11kW 15-HP S3 Power 10-HP 30-min duty rating
Spindle Speed Inline Direct-Drive 12,000rpm (15,000rpm optional)
Tool Type CAT #40 Taper BT #40 optional
Spindle Taper Material / Hardness SCM415 / HRC 58-62
Spindle Runout equal or greater than 0.000040 in T.I.R.
Spindle Bearings - Front 95mm NSK 70BNR P4 class-7 bearings x2
Spindle Bearings - Rear 95mm NSK 70BNR P4 class-7 bearings x2
Retention System / Holding Capability Bellville Spring Stack 1650-1760 lbs
Retention Knob (pull stud) C40-4502H (coolant) Japanese Standard
AXIS FEEDS
Accuracy X, Y, & Z axis (JIS6338) Plus/minus 0.0002 in / 12 in plus/minus 0.005mm over 300mm travel
Repeatability X, Y, & Z axis (JIS6338) plus/minus 0.0001 in / 12 in plus/minus 0.003mm over 300mm travel
Least Input Command Increment 0.0001 in / 0.000040 in 0.001mm / (40-millionths in metric)
Rapid Traverse X, Y / Z 1,417 / 1260 ipm 36m / 32m minute
Cutting Feedrate 0.02 - 393 ipm 10m / minute
Axis Drive Motor Power X, Y 2.7-HP 2.0kw
Axis Drive Motor Power Z 3.35-Hp 2.5kw
Ballscrews X, Y, Z 32mm ball screws 12mm pitch
Linear Ways X / Y / Z 30 / 35 / 35 mm Premium Cross-Roller
TOOL CHANGER
Tool Capacity (24+1) 24-Tool Twin-Arm Hi-Speed Tool Changer
Tool Shank CAT#40 Taper BT#40 optional
Tool Change Time 1.7-sec. tool-to-tool
Maximum Tool Diameter / w/adjacent tool 5.90 in / 3.15 in 150mm / 80mm
Maximum Tool Length (from gage line) 11.81 in 300mm
Maximum Tool Weight 15 lbs. 7kg
Tool Selection / Tool Access Random access Bi-directional shortest path
SPECIFICATIONS
Air Service Requirements 85 psi @ 14-scfm
Electrical Requirements - connected load 220vac plus/minus 5%, 60-Hz 50-Amp Service 25 KVA
Coolant Capacity 68-gallons 256 liters
Floor space requirements (W x D x H) 87 in x 73 in x 113 in 218x186x288cm (add 44 in for conveyor)
Shipping dimensions (W x D x H) 97 in x 91 in x 101 in 246x229x256cm
Machine weighs 9.923 pounds 4,500 kg
Machines need stable 220 Volts, 3 Phase. Please use appropriate transformers or voltage stabilizers.
Equipped With

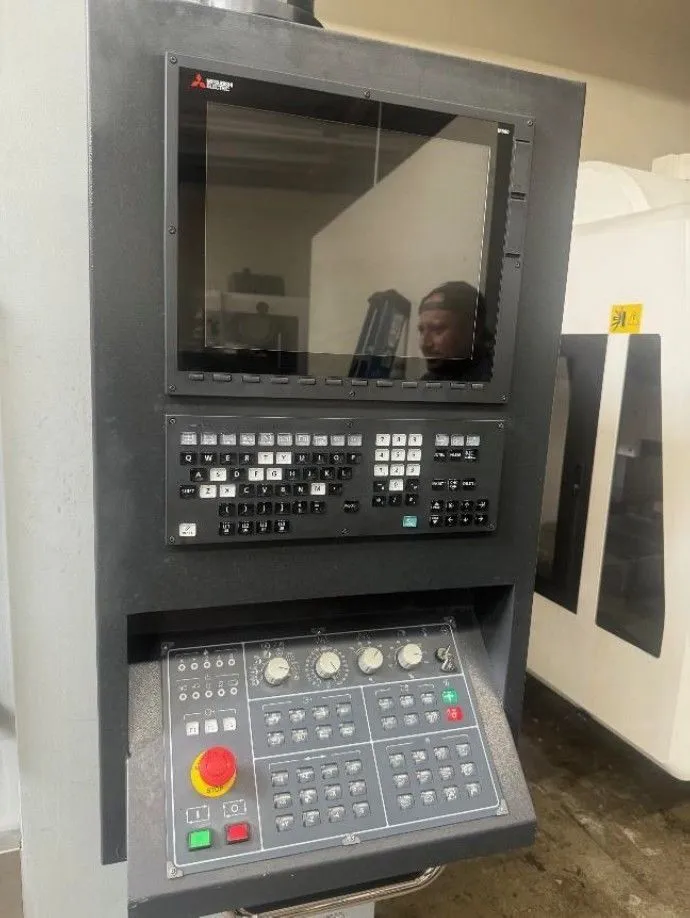

Mitsubishi M830 CNC Control
300 PSI Thru-Tool Coolant
24 Station High Speed ATC
Chip Conveyor
Spindle Chiller
2,700 High Speed Look Ahead
High Speed Machining
15 in Screen
Wired for 4th & 5th Axis.
Sold with a 30 Days Parts Warranty.
Customer is welcome to check out the machine in Chatsworth, CA or a video of the running machine will be provided.
