Overview
Type: Horizontal Machining Centers
Manufacturer: MAZAK

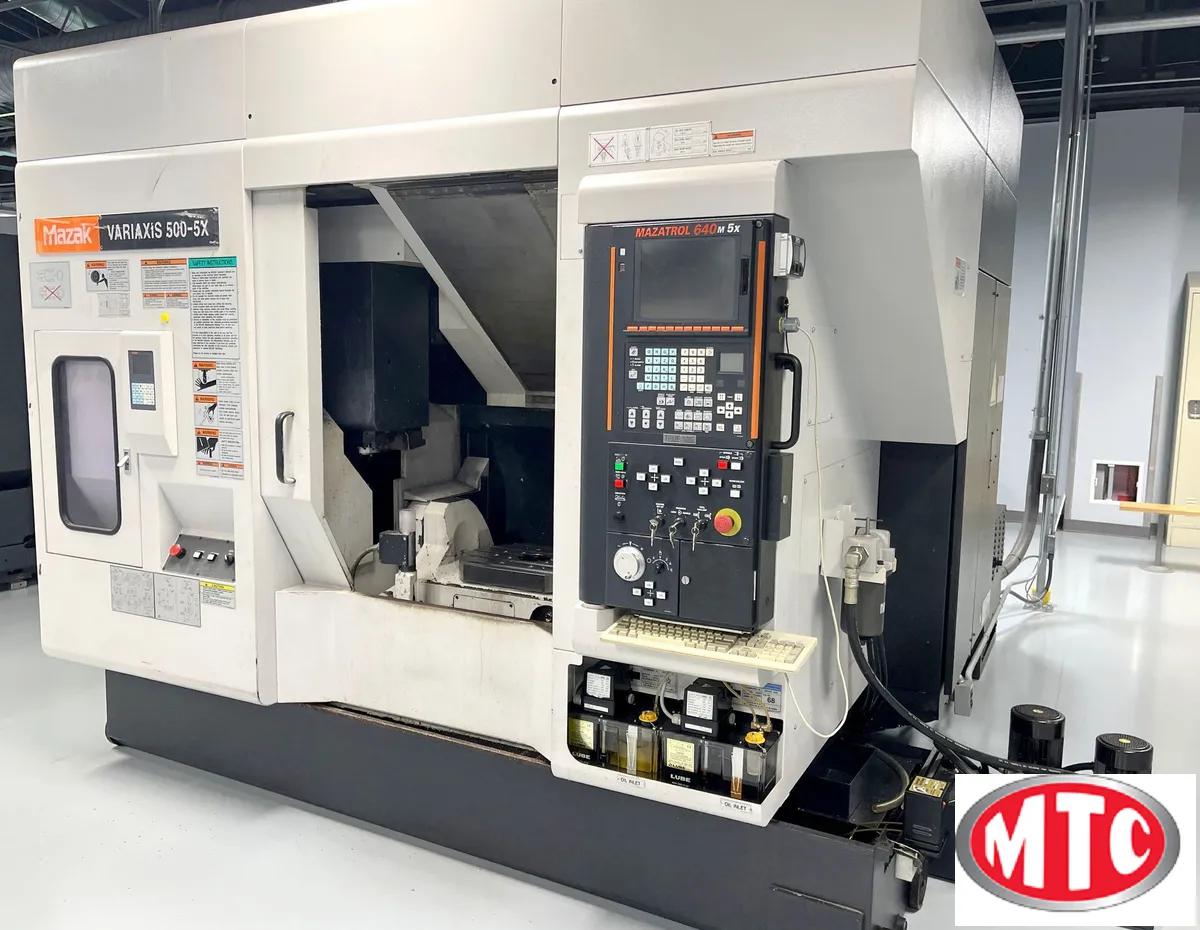

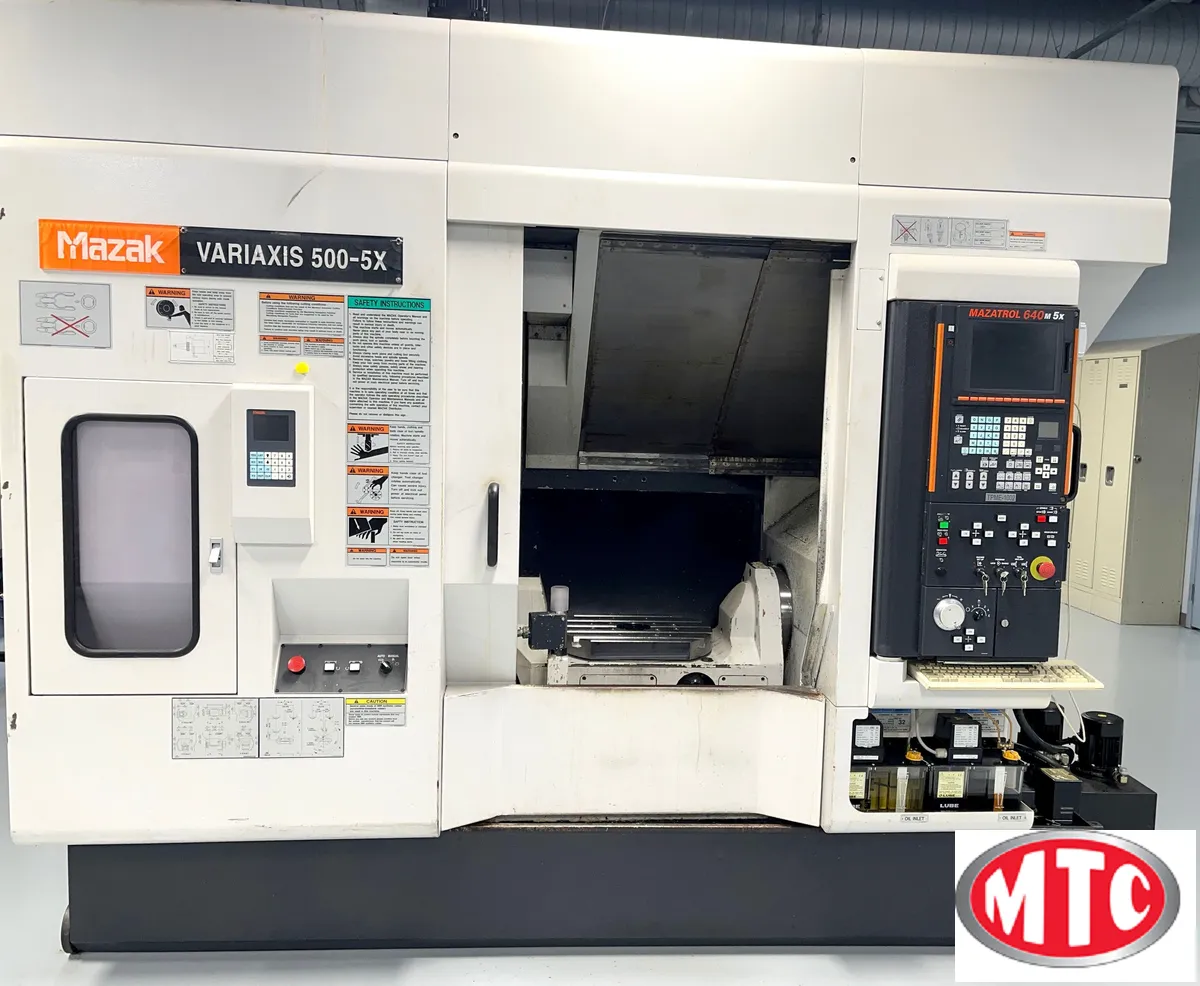

Model: VARIAXIS 500-5X 5-AXIS
Year: 2006
Stock #: 8497
Status: For Sale
Country: United States
Equipped With
30 ATC, HSK 63 , 12,000 RPM 30 HP Spindle,
Additional Control Options: Windows 2000 Operating System
High Speed Smoothing
Die Mold Package
Machine Options: Tool Perester
Specifications
X 20.08"
Y 20.08"
Z 18.11"
Power 30 hp
RPM 12,000 RPM
# ATC 30
Taper HSK 63
Pallet-W 19.69"
Pallet-L 15.75"
# Axis 5
Control CNC (Mazatrol 640M 5X)

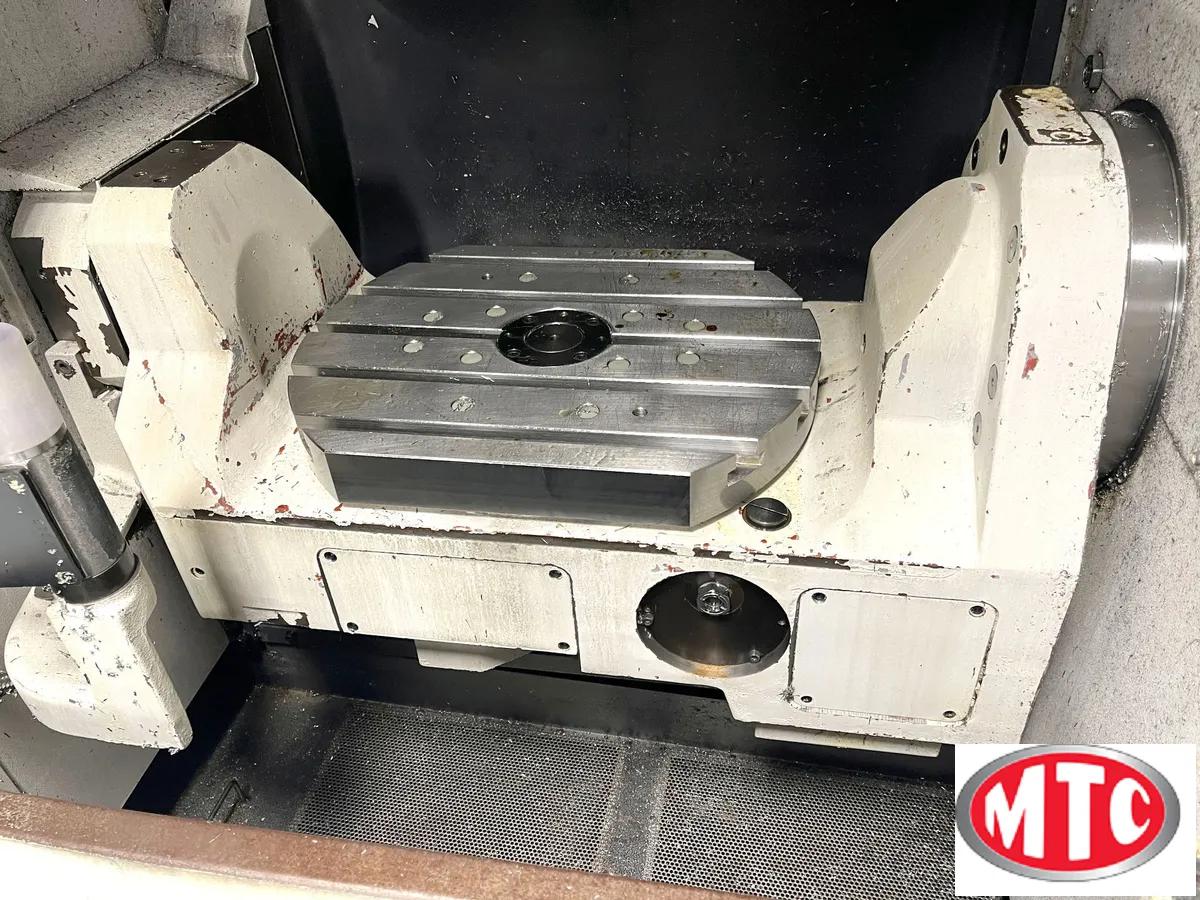

Rotary Table / Trunnion: 5th Axis Trunnion
Tool Magazine Capacity: 30
Number of Pallets: 1
Max Tool Diameter: 3.5 inches
Table / Pallet Size: 19.69" x 15.75 inches
Max Tool Diameter(adjacent): 4.92 inches
X-Travel: 20.08 inches
Chip-to-Chip Time: 4.5 seconds
Y-Travel: 20.08 inches
Spindle Nose to Table Top: 7.48-25.59 inches
Z-Travel: 18.11 inches
Max Tool Length: 11.81 inches
Spindle Taper Type: HSK63
Max Tool Weight: 17.6 lbs
Spindle Speed: 12,000 RPM
Max Table/Pallet Load: 661 lbs
Spindle Motor: 30 HP
Additional Machine Specs: Travels:
- A-Axis: +/-150 deg (-120 deg to +30 deg)
- B-Axis: 0.001 deg

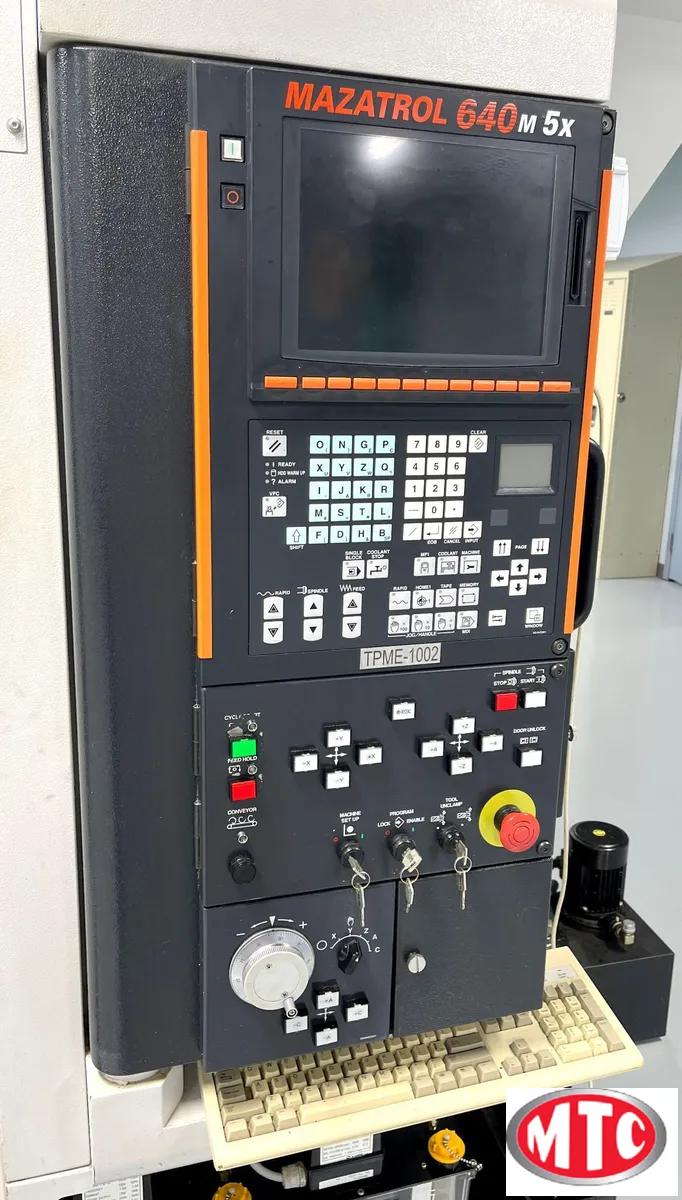

Control Make/Model: Mazatrol 640M 5X CNC Control
Additional Control Options: Windows 2000 Operating System
High Speed Smoothing
Die Mold Package
Machine Options: Tool Presetter
