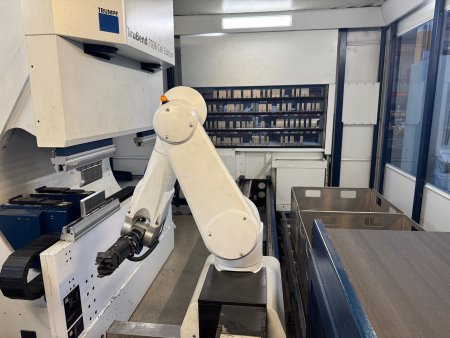

The TRUMPF TruBend Cell 7000 is an automated, high-speed robotic cell designed
for small parts, typically up to 20 x 15 inches.
Based on a 36-ton (40 U.S. tons) TruBend 7036 press brake, it features a 6-axis backgauge, automatic tool changer (ToolMaster Bend), and a BendMaster robot for 24/7, high-speed, and precise angle bending.
Key Specifications (Approximate, Based on 7036/Cell 7000):
Maximum Part Size: Approx. 20 in x 15 in
Press Force: 40 U.S. Tons
Bending Length: Approx. 40 inches
Max Workpiece Weight: Approx. 3.3 lbs
Material Thickness Range: 0.02 - 0.24 inches
Axis Position Accuracy (X-axis): 0.002 inches
Working Range Y-axis Stroke: 8.5 / 17.5 inches.
Bending Cycle Time: As fast as 4 seconds per bend.
Features:
Automated Productivity: Includes BendMaster for robot-operated bending and LoadMaster Bend for parallel loading.
Precision: Features ACB Wireless and ACB Laser systems for accurate bending angles.
Compact Footprint: High-speed, small-part specialty, designed for minimal
Floor space.
Tooling: Automatic setup with ToolMaster Bend
Equipped with:
ToolMaster Bend
Tool gripper for quicker tool change
Additional finger gripper
Additional jaw set
Gripper changing console inclusive

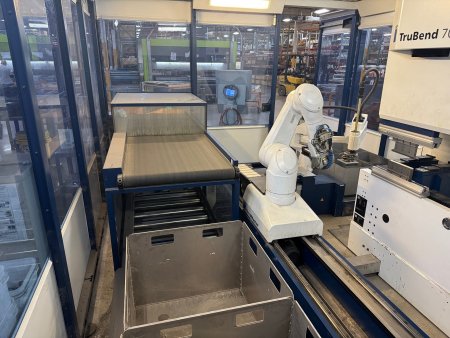

Conveyor System
TCB - Thickness Controlled Bending
RCI Remote Control Interface
