TRUMPF 19 TON PUNCH

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


TRUPUNCH 1000
A0045A0782
Punches
PUNCHES, TURRET
used
(LB)
2012
$0.00

Description

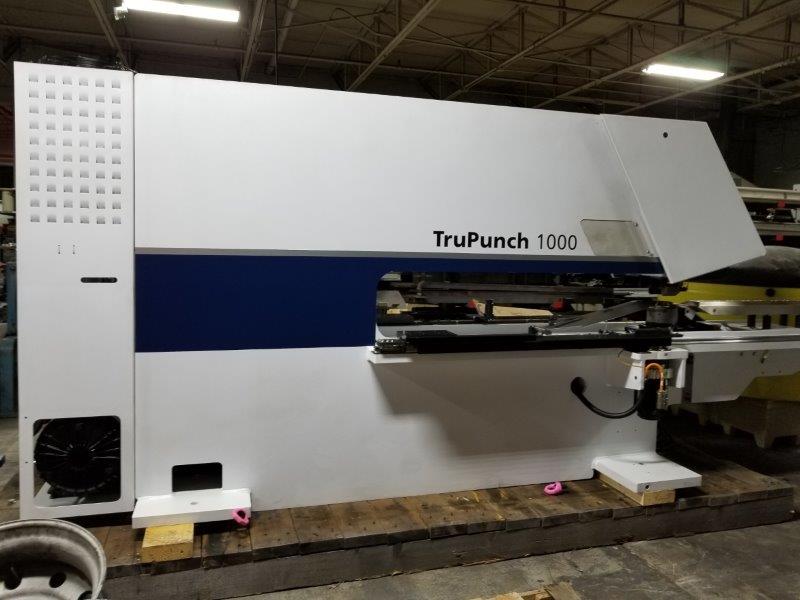

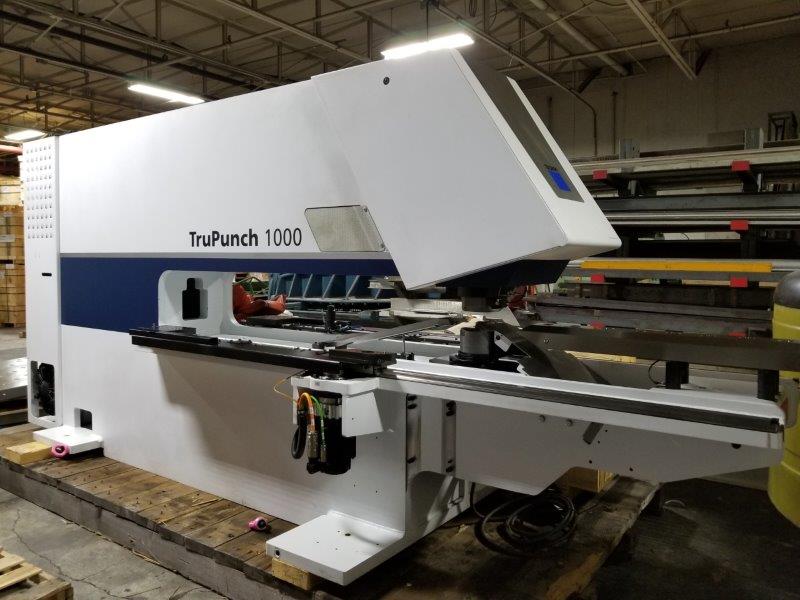

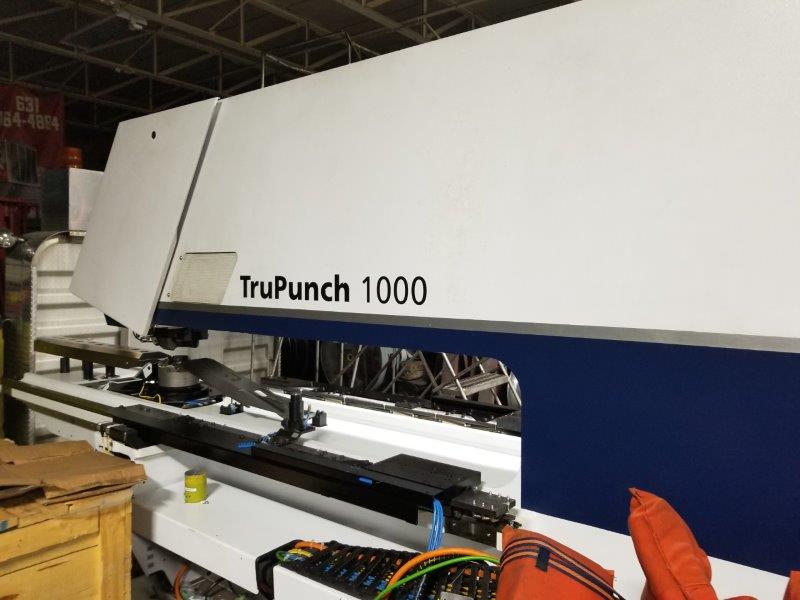

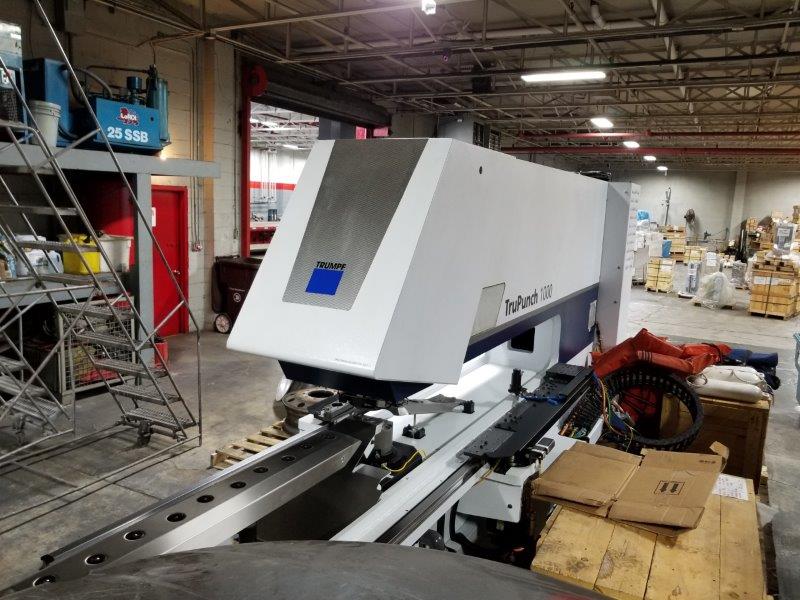

TRUMPF MODEL: TRUPUNCH 1000
S/N A0045A0782 - NEW 6/2012  Stock Number: 2732

Capacity
Max Sheet Thickness................... 0.250"
Working Area.......................... 50" x 80"
Punch Force........................... 19 tons
Max Workpiece Weight.................. 330 lbs
Speeds
X Axis................................ 3,150 ipm
Y Axis................................ 2,165 ipm
Simultaneous.......................... 3,820 ipm
C Axis................................ 180 rpm
Max Stroke Rate Punching.............. (.040")600 spm
Max Stroke Rate Marking............... 1,300 spm
Tools
Linear Magazine....................... 15 / 2 Clamps
MultiTool............................. 5-10 Stations
Tool Change Time
Single Station........................ 4.4 sec.
MultiTool............................. 2.2 sec.
Accuracy
Positioning Accuracy.................. 0.004"
Repeatability......................... 0.0012"

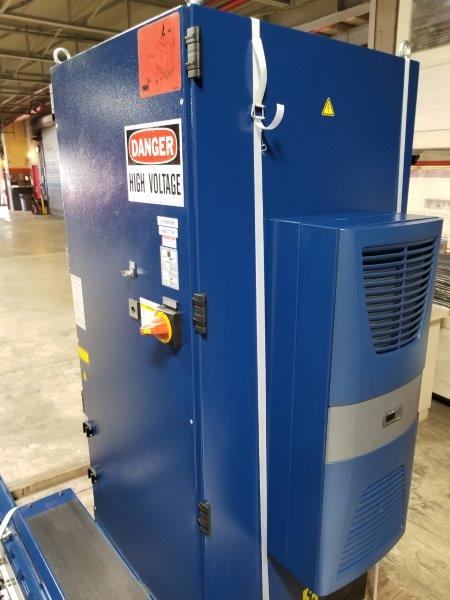

Control............................... Bosch PNC
Part Chute (Fixed).................... 7" x 6"
Part Chute (Part Slider).............. 18" x 20"
Space Requirement..................... 236" x 229"
Power Consumption..................... 7 kw

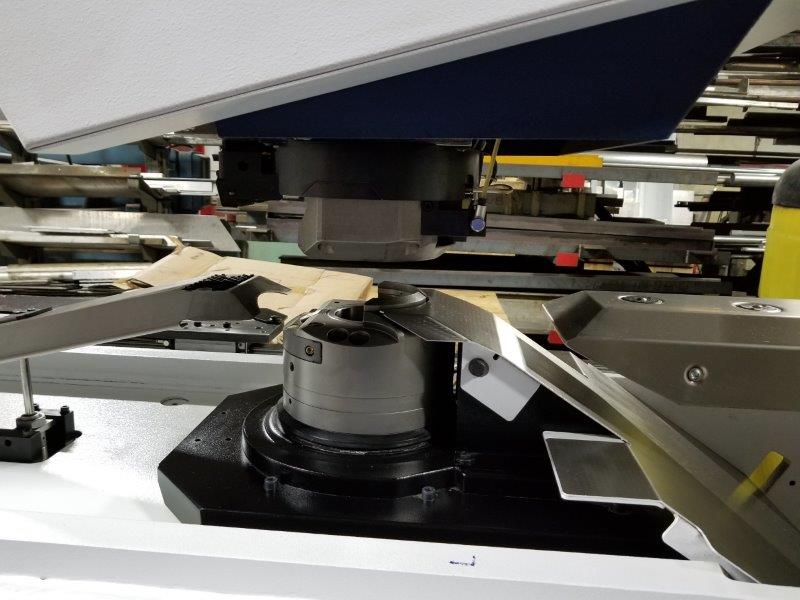

Punching Head......................... Hydraulic

EQUIPPED WITH:
* Engraving (2,200 SPM)
* Tapping Drive
* Multi Tool Drive
* Bosh PNC control
* Tooling
* Trumpf Quick Set

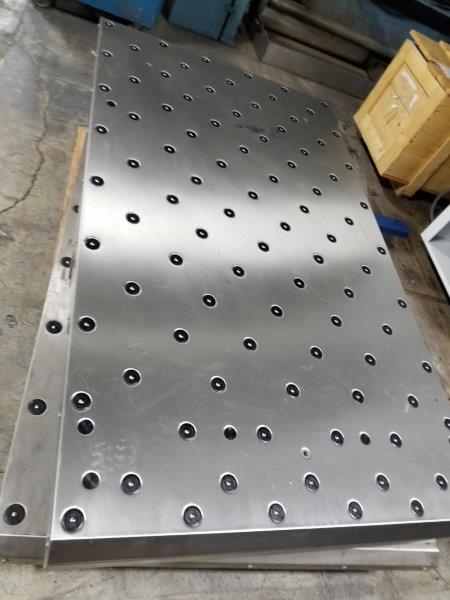

* Roller Table
