Specification                                                          Description

Machining Stroke ( X x Y x Z )                             19.6" x 12.5" x 10.6"

Machining Stroke ( U x V )                                     1.96" x 1.96"

Taper Capability                                              +/- 10 deg in 4"

Table Dimensions                                             29.5" x 18.5"

Inside Guarding Dimensions                                30.8" x 23.7" x 10.6"

Maximum Workpiece Dimensions (Inside Guards) 29.5" x 18.5" x 10.2"

Maximum Submerged Height                                        7.0"

Maximum Workpiece Weight                            1,100 lbs (770 lbs Submerged)

Wire Diameter Capability                                           .004" - .012"

Wire Guides Included                                           .010"

Wire Spool Capacity                                                   13.2 lbs (6KG)

Measuring Resolution                                                 .000040"

Generator Size                                                           40 Amps

Mfgs Rated Maximum Cutting Speed                      22-23 sq in/hr

Dielectric Fluid Type                                        Ion-Exchanged Water

Dielectric Capacity                                                   194 gal

Filter Method                                            (2) Replaceable Paper Filters

Power Requirements                                 16kVA - 200-220V/3 Phz/50/60Hz

Machine Unit Dimensions                                  63" x 59" x 80"

Machine Unit Gross Weight                                 3,960 lbs

Control Cabinet Dimensions                               24" x 48" x 74"

Control Cabinet Weight                                        1,320 lbs

Dielectric System Dimensions                           87" x 36" x 55"

Dielectric System Weight                                        660 lbs

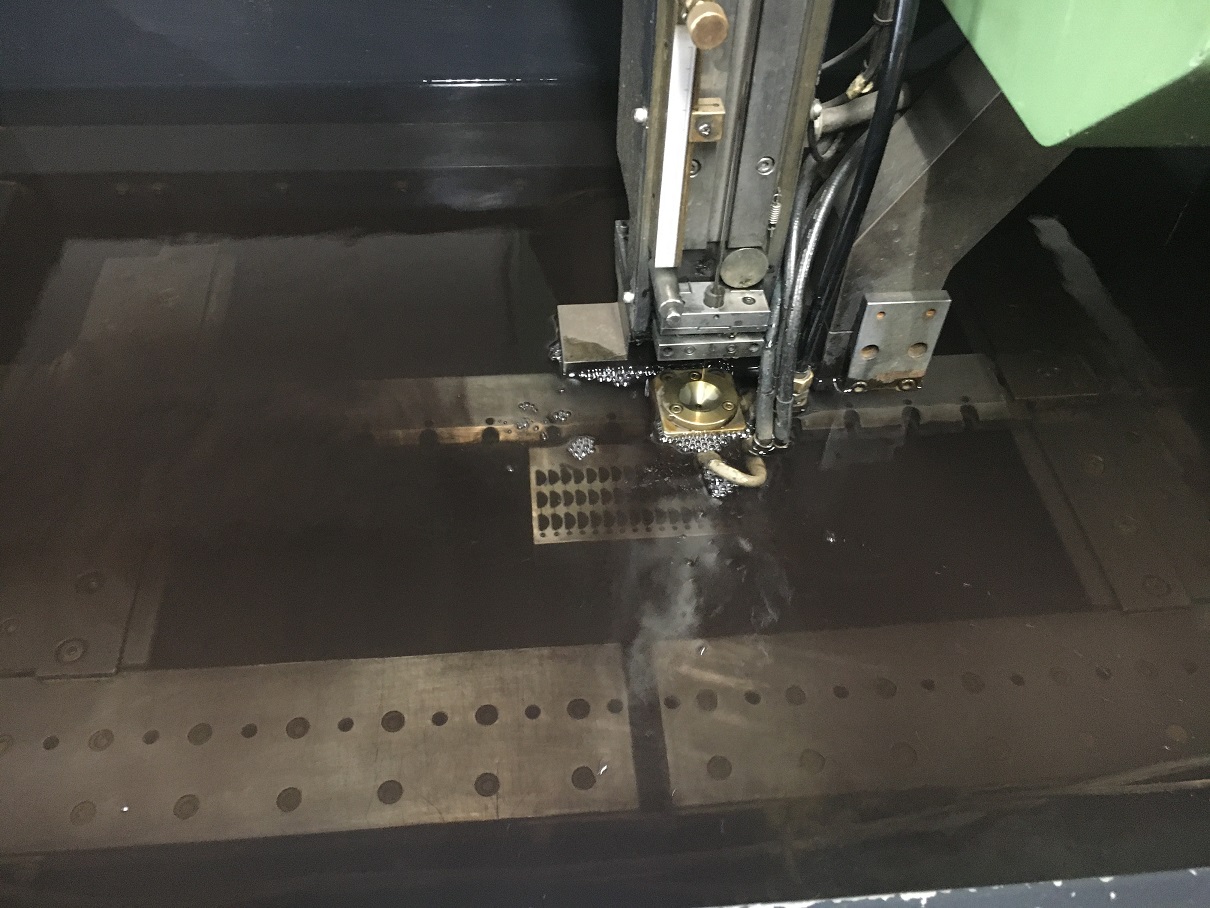

Equipped With:

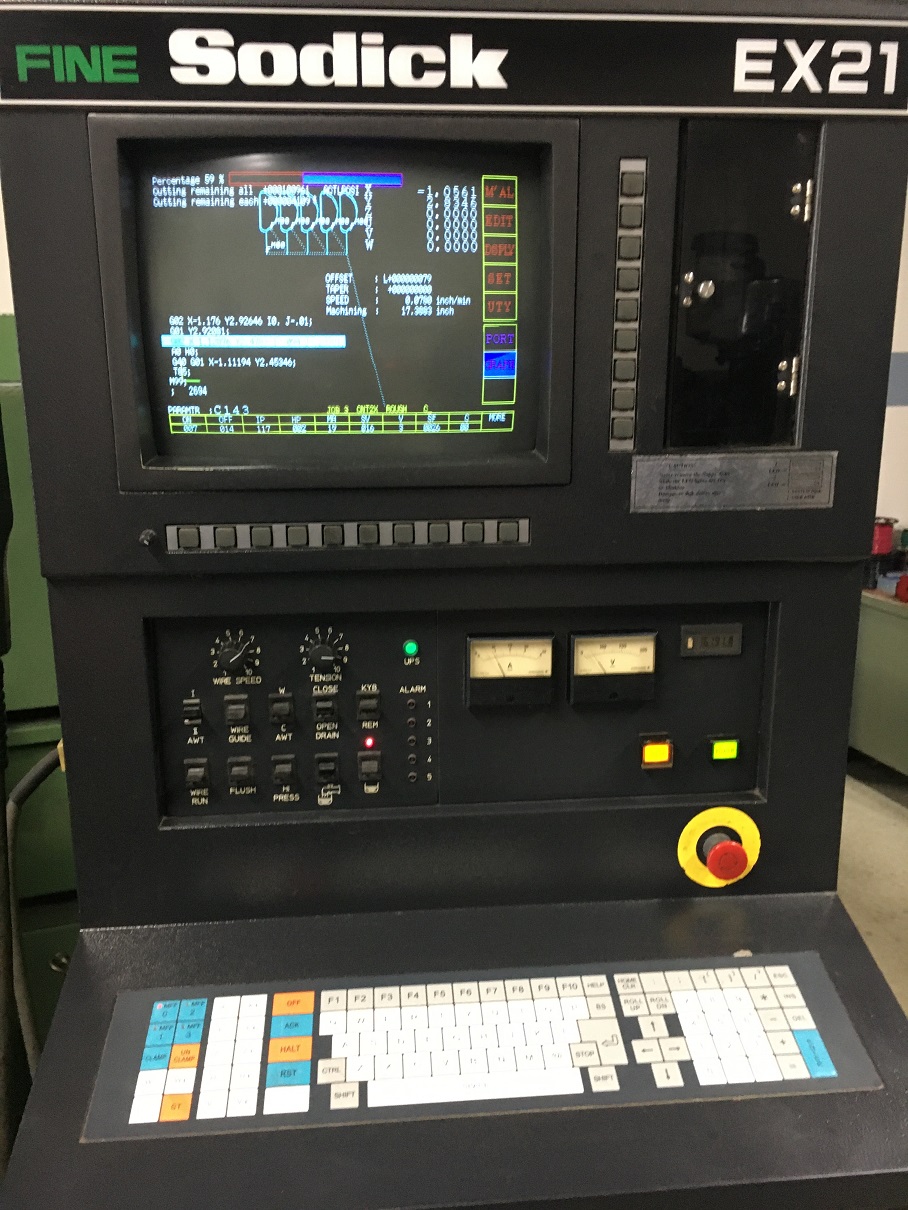

* Sodick Mark EX21 CNC Control * Submerged Cutting Capability * Automatic Wire Threader * Sodick On-Board APT Programming System * Electrolysis EFII (Fine Finish) Circuitry * High Speed Graphic Function * Automatic Program Correction * RS232 Interface, Floppy Drive, MDI * Three-Sided Stainless Steel Zeroline Worktable * 14" Color CRT Display * Dielectric Fluid Supply System * Chiller Unit * All Available Manuals and Accessories

Stock Number: 0775

Condition: As Is, Where Is
