Description:

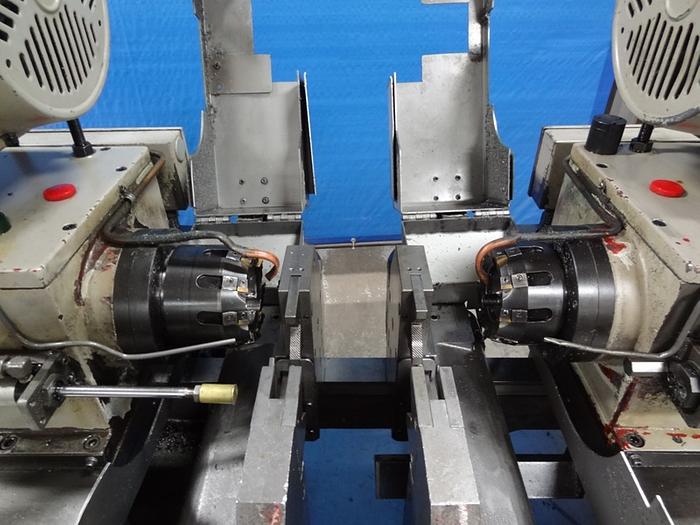

1-USED SHIGIYA CM-8 X 60 FACEING AND CENTERING MACHINE 80MM X 600MM
MACHINE SERIAL NUMBER
DATE OF MFG. 5/1991
STK#103500
======================================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
WORK DIAMETER .59" TO 3.14"
CLAMP DIAMETER .59" TO 3.14"
WORKING LENGTH 4.52" TO 23.62"
MAIN MOTOR 2.95 HP (2)
SPINDLE SPEED:
CUTTER RIGHT SPINDLE 400 RPM LEFT SPINDLE 350 RPM
DRILL SPEED RIGHT SPINDLE 800 RPM LEFT SPINDLE 700 RPM

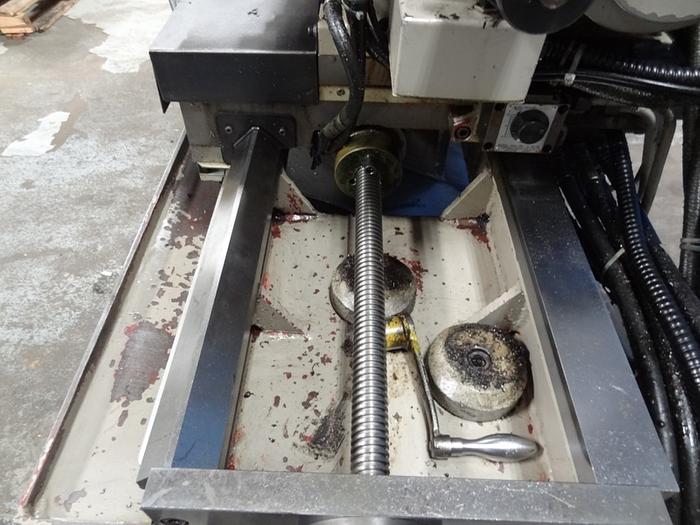

WORK HEAD (LONGITUDINAL) TRAVEL RIGHT SCREW FEED 19.68", LEFT 2.362" HYDRAULIC FEED
WORK HEAD TRAVEL (CROSS) 4.72"
WORK HEAD FEED 1 IPM TO 98.4 IPM
DRILL STROKE RIGHT SPINDLE 1" HYDRAULIC FEED, LEFT SPINDLE 1" SCREW FEED
DRILL FEED RATE 0.39 IPM TO 118.11 IPM

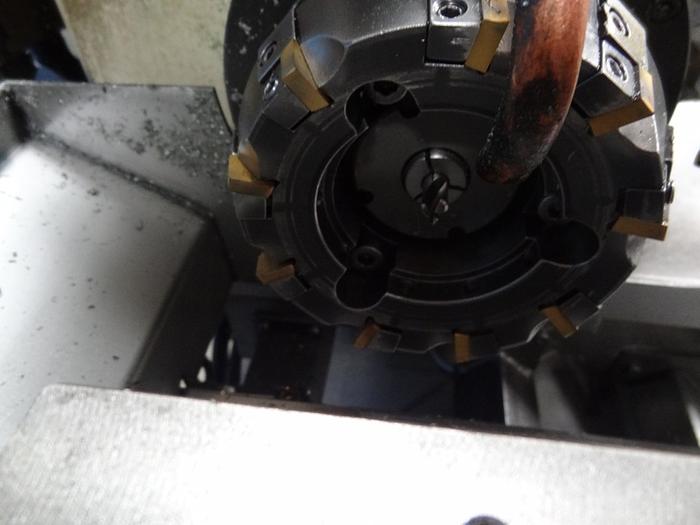

DIAMETER OF TOOL EDGE 4.52" RIGHT CUTTER, 5.51" LEFT CUTTER
DRILL SHANK DIAMETER MAX. .55"
HYDRAULIC TANK CAPACITY 15.85 GALLONS
HYDRAULIC MOTOR 1.971 HP
COLLANT TANK CAPACITY 13.2086 GALLONS
HEIGHT OF WORK SPINDLE CENTER FROM FLOOR 39.37"
APPROX GROSS WEIGHT 4,000 LBS
APPROX SHIPPING DIMENSIONS
MAIN MACHINE 104" LONG X 55" WIDE X 72" TALL

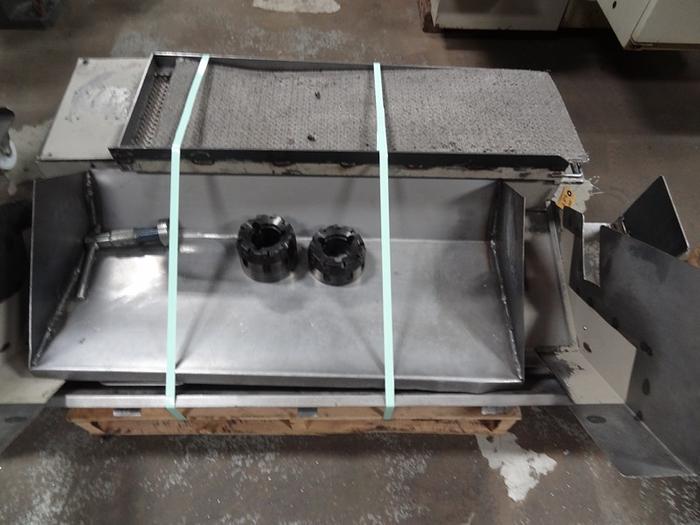

SKID WITH COOLANT TANK AND GAURDS 60" X 42" X 24" TALL
SKID WITH HYDRAULIC UNIT 48" X 40" X 38" TALL

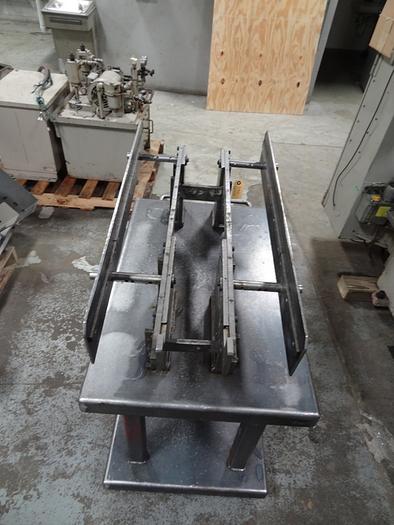

LIFT TABLE WITH GRAVITY FEED FIXTURE 40" X 24" X 46" TALL

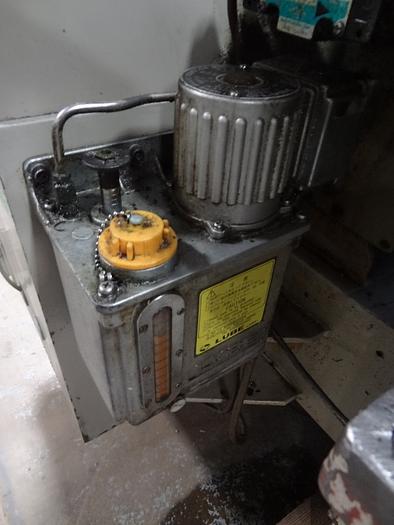

AUTOMATIC LUBE SYSTEM
ASSORTED DOCUMENTATION
FOB TRUCK, ALMONT, MI 48003
THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.
(586)752-0090
Specifications:

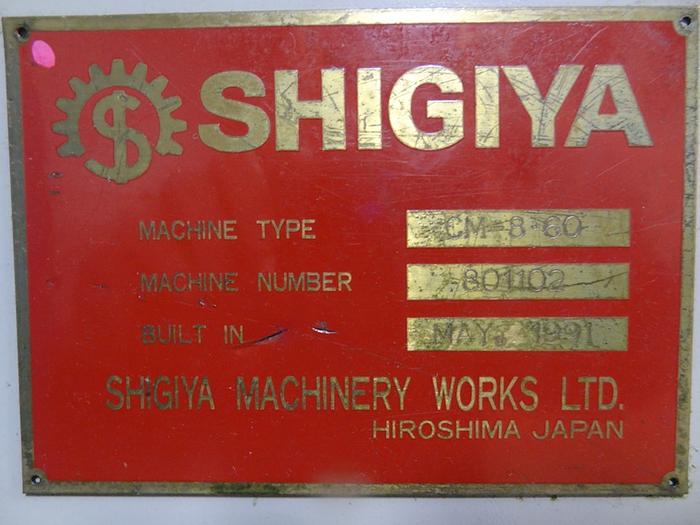

Manufacturer SHIGIYA
Model CM-8 X 60
Year 1991
Condition Used
Serial Number 801102
Stock Number 103500
