TC30155F.CT.RPC+PCD3015.RVA.VE1.Motax+P4X-
2516.LS.LI.ABA30/400/130.ZL.ZTL.WK.SPA.NS.CLA/A1500.CUT.P.
ULC001.UC1500.UPCUT01+SAP271618.POS+SIX.NT+JOB.CONSOLE+RC+Office.P4

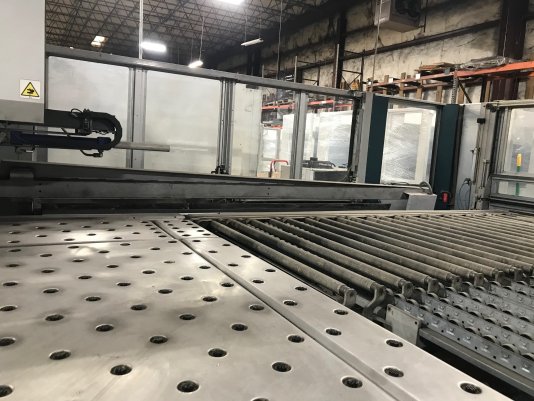

TC30155F.CT.RPC- Table with moveable top (Loading)

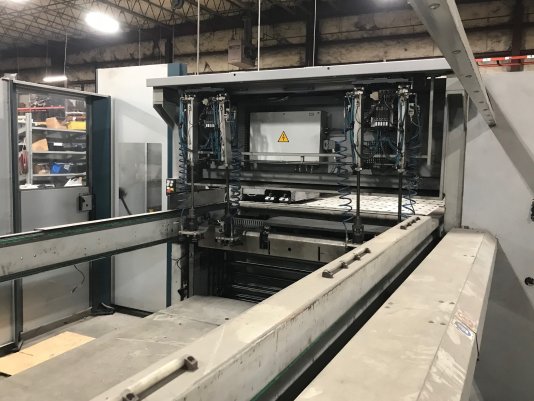

PCD3015.RVA.VE1.MOTAX- Part Centering and Destacking Device

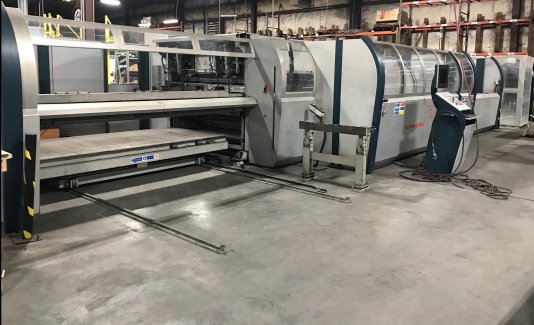

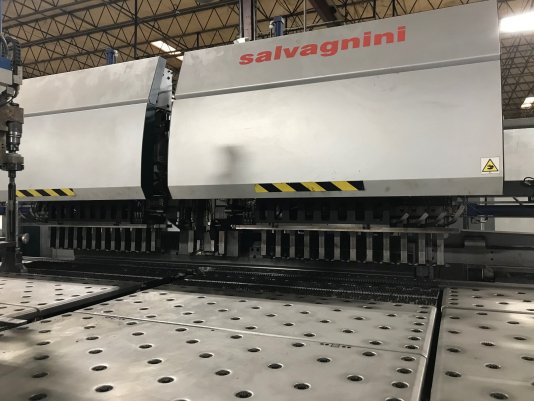

P42516- Machine
LS.LI.ABA30/400/130.Zl.ZTL.WK.SPA.NS.CLA/A1500.CUT.p.ULC001.UC1500.UPCUT01-
Tooling, CLA Blades and Cut Option
SAP271618.POS- Parts accumulator (Unloading)

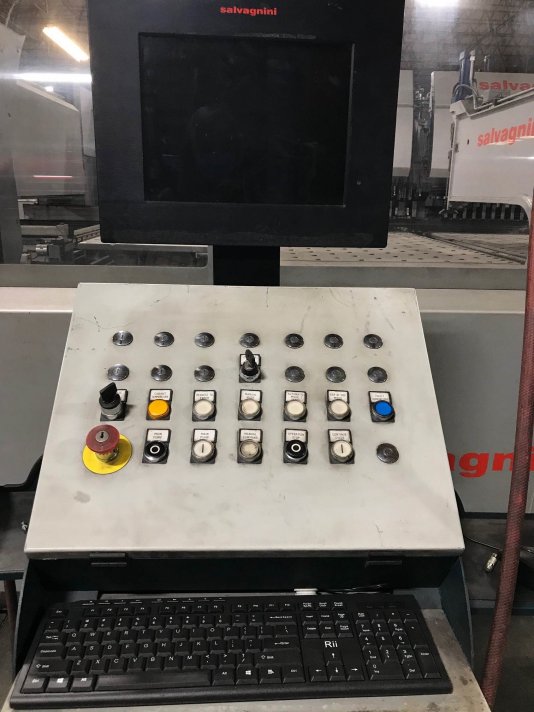

SIX.INT+JOB.CONSOLE+RC- Software on the machine (Standard)
Office.P4- Offline Software (Not Included)
Specifications:
Maximum length of incoming sheet (mm): 2795
Maximum width of incoming sheet (mm): 1524
Max. diagonal that can be rotated (mm): 2800
Maximum bend length (mm): 2500
Maximum bend height (mm): 165
Minimum thickness (mm): 0.5
Max. thickness and bend angle: 2.5 ( 90)
steel, UTS 410 N/mm2 (mm): 2.1 ( 135)
Max. thickness and bend angle: 2.1 ( 90)
stainless steel, UTS 580 N/mm2 (mm): 1.6 ( 130)
Max. thickness and bend angle: 3.2 ( 90)
Aluminum, UTS 265 N/mm2 (mm): 2.5 ( 130)
To view more information on the SALVAGNINI,P4-2516 CNC PANEL BENDER,MFG:2009 OUR STOCK NUMBER: 11951, including reviews, brand information, photos, videos, and more,
