Special Featured Machine Discounted Pricing!

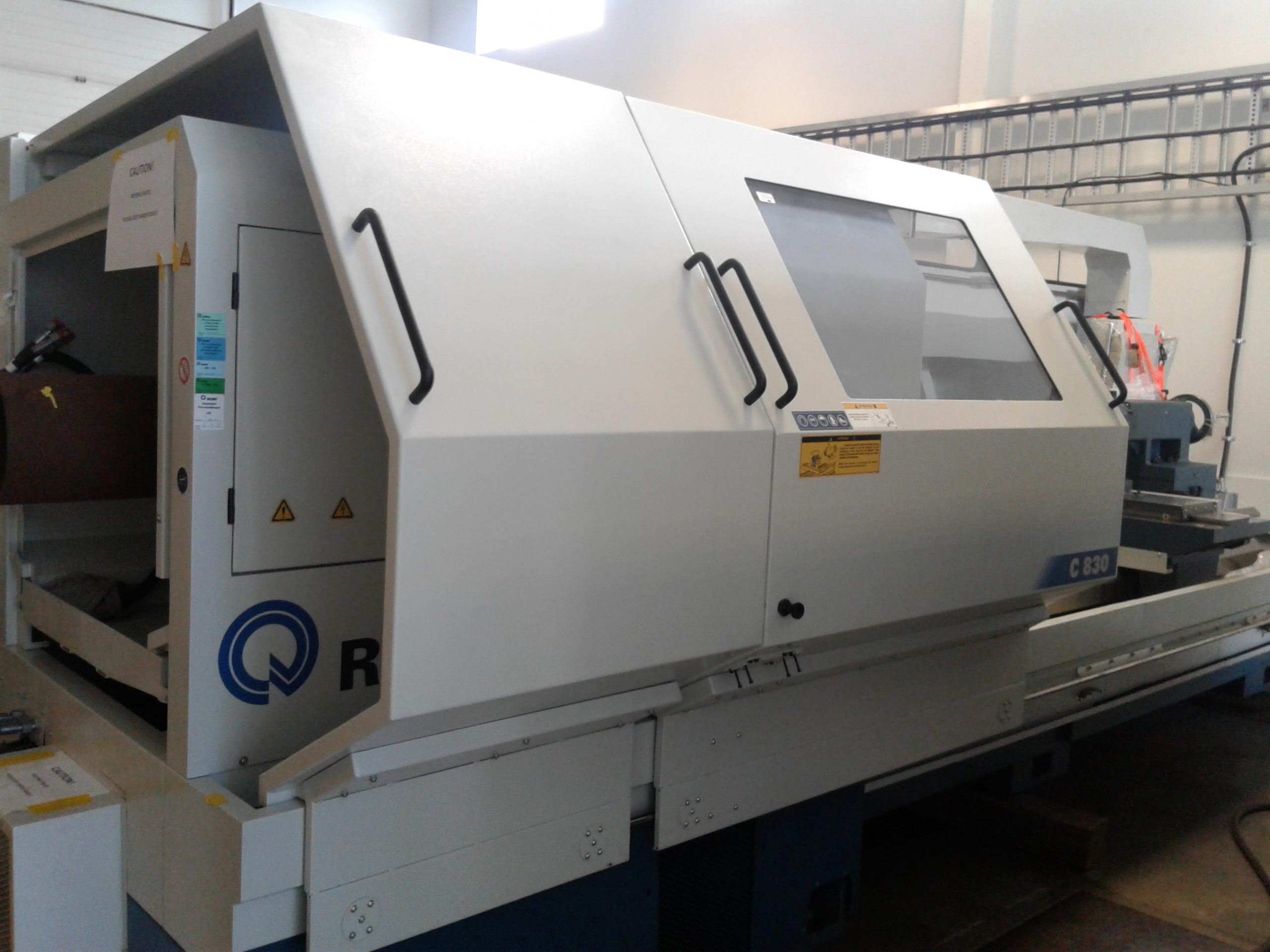

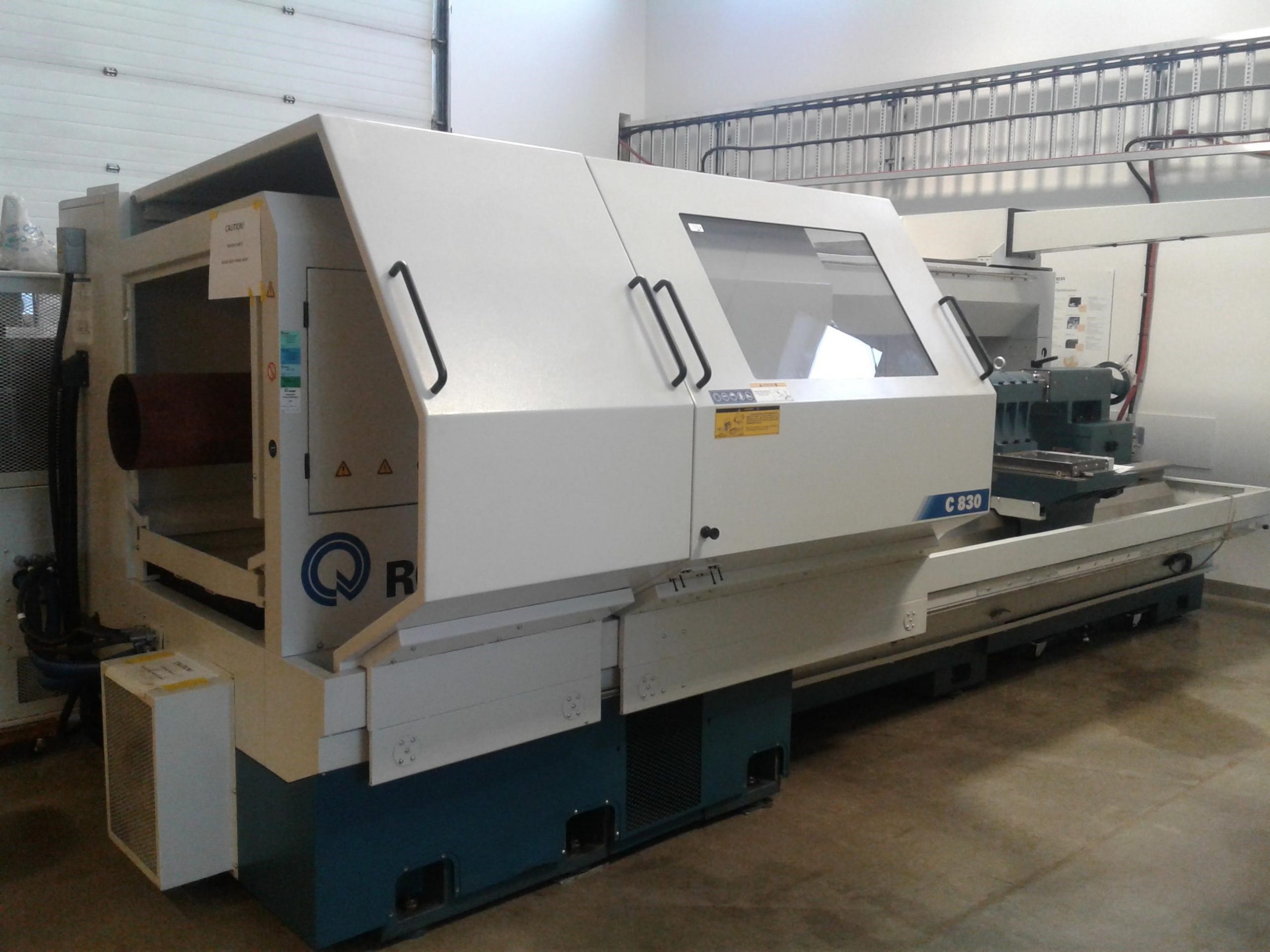

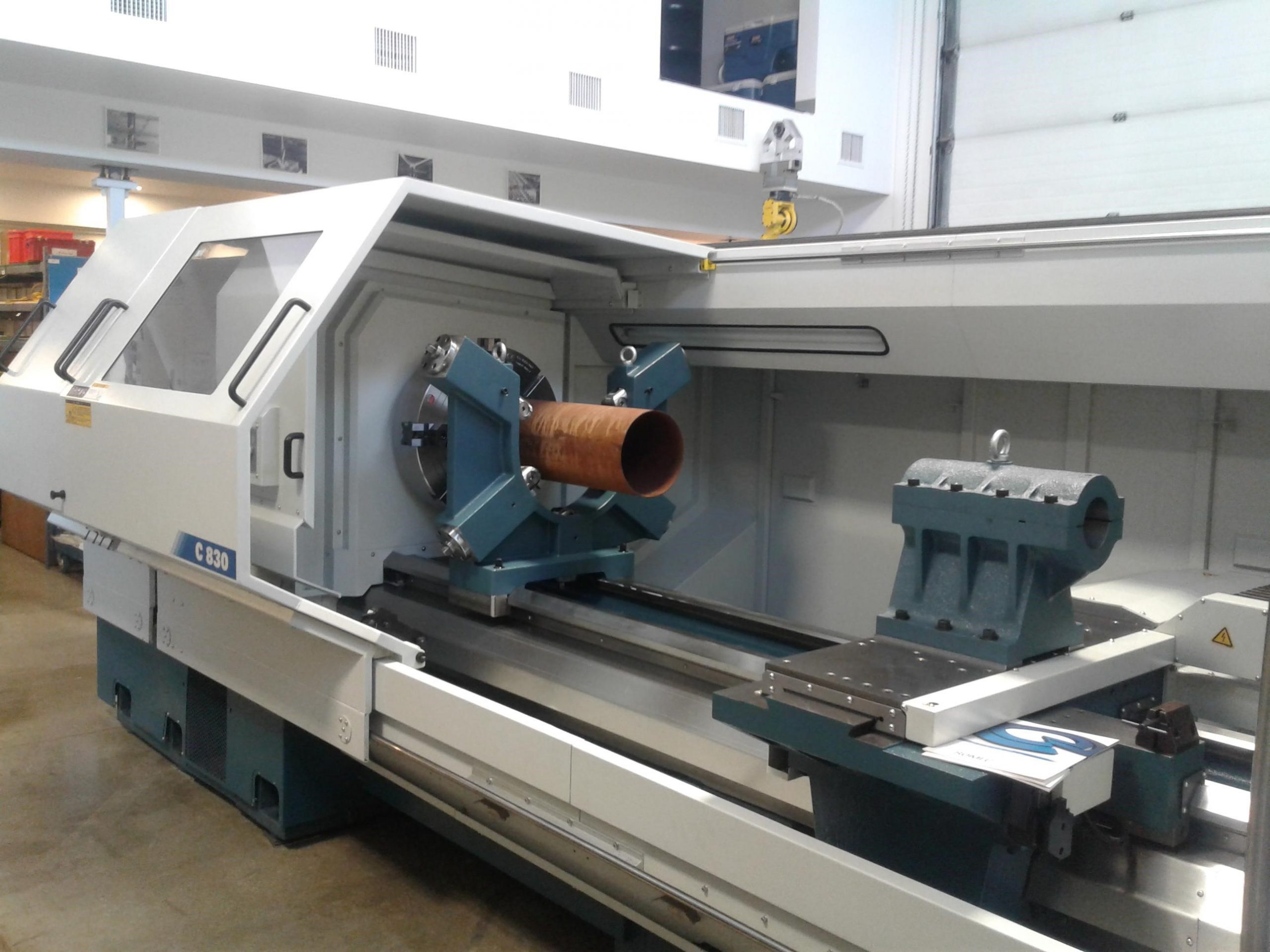

ROMI C 830 Combination Lathe Version 6.0
Romi C 830 x 120 in ASA A2-15 Spindle nose, 260mm (10.2) Thru Spindle 120 in Bed length

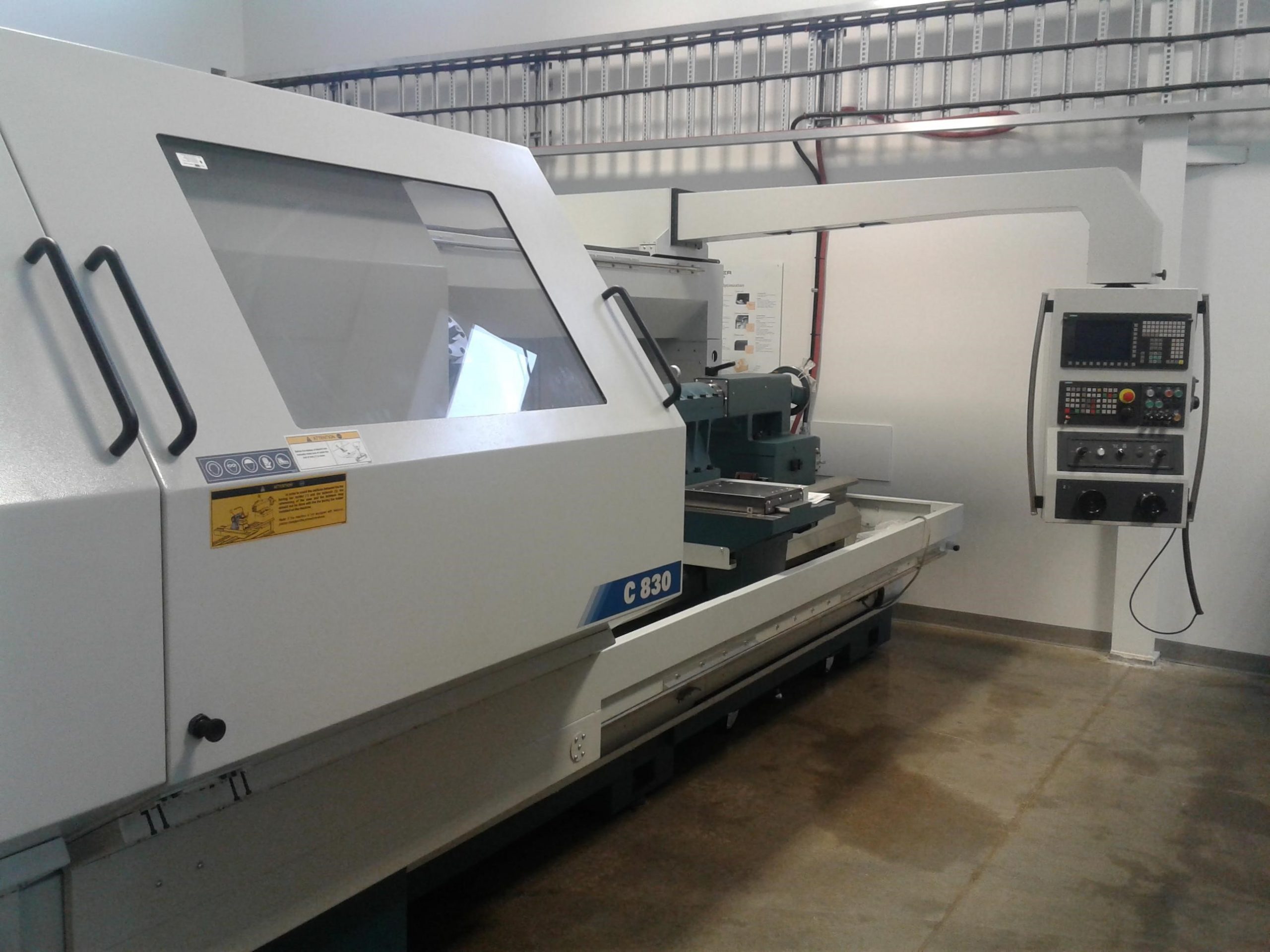

Siemens 828D with LCD 10.4 in color monitor and control
Swing over Bed 33.46
Swing over cross slide 21.65
Distance between centers 118.11
Width of bed 18.11
Spindle nose A2-15
Spindle Bore 10.2
Spindle Speed (RPM) 775
X Axis (cross travel) 20.47
Z axis (Longitudinal travel ) 118.9
X axis rapid traverse Feed rate 319/ipm
Z axis rapid traverse Feed Rate 315/ipm
Main motor 45 HP
Tail Stock
Quil diameter Tailstock 5.12
Quill travel Tailstock 7.87
Quill Taper Tailstock MT5
Length 296
Width 126
N.W. (kg / lbs) 10,250 (22,600)
Machine Accessories- C/w Machine
X55916 Coolant pump (10 lpm @ 7bar, 1.5kw / 2cv) (#3)
Tailstock with manually operated quill with built-in bearing and MT-5 quill taper hole
SE10043 Deep Hole Drill/Support Boring Bar Saddle
Steady rest U type, 100 to 440mm capacity (no rollers included) (#5)
Set of rollers for 100 to 305mm (4 to 12 in) capacity
2443-2A15EX 24 in 4 Jaw Extra Heavy Duty Oil Country Steel Body A2-15 11 in thru hole
Rear Centralizing Ring W/ 10.2 in Hole ASA A2-15
