Specifications:

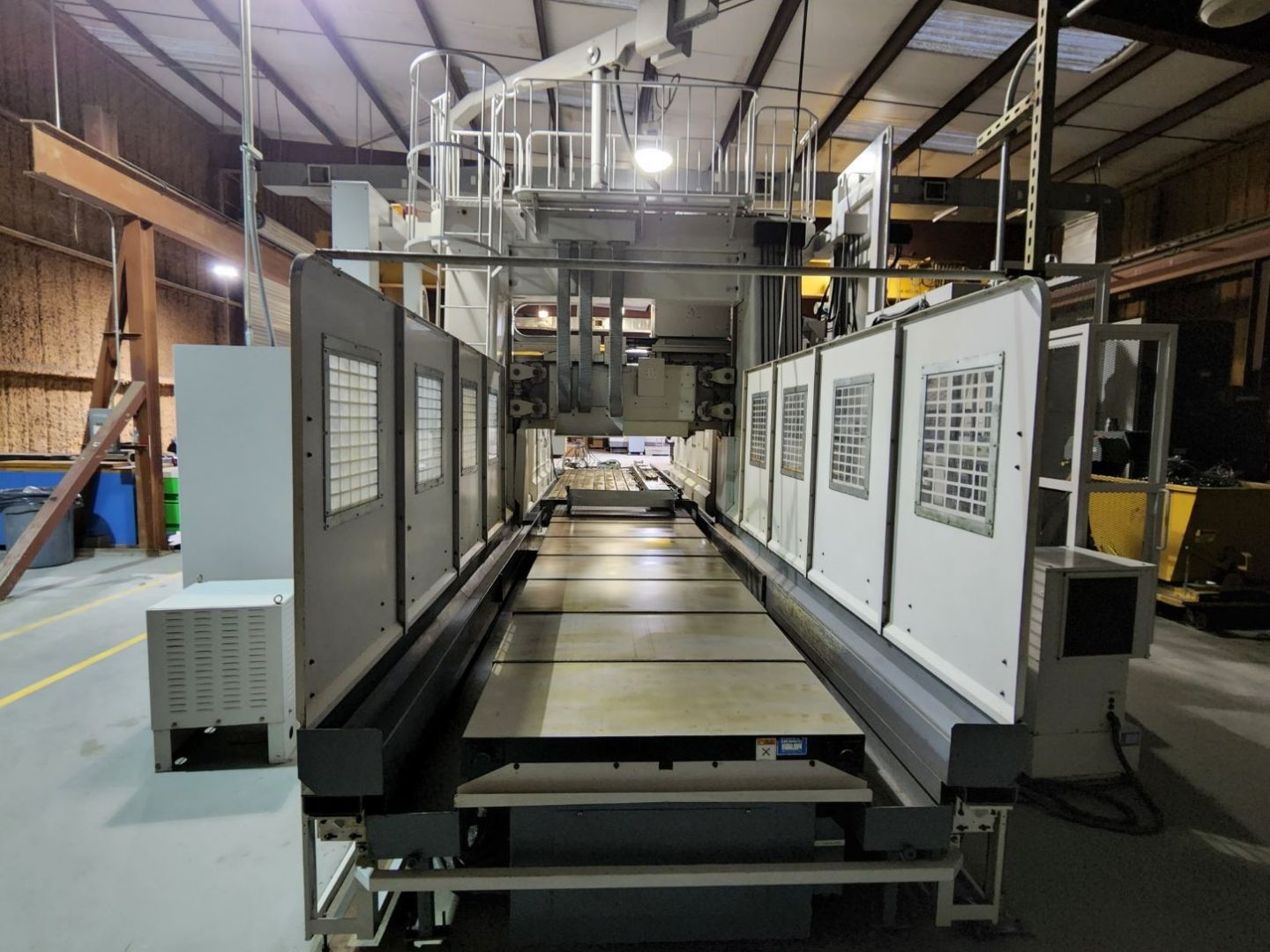

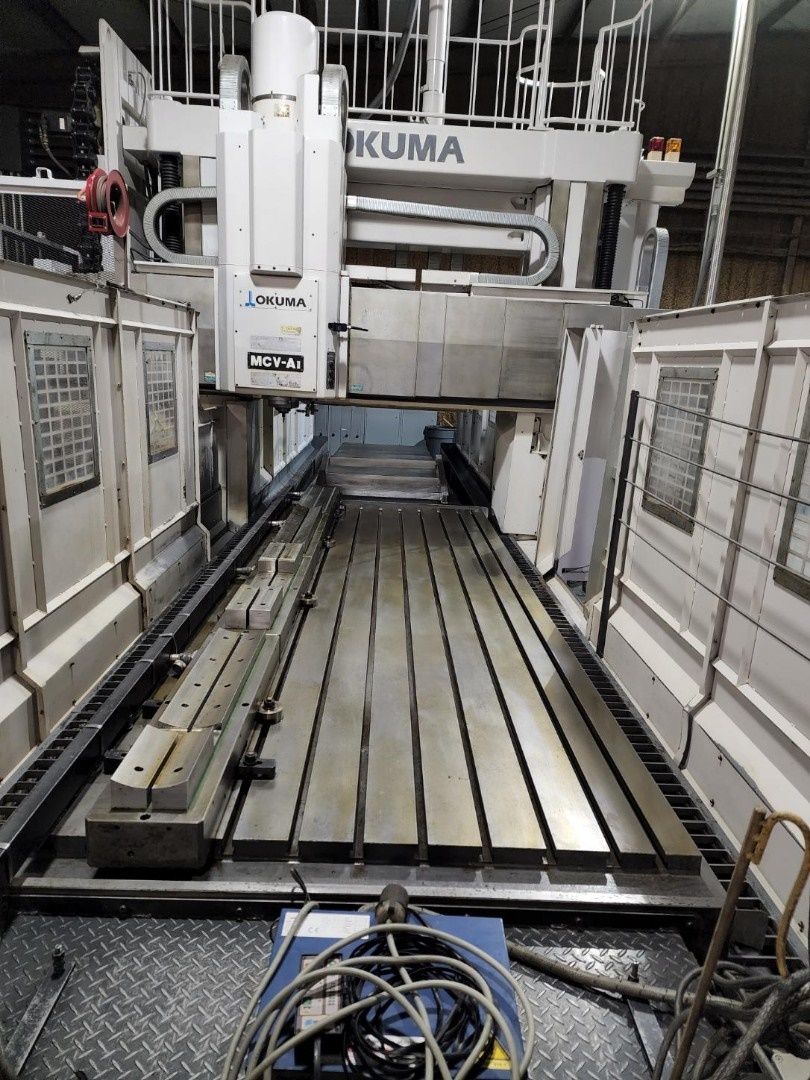

Model MCV-A2

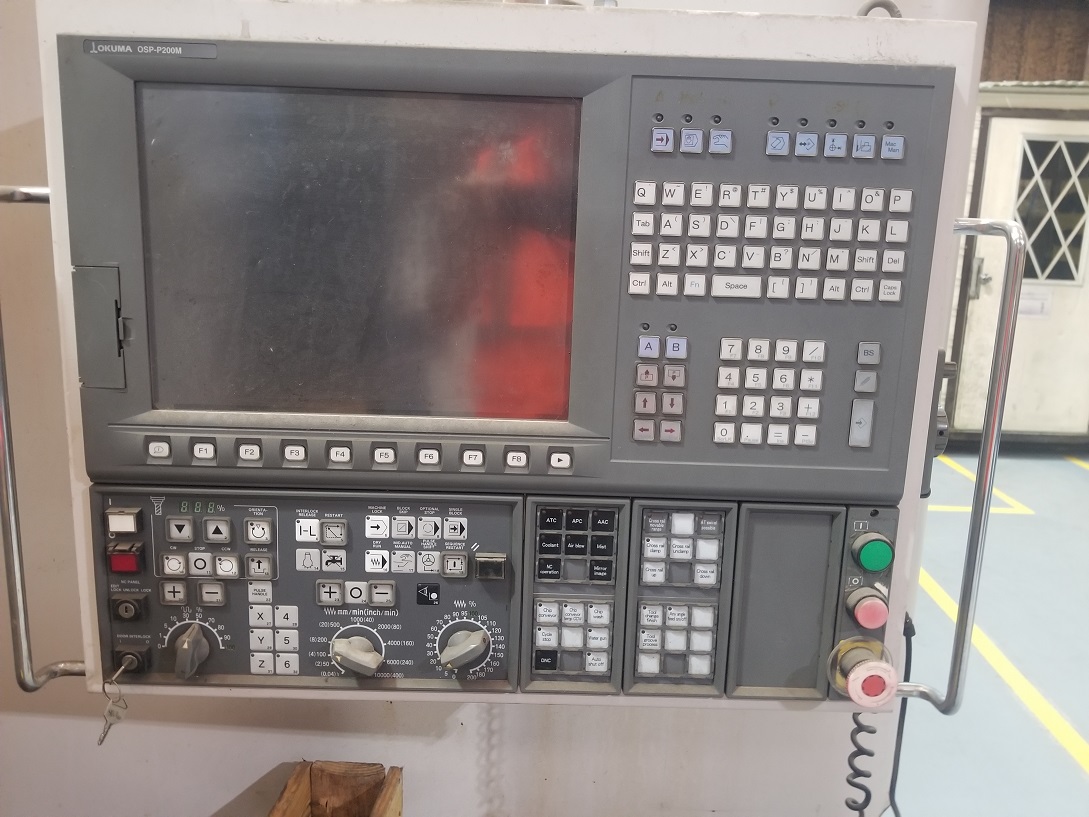

CNC control OSP P200M
Year of manufacture 2007
Width between columns 80 in
Travel, X-axis, table 157
Travel, Y-axis, spindle head 78 in
Travel, Z-axis, spindle quill 18 in
Dist. from spindle to table, Min-Max 0 in to 59 in
Size of table, width x length 60 in x 162 in
Cutting federate 0.04 in to 393 in ipm.
Rapid traverse rate 787 in ipm.
Spindle diameter 3.94 in
Spindle taper BT 50
Spindle speed range 30 to 4,000 rpm.
Quill diameter 8.27 in

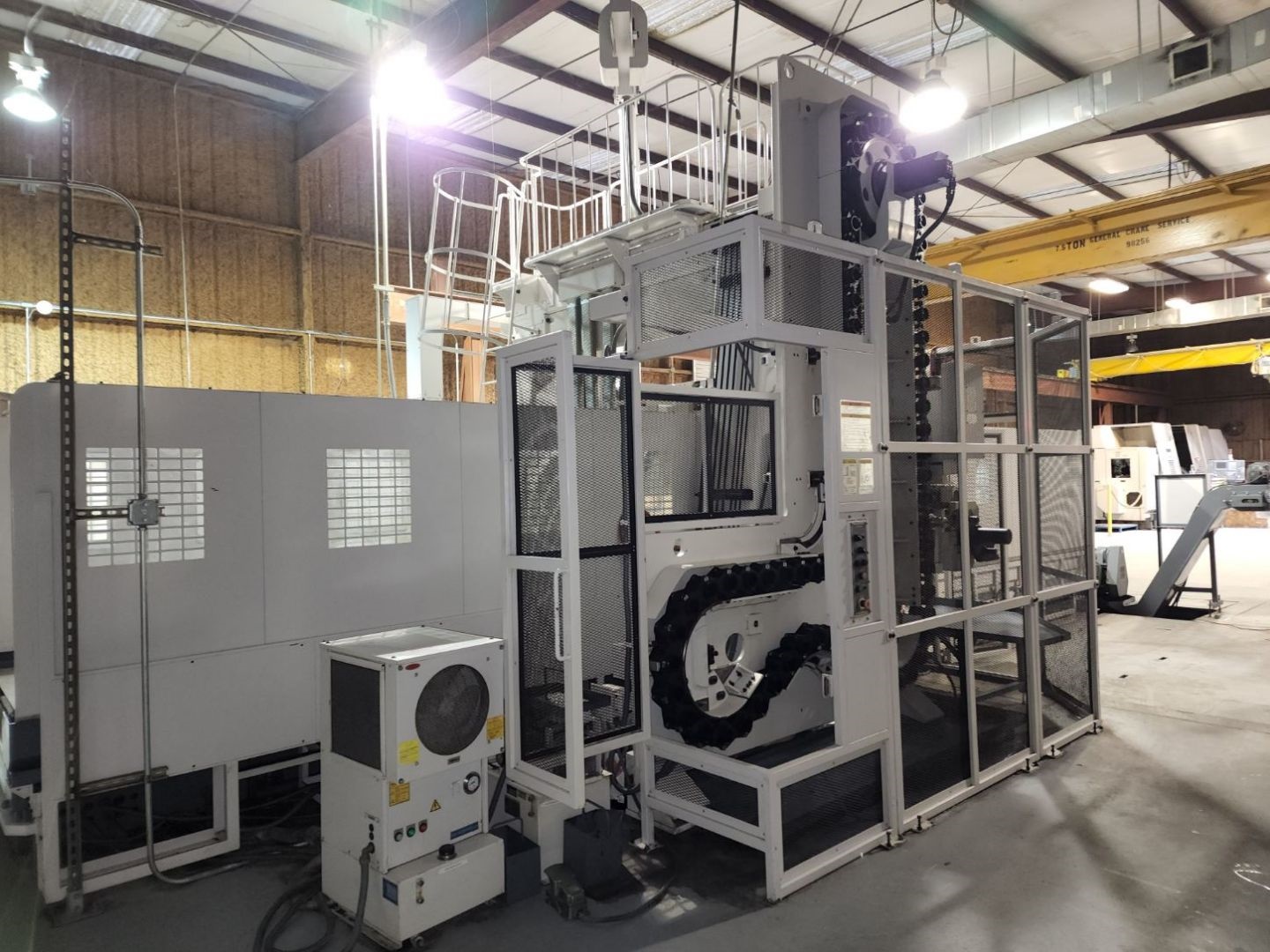

Tool stations 72
Tool taper BT-50
Main motor hp. 25/30 hp. 30 minute
Manuals Yes, complete set
Tooling Minimal (may be more)
Machine height 17 in (6 ft will come off when pendant is removed)
Floor space 40 ft Wide x 18 ft Long
Machine weight 86,900 lbs.
Price: $ 495,000. AS IS WHERE IS AS INSPECTED.
New cost today: About $ 1 Mil. Delivery: 12-18 months.
Comments: The machine is under power and in GOOD TO VERY GOOD CONDITION. It was purchased
to manufacture whip stock, which is an angular down hole tool that used to be used for offset drilling.
Mud motors, directional drilling and MWD (Measure while drilling) made whipstock obsolete. It has been
kept under power in an air conditioned and heated building.
Ten years ago, new owners purchased the facility. The machine has not been used since the
new owners purchased the facility. Last year Okuma come in and powered up the machine. The
batteries were dead. They were replaced, parameters reinstalled and the machine cycled.
