Overview:
Type: Grinders
Manufacturer: OKAMOTO
Model: PSG-2024DX
Stock #: 3011
Status:For Sale
Long Description

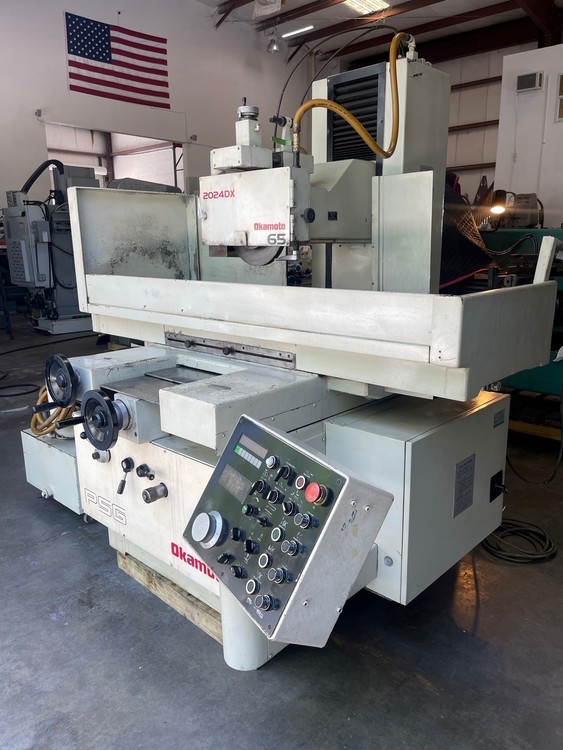

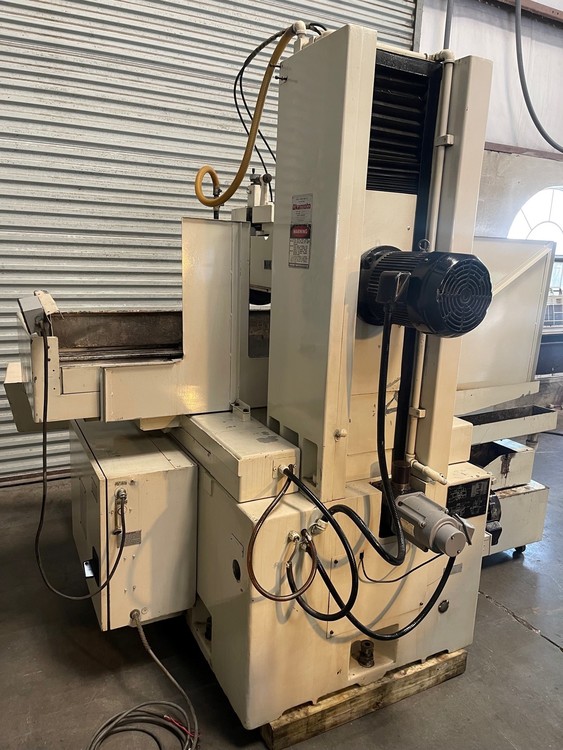

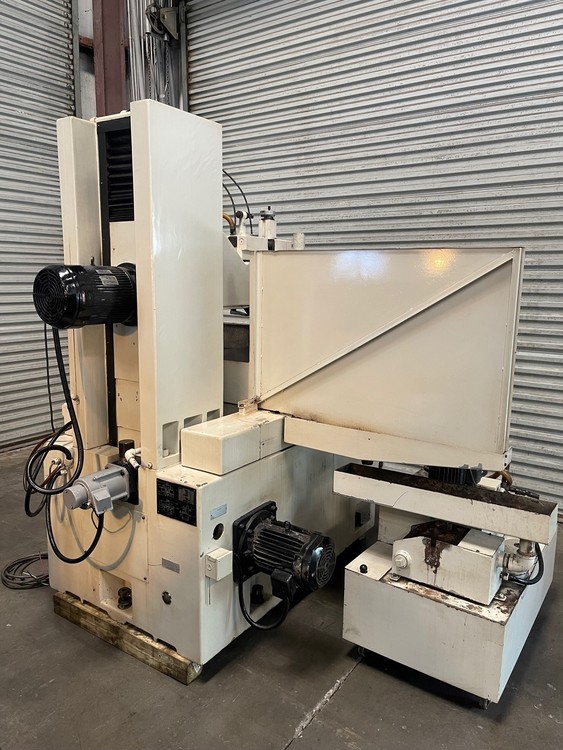

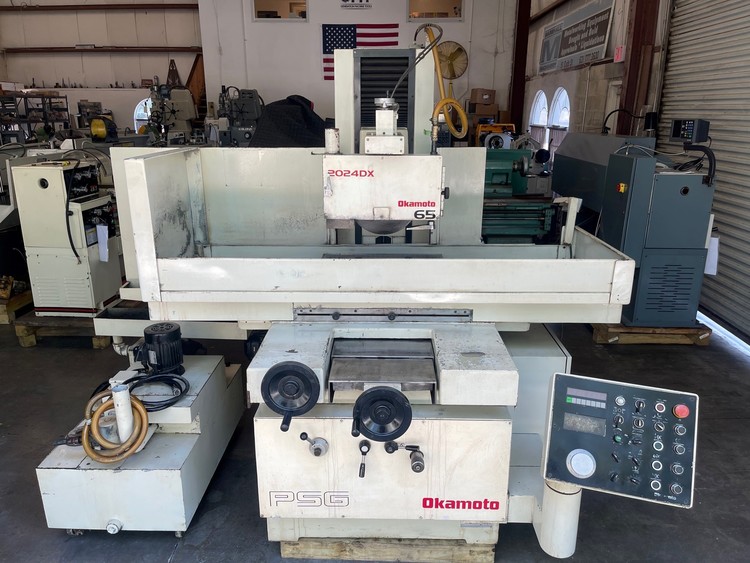

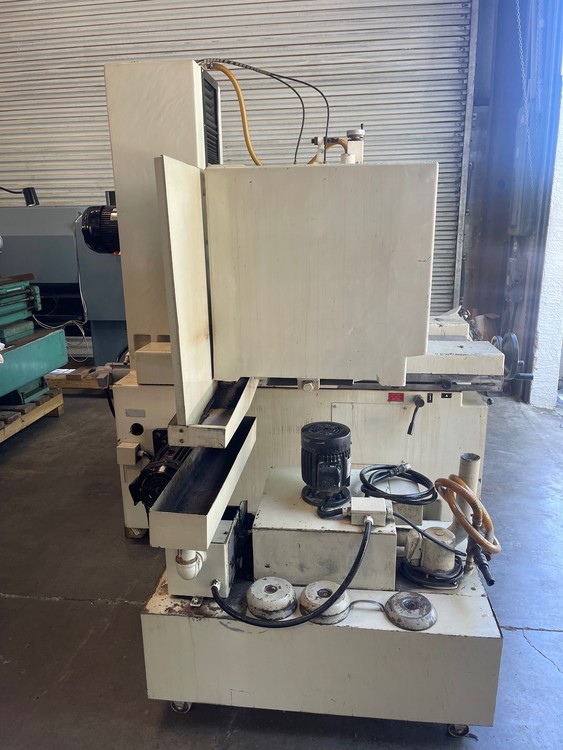

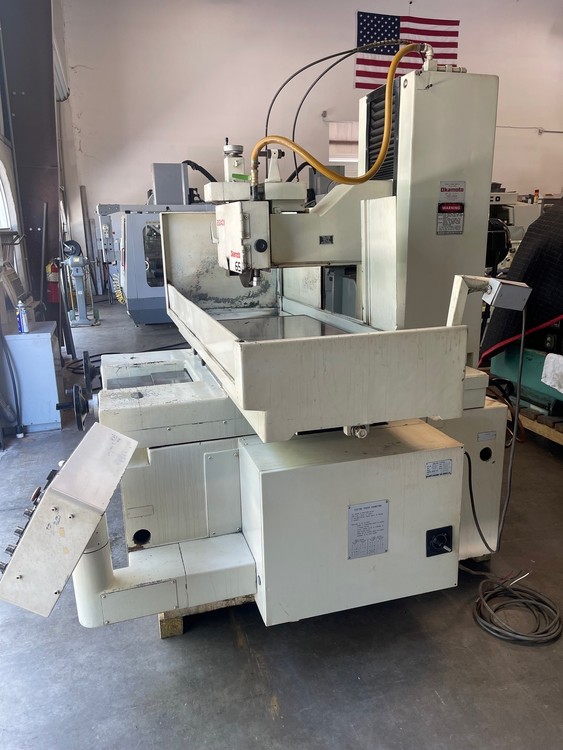

OKAMOTO #PSG-2024 DX 20 in x 24 in Hydraulic Surface Grinder
Specifications:
Reference # : GMT-3011
Model # : PSG-2024DX

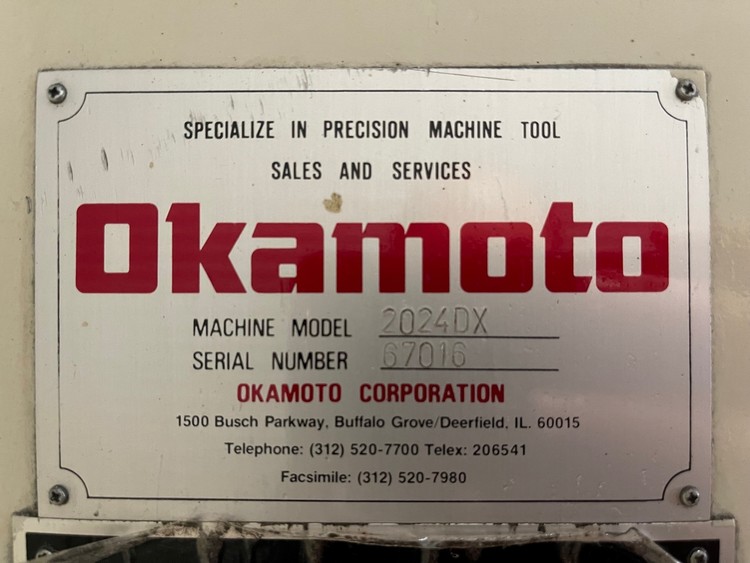

Serial # : 67016
Year of Manufacture: 1997
Table working capacity: 24" x 20"
Table capacity manual: 29.5" x 13.4"
Maximum grinding width: 20"
Maximum grinding length: 24"
Maximum distance from underside of 12" diameter grinding wheel to top of table: 21.5 in
Maximum weight of workpiece on table: 1,540 Lbs.
Hydraulic longitudinal feed: 1 to 82 F.P.M.
Hydraulic intermittent cross feed: .02 to 0.8 I.P.M..
Automatic downfeed traverse and plunge cut: .00005" to .0015"

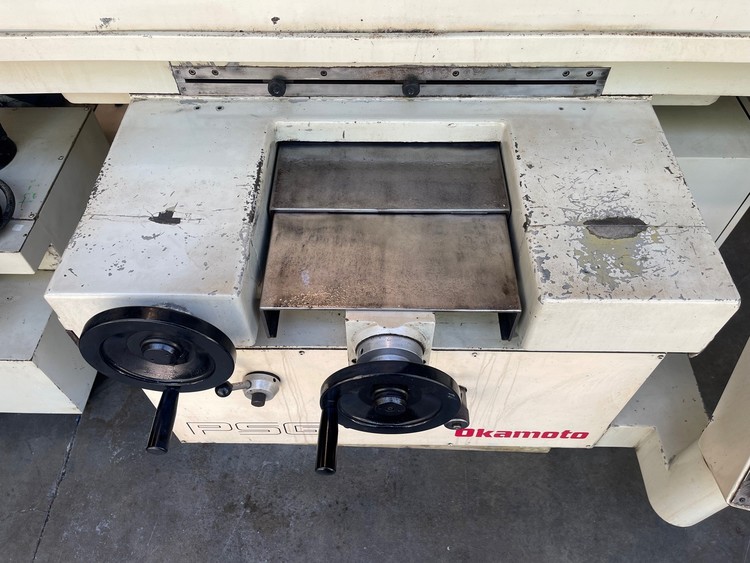

Graduation of crossfeed handwheel: .001"
Graduation of vertical handwheel: .001"

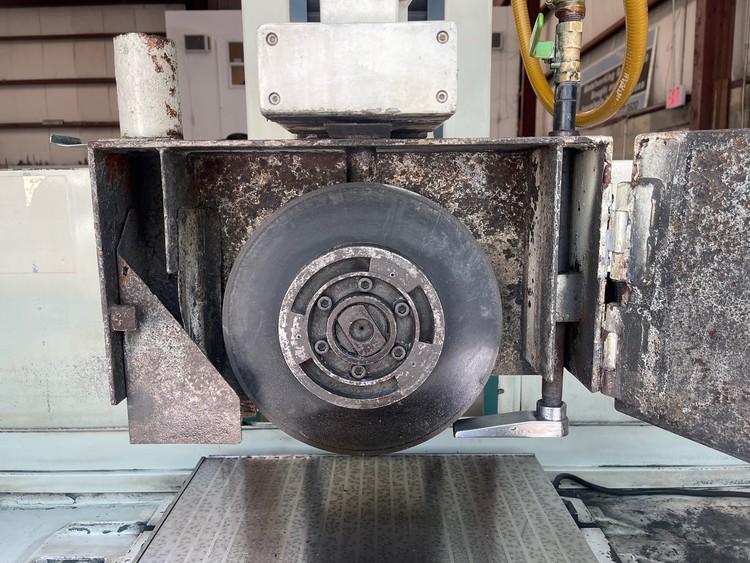

Grinding wheel size: 12" diameter x 5" bore x 1.5" width
Grinding wheel speed: 1,800 R.P.M.
Equipped With:
Hydraulically actuated longitudinal and cross feeds
Double vee way table construction
Servo driven automatic incremental down feed of grinding wheelhead in programmable coarse and fine increments from 0.00005" to 0.0015" in both the plunge and surface grinding modes of operation
Automatic cycle with sparkout timer from 0 to 5 passes

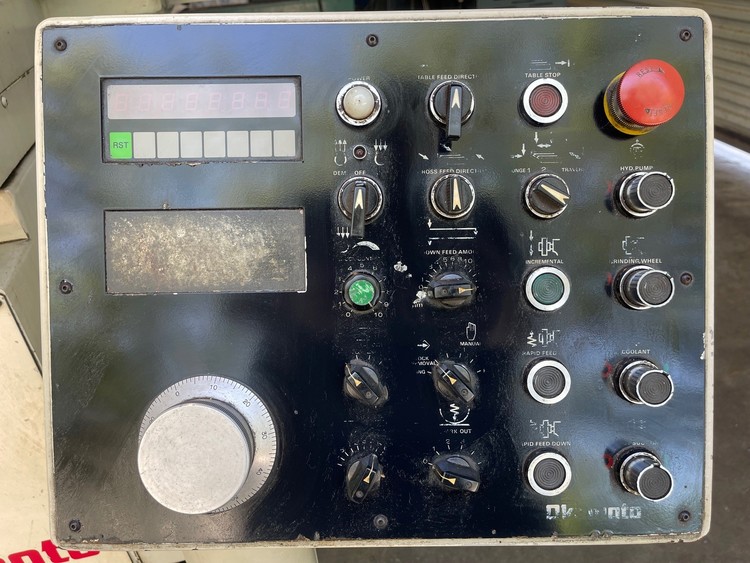

Electronic handwheel for manual vertical movement with each graduation equivalent to .00001", .0001" or .001"
Digital display of vertical axis position
Motorized power rapid traverse to grinding wheelhead
Overhead dresser attachment

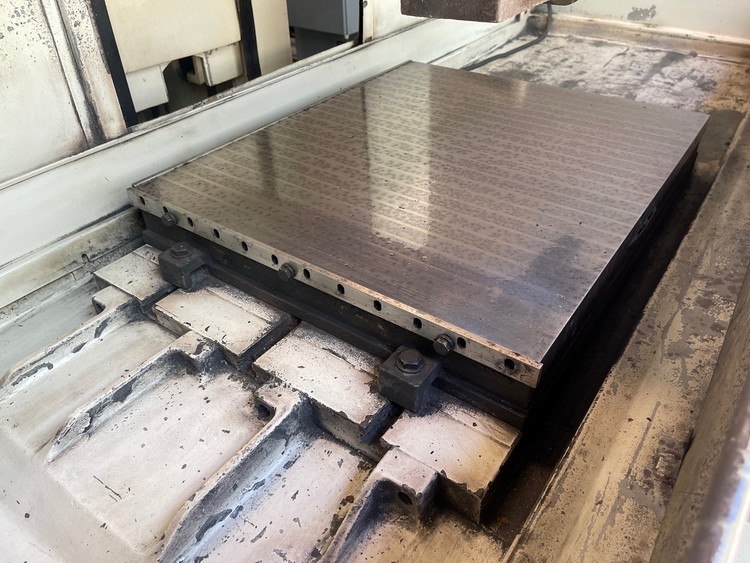

20" x 23-5/8" electromagnetic chuck with variable hold control
(5) Leveling pads

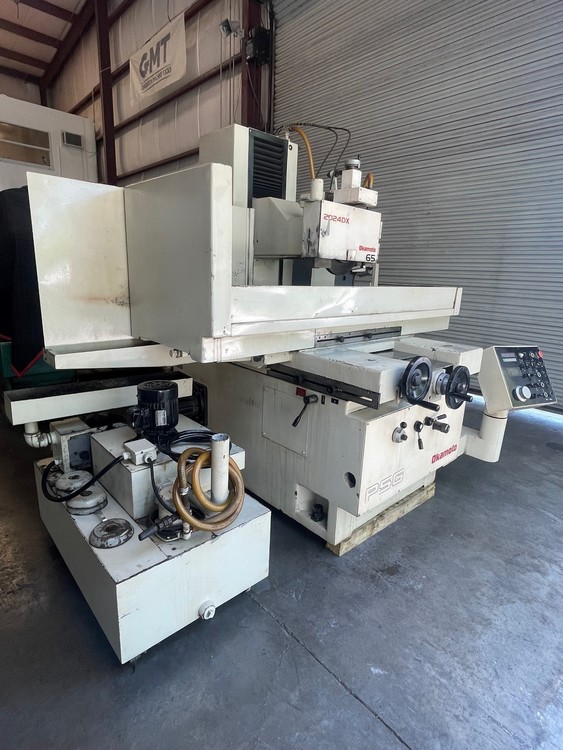

0.5 H.P. External coolant pump and tank (less magnetic separator)
1/2 H.P. AC Servo feed motor
3 H.P. 3/60/230/460 volt hydraulic pump motor
5 H.P. 3/60/230/460 volt spindle drive motor and electrical controls
Machine is wired for 230 Volt operation
