Description

Overview:

Type: Lathes, Engine

Category: Lathes & Turning Machines

Manufacturer: NARDINI

Model: ND-325

Condition: New - In-Stock

Year: 2022

Stock #: 1101

Status: For Sale

Description:

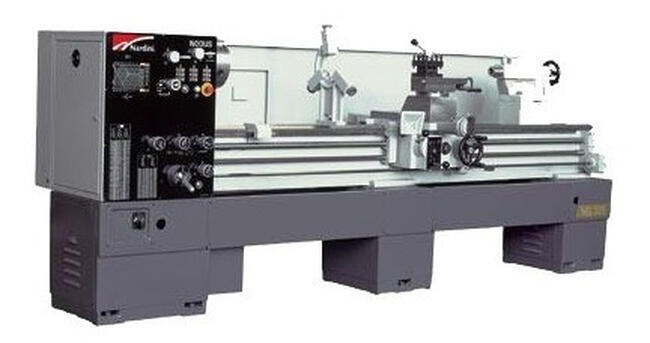

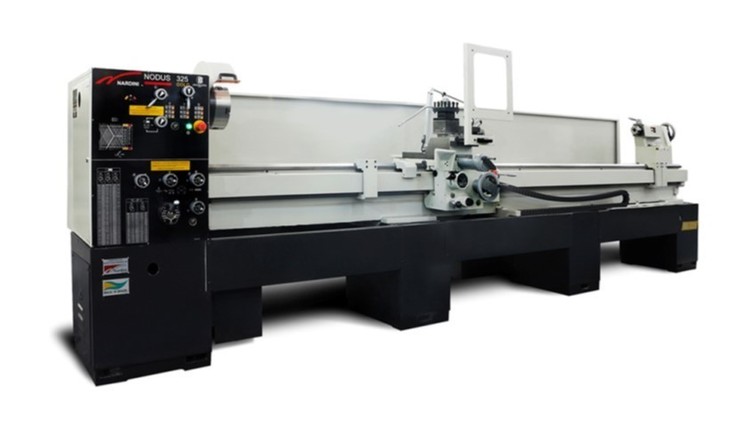

Nardini 26 in x 90 in Universal Engine Lathe Model Nodus ND-325

Specifications:

Swing 26"

Centers 90"

MAIN MACHINE SPECIFICATIONS

Machine Model ND 325x2200

Capacities METRIC SAE

Max Turing over the bed 650 mm 25,6 inch

Max Turing cross slide 475 mm 18,7 inch

Max. Turning over the carriage 600 mm 23,6 inch

Max. Turning over the gap 830 mm 32,7 inch

Gap length 180 mm 7,1 inch

Between centers Machine size D 2200 mm 86,6 inch

Upper slide travel 200 mm 7,9 inch

Cross slide travel 500 mm 19,7 inch

Tool square cross section 20 mm 0,8 inch

Bed

Bed width 270 mm 10,6 inch

Bed height 320 mm 12,6 inch

Headstock

Spindle nose L0 ASA

Spindle shaft passage diameter 46 mm 1,8 inch

Nose taper 01:20

Nose taper sleeve MT4

One range of 18 speed 20-1600 rpm

Carriage and feeds

Feed screw pitch 6,000 mm 0,236 inch

Number of selectable feed rates 48 cross /48 longitudinal

Min. Longitudinal feed 0,042 mm/rot. 0,002 inch/rot.

Max. Longitudinal feed 1,013 mm/rot. 0,040 inch/rot.

Min. cross feed 0,021 mm/rot. 0,001 inch/rot.

Max. cross feed 0,500 mm/rot. 0,020 inch/rot.

Threading

Number of selectable threads 192

Metric Threading 48 selectable 0,4-7,0 mm

Inch Threading 48 selectable 3,5-42 TPI

Diametral Pitch Threading 48 selectable 14 to 168

Module Threading 48 selectable 0,1 to 1,75

Tailstock

Quill diameter 60 mm 2,4 inch

Quill stroke 220 mm 8,7 inch

Side travel 15 mm 0,6 inch

Quill taper MT4

Motors

Headstock Motor 6 kw 8,0 hp

Coolant Pump motor 0,09 kw 0,1 hp

Machine Sizes and Weight

Machine width 1200 mm 47,2 inch

Length for Between centers size A 3700 mm 145,7 inch

Length for Between centers size B N/A N/A N/A N/A

Length for Between centers size C N/A N/A N/A N/A

Approx. weight - 1900 kg 4180 lbs
