Description:

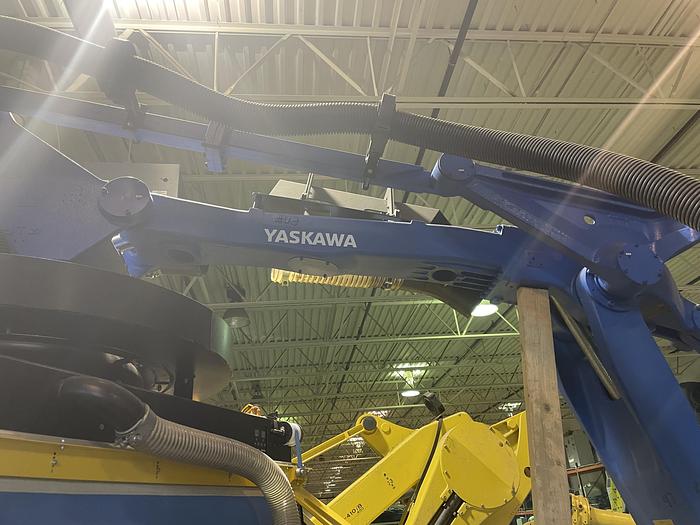

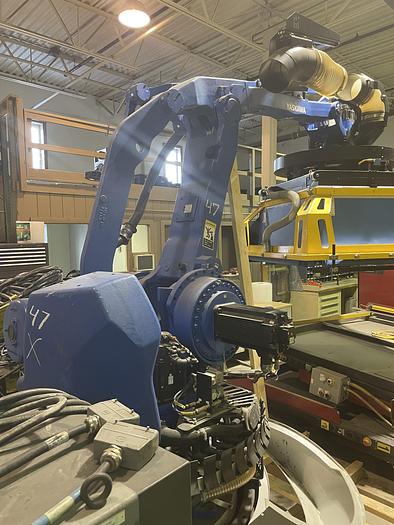

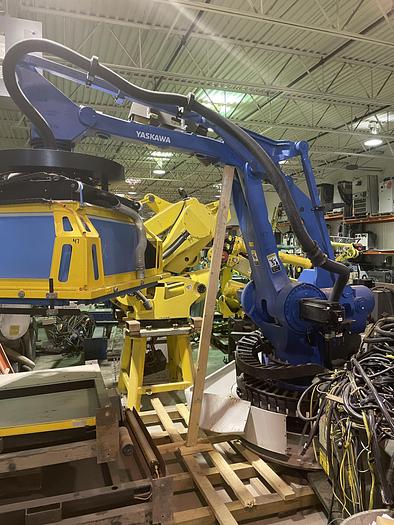

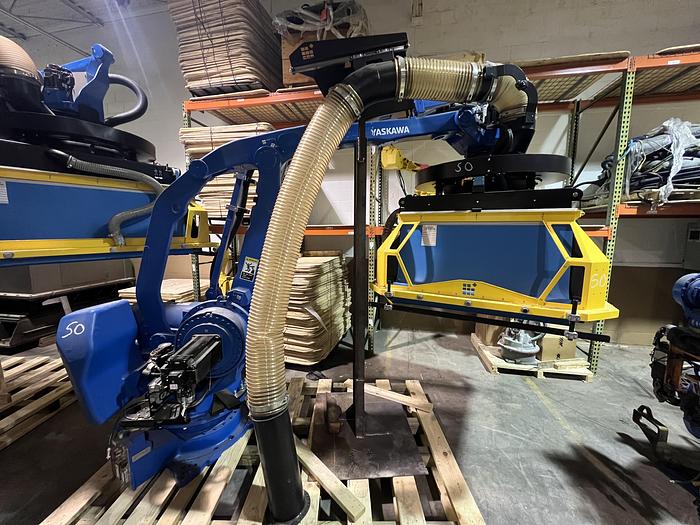

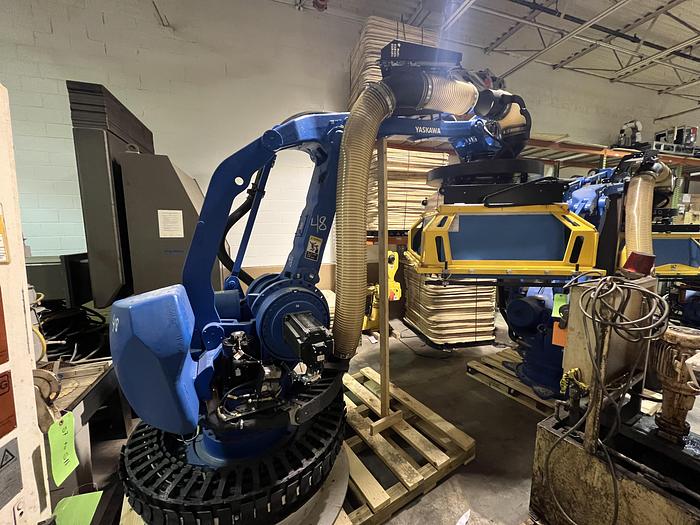

1-USED MOTOMAN MPL800 4 AXIS PALLETIZING ROBOT NEW 2015 DX100 800KG X 3.159 METER REACH

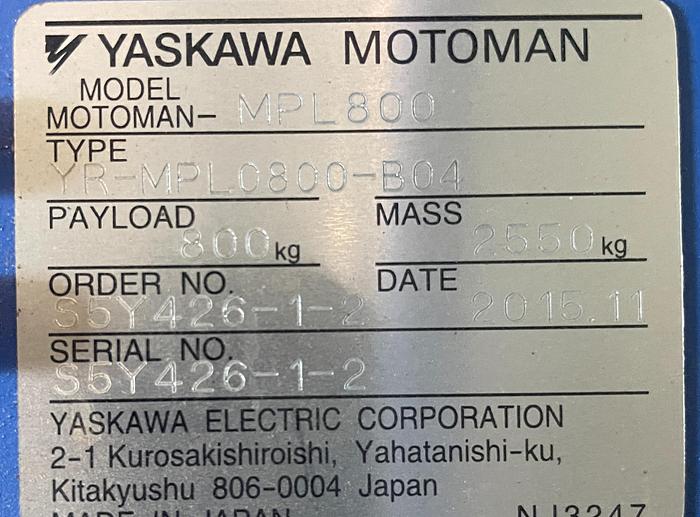

   TYPE YR-MPL0800-B04

   SERIAL NUMBER S5Y426-1-2

   DATE OF MFG. 11/2015

   STK 104599

======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

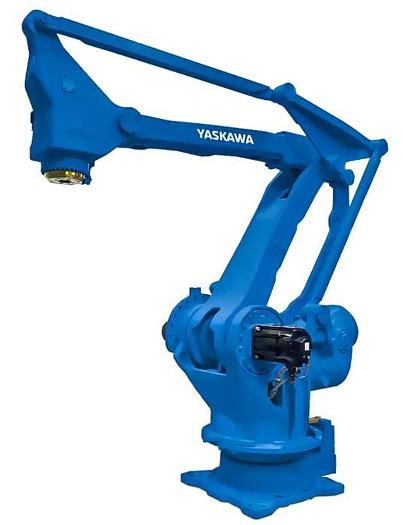

Increasing production through faster and more reliable automation methods are key reasons to consider the Motoman MPL800. It stands out with its ability to handle 500 kg loads up to 3024 mm away. The MPL800 DX100 is a four-axis dedicated pelletizing machine that can service multiple infeed conveyors and up to four pallet build locations. Internal Cabling and air lines, can service multiple infeed conveyors.

Robot Specifications:

Axes: 4

Payload: 800kg

H-Reach: 3159mm

Repeatability: Plus/minus 0.5mm

Robot Mass: 2550kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 65 deg/s (1.13 rad/s)

J2 65 deg/s (1.13 rad/s)

J3 65 deg/s (1.13 rad/s)

J4 125 deg/s (2.18 rad/s)

Robot Motion Range:

J1 Plus/minus 180 deg

J2 +90 deg - 45 deg

J3 +15.5 deg - 120 deg

J4 Plus/minus 360 deg

EQUIPPED WITH:

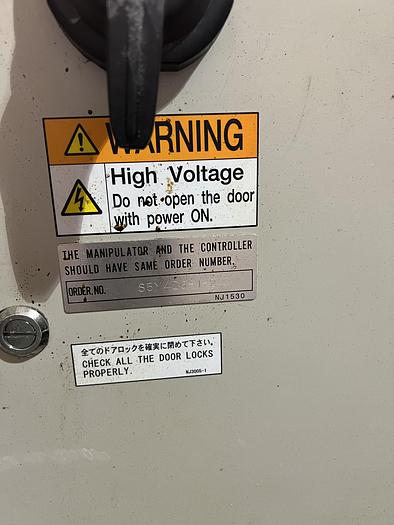

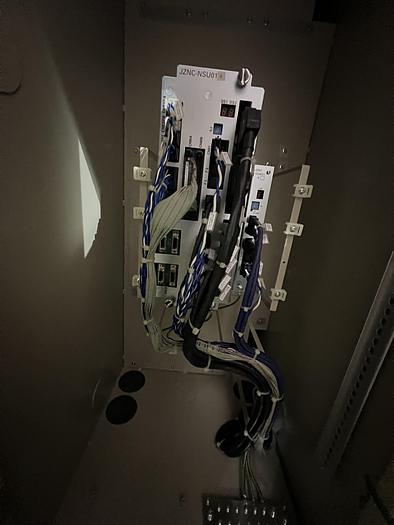

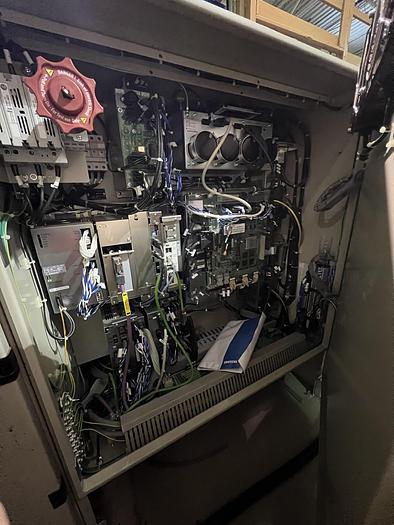

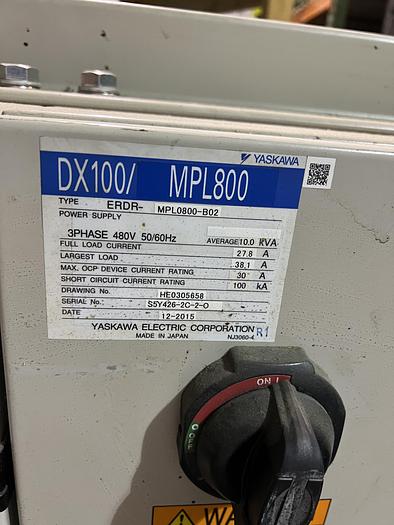

YASKAWA MOTOMAN DX100 CONTROLLER

MISSING-MOTOMAN ROBOT CONNECTION CABLES

MISSING-MOTOMAN TEACH PENDANT

FOB TRUCK, 300 EAST SECOND STREET, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS

AND CONDITIONS.

RAB INDUSTRIES, INC.

Specifications:

Manufacturer YASKAWA MOTOMAN

Model YASKAWA MOTOMAN MPL800

Year 2015

Condition Used

Serial Number S5Y426-1-2

Stock Number 104599

Axes 4

Payload 800kg

H-Reach 3159mm

Repeatability Plus/minus 0.5mm

Robot Mass 2550kg

Structure Articulated

Mounting Floor

Applications Material Handling Robots, Palletizing Robots

Controller DX100

Documents

 YASKAWA MOTOMAN MPL800 PALLETIZING ROBOT PDF BROCHURE TECHNICAL SPECIFICATIONS.html
