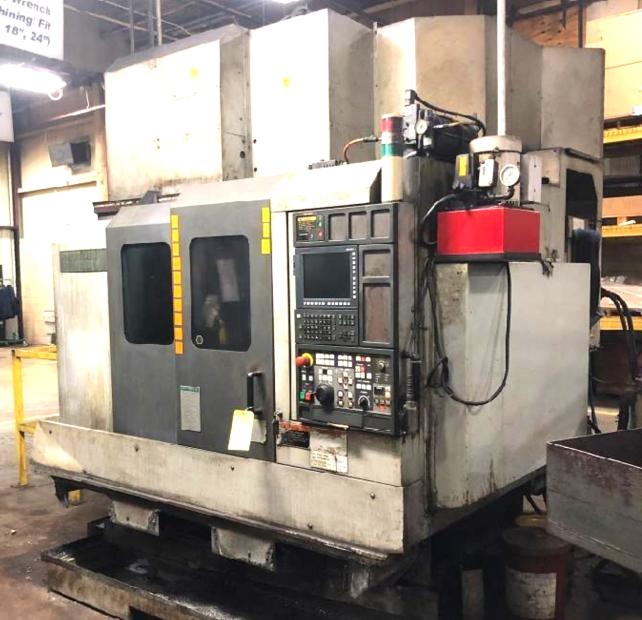

MORI SEIKI NV5000 A1B/40 4-AXIS CNC VERTICAL MACHINING CENTER - MORI SEIKI NV5000A/40
NV5000A/40
Machining Centers Vertical Horizontal CNC
Vertical Type NC, CNC
used
15312 (LB)
2003
$0.00

Description

Specifications:
X 31.5 Y 20.0 Z 20.0 # Axis 5.0 Power 30.0 RPM 14000.0 # ATC 30.0 X-Axis Travel (longitudinal movement of table) 40.2" Y-Axis Travel (cross movement of saddle) 20.1" Z-Axis Travel (vertical movement of spindle head) 20.1" Distance from table surface to spindle gauge plane 5.9"-26.0" Table working surface 52.0"x23.6" Table loading capacity 2,640 lbs Table surface config. (T slots WxPitchxno of T-slots)0.7"x3.9"x6" Max. Spindle Speed 14,000 RPM Number of Spindle speed ranges 1 Type of spindle taper hole #40 Spindle bearing inner diameter 2.6" Rapid traverse rate 1,653.5 IPM Cutting feedrate 0.04-1,653.5 IPM Jog feedrate 0-197 IPM Type of Tool shank Cat 40 Tool storage capacity 30 Max. Tool diameter (without adjacent tools) 4.9" Max. Tool length 11.8" Max. Tool mass 26.4 lb Tool Changing time 2.6 seconds Spindle drive motor 30/24.7 HP Feed Motor 5.3 HP Coolant tank capacity 72.6 Gal Machine weight 15,312 lbs
Equipped With:

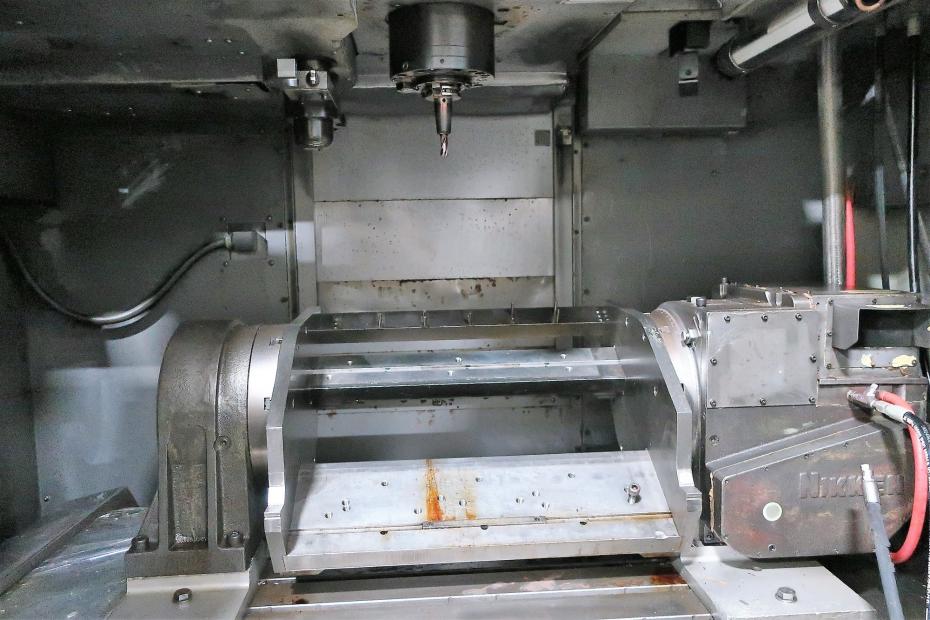

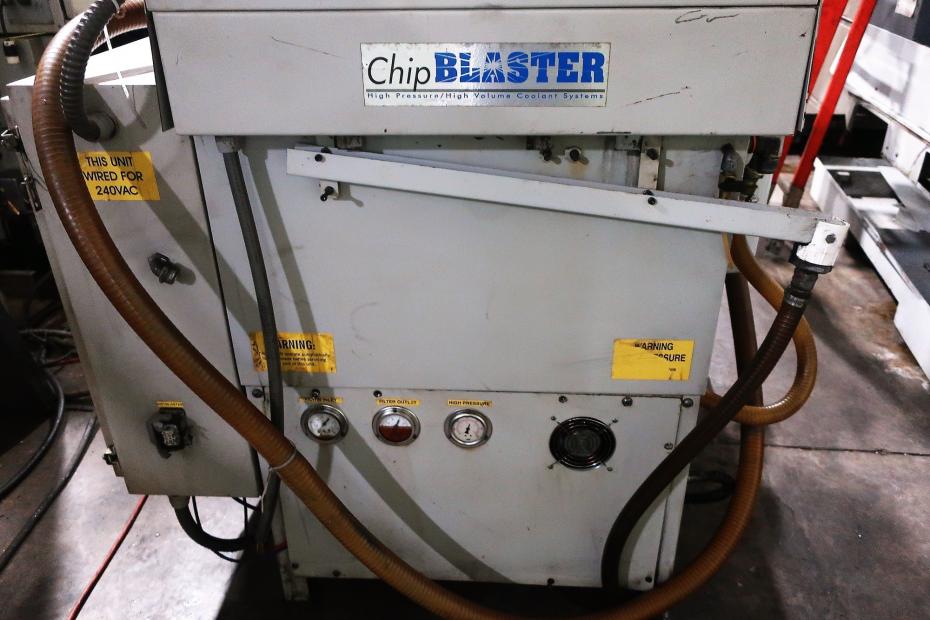

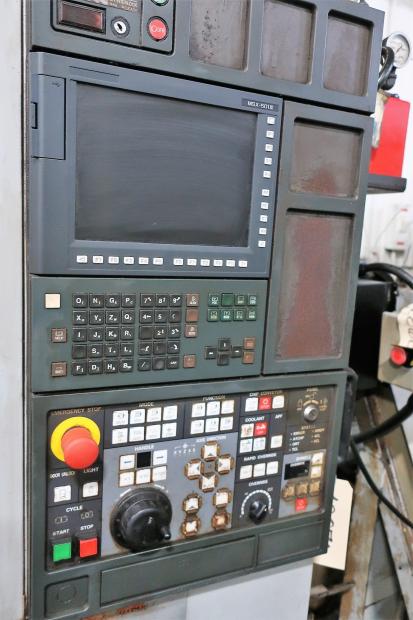

Mori Fanuc MSX-501 CNC Controls, 30 Position Automatic Tool Changer 4th Axis Rotary Table 14,00 RPM Spindle, Cool Blaster High Pressure Coolant Coolant System Splash Guards

MORI SEIKI NV5000 A1B/40 4-AXIS CNC VERTICAL MACHINING CENTER

Stock Number 12870
