Description

Specifications:

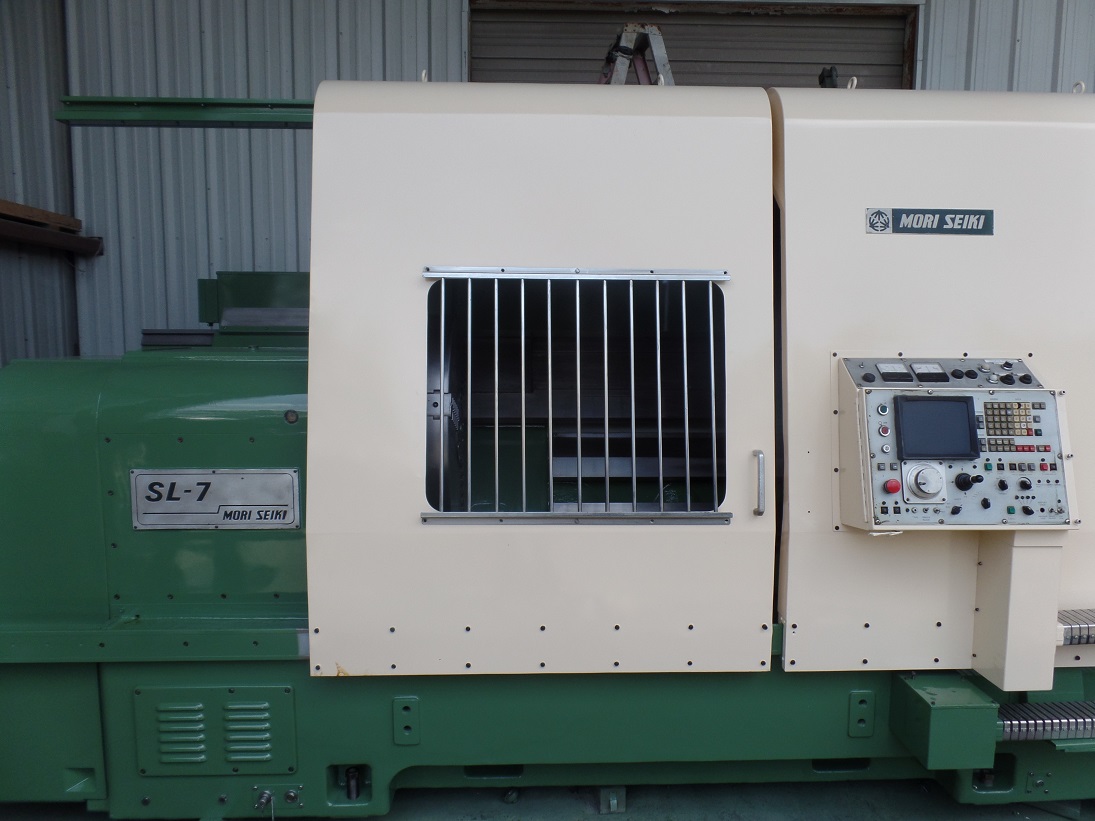

Model                                                            SL-7

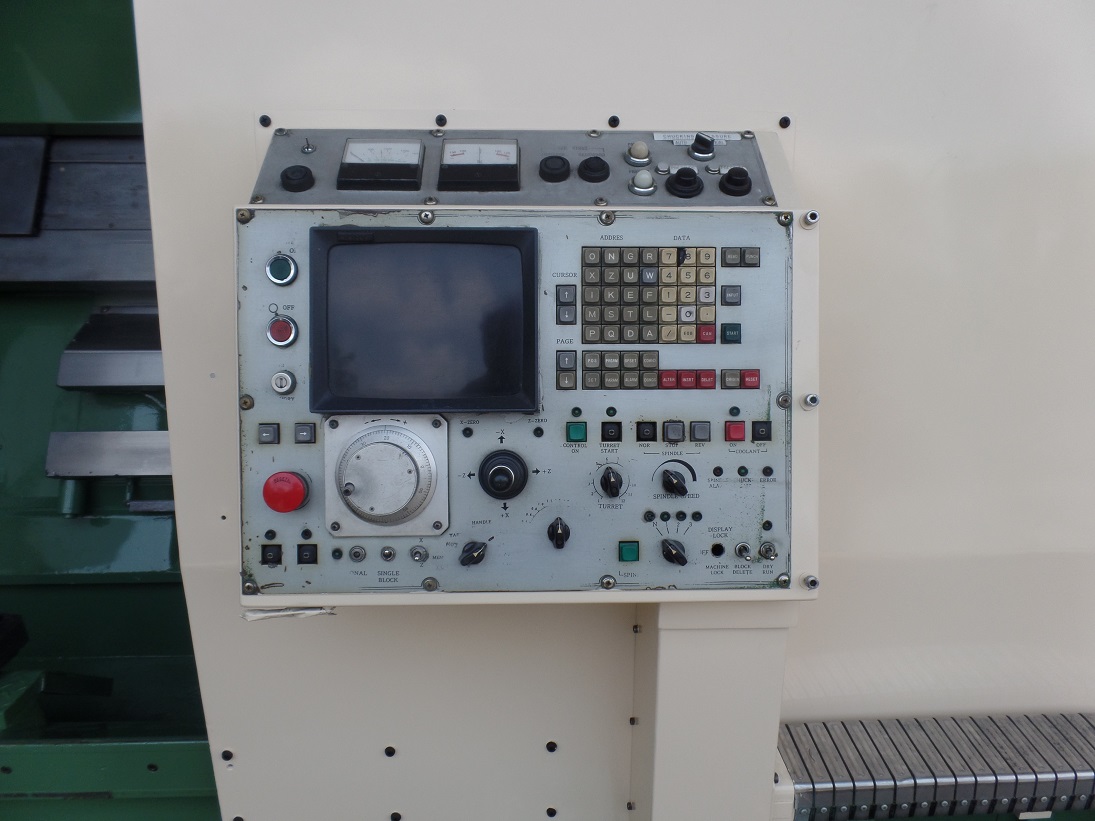

CNC control                                                  Fanuc 6-TB

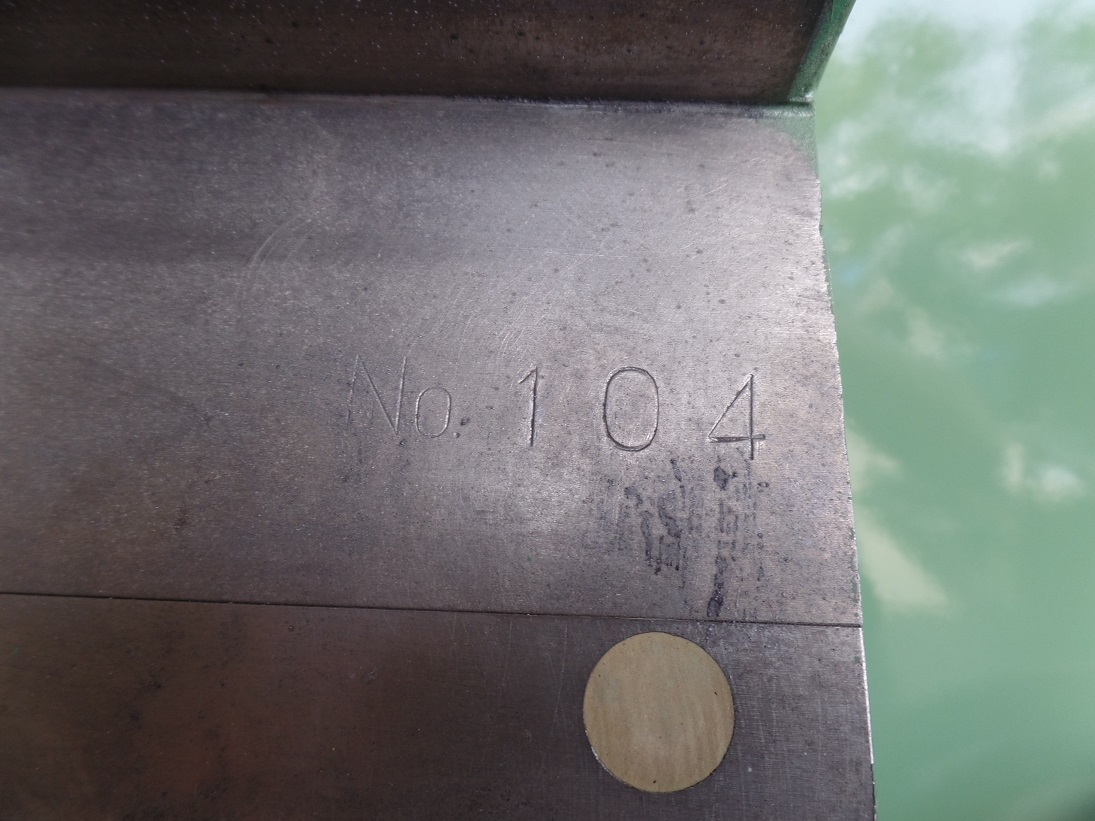

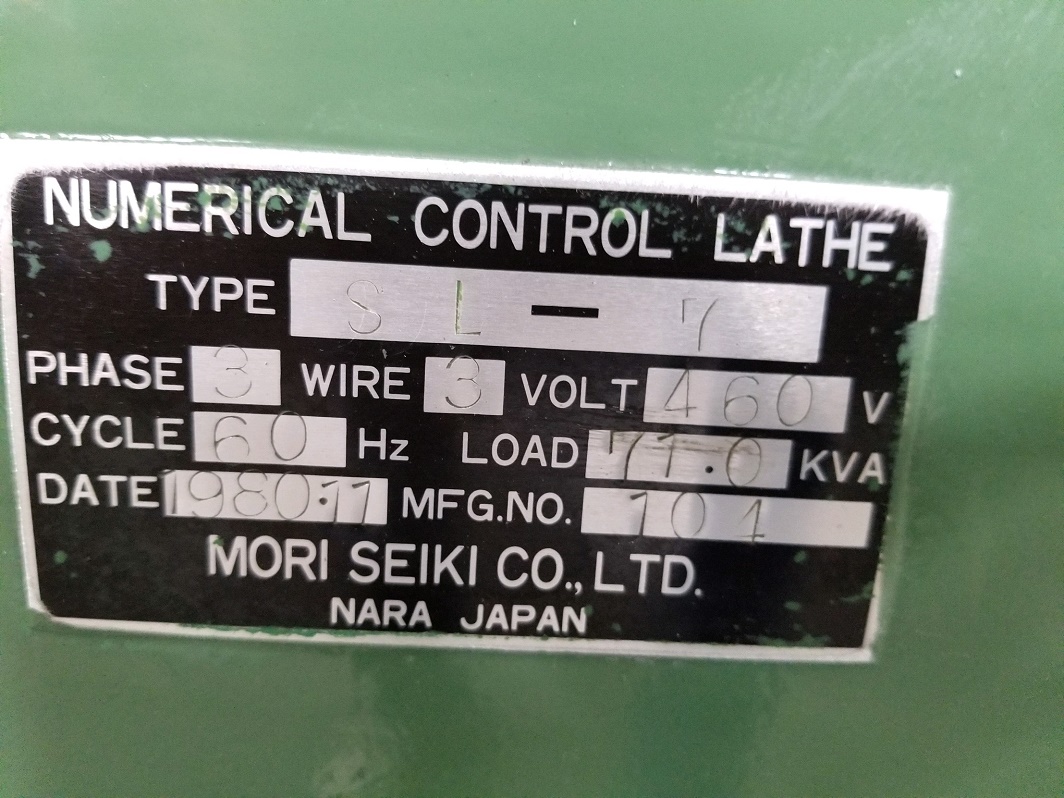

Serial number                                               SN:104
Swing over bed                                             35 in
Swing over carriage                                      22 in
Center distance                                            68 in

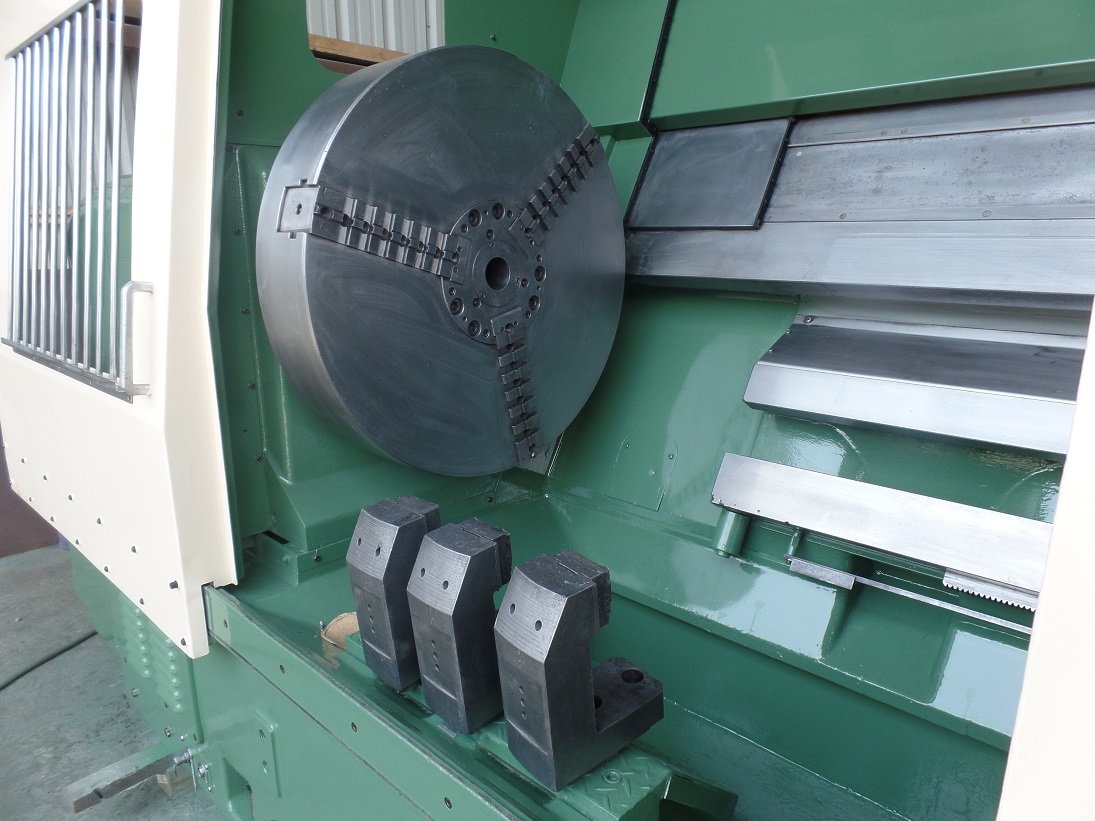

Chuck                                                           32 in 3-jaw hydraulic
Max machining diameter                              30 in
Max longitudinal travel                                  61 in
Max cross travel                                           15 in
Spindle center height                                    47 in
Spindle nose                                                 A-1-11
Spindle speed                                              10-1800 rpm
Hole thru spindle                                          4 in
Tail stock quill                                               5.90 in
Tail stock taper                                             M.T. 5
Turret stations                                              12 stations
Main motor DC                                             30/37KW
Chip conveyor                                              Yes
Weight                                                          28,600 lbs.
Dimensions                                                  200 in Long x 107 in High x 85 in wide

Price: $ 49,500.         FOB Houston, TX. Subject to Prior Sale.

                                   In our Houston warehouse. Can be run under power.
