Overview
Type: Jig Borer
Manufacturer: MOORE
Model: G18 CNC
Year: 1991
Stock #: 7400
Status: For Sale
Description

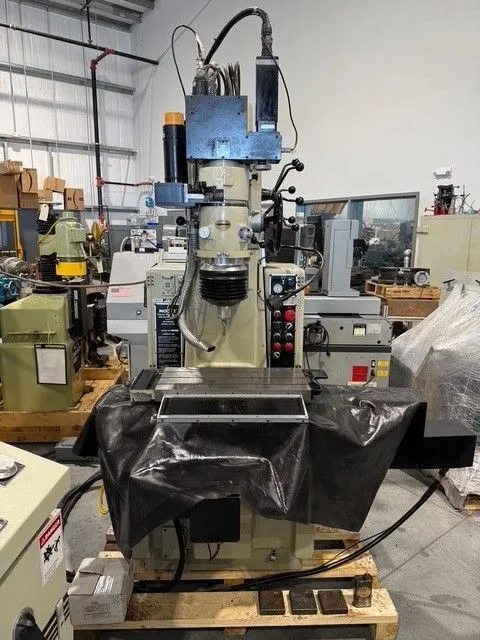

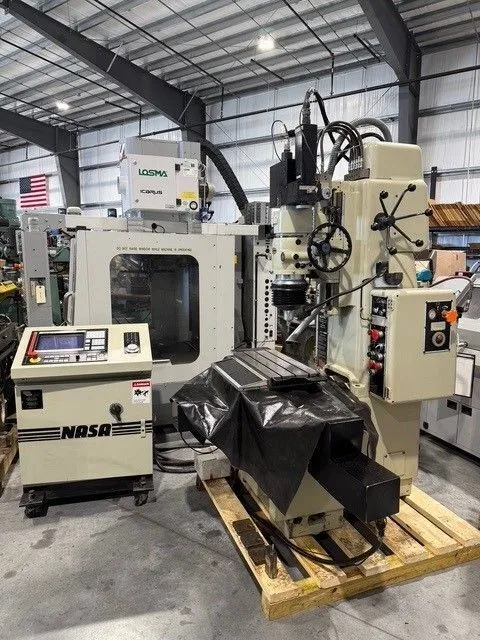

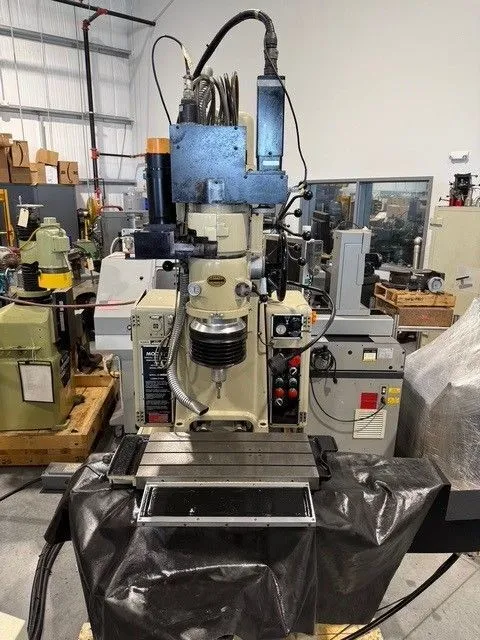

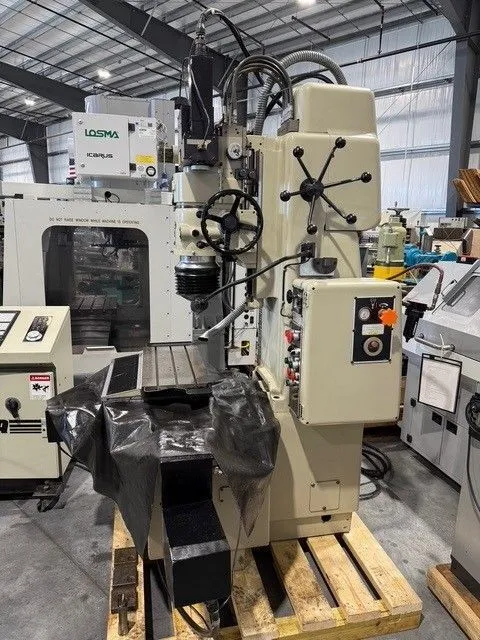

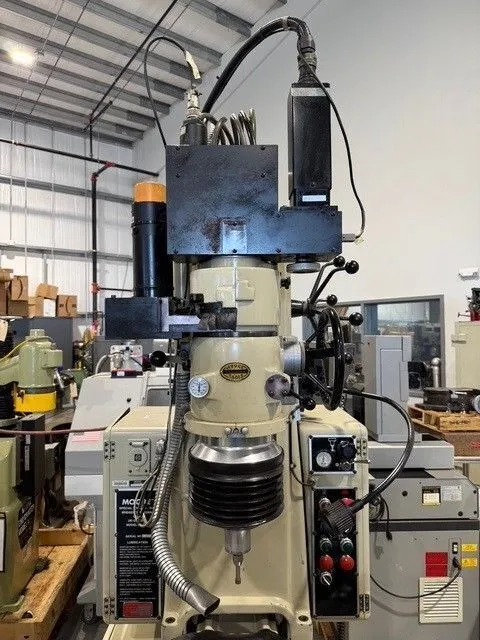

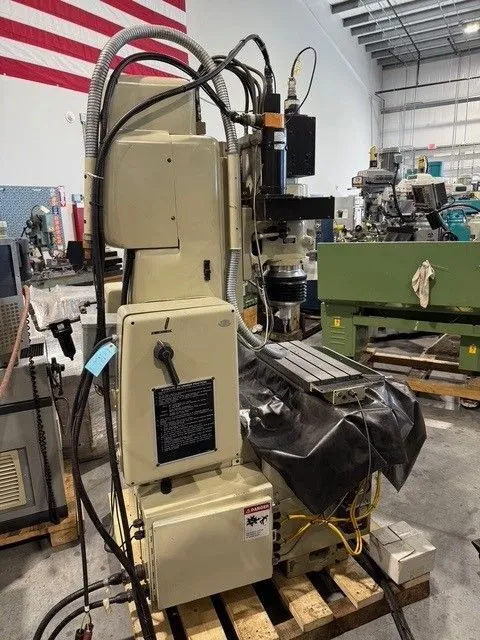

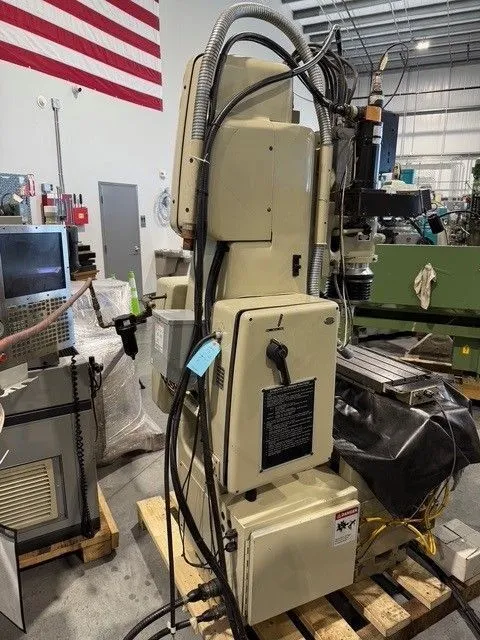

MOORE NASA CNC G-18 CNC Jig Grinder USA #7400
Specifications
MOORE NASA CNC G-18 CNC Jig Grinder USA #7400
Model # G-18

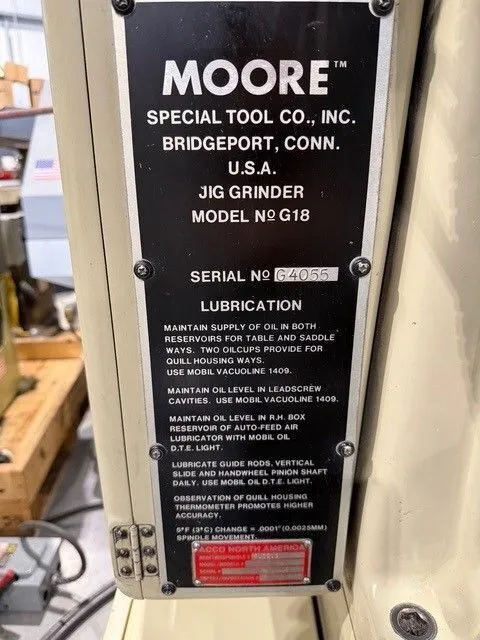

Serial # G4055
Year of manufacture- 1991 Machine / Retrofitted 2000s

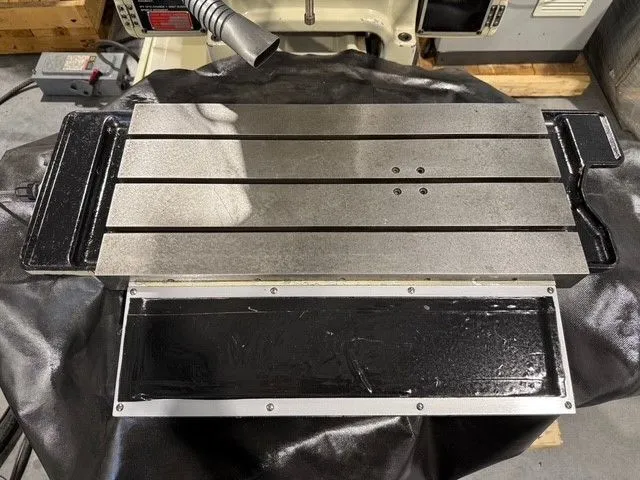

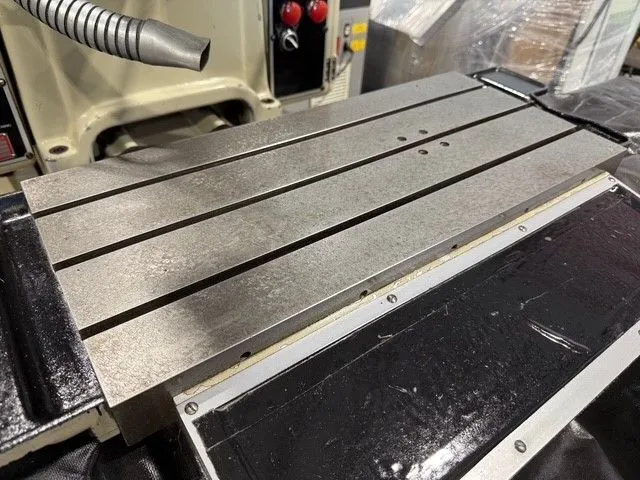

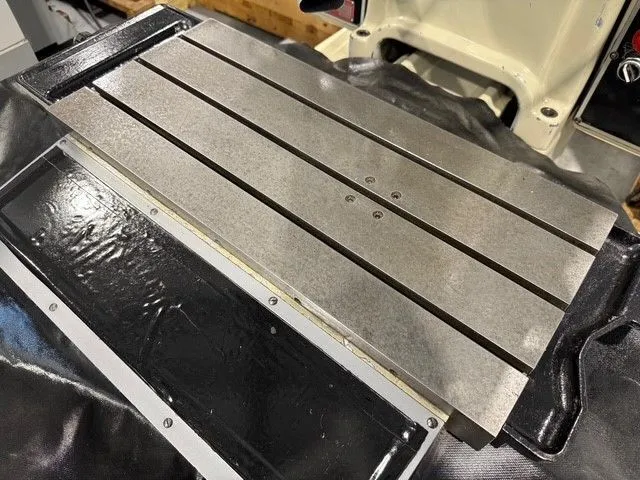

Table size- 11 in x 24 in
X axis travel- 17.5 in
Y axis travel- 10.5 in
Table top to wheel collet, minimum: 2"
Table top to wheel collet, maximum: 18"
Spindle to column ways: 10"
Spindle to column below ways: 13-1/2 in
Infinitely variable spindle speeds: 25-225 R.P.M.
Infinitely variable spindle feeds: 2-120 S.P.M.
Spindle feed adjustable from: 0.100" to 3-5/8"
Grinding wheel speeds: 6,000-175,000 R.P.M.
Grinding capacity, grinding wheels: 1/64"-3-1/2"
Angular adjustment of spindle, either way: 1-1/2 deg
included angle: 3"
Radial offset of grinding spindle:
A: from center to 1-1/8" off center by rough adjustment while running
B: b) .0001" adjusted for distance of .100" anywhere in the 1-1/8" range
Equipped With

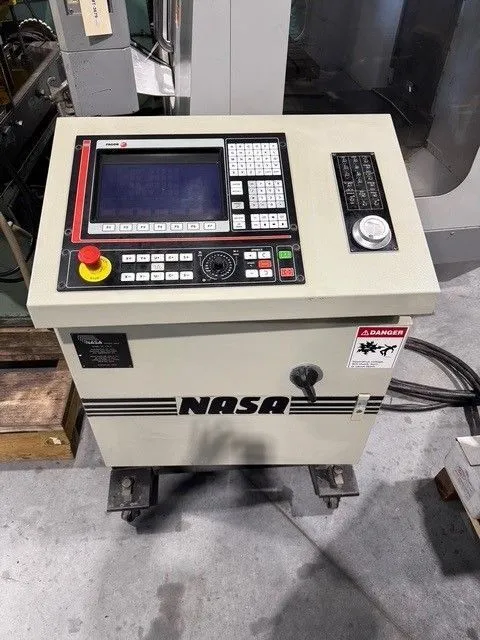

FAGOR CNC Control and pendant

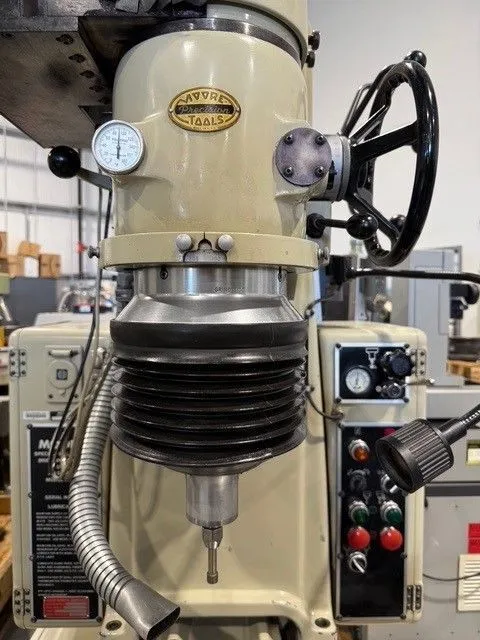

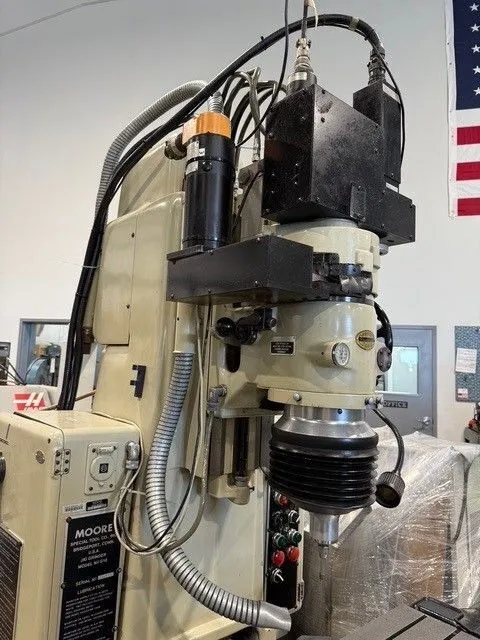

40,000 R.P.M. Spindle head

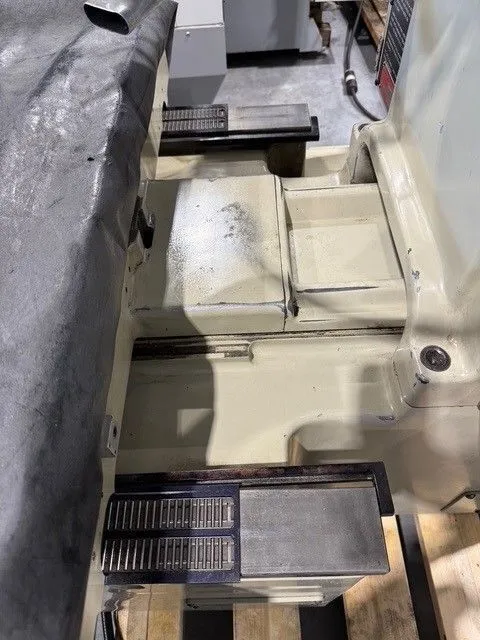

Hardened, ground, and lapped steel ways (no gibs)
Hardened, ground, and lapped nitralloy leadscrews Leadscrews and nuts that are fully immersed & operated in a bath of oil
Machine is wired for 1/60/230 volt operation.
Machine weight- 4500 Lbs.
Machine dimensions 58 in x 62 in x 94 in H (less control pendant)
Machine location- F.O.B. Sarasota, Florida
