Description

Specifications:

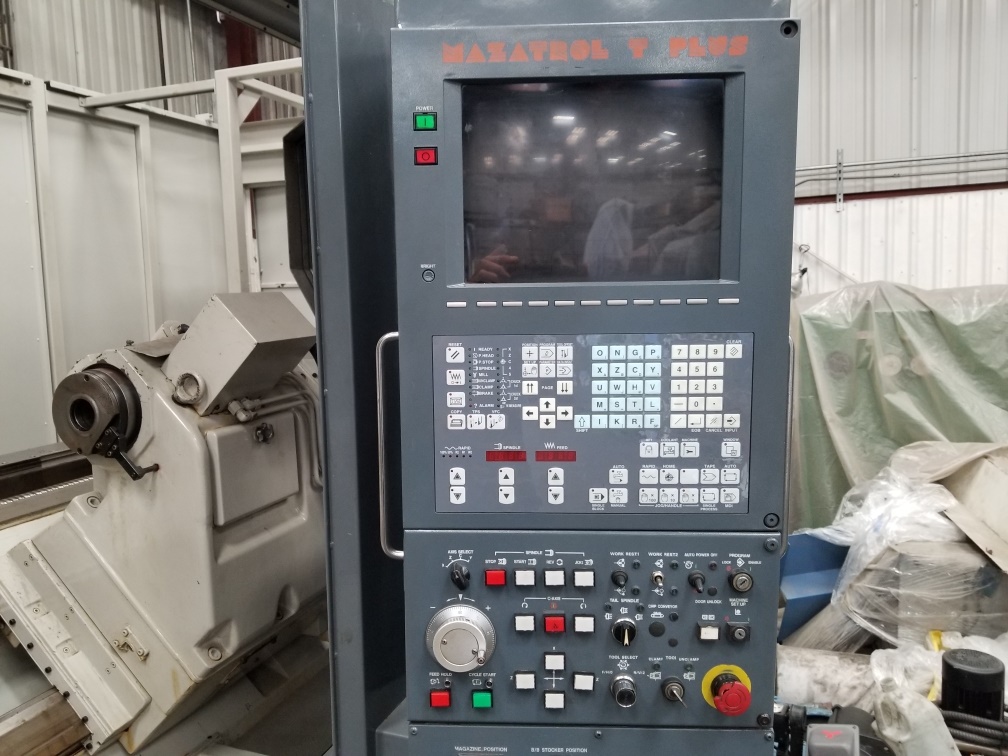

CNC Control                                                              Mazatrol T-Plus Y-axis control

Serial Number/YOM                                                  162134826/1998

Chuck                                                                         24 in 4-Jaw  Chuck

Maximum Swing Over Bed                                       36"

Maximum Swing Over Cross Slide                           30.3"

Maximum Turning Diameter                                     32"

Maximum Distance Between Centers                      121"

Maximum Work piece Weight- Chucked                  2,200 Lbs.

Maximum Work piece Weight- Between Centers    4,400 Lbs.

Spindle Speeds                                                            0 - 750 RPM

Spindle Bore                                                               6.5"

X-Axis Travel                                                             27.5"

Z-Axis Travel                                                             121"

Tool Stations                                                               30 ATC

Rapid Traverse Rate:

 X- Y-Z Axis                                                                472, 315,590 IPM

Rotary Tool Spindle Speed                                        18 - 3,000 RPM

Rotary Tool Motor                                                     15 HP

Rigid Tapping                                                             Yes

Coolant                                                                       Yes, thru milling head

Chip Conveyor                                                            Yes

Spindle Motor                                                             60 HP

Machine Weight                                                          68,000 lbs.

Manuals                                                                      Yes

Dimensions, Lathe Body                                             27 ft 6 in L-R, x 10 ft 7 in F-B x 9 ft H

Dimensions, Chip Conveyor                                       25 ft 6 in L x 4 ft W x 5 ft 5 in H

Equipped With:

Hydraulic Tailstock, Milling, Chip Conveyor

Coolant, Splash/Chip Guards, Spindle Chiller, Tooling (16 pieces), Overload Detection and Transformer.

Dimensions:
Spindle Chiller: 30 in W x 22 in L x 51 in H.  Hydraulic Unit: 34 in W x 25 in L x
29 in H.  Transformer: 34 in W x 30 in L x 29 in H.  Box-Tooling, Manuals: 28 in W
x 35 in L x 26 i n H.

Price:  $ 159,500.  FOB Houston, TX. Subject to Prior Sale.

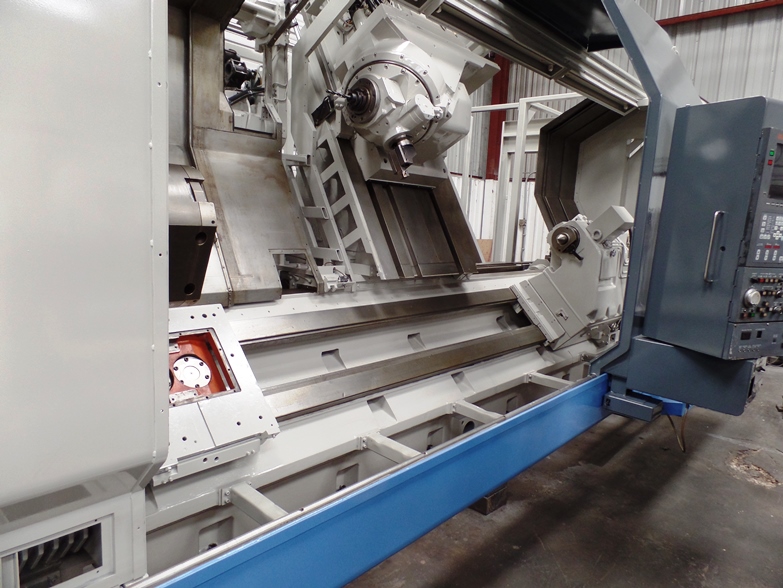

MAZAK INTEGREX 70 CNC LATHE
