LMS LOCATELLI MECCANICA 500 TON, SERIES B T500ML HYDRAULIC COINING PRESS FOR COINS, MEDALS, MEDALLIONS & MORE
T500ML
3909
Presses & Accessories
Coin Presses
used
7276 (LB)
0
$0.00

Feature Video

Description

Description

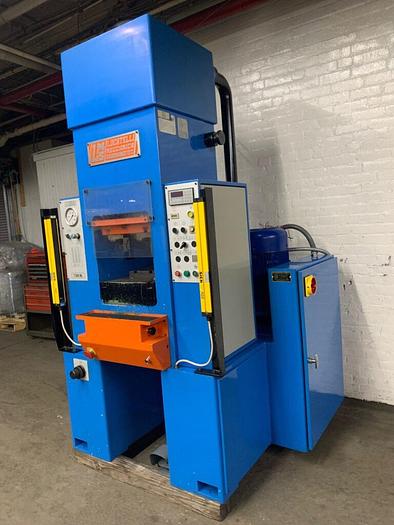

Locatelli Meccanica Series B
Model T500ML
S/N 3909

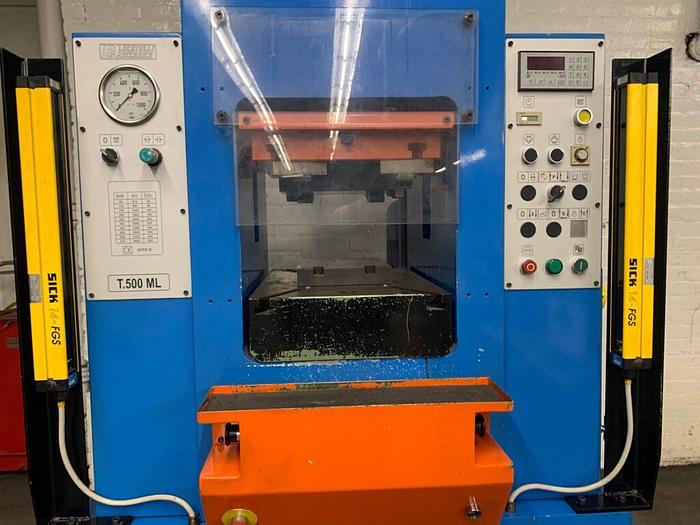

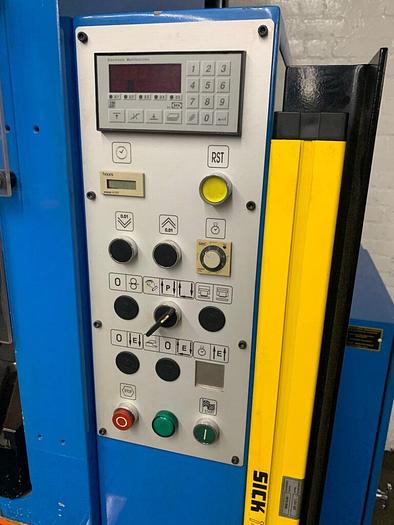

Equipped With:
Dual palm buttons
Foot Pedal
Safety Light curtains
E-Stop
Digital Counter
Manual
The machine can be endowed with an Immaterial Barrier, with Bimanual control or with the following options
Upper Hydraulic Extractor tons 2,0 (50B)
Lower Hydraulic Extractor with stroke end mechanical stop moving tons 1 + 5 (50 -65B).
This press belonging to B series, is a hydraulic press conceived as monobloc with upper moving plane. This moving plain works together with the power piston and is guided by two columns. These columns are at the same time two plunger pistons with a small diameter, and they have a twofold function: to guide the moving plain and to perform fast approach of this plane to the working phase.
Because of these pistons are in oil bath, we have the advantage to avoid the slides lubrication and an excellent precision.
The main cylinder is provided with a filling valve that, during the lowering, is opened by depression allowing the cylinder filling. The piston is quickly moved by two leading guides creating so the above-mentioned depression.
The cylinder is of simple effect kind: The up stroke is fast, with the presence of two auxiliary approaching cylinders: in this phase the filling of the valve is hydraulically opened, the oil flows again toward the upper tank from which it was sucked by Depression.

Specifications
Manufacturer Locatelli
Model T500ML
Condition Used
Serial Number 3909
Stock Number 5952-220
Pressing Strength 500 Ton
Working Pressure 520 Bar
Running of carrige 150mm
Opening Between Planes 300mm
Platten size 400mm x 480mm
Oil 2,800 kg
Motor capacity 12.5 HP
Descent Speed 270mm/sec
Work Speed 2mm /sec
Return Speed 270mm /sec
Overall size 58" x 58" X 96"
Weight 7276 LBS
