Description
STANDARD FEATURES
34 HP Spindle Motor
Fanuc 0imf plus 10.4 in LCD COLOR MONITOR W/ USB
10,000 RPM SPINDLE SPEED
64 Bit MICRO PROCESSER
cat40 or BT40 TAPER dual contact spindle
512K METERS MEMORY w/ PCMCIA CARD SLOT
CROSS ROLLER LINEARS WAYS X, Y and Z
RS 232C & EMBEDDED ETHERNET CONNECTIONS
24 Tools Swing Arm ATC
ABSOLUTE ENCODER / MANUAL GUIDE I
RANDOM ACCESS/BI-DIRECTIONAL ATC
Additional Work and tool offsets
DUAL BASE AUGERS W/ FRONT SIDE LIFT HORN
AI APC 20 BLOCK LOOK AHEAD
AUTOMATIC CENTRAL LUBRICATION SYSTEM
HANDHELD REMOTE MPG HANDWHEEL
BASE WASH
CUSTOM MACRO B and SKIP FUNCTION
LEADWELL GUI TOOL and work SETUP SOFTWARE
RENISHAW GUI SOFTWARE
SPECIFICATIONS
TRAVELS
X Axis 40 in
Y Axis 20 in
Z Axis 24 in
Spindle nose to table top 3.9 in to 28 in
Spindle Center to Column 21.5 in

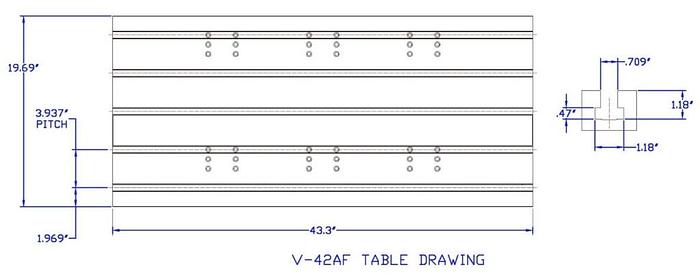

TABLE
Size 43.3 in x 19.7 in
T-Slots number, width, pitch 5 x 0.709 in x 3.94 in
Maximum Load 1,984 lbs.
ATC SYSTEM
Tool Type CAT40 (optional BT-40)
Tool Selection Bi-directional, Random Access
Tool Capacity 24
Maximum Tool Diameter (w/o adjacent tools) 3.2 in (4.3 in)
Maximum Tool Length 9.8 in
Maximum Tool Weight 15.4 lbs.
Tool-to-Tool Time 1.8 sec.
220 VAC Line Voltage AC 3 Phase
Power Consumption 35 KVA ( 92 amps. at 220 volts)
Air Requirement 87 PSI Air Pressure at 14 cfm Air Flow
GENERAL
Machine Net Weight 10,582 lbs.
Floor Spacing (W x D x H)
116 in x 86 in x 107 in
Condition New
Stock USA
