Description

Description:

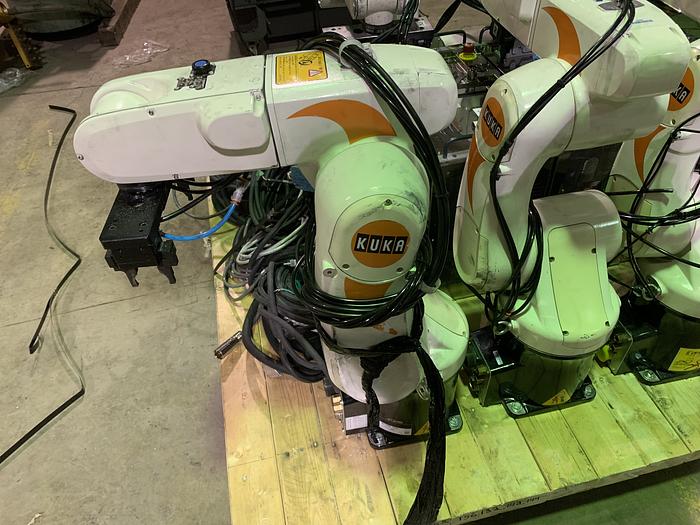

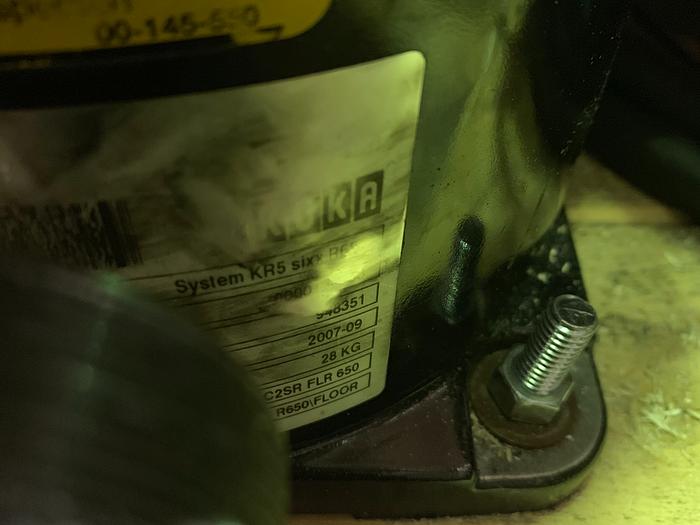

1-USED KUKA KR-5 SIXX R650 6 AXIS CNC ROBOT

   CAPACITY 5KG X 650MM REACH

   SERIAL NUMBER 948351

   DATE OF MFG 2007

   CONTROL S/N 00638

   STK#103743

======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

Robot Specifications:

Axes: 6

Payload: 5.00kg

H-Reach: 650.00mm

Repeatability: Plus/minus 0.0200mm

Robot Mass: 127.00kg

Structure: Articulated

Mounting: Floor, Inverted

Robot Motion Speed:

J1 375 deg/s (6.54 rad/s)

J2 300 deg/s (5.24 rad/s)

J3 375 deg/s (6.54 rad/s)

J4 410 deg/s (7.16 rad/s)

J5 410 deg /s (7.16 rad/s)

J6 660 deg/s (11.52 rad/s)

Robot Motion Range:

J1 Plus/minus 170 deg

J2 +45 deg to 190 deg

J3 +165 deg to 119 deg

J4 Plus/minus 190 deg

J5 Plus/minus 120 deg

J6 Plus/minus 358 deg

EQUIPPED WITH:

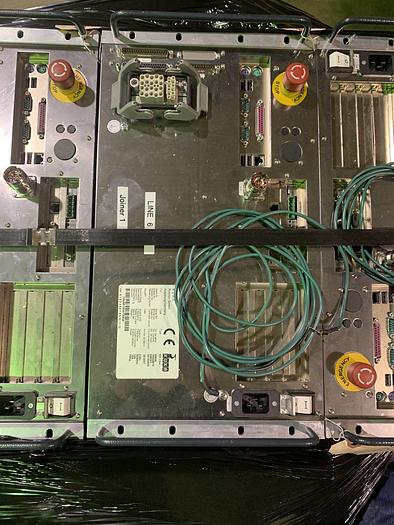

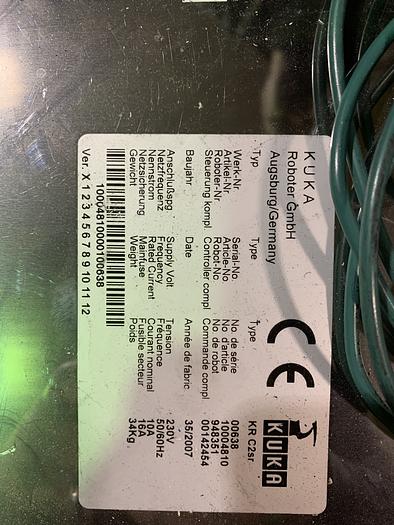

KRC2-SR CONTROL

CABLES

TEACH PENDANT

Short cycle times, combined with high accuracy, make the KUKA KR 5 Sixx an excellent choice for many assembly applications. A compact arm with a 5 kg payload, the KR 5 Sixx is available with two reach options: 650 mm and 850 mm. The high-speed arm has six axes and can be mounted on the floor or on the ceiling. A high-performance KUKA PC-based controller makes the KR 5 Sixx KR C2 SR easy to program and operate.

Robot Applications:

Assembly Robots

Bonding / Sealing Robots

Coating Robots

Machine Loading Robots

Material Handling Robots

Packaging Robots

Pick and Place Robots

FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS

AND CONDITIONS.

WWW.RABIND.COM

586-752-0090

Specifications:

Manufacturer KUKA

Model KR 5 SIXX R650

Year 2007

Condition Used

Serial Number 948351

Stock Number 103743
