Type: CNC Lathes
Manufacturer: HARDINGE
Model: CONQUEST T42
Condition: Good
Year: 1997
Stock #: 323189
Status: For Sale

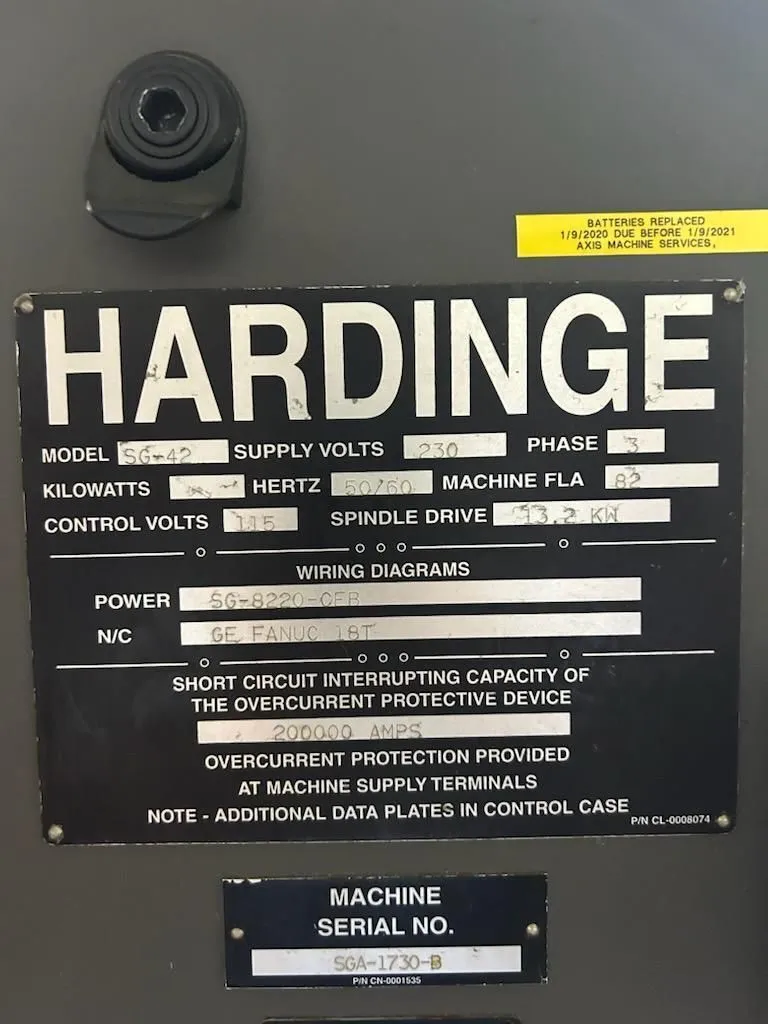

Serial #: SGA-1730-B
Country: United States
Description

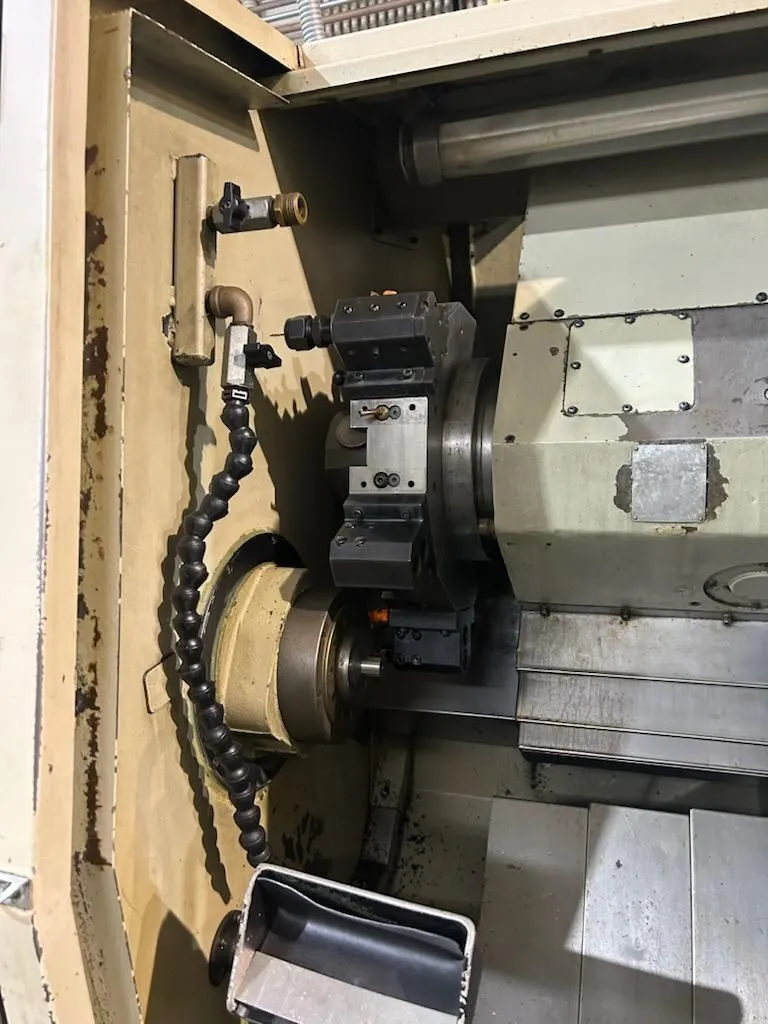

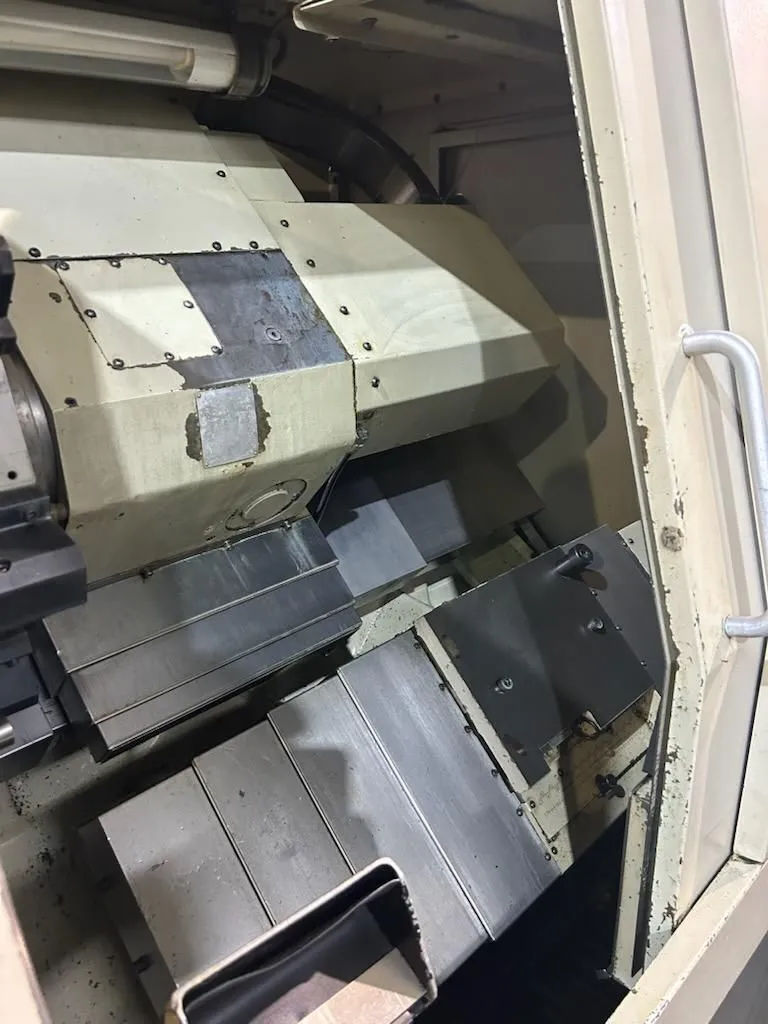

HARDINGE CONQUEST T42 CNC TURNING CENTER
NEW IN 1997
Specifications
Swing 21.2 in
Machining Length 13.1 in
Chuck Size 6 in
Bar Capacity 1.625 in
Power 10 hp
Max RPM 5,000 RPM
Turning Dia 9 in
Tailstock No
Control CNC
Dimensions Approx: 8 ft L x 5 ft W x 6 ft H
Weight 10,000 lbs
Brand: Hardinge Precision
Model: Conquest 42
Year: 1997
Specifications: All specifications are for reference only. All specs and equipped-with items must be confirmed by the buyer.
Hole Thru Spindle: 1.875 in
Swing Upper Way Covers: 19.5 in
Swing Lower Way Covers: 14.5 in
X Axis Traverse: 472 ipm
Z Axis Traverse: 630 ipm
Distance Spindle to Turret: 14 in
X Axis Travel: 5.45 in
Z Axis Travel: 13.65 in
Max Turning Diameter: 9.1 in
Distance Between Centers: 13.8 in
Controller: Fanuc OT
Power: 230V / 3 Phase
Equipped With
Chip Conveyor
Foot Pedal
Tool Holders
All relevant available manuals & Documents
