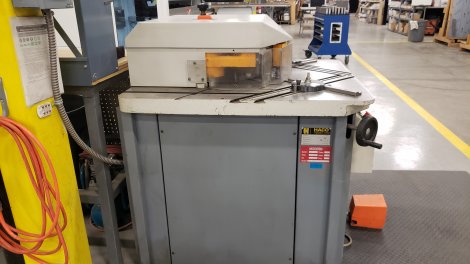

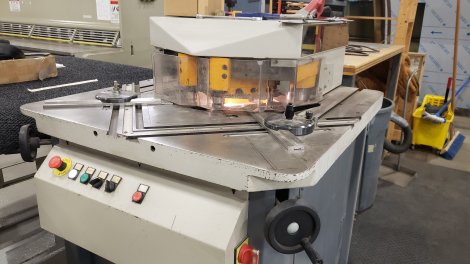

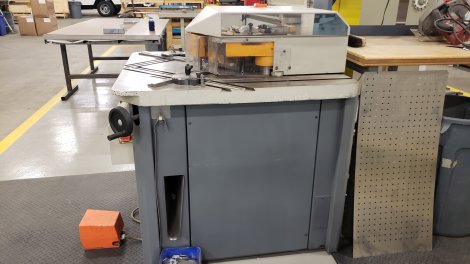

HACO VARI220/6 VARIABLE ANGLE NOTCHER,0.236 MAX THICKNESS,8.58" MAX. LENGTH,2006 OUR STOCK NUMBER: 12345

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images
  • Product Images


HACO VARI220/6 VARIABLE ANGLE NOTCHER,0.236 MAX THICKNESS,8.58" MAX. LENGTH,2006 OUR STOCK NUMBER: 12345
VARI220/6
Notchers
Variable Angle Notcher
used
(LB)
2006
$0.00

Description

The high precision VARI uses a specially designed system to adjust top and

bottom blade simultaneously. This means that the VARI notcher has an

adjustable notching angle between 30-140 degrees. This makes the VARI a very

versatile machine with capacity of 6mm mild steel with maximum length of

220mm.
The VARI notcher uses a hydro- mechanical system to lock or unlock the blade

setting. When unlocked, the operator can easily rotate a hand wheel on each

side of the machine to rotate both top and bottom blades between 30 and 140 degrees
Angular scale.
An angular scale integrated into the machine table displays the notch angle

set on the VARI. Several adjustable stops and scales come standard on the

VARI. The VARI is delivered with a full oil tank, extra set of blades and

electric foot switch.

Standard features:
2 Mechanical sheet hold-downs
automatic blade gap adjustment
2 Positioning squares with protractor, adjustable 0-90, fixing holes every

15
Millimetre scales
60 negative blades to cut stainless steel
1 extra set 30 positive blades to cut stainless steel
Stroke adjuster
Backstop
Foot-pedal control
Transparent safety guard
Large working table
Dovetail slots and scales
Hydraulic Oil
