Overview
Type: Vertical Machining Centers
Manufacturer: HAAS
Model: VF-2SS
Year: 2009
Stock #: 7481
Status: For Sale
Description

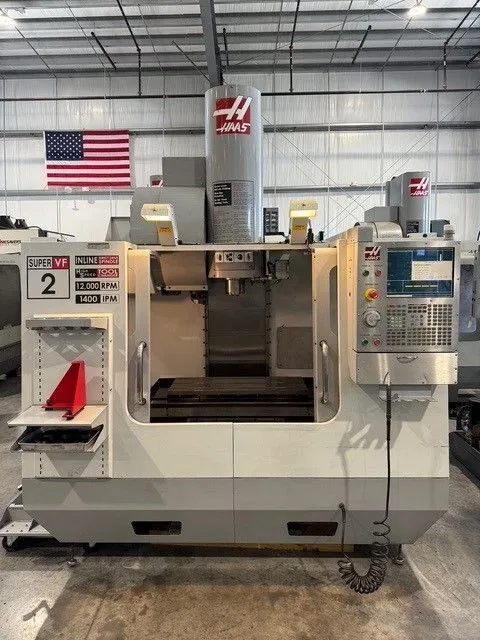

HAAS #VF-2SS CNC Vertical Machining Center 2009 SUPER SPEED USA #GMT-7481
Specifications
HAAS #VF-2SS CNC Vertical Machining Center 2009 SUPER SPEED USA #GMT-7481
Reference # 7481
Model # VF-2SS
Serial # 1072814
Year of manufacture- 12/2008

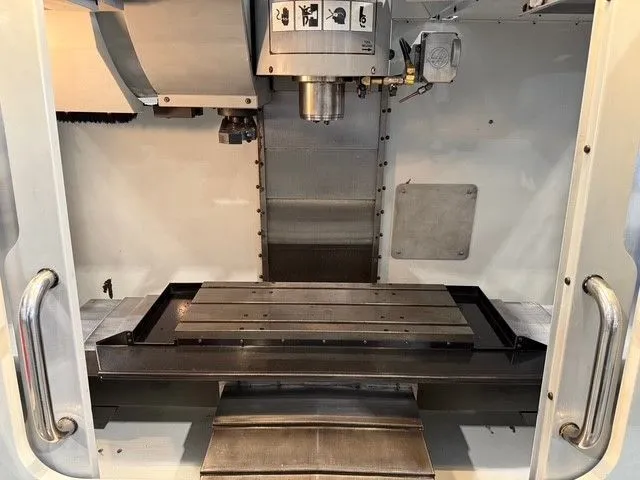

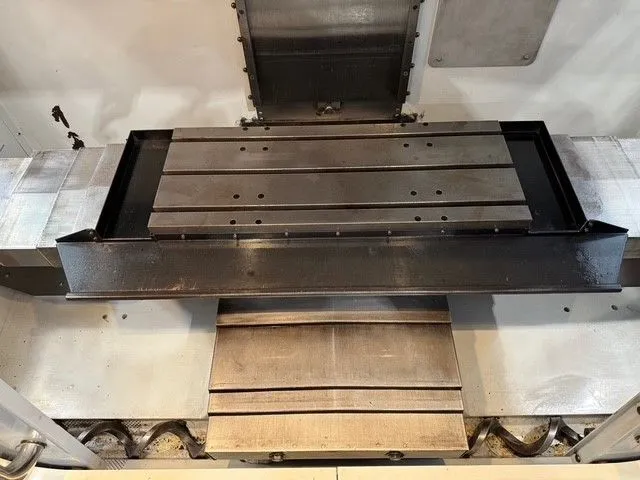

Table size- 16 in x 36 in
Number of T-slots- (3)
Max table weight- 3000 Lbs.
Travels-
X axis- 30 in
Y axis- 16 in
Z axis- 20 in
Maximum distance from spindle nose to table- 24 in
Minimum distance from spindle nose to table- 4 in
Maximum spindle speeds- 12,000 R.P.M.
Spindle taper- CAT-40
Max cutting rate- 833 I.P.M.
X,Y,Z Rapids- 1400 I.P.M.
Side mount tool changer- 24 +1 Tool capacity
Max tool diameter- 3 in
Max tool length- 11 in
Max tool weight - 12 Lbs.
Equipped With
Programmable coolant nozzle

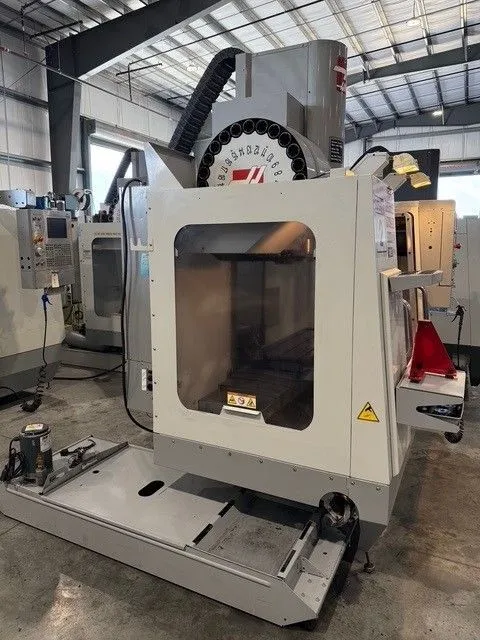

Side mount tool changer 24 tool station

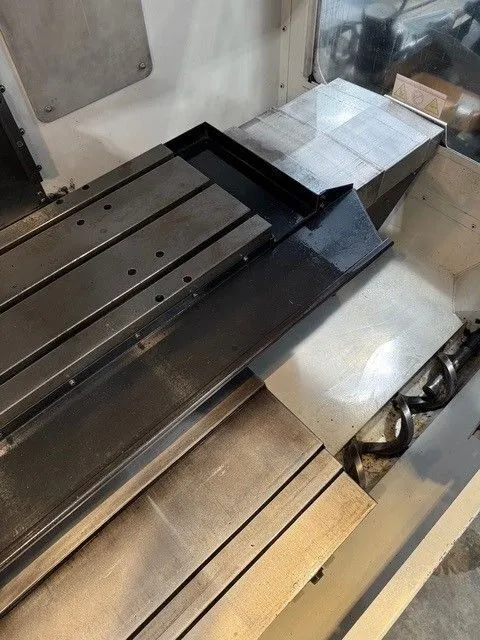

Telescopic way covers
Air gun
(4) Leveling pads
Chip Auger
BIJUR automatic lubrication system

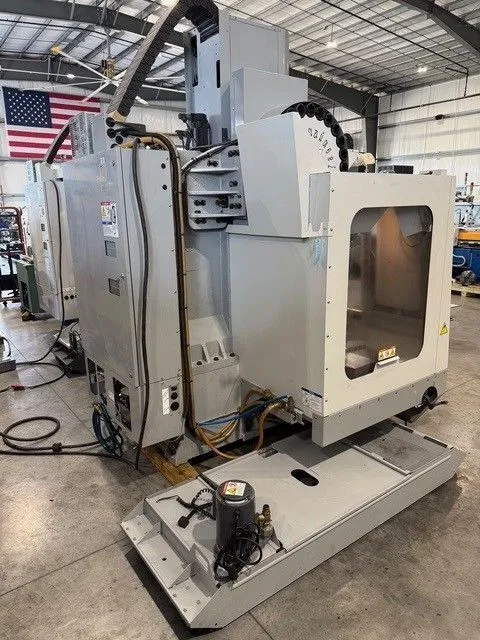

External coolant tank & Coolant pump

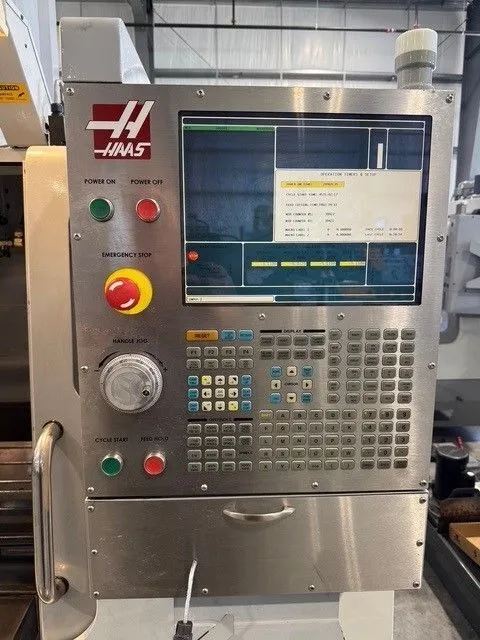

Control options- Programmable coolant, Rigid tapping, DNC, Quick code, Pre-Orient Tap, HSM High Speed Machining, Advanced Tool Management
Machine hours -Power on time- 20,969, Cycle time- 4,531, Feed cutting time- 3,402
Machine is wired for 230 Volt / 3 phase / 60 HZ
Machine weight- 8000 Lbs.
Machine dimensions- 111 in L x 91 in W x 91 in H
Machine location- F.O.B. Sarasota, Florida
