Model: ZSE 150T
Year: 2002
Stock #: 24240
Type: Gear Shavers & Hones, GEAR SHAVERS (Including CNC)
Manufacturer: Used GLEASON HURTH Machines
Highlights:

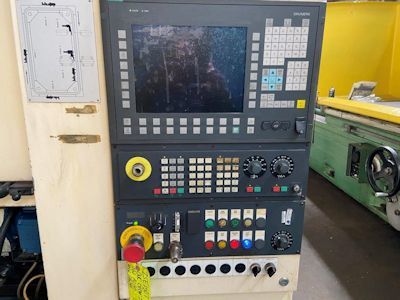

Siemens 840D Control
Auto Load System
Auto Deburring

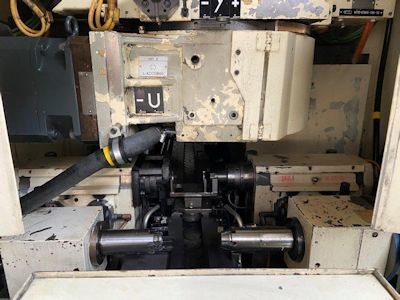

Headstock
Tailstock
Coolant System
Hydraulic System

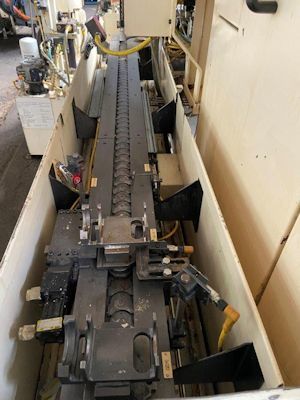

Chip Conveyor
Transformer
MACHINE SPECIFICATIONS:
INCH METRIC
Year 2002
Manufacturer GLEASON HURTH
Control Manufacturer Siemens
Maximum Tooth Width 1.8"
Shaving Cutter Bore Diameter 63.51
Minimum/Maximum Width of Shaving Cutter 2"
Minimum/Maximum Diameter Shaving Cutter 0"
Module 3.5
Maximum Workpiece Diameter 7.9"

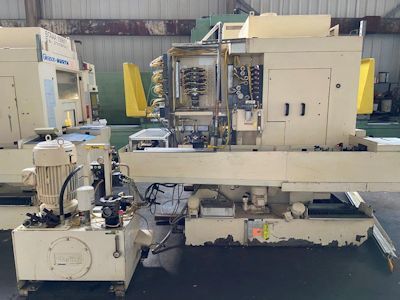

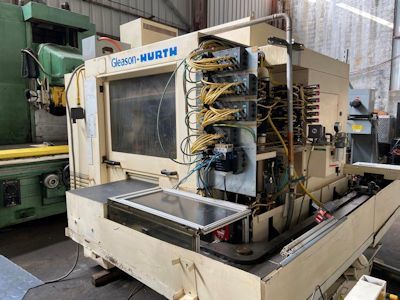

2002 GLEASON HURTH ZSE 150T CNC GEAR SHAVER
Specifications:
Workpiece Diameter, Nominal: 200mm
Module, Nominal: 3.5 mm
Max. Tooth Width: 45 mm
Max. Workpiece Length: 400mm
Min./Max. Shaving Cutter Outside Diameter: 200/270mm
Max. Shaving Cutter Width: 50.8mm
Max. Shaving Cutter Bore Diameter: 63.5 or 100mm
Max. Shaving Cutter Speed: 400 rpm
Min./Max. Center Distance: 120/130mm
Cross Axis Angle Swivel: -21deg/+18deg.
Max. Chamfer Rolling Tool Diameter: 205mm
Chamfer Rolling tool Bore Diameter: 40mm
Secondary Chamfer-Deburring Disc Diameter: 59mm
Approximate Dimensions: 143"L x 102"W x 129"H
Approximate Weight: 12,125 lbs
