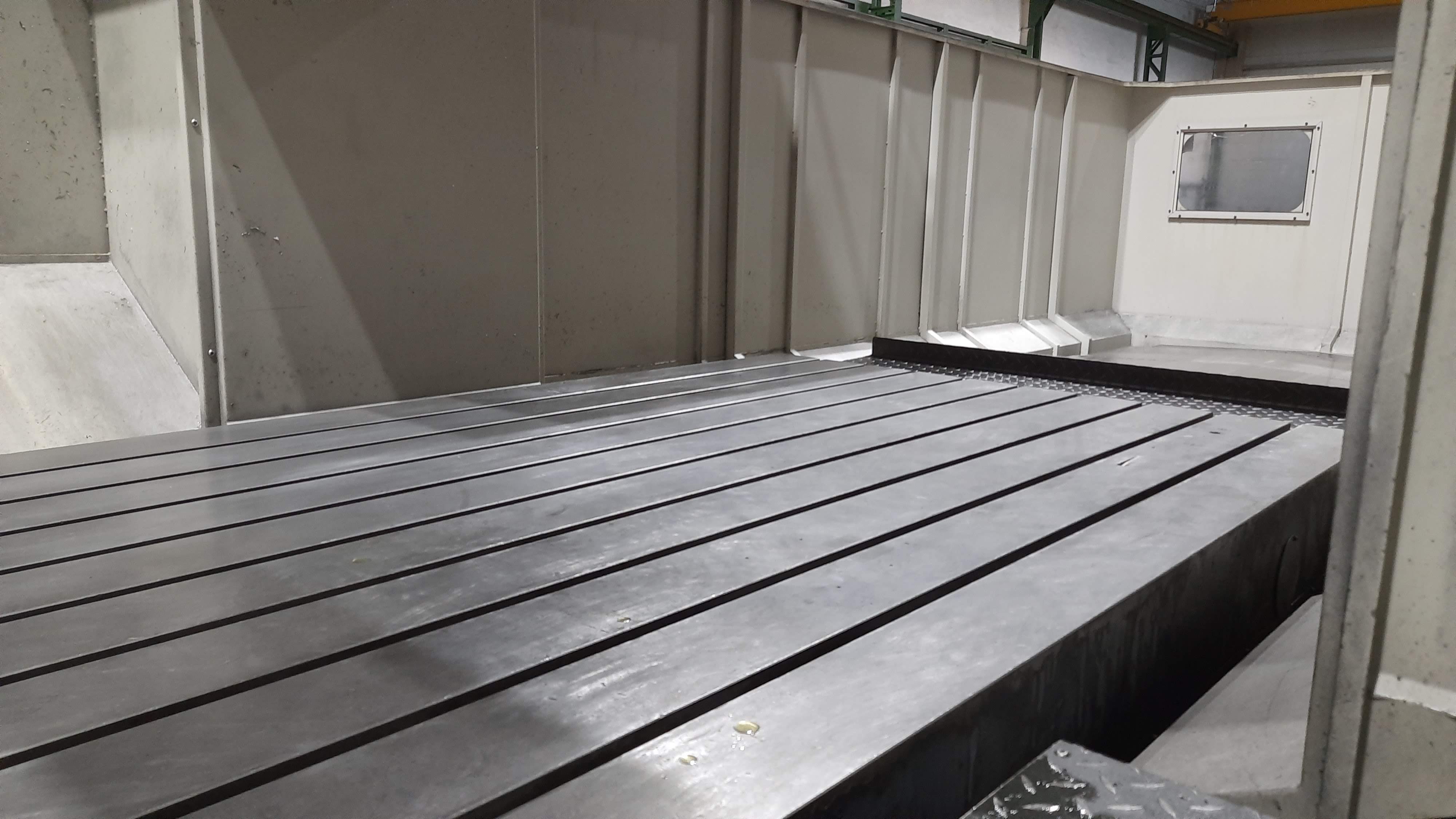

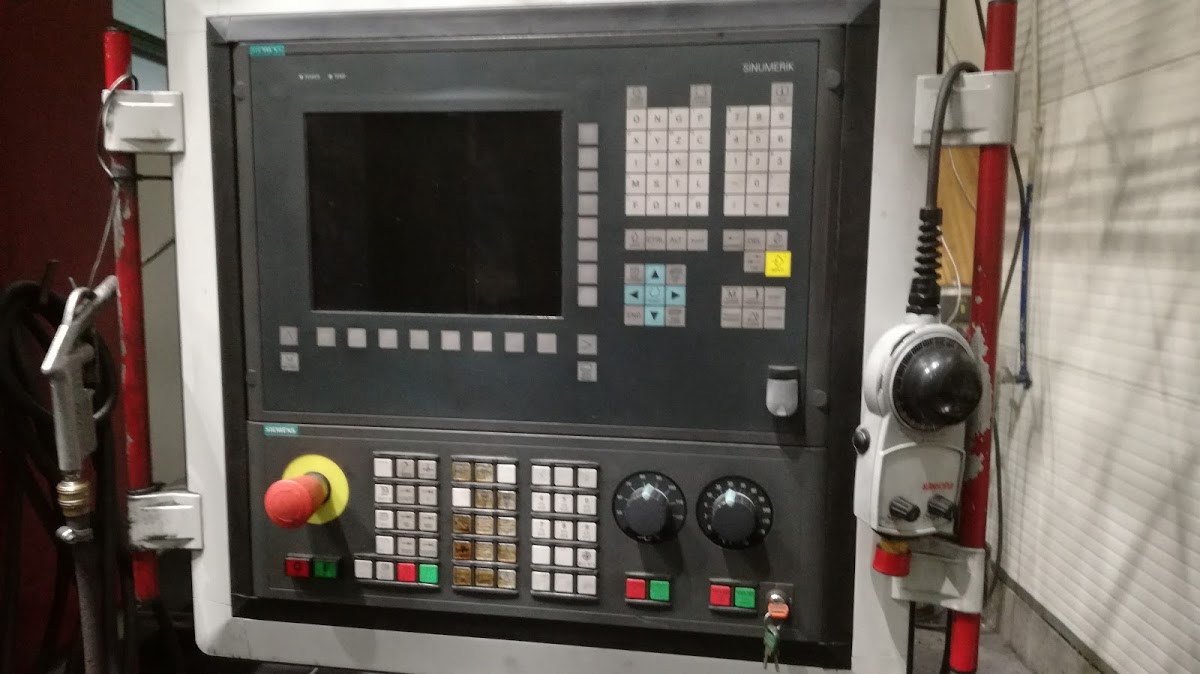

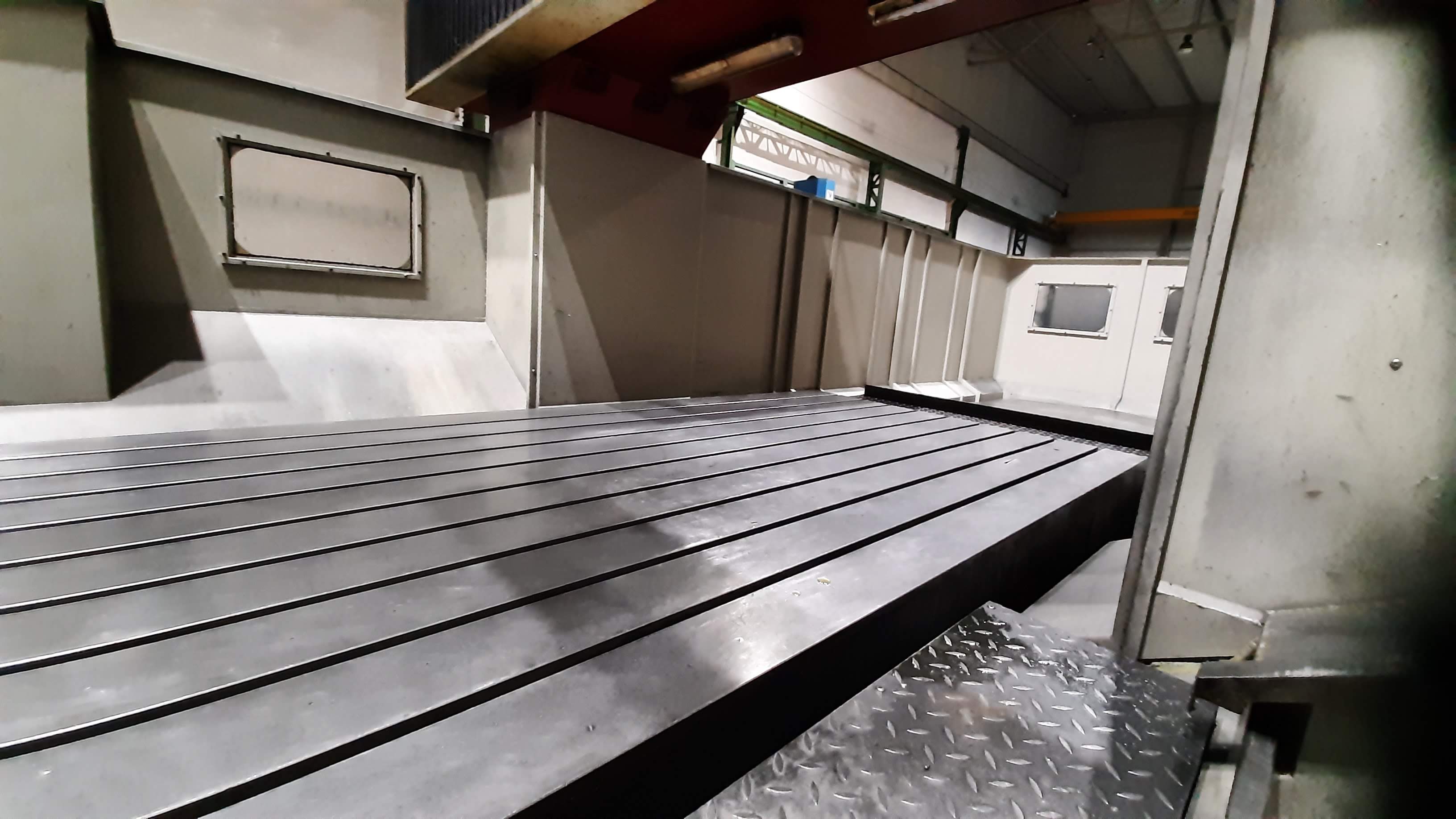

Product number ..... 201426 Producer ..... Fermat Year manufacture/Year overhaul ..... 2011 Control system Siemens ..... Sinumerik 840 D Dimensions of table working surface ..... 1600x4000 mm Distance between columns ..... 2100 mm
Max. load of table ..... 10 000 kg
Travel X-axis ..... 4200 mm
Travel Y-axis ..... 2300 mm
Travel Z-axis ..... 1000 mm

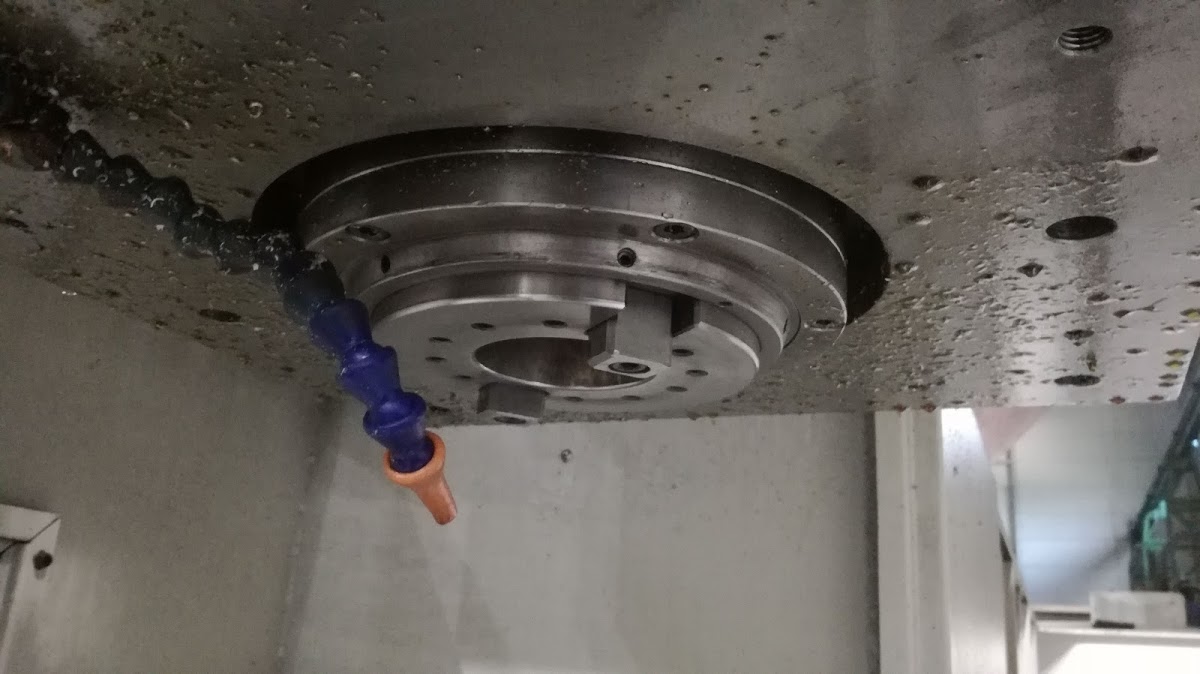

Spindle taper ..... ISO 50 .
Spindle speed ..... 40 - 6000 /min.
Max. torque of spindle ..... 1050/1435 Nm
Rapid feed ..... 10 m/min
Main motor power ..... 30/41 kW
Total input ..... 79 kVA
Machine weight ..... 51000 kg
Machine dimensions l x w x h ..... 10480 x 5200 x 6120 mm
EN: The machine is in a good technical condition. Under power. It can be tested.
2 x milling head
C50 Universal milling head - manual clamping, 1200 ot./min, 15 kW, 100 Nm
N75 Angle milling head - manual clpamping 2000 ot./min, 11 kW, 200 Nm
Selling price ..... 0 EUR
Change of technical parameters reserved. The validity of our offers is subject to intermediate sale.
