Description:

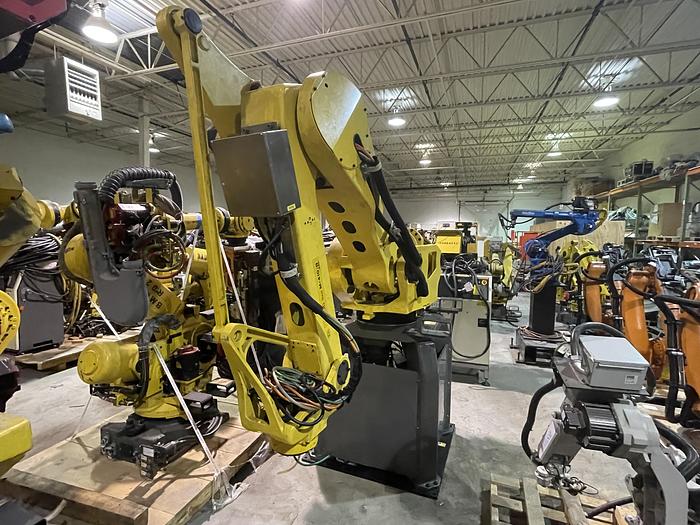

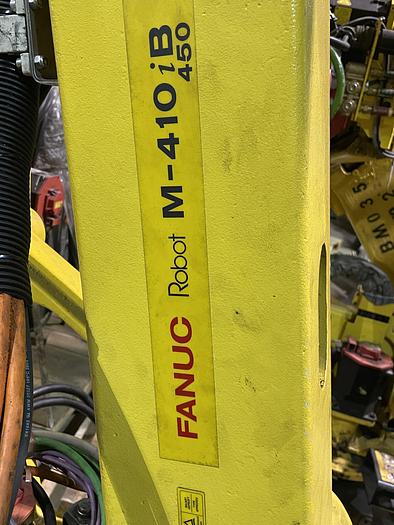

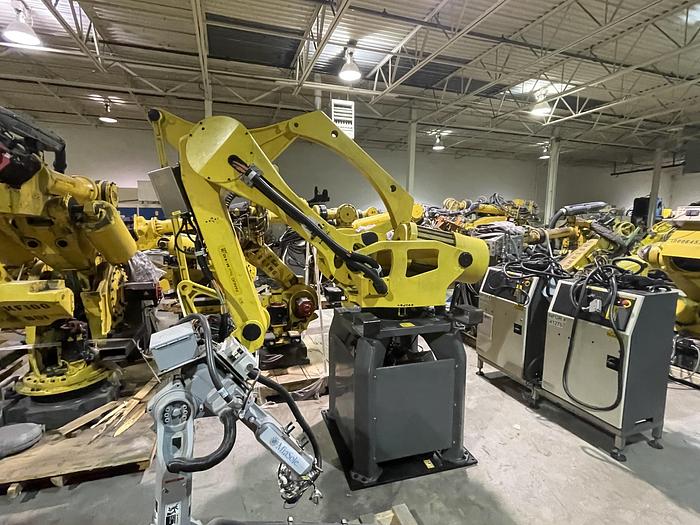

1-USED FANUC M410iB/450 4 AXIS CNC PALLETIZING ROBOT

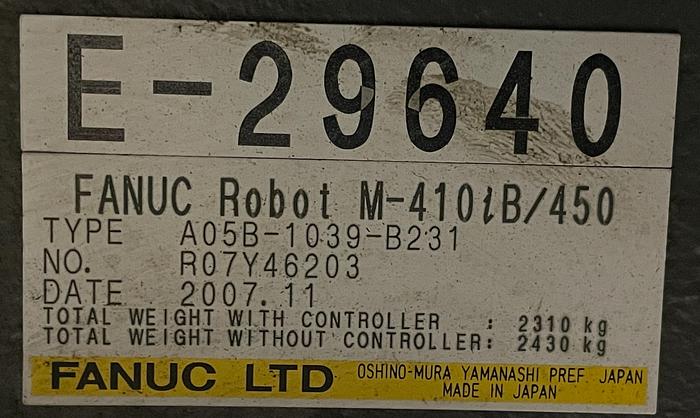

SERIAL NUMBER E-29640
DATE OF MFG. 11/2007
STK 104550
===================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
THIS ROBOT IS ONE THREE PALLETIZING ROBOTS, ALONG WITH TWO M420iA ROBOTS THAT WAS PALLETIZING
SOFT DRINKS. WE HAVE ALL OF THE COMPONENTS FOR THE COMPLETE PALLETIZING CELL. IF INTERESTED PLEASE
INQUIRE ABOUT THE PRICE FOR THE ENTIRE CELL AS A LOT. DUE CARE WAS USED IN THE REMOVAL OF THE CELL.
This FANUC M410iB/450 features a higher payload capacity (450 kg) than the other M-410iB models. This provides enough strength to hoist larger objects with a gripper, higher and faster than other models. In addition, the FANUC M-410iB/450 has a large working envelope that allows this heavy duty robot to service multiple production lines. To advance this robot even more, there are add-on options such as iRVision, integrated auxiliary axes package, and supports software packages such as PalletPRO, Pallet Tool, and Collision Guard.
Robot Specifications
Axes: 4
Payload: 450kg
H-Reach: 3130mm
Repeatability: Plus/minus 0.5mm
Robot Mass: 2430kg
Structure: Vertical Jointed-Arm
Mounting: Floor
Robot Motion Speed
J1 70 deg/s (1.22 rad/s)
J2 70 deg/s (1.22 rad/s)
J3 70 deg/s (1.22 rad/s)
J4 180 deg/s (3.14 rad/s)
Robot Motion Range:
J1 Plus/minus 360 deg
J2 Plus/minus 145 deg
J3 Plus/minus 135 deg
J4 Plus/minus 540 deg
EQUIPPED WITH:

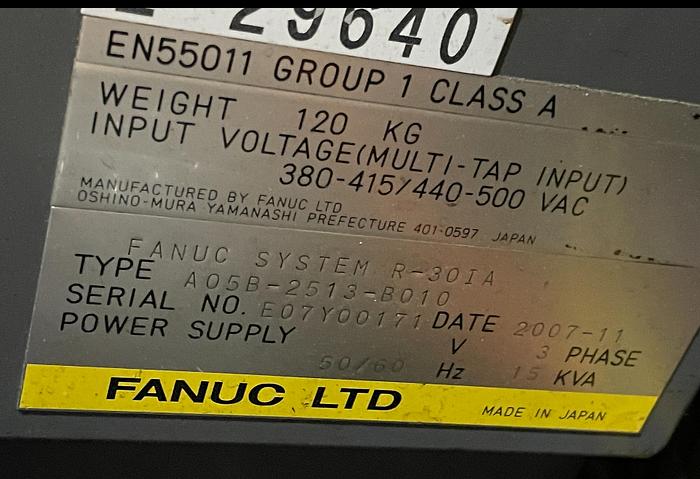

FANUC R30iA CONTROLLER
FANUC ROBOT CONNECTION CABLES
FANUC TEACH PENDANT
STAND MOUNT THAT ROBOT SITS ON.
FOB TRUCK, IMLAY CITY, MI 48544
THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.
RAB INDUSTRIES, INC.
Specifications:
Manufacturer FANUC
Model FANUC M410iB/450
Year 2007
Condition Used
Serial Number E29640
Stock Number 104550
Axes 4
Payload 450kg
H-Reach 3130mm
Repeatability Plus/minus 0.5mm
Robot Mass 2430kg
Structure Vertical Jointed-Arm
Mounting Floor
