Specifications:
Model 907-1 VMC
Serial number 9703449

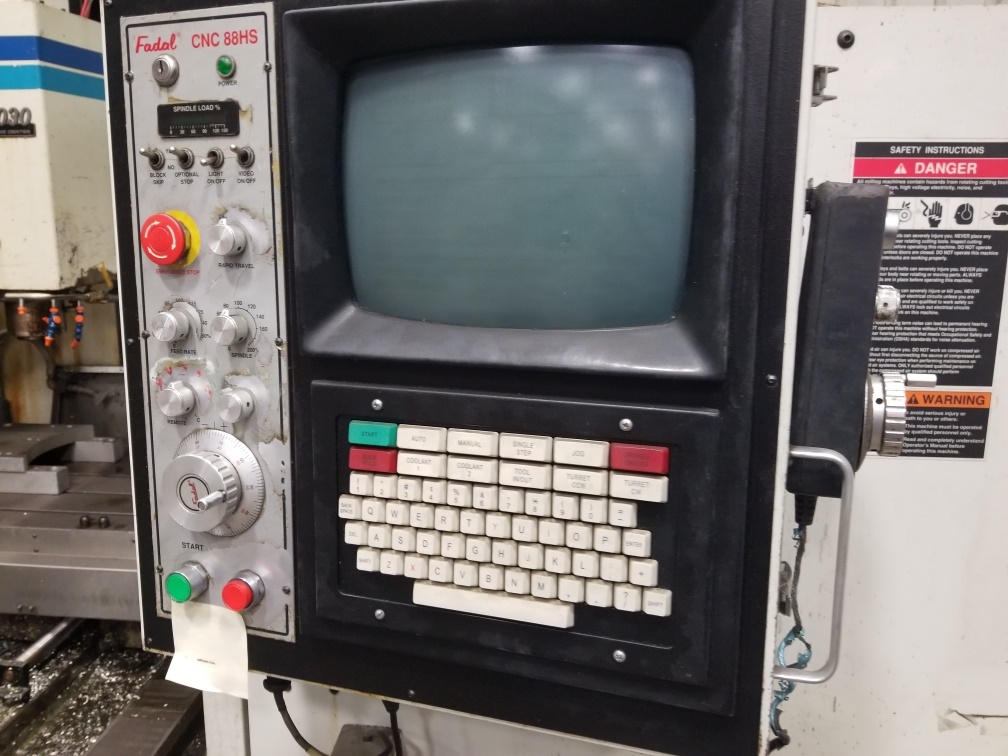

CNC control Fadal CNC 88HS
Year of manufacture 1997
Travels; X-Y-Z 80 in x 32 in x 30 in
Rapids: X-Y-Z 787 in x 787 in x 590 in
Spindle travel 5 in to 35 in
Table dimensions 81.5 in x 30 in
Main motor 15/22.5 hp.
Spindle speed 8,000 rpm. ?
Taper Cat 40
Tool capacity 30 stations
Tool selection Random
Max tool weight 15 lbs.
Table load capacity 4,840 lbs.
Rotary table Yes, VH-65, 8 in rotary
Dimensions 218 in x 118 in x 132 in
Machine weight 30,000 lbs. apx.
Voltage 230/460/3/60
Amp draw 45/22.5
Standard Features: Box way construction, Spindle oil cooler, Work lamps, Fully enclosed,

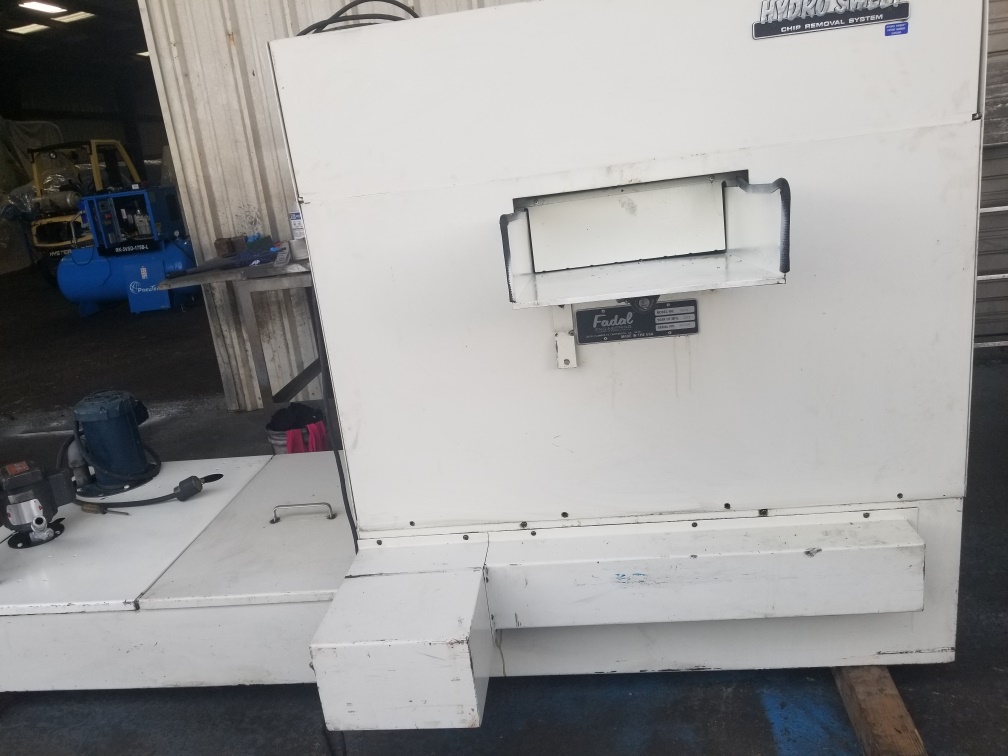

Spindle air blast, Automatic PDI lubrications system, Operation lamp, Rigid tapping, Chip
conveyor, High torque, Chip wash down system, Remote MPG.
Price: $ 42,500. FOB Houston, TX. Subject to Prior Sale.
