Overview:
Type: 5-Axis or More CNC Lathes
Category: Lathes
Manufacturer: DMG MORI

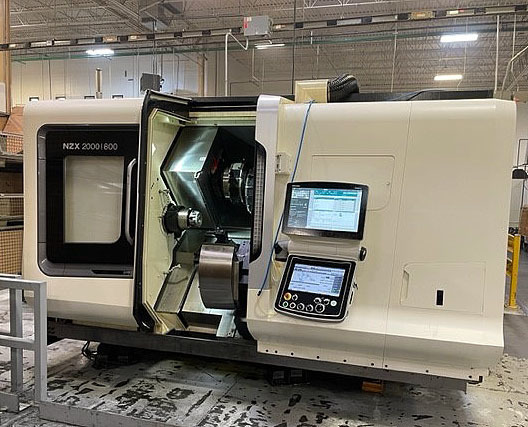

Model: NZX2000/800STY3
Condition: Used - Excellent
Year: 2016
Stock #: 3168
Status: For Sale
Description:
Chuck Size 10" (2)
Max Diameter Bar Capacity 2.5"
Spindle Motor (Left and Right) 33.3/30 HP
Spindle Speed (Left and Right) 5000 RPM
Spindle Nose A2-6
Spindle Bore 2.9"
Tools 16 x 3
X-Axis Travel (X1, X2, and X3) 8.3"
Z-Axis Travel (Z1/Z2/Z3) 11.8"/31.9"/11.8"
Y-Axis Travel (Y1, Y2, and Y3) 4.3"
Turret Index (Single Step) 0.2 Seconds
Live Tool Motor (T1, T2, and T3) 10/7.5 HP
Live Tool Speed (T1, T2, and T3) 12,000 RPM
Max Distance Between Spindle Nose 44.4"
Max Turning Diameter (Max/Std) 12.5"/7.9"
Max Turning Length 31.8"
Right Spindle Travel 34.3"
Swing Over Bed 31.5"
Machine Dimensions (L x W x H) 199.3" x 111.6" x 91.3"
Machine Weight 21120 LBS
Features:

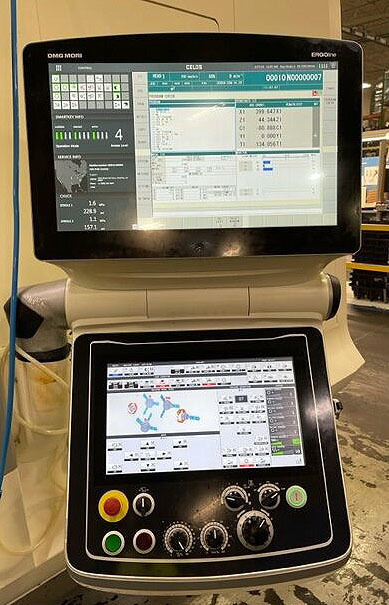

CELOS (F31iB) CNC CONTROL
21.5" Color ERGOline Touch TFT
Twin Spindles

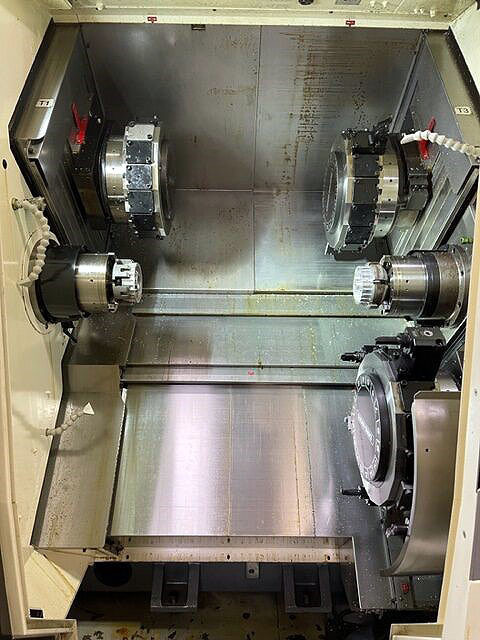

(3) Turrets with Y-Axis
12,000 RPM Milling Speed

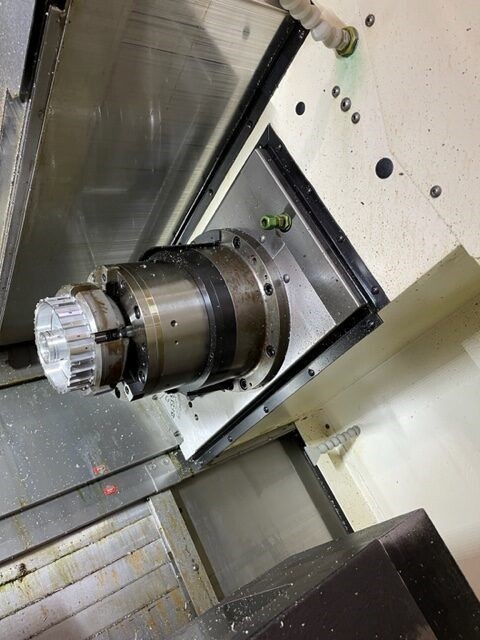

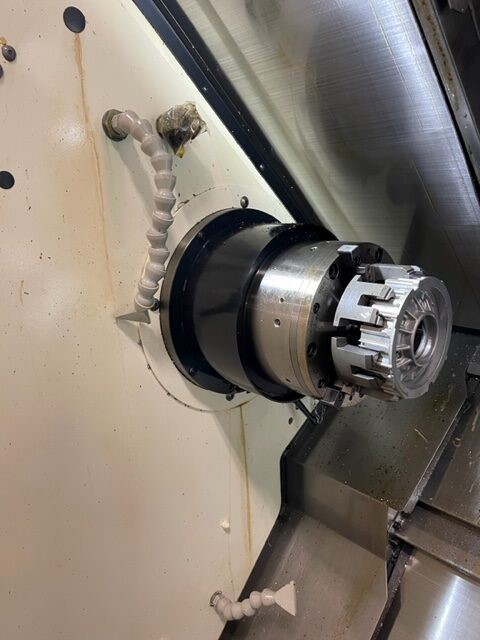

(2) Micro Centric MBS 200 Collet Chucks
Chip Blaster/Chip Chiller High Pressure Coolant System
Coolant Gun
Chuck Top Coolant
Air Purge (Left and Right Spindle)
Air Blow for Tool Tip (T1, T2, and T3)
X-Axis Direct Scale Feedback (X1, X2, X3)
Chip Conveyor (Side Exit Scraper Type)
Ethernet Capability
Automatic Door
Tool Presetter (Left and Right Spindle)
(5) External M-Codes
3-D Coordinate Conversion
Tool Retract and Recover
Hobbing Function
X-Axis Direction JIS / ISO
C-Axis High-Precision Indexing
4 Color Signal Light
Built in Work Light
17,110 Power On Time
663 Operation Time Head 1
1907 Operation Time Head 2
1662 Operation Time Head 3
609 Cutting Time Head 1
375 Cutting Time Head 2
438 Cutting Time Head 3
