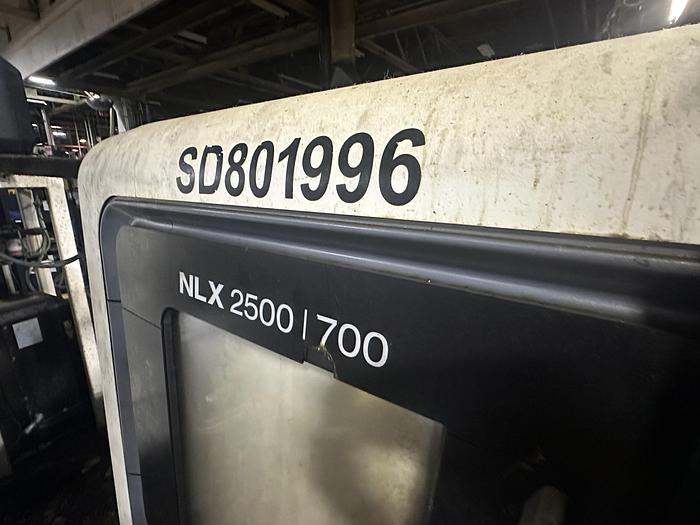

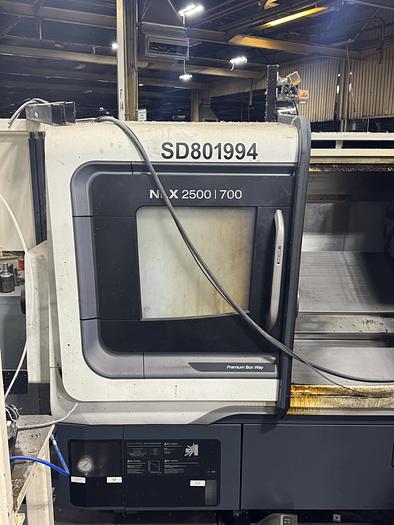

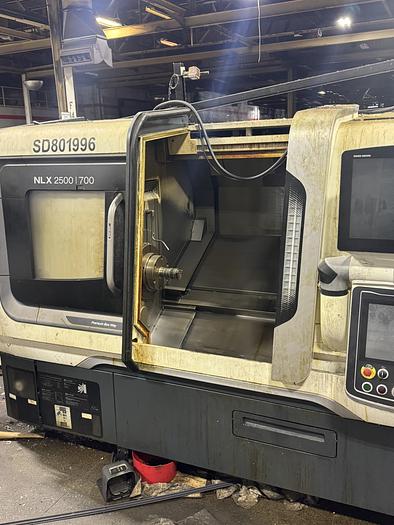

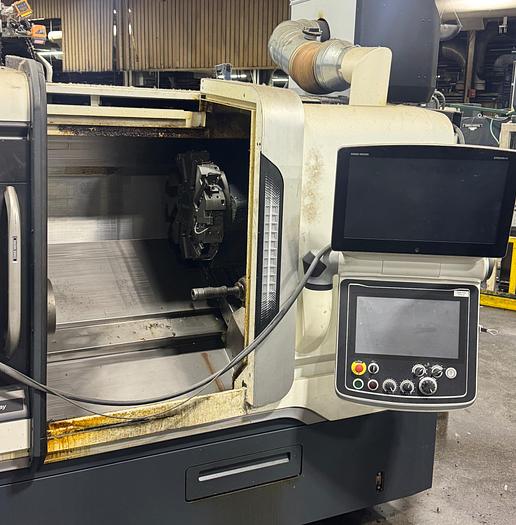

1-USED DMG MORI NLX 2500/700 2 AXIS CNC LATHE WITH CHIP BLASTER

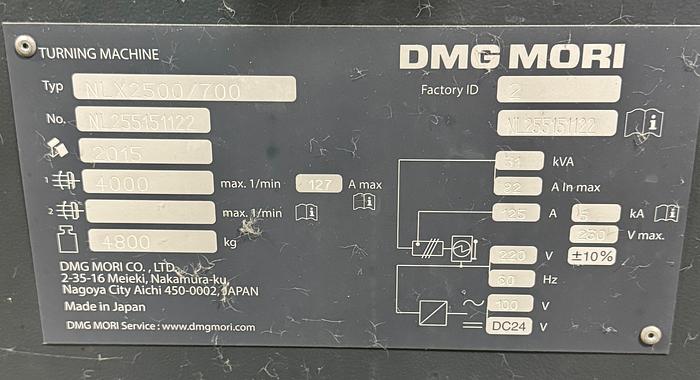

   SN NL255151211

   DATE OF MFG. 2015

   STK#105290

===============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

SURPLUS TO ONGOING OPERATIONS OF MANUFACTURING COMPANY

7 UNITS AVAILABLE

Features:

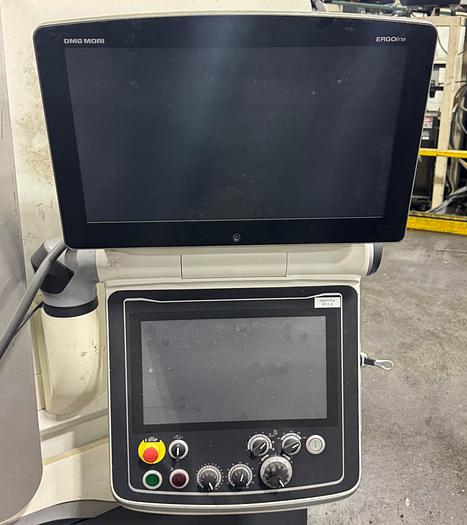

Mori Seiki MSX-853IV CNC Control

Cutting Time ?

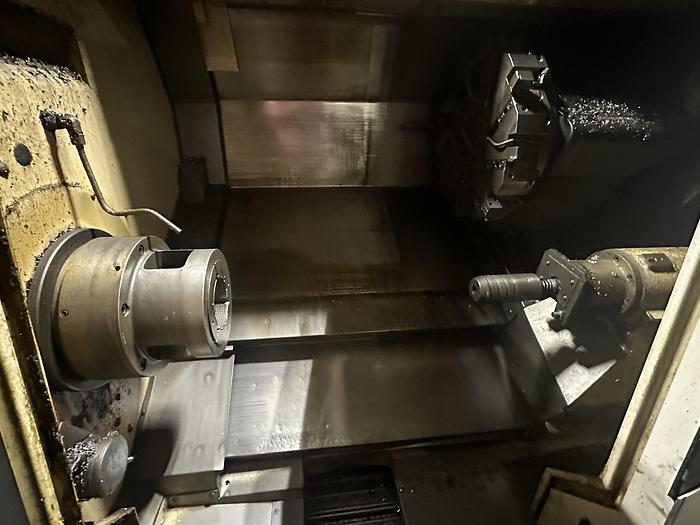

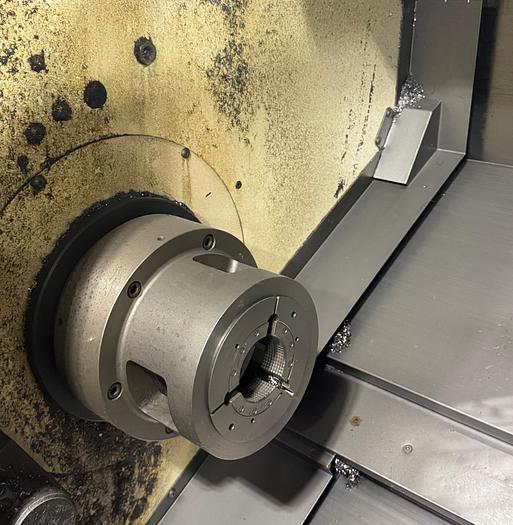

Collet Hydraulic Chuck

10 Station High Speed Turret

25 HP Spindle Power

PCMCIA Card Slot

Rigid Tapping

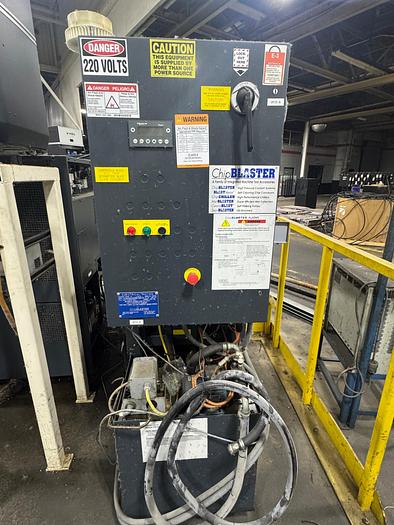

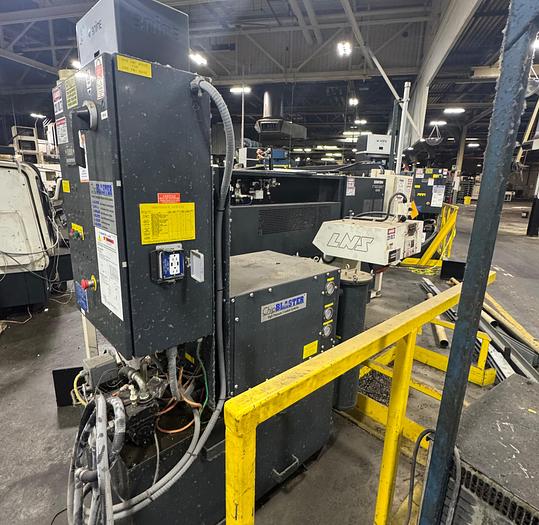

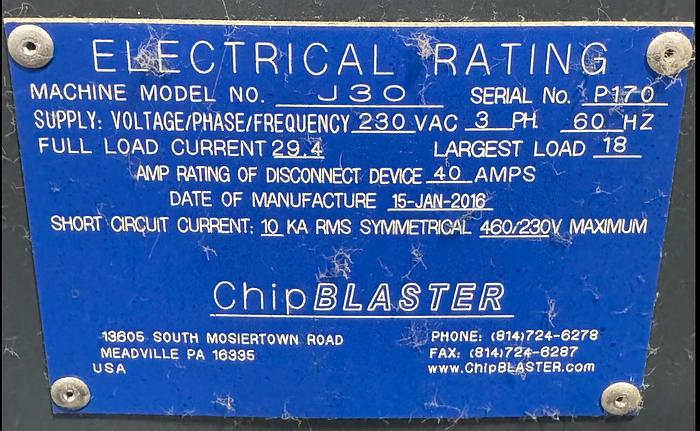

Coolant System Chip Blaster

Capacity:

Max Turning Diameter: 14.4 in

Max Turning Length: 27.7 in

Max Bar Capacity: 3.1 in

Swing Over Bed: 23.2 in

Distance Between Centers: 31.5 in

Travels:

 X Axis Travel: 10.2 in

 Z Axis Travel: 31.2 in

Rapid Traverse X Axis: 1181 IPM

Rapid Traverse Z Axis: 1181 IPM

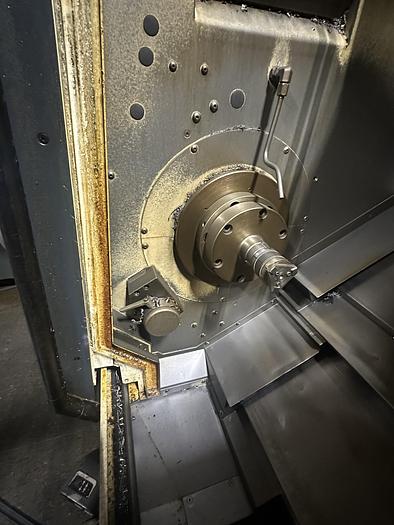

Spindle: Spindle Nose: A2-8

Spindle Bore: 3.5 in

Spindle Speed: 4000 RPM

Spindle Motor: 25 HP

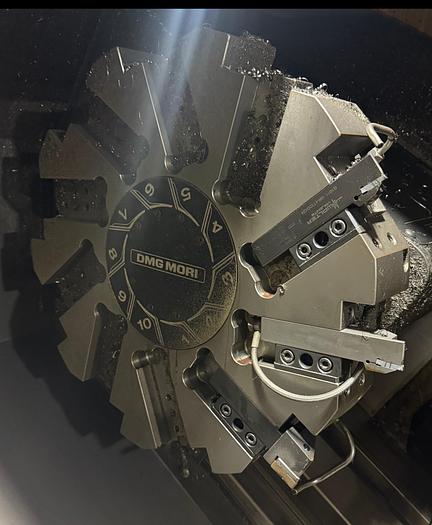

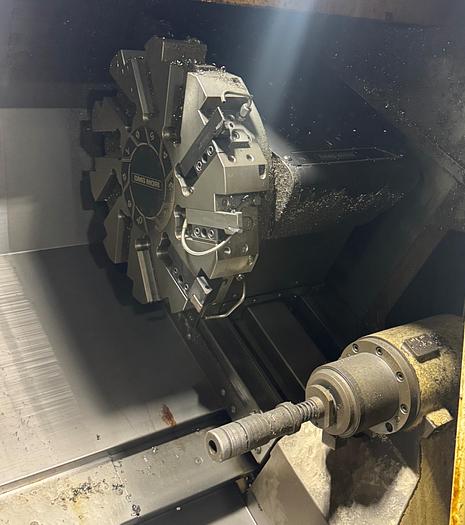

Turret:

Turret Capacity: 12 Stations

Turret Index Time: 0.5 Second

Tool Holders Type: BMT

Tailstock:

Tailstock Body Travel: 25.5 in

Tailstock Quill Dia.: 3.34 in

Tailstock Quill Stroke: 3.1 in

Tailstock Taper: MT-4

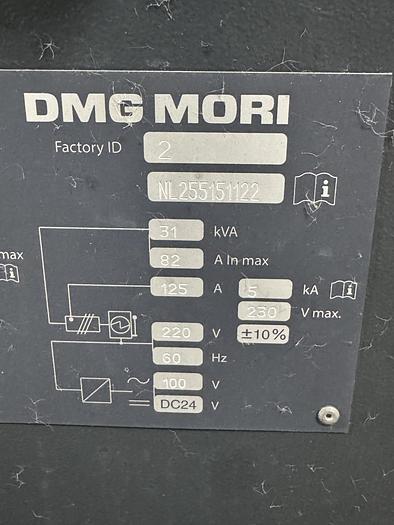

General: Power Source: AC 220 V, Three Phase, 60 Hz Power Requirement: 26 kva

Overall Dimensions: 103 in x 75 in x 72 in High

Weight: 9,900 lbs Approx.

EQUIPPED WITH:

Programmable Tailstock

Chip Conveyor

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND

BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS

AND CONDITIONS.

RAB INDUSTRIES, INC.

Specifications

Manufacturer DMG MORI

Model NLX 2500/700

Year 2015

Condition Used

Serial Number NL255151211

Stock Number 105290
