Reference # GMT-3142

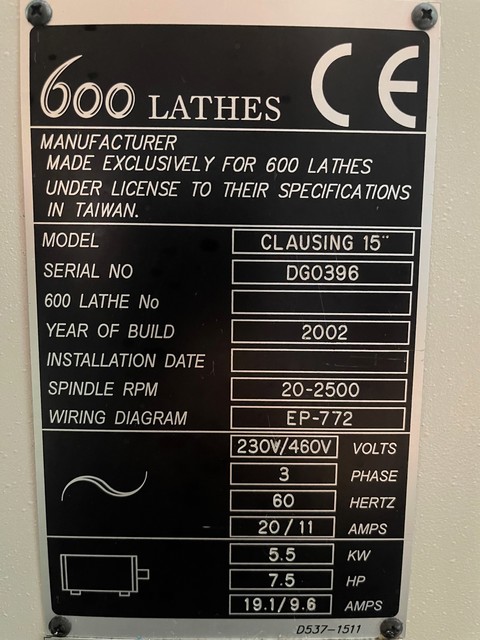

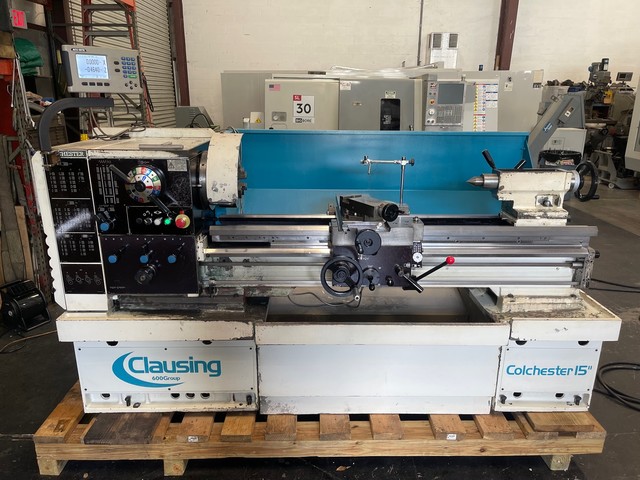

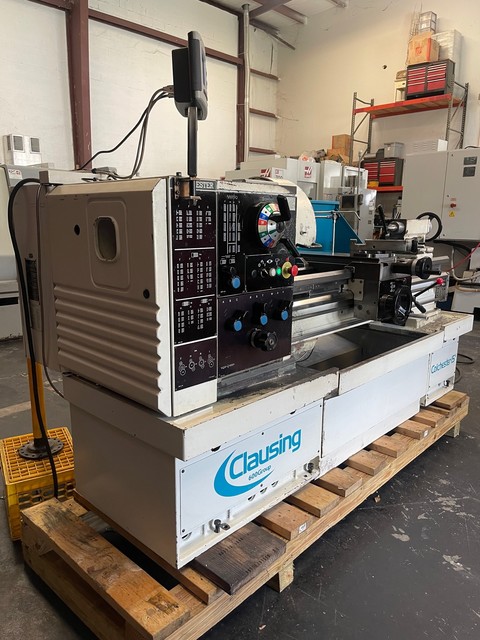

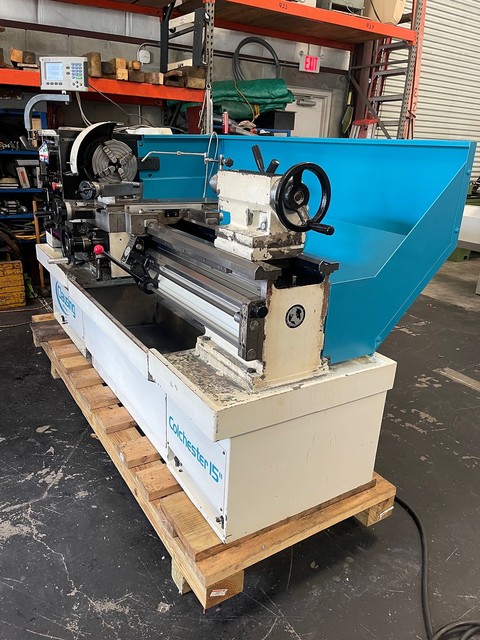

Model # 15 in Colchester
Serial # DG0396
Year of Manufacture 2002
Swing over bed 15-1/4 in
Swing in gap 23 in
Swing over cross slide 9-1/2 in
Distance between centers 50 in
Hole through spindle 2-3/16 in
Bar capacity 2-1/8 in
Spindle nose, Camlock, size D1-6
(16) Spindle speeds 25 to 2,000 R.P.M.
Headstock and tailstock spindle center tapers #4 Morse
Tailstock spindle travel 6-1/8"
Tailstock spindle diameter 2-5/16 in
Width of bed 11"
Longitudinal feed .0015 - .040 I.P.M.
Cross feed .00075 to .020 I.P.R.
Threads inch (45) 2 to 56 T.P.I.
Threads metric (39) .2 to 14mm
CHARACTERISTICS
Equipped With:
Induction hardened bedways
Inch/Metric threading capability

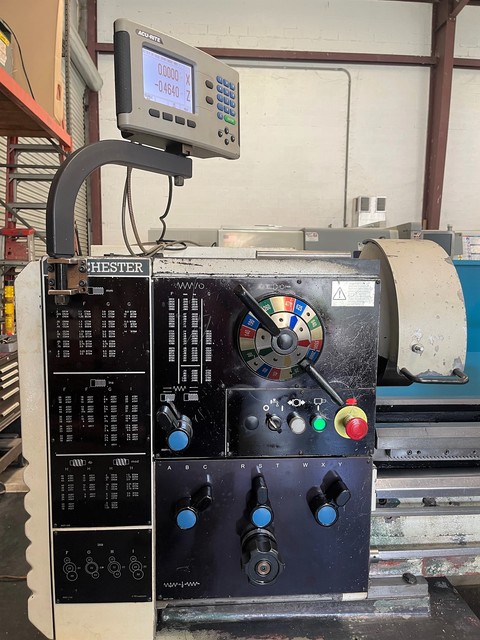

ACU-RITE 2 Axis Digital Read Out
10 in 3-jaw chuck

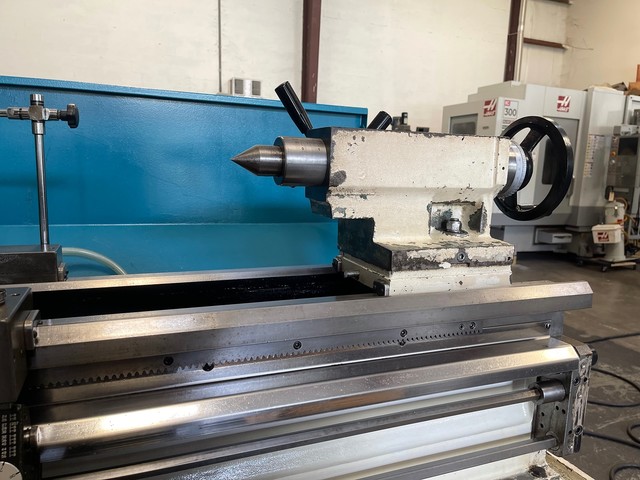

Tailstock
Threading dial
Removable chip pan
Chuck wrench

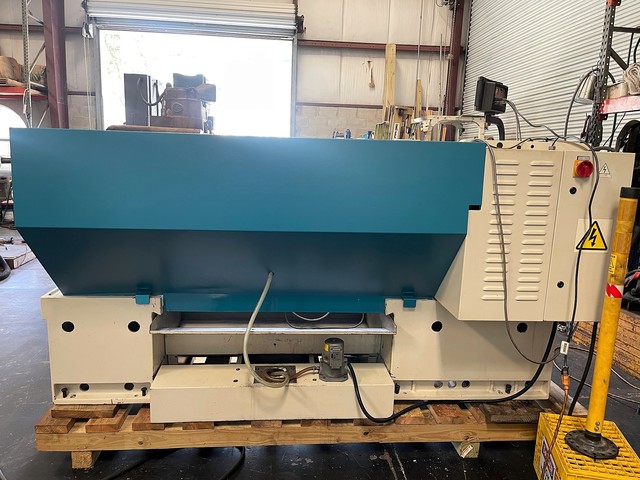

Internal coolant pump with tank and full length rear splash guard
7-1/2 H.P. 3/60/208-230-460 volt spindle drive motor and electrical controls
Machine is wired for 460 volt operation.
Approximate Weight (Machine Only): 3500 Lbs.
APPROXIMATE DIMENSIONS:
104 in L x 53 in W x 66 in H
PRICE: $16,450
