Description:

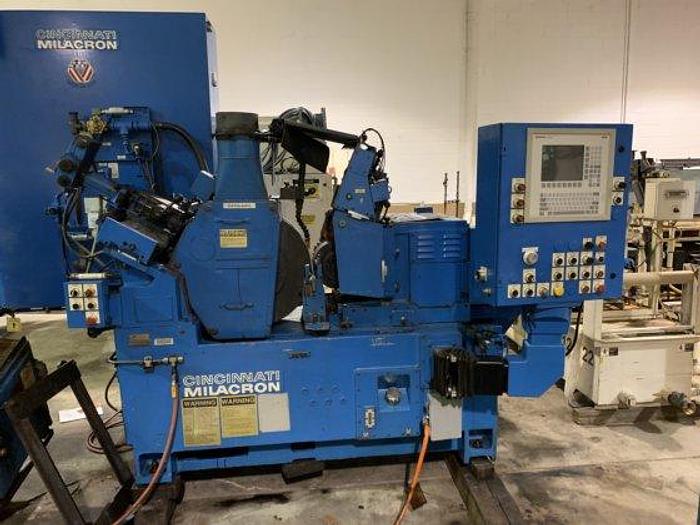

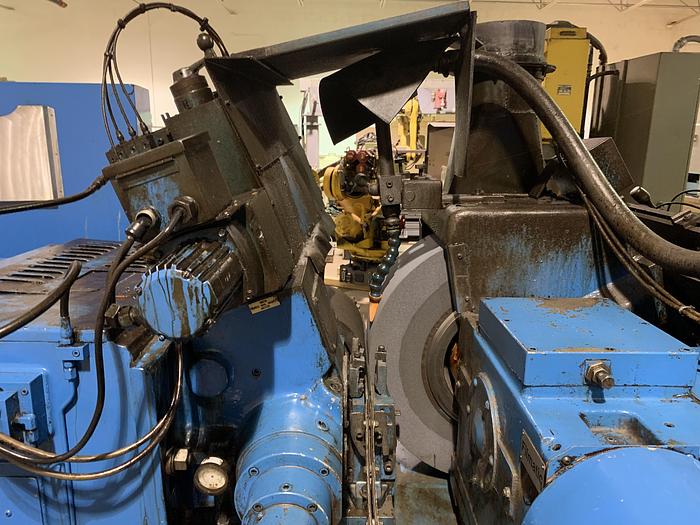

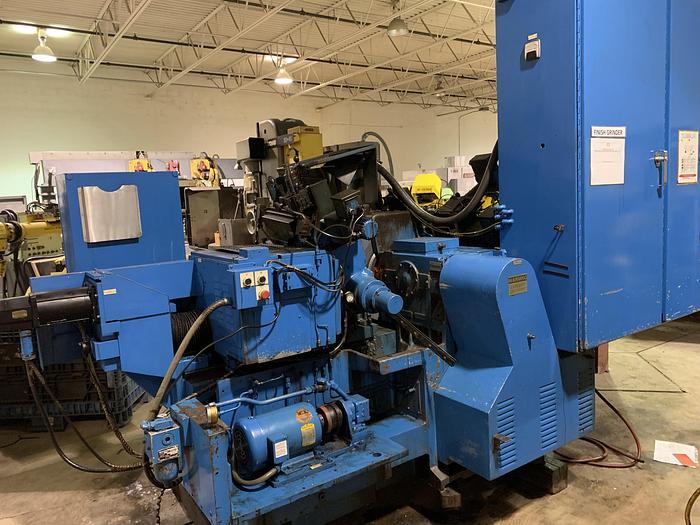

1-USED CINCINNATI MODEL 220-8 CENTERLESS GRINDER
SERIAL NUMBER 3503H81-0004
REMANUFACTURED IN 1994
DATE OF ORIGINAL MANUFACTURE 1981
SKT# 103531
=========================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:
Machine Capacity 0.063-3.000" w/Std. Thrufeed
Max. Work Diameter 4.750"
Min. Diameter Wheelhead 17"
Max. Diameter Wheelhead 24"
Collet Hole Diameter 12"
Grinding Wheel Width 3-8" Max. 10"
Grinding Wheel Speed 6500 ft/min.
Motor 20-HP / 1800 RPM
New Regulating Wheel 12"
Used Regulating Wheel 10"
I.D. Regulating Wheel 5"
No. Regulating Wheel Speeds Infinite
Low Wheel Speeds 15-56 RPM
High Wheel Speeds 56-300 RPM
Regulating Wheel Motor 1-1/2HP @ 1200 RPM
Max. Lower Side Travel 6.375"
Max. Upper Side Travel 2.875"

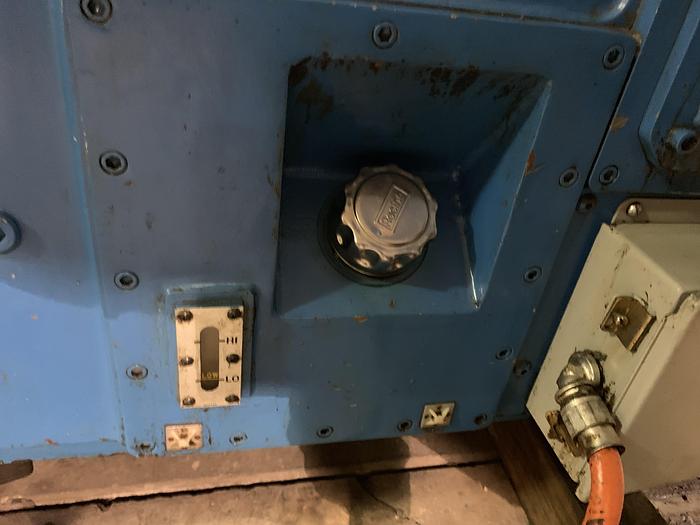

Hydraulic Reservoir 21 Gal.
Automatic Feed Lubrication 3 Gal.
Approx. Weight 12,500 lbs.
EQUIPPED WITH:

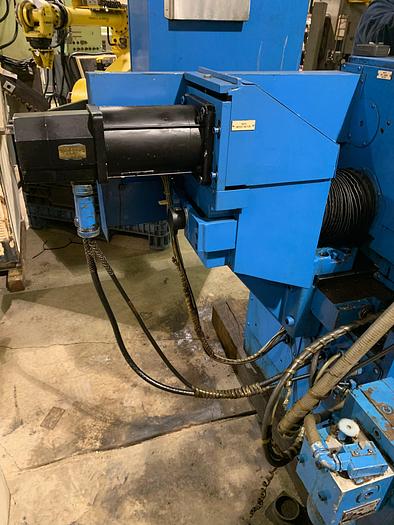

KOLMORGEN SERVO INFEED MOTOR

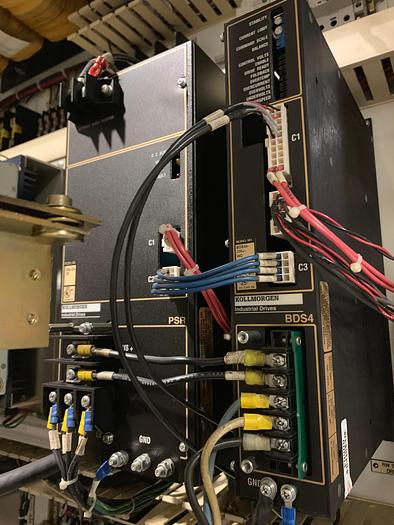

KOLMORGEN SERVO MOTOR CONTROL OF REG WHEEL RPM

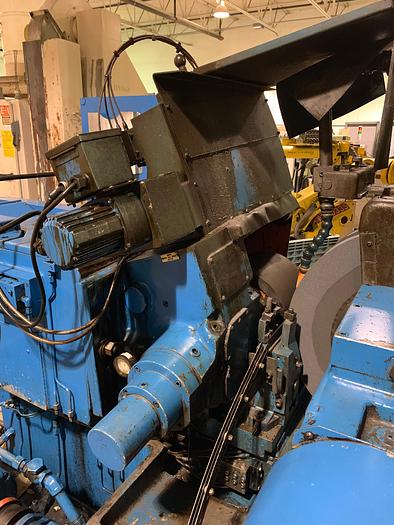

SERVO DRESSER MOTORS

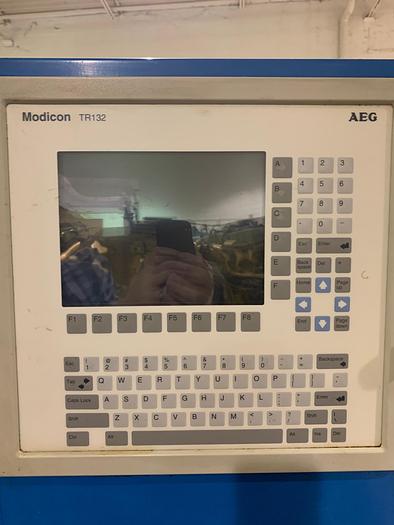

MODICON OPERATORS CONTROL INTERFACE

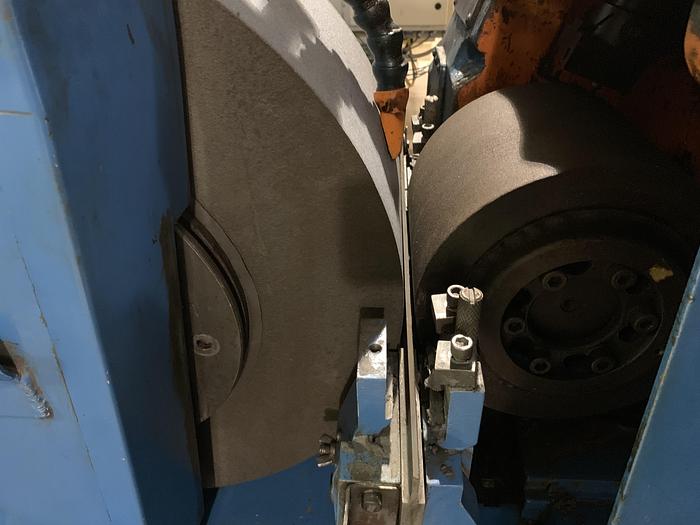

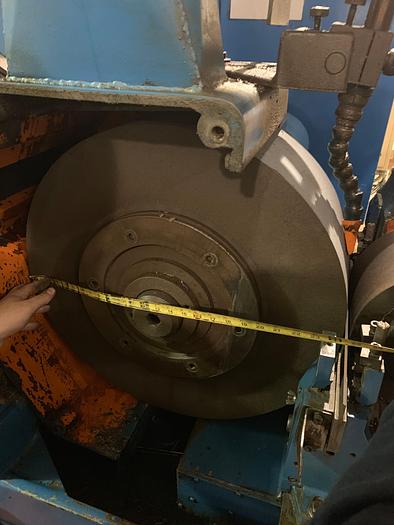

GRINDING WHEEL 24" DIAMETER X 8" WIDE
REGULATING WHEEL 10" DIAMETER X 8" WIDE
SET UP FOR THROUGH FEED OPERATION

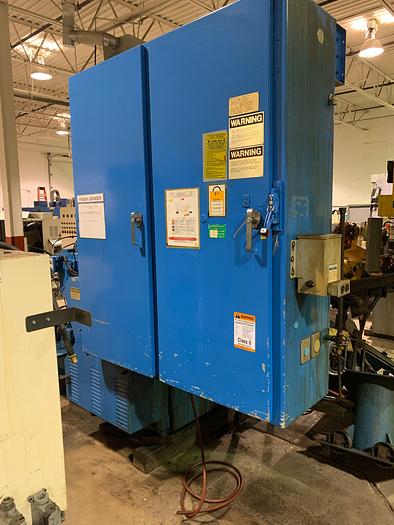

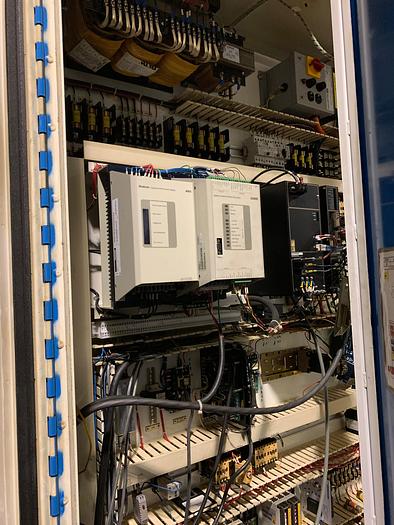

JIC PANEL AND CONTROLS
FOB TRUCK, IMLAY CITY, MI 48444
THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYERS UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.
(586)752-0090
Specifications:
Manufacturer CINCI MILACRON
Model 220-8
Year 1981
Condition Used
Serial Number 3503H81-0004
Stock Number 103531
