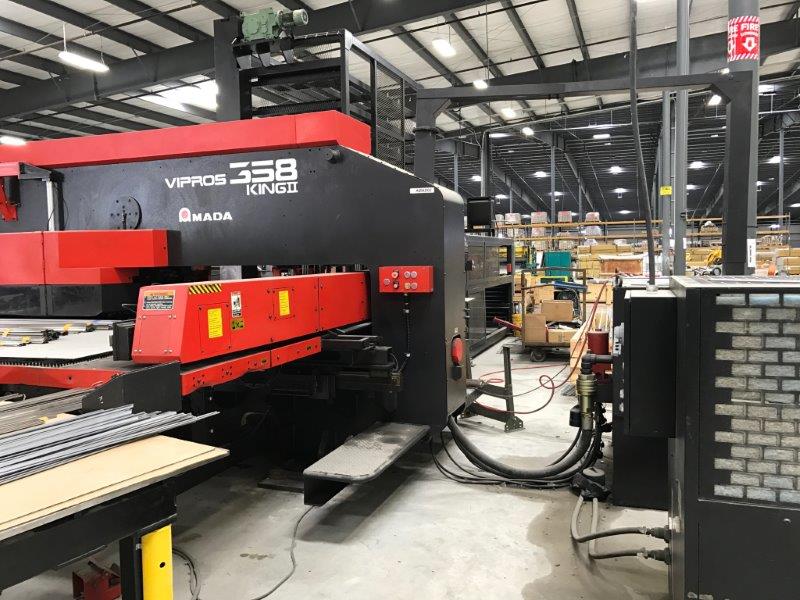

AMADA Vipros 358 King II 33 Ton CNC Turret Punch Press
Age: 2000
CAPACITY:
Tonnage Capacity ...................... 33 Tons
Table Travel .......................... 50" X 78.74"
X-Axis Travel With One Repositioning Cycle .. 158"
Throat Depth .......................... 52"
Maximum Material Thickness ............ 1/8"
Maximum Punch Diameter ................ 4 1/2"
Max. Hit Rate (.039" Pitch,.078" Str).. 1200 HPM
Hit Rate (1" Pitch,.118" Stroke)....... 460/360 HPM
Hit Rate (1" Pitch,.315" Stroke)....... 340/290 HPM
Linear Positioning Speed .............. 3,150 HPM
Max. Forming .......................... 1/2" Flange
Machine Weight ........................ 35,000 Lbs.
EQUIPPED WITH:

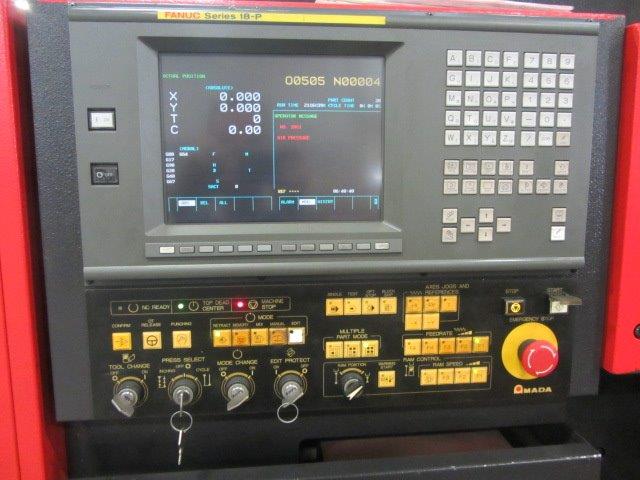

* Fanuc 18P CNC Control
* PHNC - Hydraulic Numerical Control
* (Calculates Optimum Punching Speed
* And Hydraulic Pressure)
* Servo Controlled Hydraulic Punch Head
* Brush Table Design
* 58 Station Thick Turret
* (2) 1.25" Auto Index Stations
* (2) 4.5" Auto Index Stations
* 157" Auto Sheet Repositioning
* Amada ASR48-CR 6 Cell sheet Loader/Unloader 4400 lb capacity
Per Cell.10.25" Load Height Including 4" Skid,
12" x 120" Single Stack, Max 12" x 30" Minimum Size
S/N: 48000365
View Video , Excellent Condition
