Description

Overview

Type: Horizontal Band Saws

Manufacturer: AMADA

Model: HFA 400-W

Condition: Rebuilt

Year: 1993

Stock #: 8604

Status: For Sale

Country: United States

Description

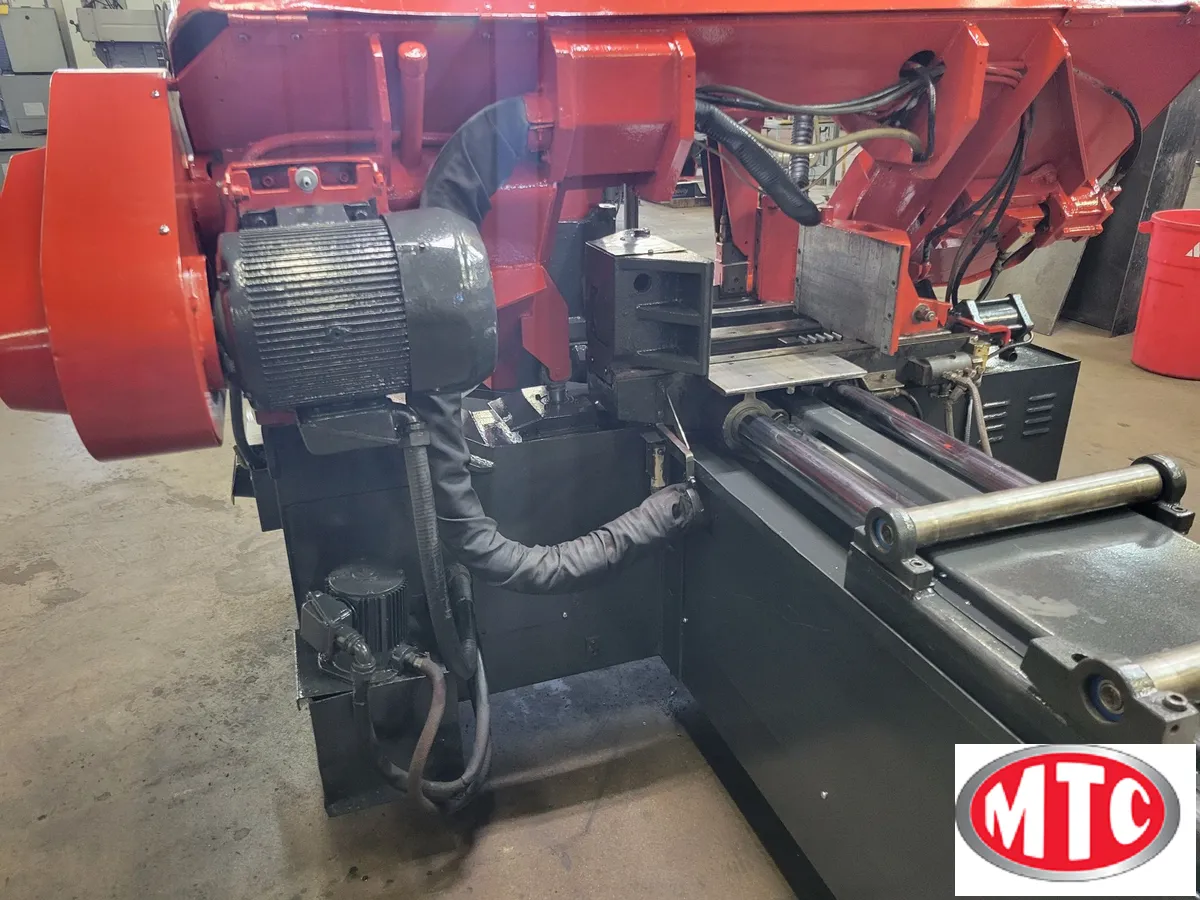

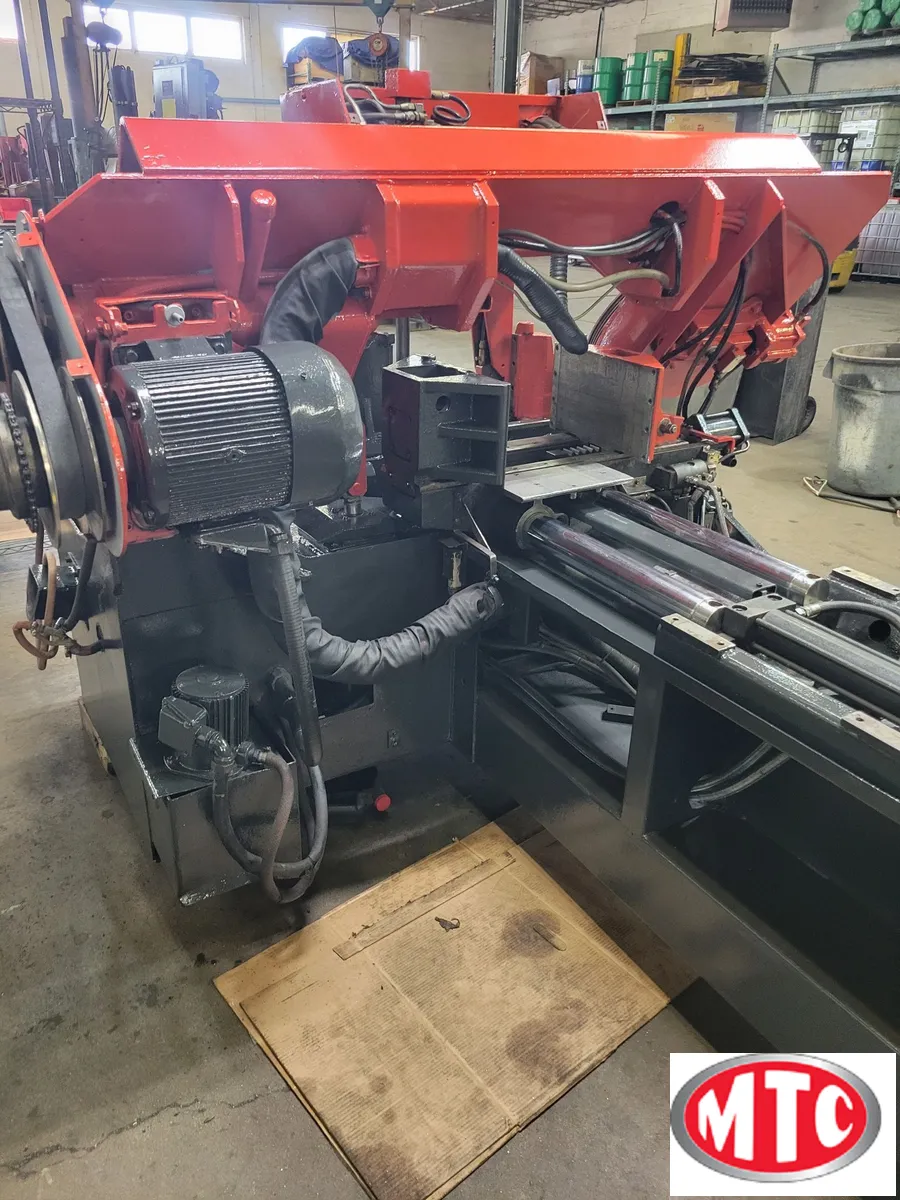

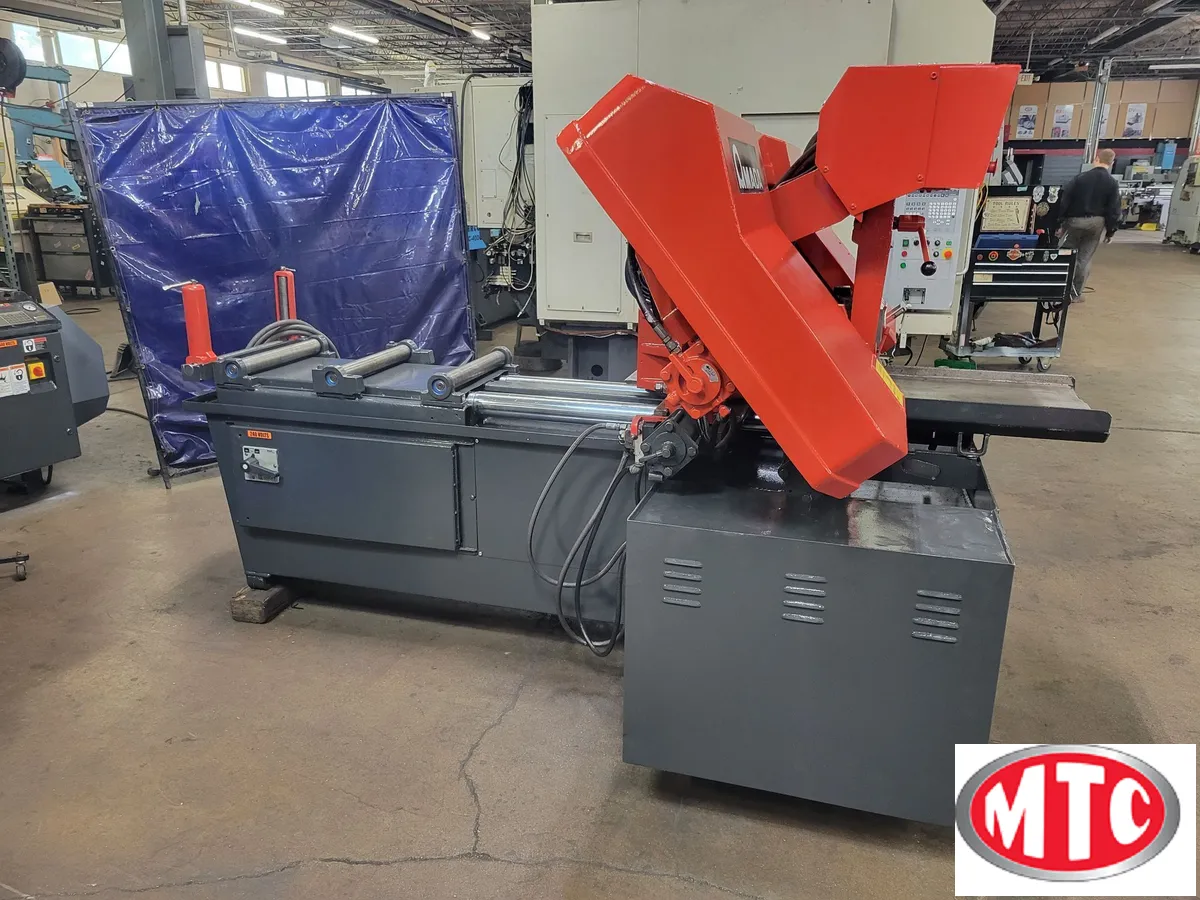

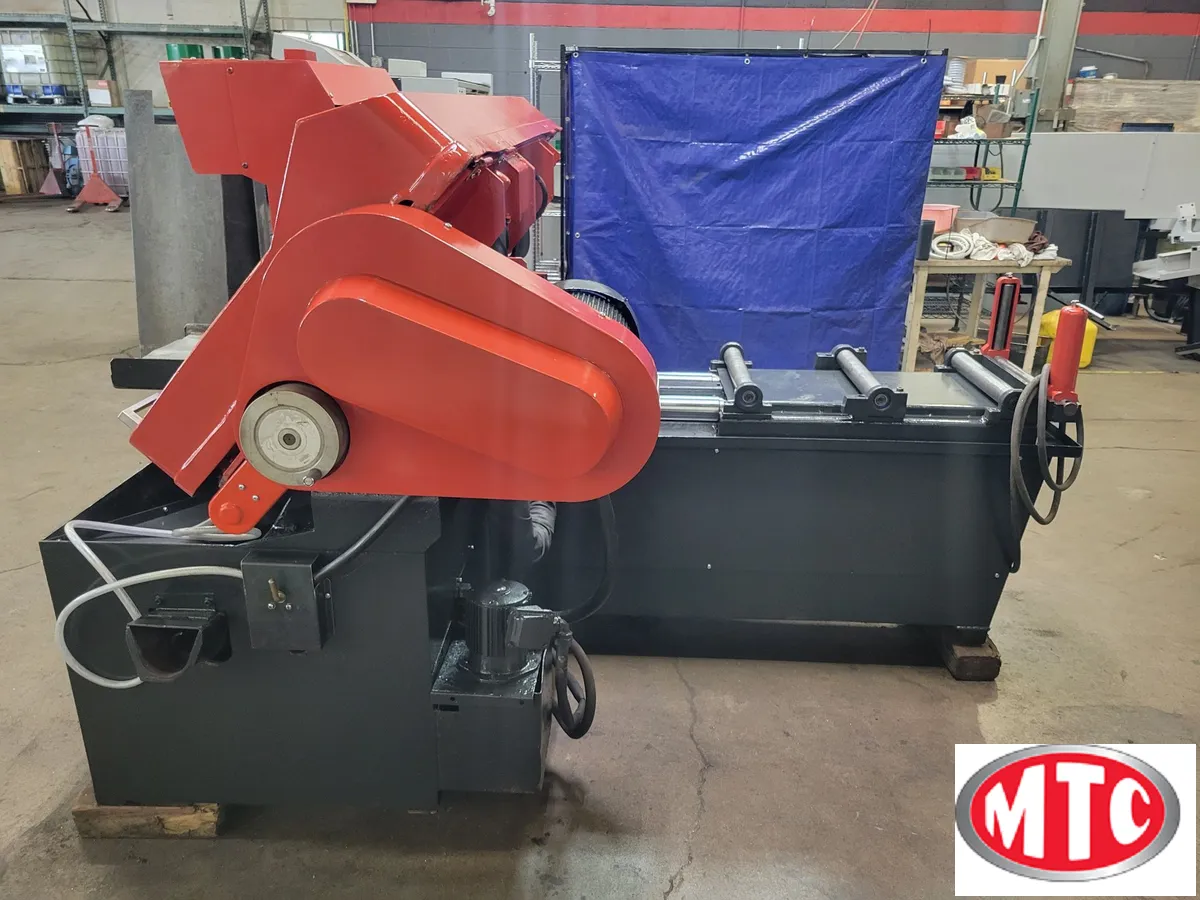

16 in Capacity NC bandsaw, Amada model HFA 400 W, heavy duty, production, fully automatic, Programmable up to 99 jobs, Piece counter with auto stop, multiple feed length, 1.5 in Blade, 7.5 H.P drive motor, Chip conveyor, coolant system with Wash down hose, powered blade brush, rapid advance head, carbide blade guides and all available manuals.

machine to be cleaned and cycled, Painted and recalibrated to factory Specifications and tolerances.

Equipped With

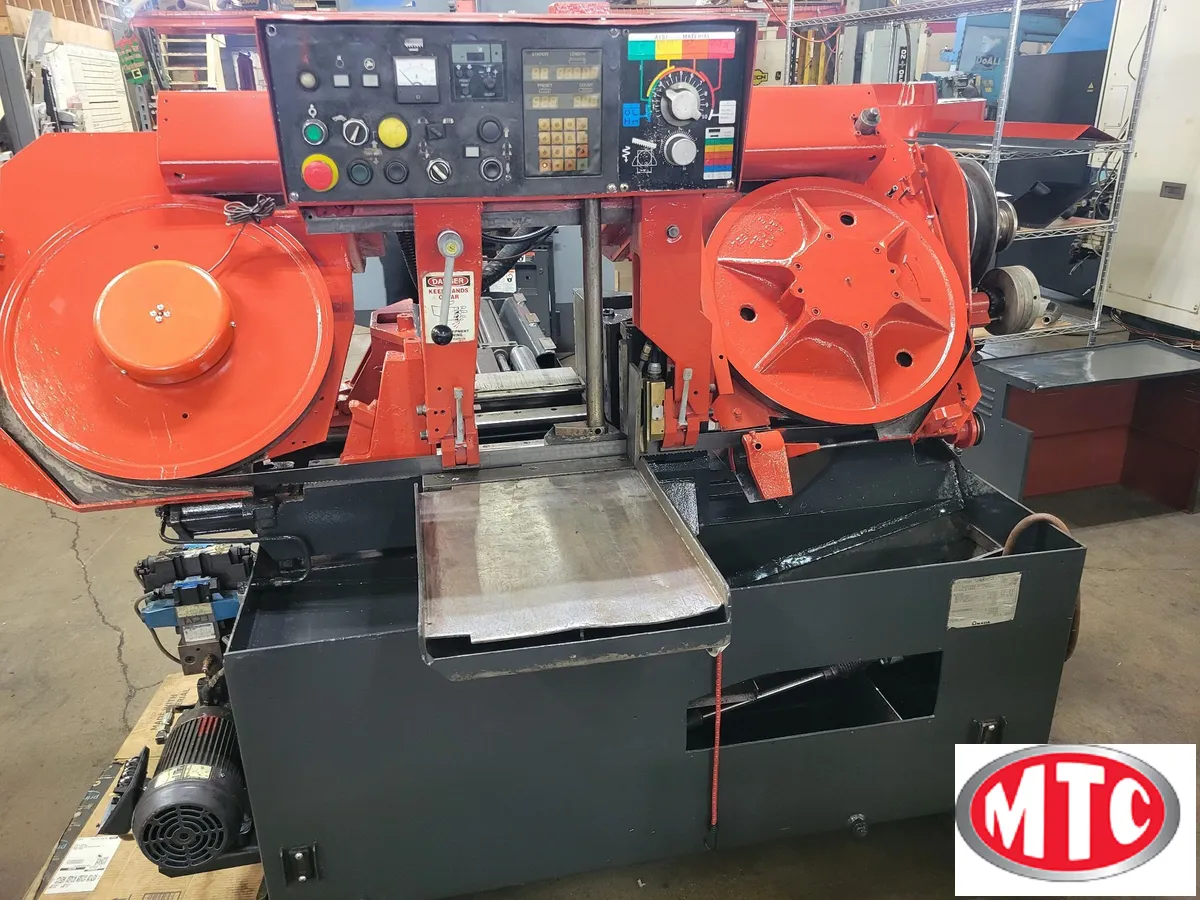

Programmable NC control for Length of cut, no. of pieces and other parameters, Chip conveyor, powered blade brush, Coolant system with wash down hose, rapid approach flag for head, carbide blade guides, manuals and 6 (Six) month warranty

Specifications

Rect-Cap (H) 16 in

Rect-Cap (W) 16 in

Rounds-Cap 16 in

Square-Cap 16 in

Power 7.5 hp

Type (Auto, Manual, Semi) Auto

Blade Width 1.5 in

Blade Thickness 0.05 in

Control CNC

Dimensions 91 in x 108 in x 68 in high

Weight 5,000 lbs.

Round (Diameter) 1.18 in to 16.54 in 30 to 420 mm

Rectangle (W x H) 16 in x 16 in 400 x 400 mm

Workload Capacity 5,511 lbs 2,500 kg

Saw Blade Size (L x T x W) 15 ft x 0.050 in x 1-1/2 in 4570 x 1.3 x 41 mm

Blade Speed 56-295 ft/min Stepless 17 to 90 m/min Stepless

Tension Control Hydraulic

Blade Control Top Limit Setting Automatic Setting with Quick Approach Feeler

Cutting Control Hydraulic Pressure and Flow Control Valve

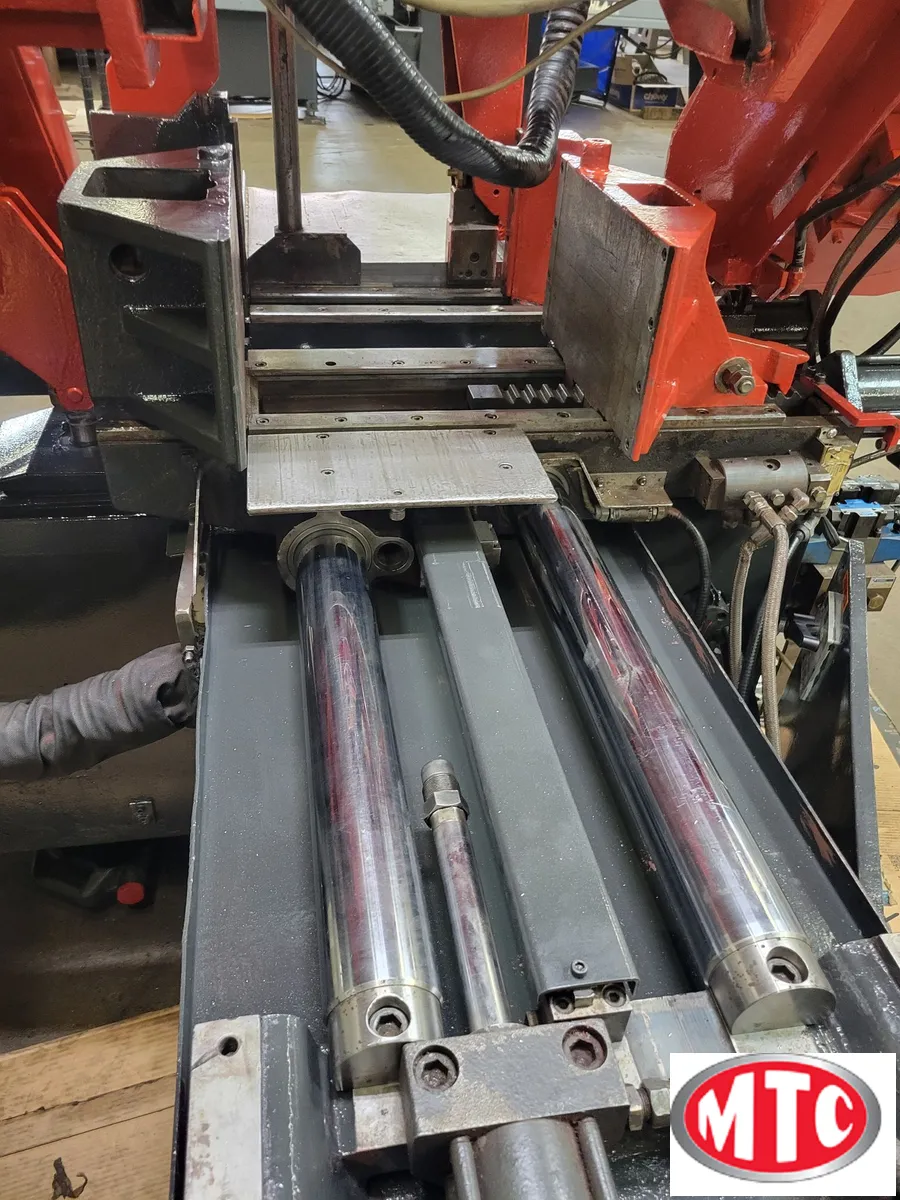

Vise Operation

Type Main and Rear Vise

Control Hydraulic Full-Stroke Cylinder

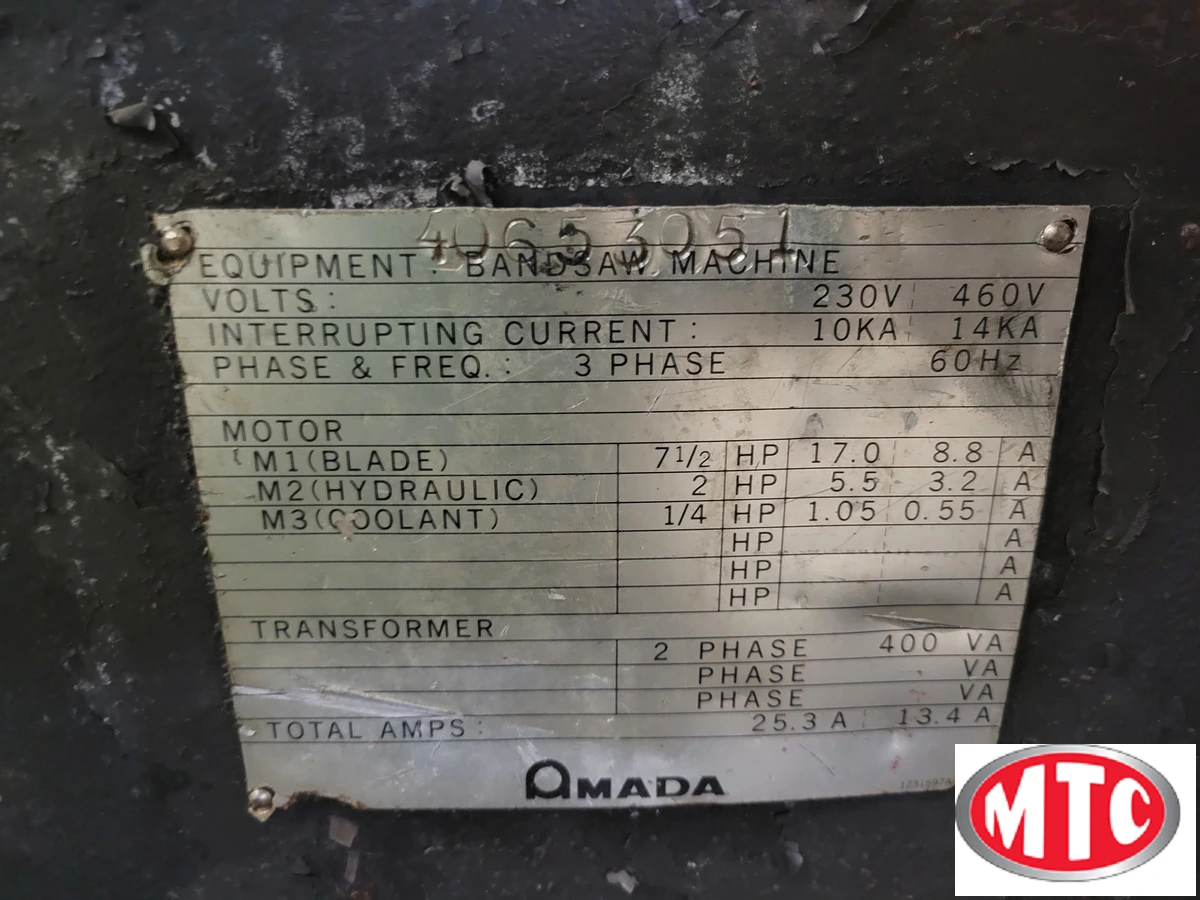

Motors

Saw Blade 7.5 HP 5.5 kW

Hydraulic Pump 2 HP 1.5 kW

Cutting Fluid Pump 1/4 HP 0.18 kW

Power Requirement Power Supply Voltage AC220V plus/minus10 percent, 3 PH, 60 Hz or AC440V plus/minus10 percent, 3 PH, 60 Hz

Power Requirement 11 kVA

Cutting Fluid Tank Capacity 31.7 gal 120 liters

Pump Type Centrifugal Electric Pump

Pump Capacity 10.6 gal/min 40 L/min

Hydraulic Tank Capacity 10.6 gal 40 liters

Pump Type Variable-Discharge Vane Pump

Pump Capacity 5.8 gal/min 22 L/min

Pressure Setting 498 psi 3.5 MPa (35 kgf/cm2)

Chip Disposal Chip Conveyor

Material Index

Index Mechanism Shuttle Type

Stroke 19.6 in 500 mm

Length 0.39-999.999 in 10-9999.9 mm

Number of Input Station 1-99

Number of Cut-Off Pieces 1-9999

Remnant Length 3 in Plus Length of Parts 76 mm Plus Length of Parts

Machine Dimensions (W x L x H) Head-Up Position 89.5 in x 106.2 in x 95.5 in 2274 x 2697 x 2425 mm

Head Down Position 89.5 in x 106.2 in x 62.0 in 2274 x 2697 x 1575 mm

Table Height 31.5 in 800 mm

Machine Weight 4,850 lbs.  2,200 kg
