| Specification | Description |
|---|---|
| Width & Length Ground | 24" x 48" |
| Longitudinal Travel | 51.5" |
| Cross Travel | 24.5" |
| Longitudinal Table Speed | 16-80 FPM |
| Cross Feed Increment Per Table Pass | 0-1" |
| distance spindle center to table | 33" |
| Grinding Wheel Dimensions | 20" x2" x5" |
| Motor | 10 HP |

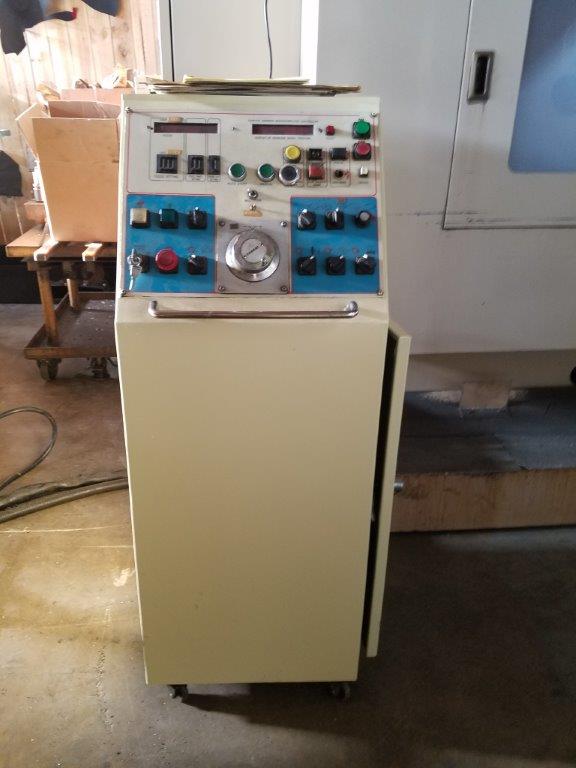

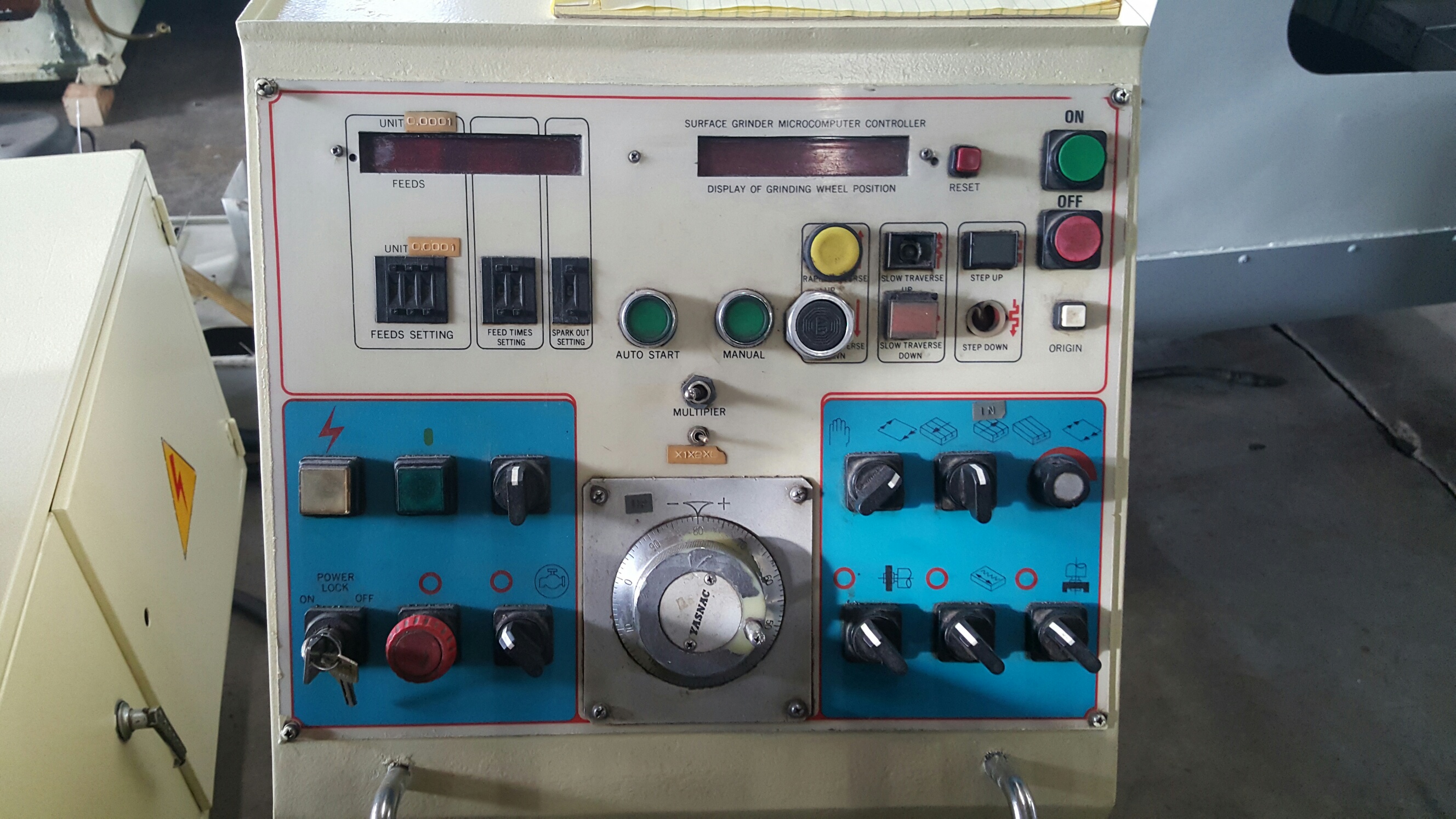

| Downfeed increments | N.C. controller .0001" |
| hydraulic motro | 5 HP |
| Auto. Cross feed motor | 1/4 HPX 6P |
| Spindle speed | 1150 RPM |
| Machine weight | 15,000 lbs. |
| packing dimensions | 103" x 118" x106" |

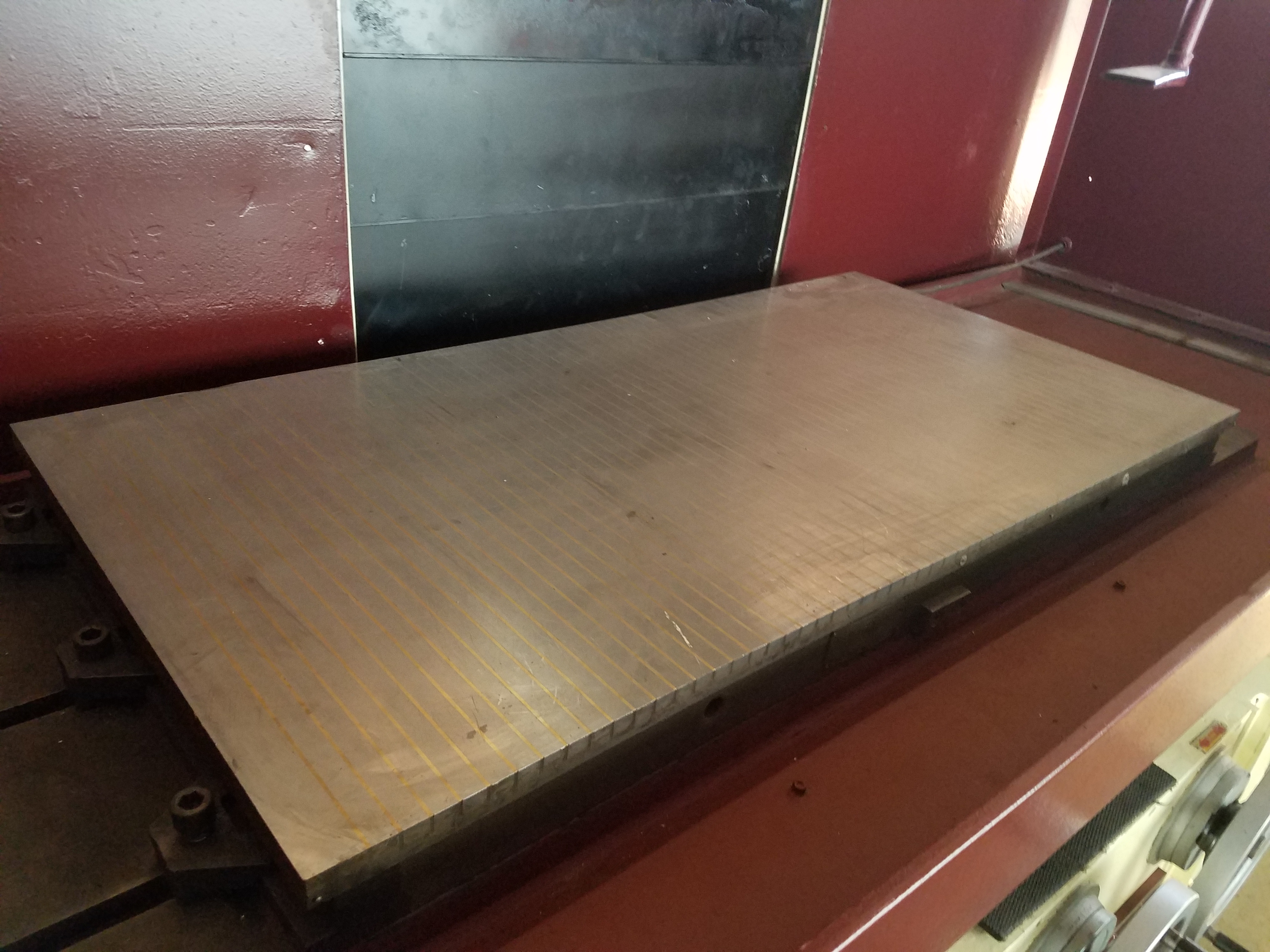

| Magnet Size | 47 1/4" x 23 3/4" |
