Description:

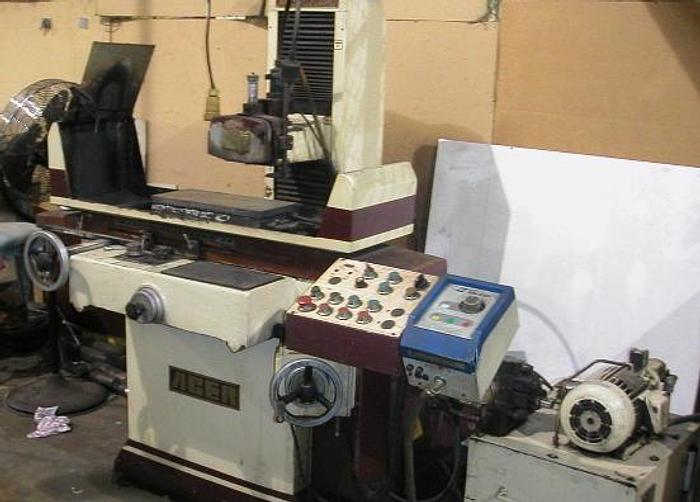

1-ACER AGS 1020AHD PRECISION HYDRAULIC SURFACE GRINDER MACHINE SERIAL NUMBER 9221040 DATE OF MFG. 1992 STK# 102110 =========================================== SPECIFICATIONS SUBJECT TO VERIFICATION:

SPECIFICATIONS:

Working Surface of Table (W x L): 9" x 20"

Max. Grinding (W x L): 10" x 20"

Max Table Travel: 20-1/2"

Max. Crossfeed Travel: 11"

Distance Between Table Surface & Spindle Center: 19-3/4"

Variable Speed by Hydraulic Cylinder: 16 - 80 FPM

Automatic Crossfeed Carriage Movement: 0 - 1"

Downfeed Handwheel Dial: Per Graduation 0.0005" - Per Revolution 0.1"

Crossfeed Handwheel Dial: Per Graduation 0.001" - Per Revolution 0.2"

Auto Downfeed Micro Adjustment Dial: Per Graduation 0.0001" - Per Revolution 0.01"

Longitudinal Travel (from - to): 6 - 20" Crossfeed Travel (from - to): 0 - 10"

Spindle Motor: 2 hp x 2 p

Hydraulic Pump Motor: 2 hp x 4 p

Auto Crossfeed Motor: 1/5 hp x 6 p

Grinding Wheel (O.D. x T x I.D.): 8" x 1-1/4" x 1/2" (3/4)

Rotation Speed of Spindle (Horizontal): 3500 RPM / 60 HZ

Flow Rate of Coolant Pump: 40 L/Min Max

Load Capacity in Addition to Magnetic Chuck: 700 lbs.

FEATURES:

Reinforced high column & heavyweight Meehanite casting. Direct drive spindle equipped with 4 ABEC-7 angular contact ball bearings Spindle motor: 2 HP 10" x 20" Grinding capacity 3 Axis Automatic movement Auto surface & plunge downfeed 24 volt circuit control. Double-V crossfeed ways; one V, one flat table ways. Auto-lube system. Dual hydraulic pump system: one for the auto incremental downfeed and one for the table longitudinal travel Large volume hydraulic tank. Double nut design for crossfeed leadscrew 19 3/4" \ 23 1/2" from table top to the center of spindle. Extra wide saddle at 24 1/2" and 30 1/2" each. www.rabind.com 586-752-0090

Specifications:

Manufacturer ACER

Model AGS 1020 AHD

Year 1992

Condition Used

Serial Number 9221040

Stock Number 102110
