5.90" DIAMETER X 6 FT AMERICOR HYDRAULIC 3-ROLL PLATE BENDING ROLL MODEL 3RSP 150/6

Add to Your File

Product Image
  • Product Images
  • Product Images
  • Product Images
  • Product Images


3RSP 150/6
Stock#: 4192
Rolls
Plate Rolls
used
4950 (LB)
0
$0.00

Description

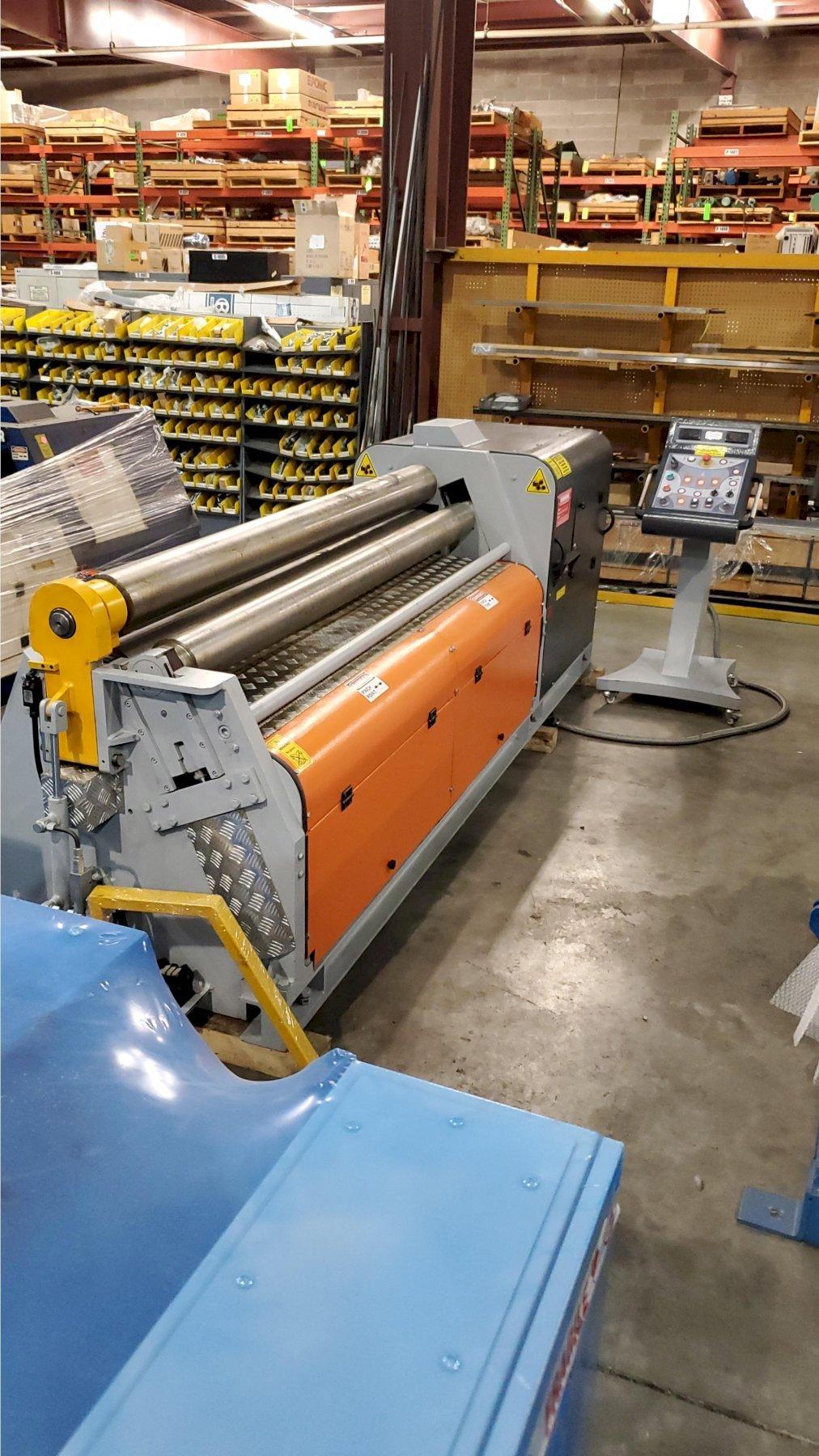

 Demo Americor Hydraulic Single Pinch Plate Roll - 3 Roll

  Model 3RSP 150/6

Stock#: 4192



  Capacity .......................... 6 ft. x 3/16" Mild Steel

  Overall Length of Rolls ........... 81 in.

  Roll Diameter ..................... 5.90 in.

  Weight ............................ 4,950 lbs.

  Motors:

        Drive Motor.................. 3 HP

        Hydraulic Motor.............. 1-1/2 HP



  Features:

  All steel frame

  Most rigid frame, drop end and clamping roll parallelism unit

  Machine frame stress relieved

  Upper and lower pinch rolls driven

  All rolls mounted in ball or roller bearings

  Powered hydraulic adjustment of the lower pinching roll

  Powered hydraulic adjustment of the rear bending roll, with push

          button control and electronic digital readout for roll position

  Design of lineal guided rear roll to minimize flat ends

Hydraulic drop end
  Top roll permanently balanced when the drop end is opened

  Standard Equipment:
  Main drive motor with magnetic brake
  Hydraulic unit with motor and controls for lower roll and rear
       bending roll adjustment and for the hydraulic drop end
       SAE 1050 high strength steel rolls heat treated (hardened) to 55-60 Rc

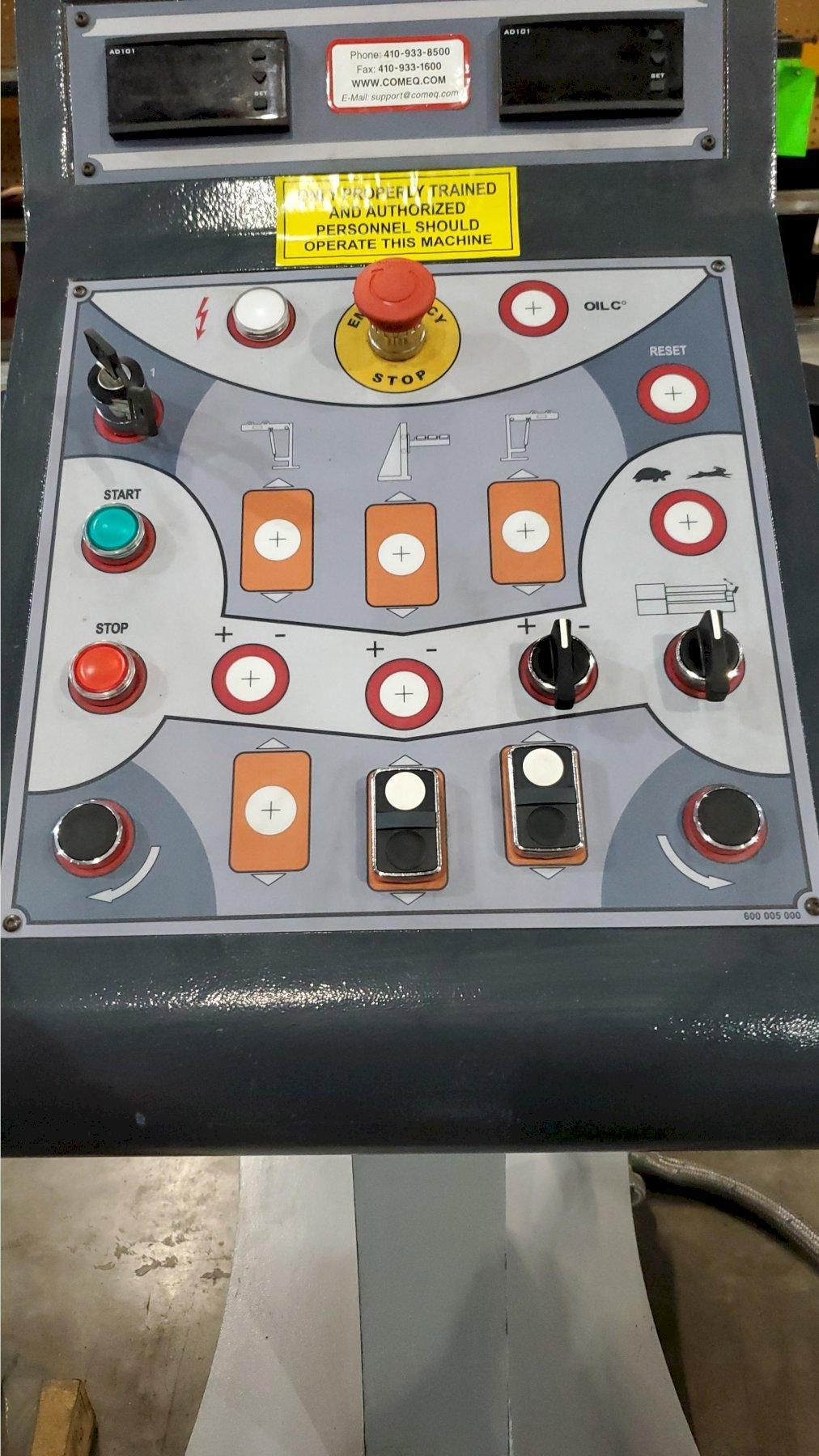

  Portable control console mounted on wheels for operator convenience
  Components from American and European sources
  Electrics for 3/60/220 or 440, with overload and undervoltage protection
  Low voltage at the controls. Safety cable at front and rear of machine
  Cone bending attachment
  Powered tilting of rear bending roll for cone rolling
  Electronic digital readout to indicate position of the rear
  bending roll

  FOB: Maryland
