Travel method: X & Y - axis beam move
Drive method: X Rack & Pinion, Y & Z Ball screw
Work area
X= 121"
Y= 61"
Z= 7.87"
Maximum thickness
7/8" mild steel
1/2" stainless steel
3/8" aluminum
Maximum work weight: 2000 lbs
Rapid traverse
X & Y: 3,150 inches per minute
Simultaneous: 4455 inches per minute
Z: 2,362 inches per minute
Repeatability: +/- 0.0002"
Z-axis sensor: HS-2007
CNC: AMNC PC-OS; windows embedded
Assist gas control: Automatic select
Approximate machine weight: 34,216 lb. (includes shuttle tables)
Power requirements: 200/220V +/- 10% 50/60 Hz
CNC Controller
Model: AMNC-NT
Display: LCD color graphics display
Control function
X,Y,Z-axis simultaneous and focus lens B-axis, adaptive optic and laser power control (CW, gated pulse, pierce routines, etc.)
Data input method: Touch screen, keyboard, ethernet, wireless, CD, USB, 3.5" floppy disk
Minimum command unit: 0.0001" (X,Y,Z)
Minimum travel unit: 0.0001" (X,Y,Z)
Standard memory: 2 MB
Hard drive: 10 GB
Operating modes: Automatic and manual
Display modes:
Program contents, position information, program check, settings, parameters, beam diameter compensation, assist gas status, self-diagnostics
Interlock displays: Cooling water status, gas pressure status, vacuum status, turbo blower malfunction, shutter status beam power, resonator discharge, door open, WACS
Equipped with
Chiller
Beam Purge

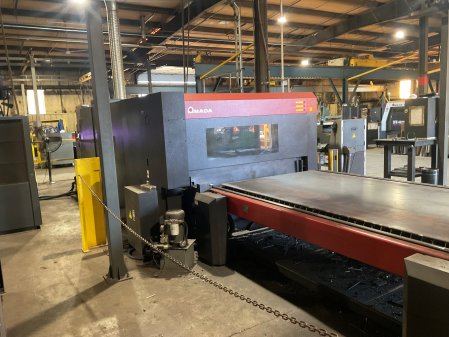

To view more information on the 4000 WATT AMADA FOM2-3015NT CO2 LASER,MFG: 2014, OUR STOCK NUMBER: 12871, including reviews, brand information, photos, videos, and more,
