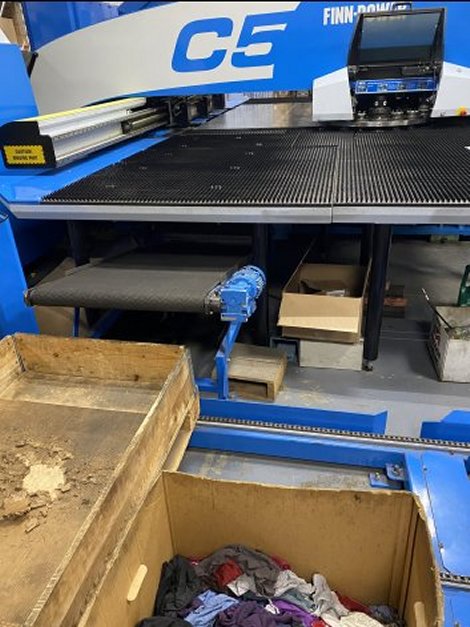

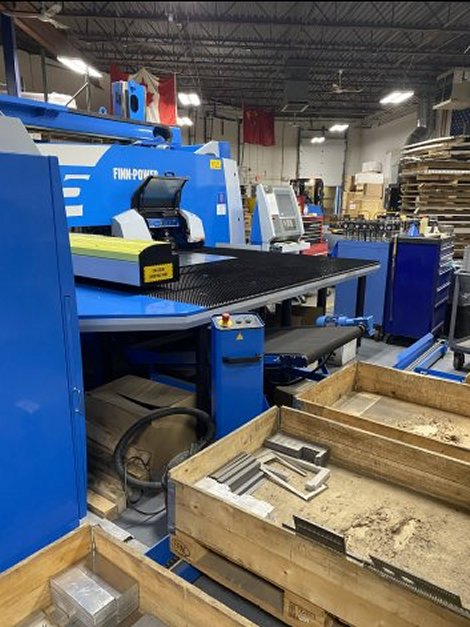

SHEET SIZE(MAX)X x Y: 48" x 96"
SHEET SIZE(MIN)X x Y: 11.8" x 3.94"
SHEET WEIGHT MAX: 440 LBS
X TRAVERSE LENGTH: 101"
X TRAVERSE AXIS SPEED MAX: 3,543"/MIN
Y TRAVERSE LENGTH: 51.8"
Y TRAVERSE AXIS SPEED MAX: 2,362"/MIN
TRAVERSING SPEED, MAX: 4,251"/MIN
HIT SPEED MAX:
MARKING: 3000 1/MIN
NIBBLING (1MM):1100 1/MIN
25 MM BETWEEN HOLES: 420 1/MIN
250 MM BETWEEN HOLES: 150 1/MIN
RAM FORCE: 33 US TON
PUNCH STROKE: SERVO HYDRAULIC
STROKE DEPTH: NUMERICALLY ADJUSTABLE
STROKE LENGTH: PROGRAMMABLE
RAM SPEED: PROGRAMMABLE

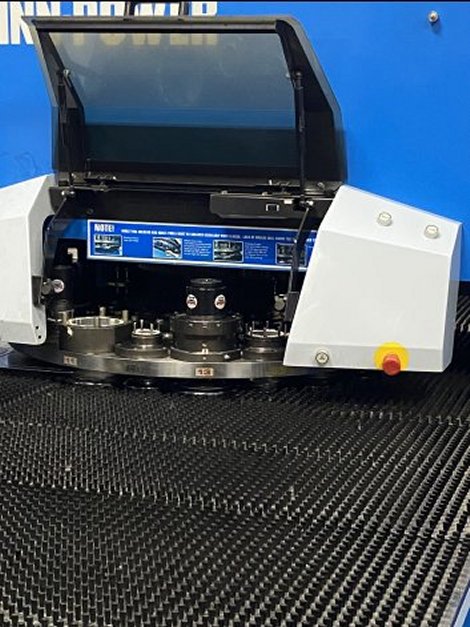

# OF TURRET STATIONS: 20
PUNCH DIAMETER MAX: 3.5"
TURRET ROTATION: 23.8 R/MIN
TOOLS: THICH TURRET
TOOL CHANGE TIME: 1...3 SEC
CNC INDEX TOOL:
# OF INDEX TOOL STATIONS: STANDARD 2 PCS/ MAX. 10
PUNCH DIAMETER MAX: 3.5"
TOOL ROATATION MAX: 166 R/MIN
MATERIAL THICKNESS MAX: 8MM OR 0.314"
CLAMPS: PNEUMATIC 2 PCS (OPTIONAL 3)

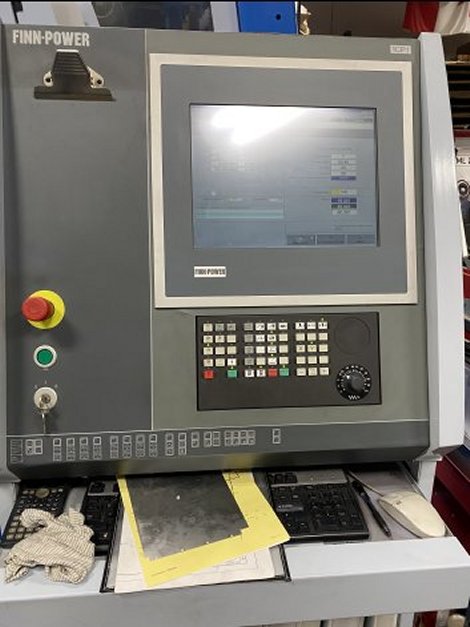

NC PROGRAM MEMORY:
SIEMENS SINUMERIK 840D 1.5MB
Ethernet connection: yes
POWER SUPPLY: 80 KVA
POWER CONSUMPTION AVERAGE: 30 KW
COMPRESSED AIR CONSUMPTION AVERAGE: 2.5NI/s 6cfm
COMPRESSED AIR CONSUMPTION MAX: 5NIs 11cfm
COMPRESSED AIR PRESSURE MIN: 6 BARS (90 PSI)
TOTAL WEIGHT: 23,149 LBS
OIL TANK VOLUME: 106GA
OIL COOLER CAPACITY MAX: 30KW
AIR FLOW IN OIL COOLER: 103CF/SECOND
PUNCHING ACCURACY ACCORDING TO LKP-7100:
HOLE LOCATION DEVIATION (X/Y AXES), MAX: 0.004"
HOLE-TO-HOLE DISTANCE DEVIATION (X/Y AXES), MAX: 0.002"
ANGULAR DEVIATION (CNC INDEX TOOL)MAX: -/+0.1
POSITIONING ACCURACY ACCORDING TO VDI/DGQ 3441:
POSITIONAL DEVIATION PA (X/Y AXES): 0.003" (0.002")
POSITIONAL SCATTER PS (X/Y AXES): 0.002" (0.001")
COMPRESSED AIR CONNECTION (P1):
MIN. COMPRESSED AIR PRESSURE: 6 BAR (90PSI)
MAX. COMPRESSED AIR CONSUMPTION: 9 NI/S (19CFM) (C5 & COMPACT
EXPRESS)
AVERAGE COMPRESSED AIR CONSUMPTION: 4 NI/S (8.5CFM) (C5 & COMPACT
EXPRESS)

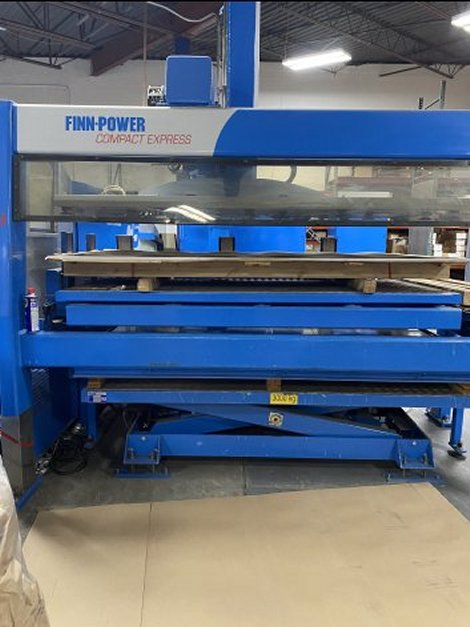

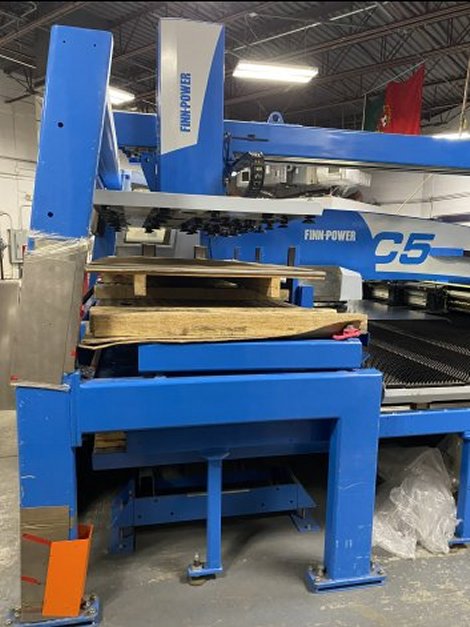

LOADING DEVICE:
SHEET SIZE MAX (X x Y): 96"x 48"
SHEET SIZE MIN (X x Y): 19.7"x 11.8"
SHEET WEIGHT MAX.: 440 LBS
SHEET THICKNESS MAX.: 0.315"
SHEET THICKNESS MIN.: 0.02"
SUCTION CUP SUCTION PRESSURE: ADJUSTABLE
HORIZONTAL MOVEMENT: ELECTRICAL
HORIZONTAL MOVEMENT SPEED: APPR. 0.75 M/S
VERTICAL MOVEMENT: ELECTRICAL
LOAD LOADING STATION, MAX: 6,600 LBS
SHEET STACK HEIGHT ON LOADING STATION, MAX.: 7.87" + 5.9"
SHEET STACKING TOLERANCE, MAX.: 0.98"
FLOATING COVER FOR LOADING TABLE:
1.97" MANUAL ADJUSTMENT IN X & Y DIRECTIONS
PNEUMATIC LOCKING OF COVER PLATE. WHEN THE LOCKING IS RELEASED
FROM THE MANUAL VALVE, THE COVER PLATE CAN BE MOVED ON SHEET
SUPPORT ROLLS. AFTER THE MOVE, THE COVER PLATE MUST BE LOCKED TO
ITS POSITION FROM THE CALVE MENTIONED ABOVE.
SHEET STACK HEIGHT MAX. 7.87" + PALLET 5.9"

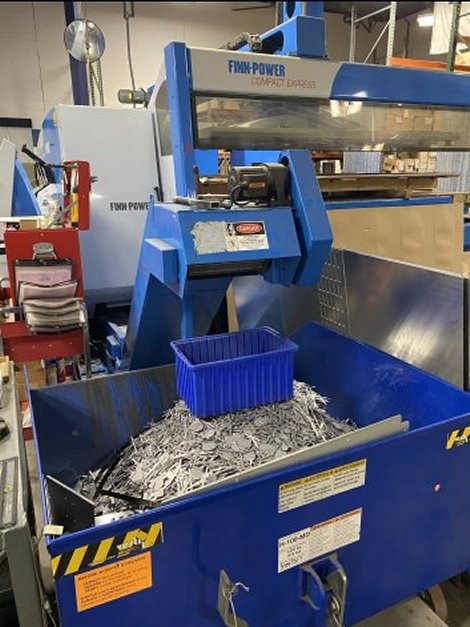

UNLOADING DEVICE:
SHEET SIZE MAX (X x Y): 48"x 96"
SHEET SIZE MIN (X x Y): 1.57"x 15.7"
SHEET WEIGHT MAX.: 440 LBS
HORIZONTAL MOVEMENT: PNEUMATIC
HORIZONTAL MOVEMENT SPEED: APPR. 0.5 M/S
UNLOADING TABLE LOAD MAX.: 6,600 LBS
SHEET STACK HEIGHT ON UNLOADING TABLE, MAX.: 9.8" +5.9" PALLET
SHEET STACK ACCURACY: 3.9"
PLEASE CLICK ON LINKS TO VIEW VIDEOS UNDER POWER:
