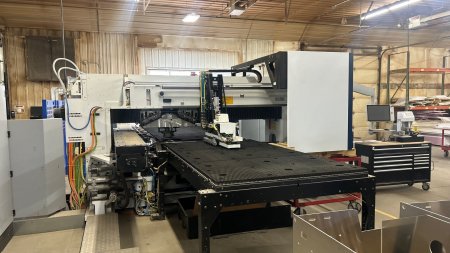

THE TRUMPF TRUPUNCH 1000 (S19) LARGE FORMAT IS A MODULAR CNC PUNCHING MACHINE
DESIGNED FOR HIGH-SPEED PROCESSING OF LARGE SHEET METAL COMPONENTS. IN THE
LARGE FORMAT CONFIGURATION, IT OFFERS A WORKING RANGE OF APPROXIMATELY 120 IN.
X 60 IN. (3000 MM X 1550 MM).
CORE WORKING SPECIFICATIONS
THESE SPECIFICATIONS DEFINE THE MACHINES CAPACITY FOR LARGE-FORMAT SHEET
METAL:
WORKING RANGE (x X y): 120 IN. X 60 IN. (3000 MM X 1550 MM)
MAXIMUM SHEET THICKNESS: 0.25 IN. (6.4 MM)
MAXIMUM PUNCHING FORCE: 19 TONS (165 Kn)
MAXIMUM WORKPIECE WEIGHT: 507 LBS (230 KG)
MACHINE PHYSICAL DIMENSIONS
WIDTH: ~301 IN. (7644 MM)
DEPTH: ~302 IN. (7666 MM)
HEIGHT: ~86.4 IN. (2195 MM)
PERFORMANCE AND ACCURACY
DESIGNED FOR PRECISION AND EFFICIENCY, THE TRUPUNCH 1000 MAINTAINS CONSISTENT
SPEED ACROSS FORMATS:
MAXIMUM STROKE RATE (PUNCHING): 600 STROKES/MIN
MAXIMUM STROKE RATE (MARKING): 1,000-1,300 STROKES/MIN
POSITIONING ACCURACY (pA): +/- 0.004 IN
REPEATABILITY (pS): +/- 0.001 IN.
TOOL CAPACITY: uP TO 21 TOOLS AND 3 CLAMPS IN THE LARGE FORMAT CONFIGURATION.
PART REMOVAL CAPABILITIES
THE MACHINE INCLUDES AUTOMATED SYSTEMS FOR DISCHARGING FINISHED PARTS DIRECTLY
FROM THE WORK AREA:
MAX PART SIZE (REMOVAL FLAP): ~15.7 IN. X 23.6 IN. (400 MM X 600 MM)
MAX PART SIZE (FIXED CHUTE): ~7 IN. X 7 IN. (180 MM X 180 MM)
Options:
MultiTool function
MultiShear function
MultiBend function
Tapping function with thread counter
Marking/quick beading function
Deburring and roller technology function
Adaptive stroke calibration
Part removal
Part removal flap
Sensor for part removal flap
Advanced machine equipment
Additional clamp
Machine ambient temperature up to 43 C

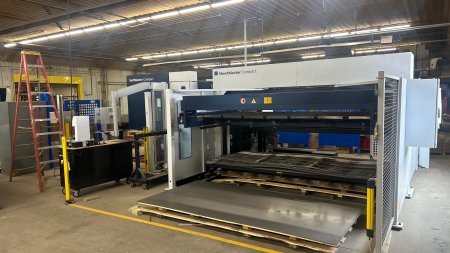

SheetMaster Compact 3000 x 1500 mm (AK05)

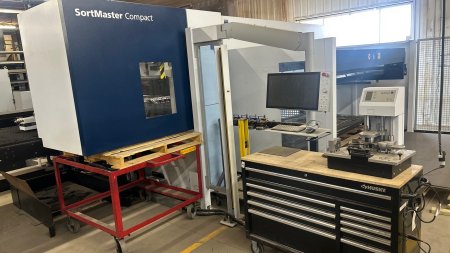

SortMaster Compact
