Investment Summary

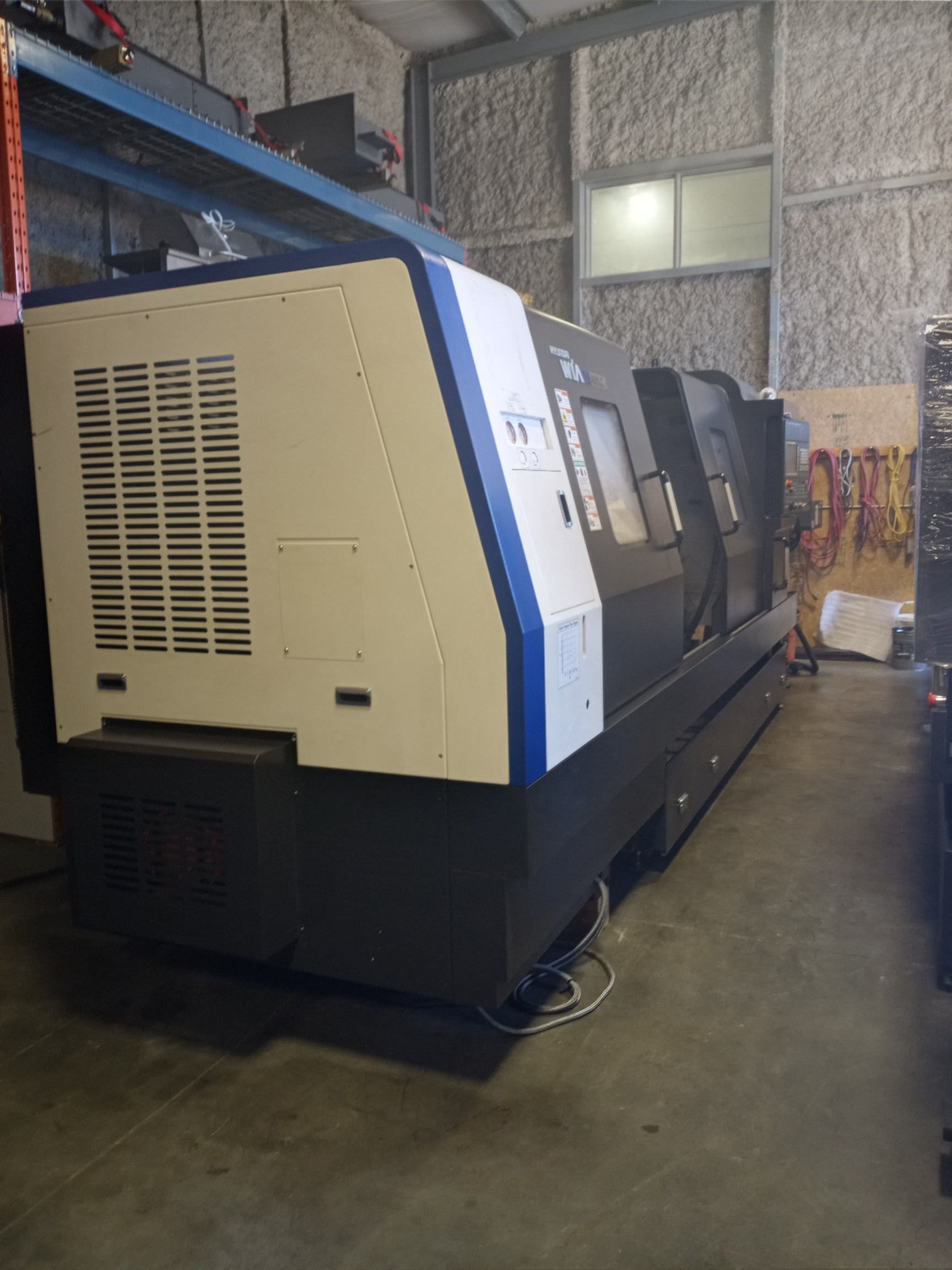

L400LC Horizontal Lathe Used 2019

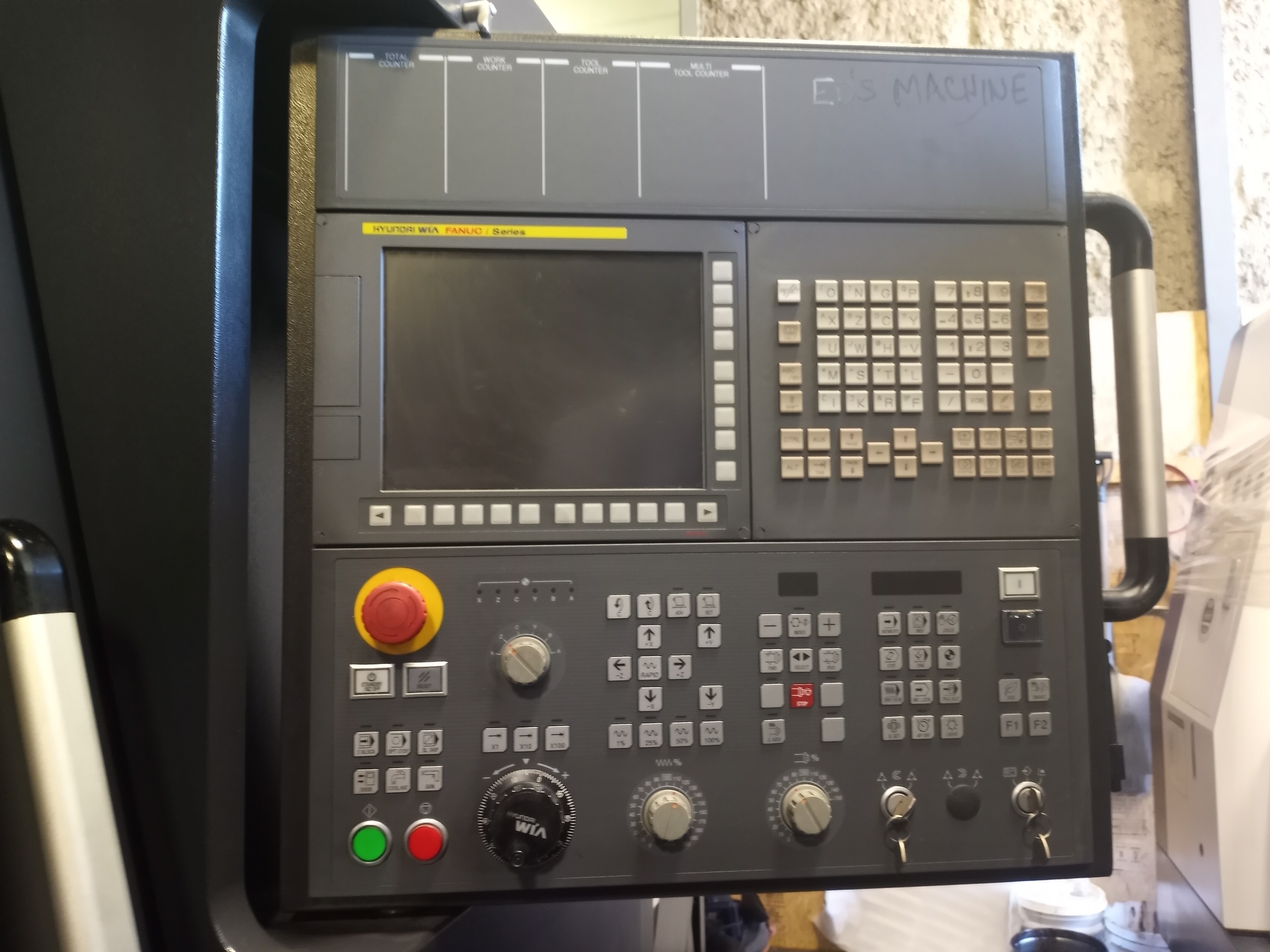

Controller Fanuc F0i-F ,10.4 in Std
Swing 28.5 in Std
Maximum Cutting Diameter 24.8 in Std
Maximum Workpiece Length 83.5 in Std
Travel X Axis 12.6 in Std
Travel Z Axis 86.6 in Std
Guide Ways Boxed on X Linear For Z Boxed Std
Spindle A2 11 Std
Max Bar Work Diameter 4.61 in Std
Max RPM 2,000 rpm Std
Rapid Traverse X Axis 787 ipm Std
Rapid Traverse Z Axis 944 ipm Std

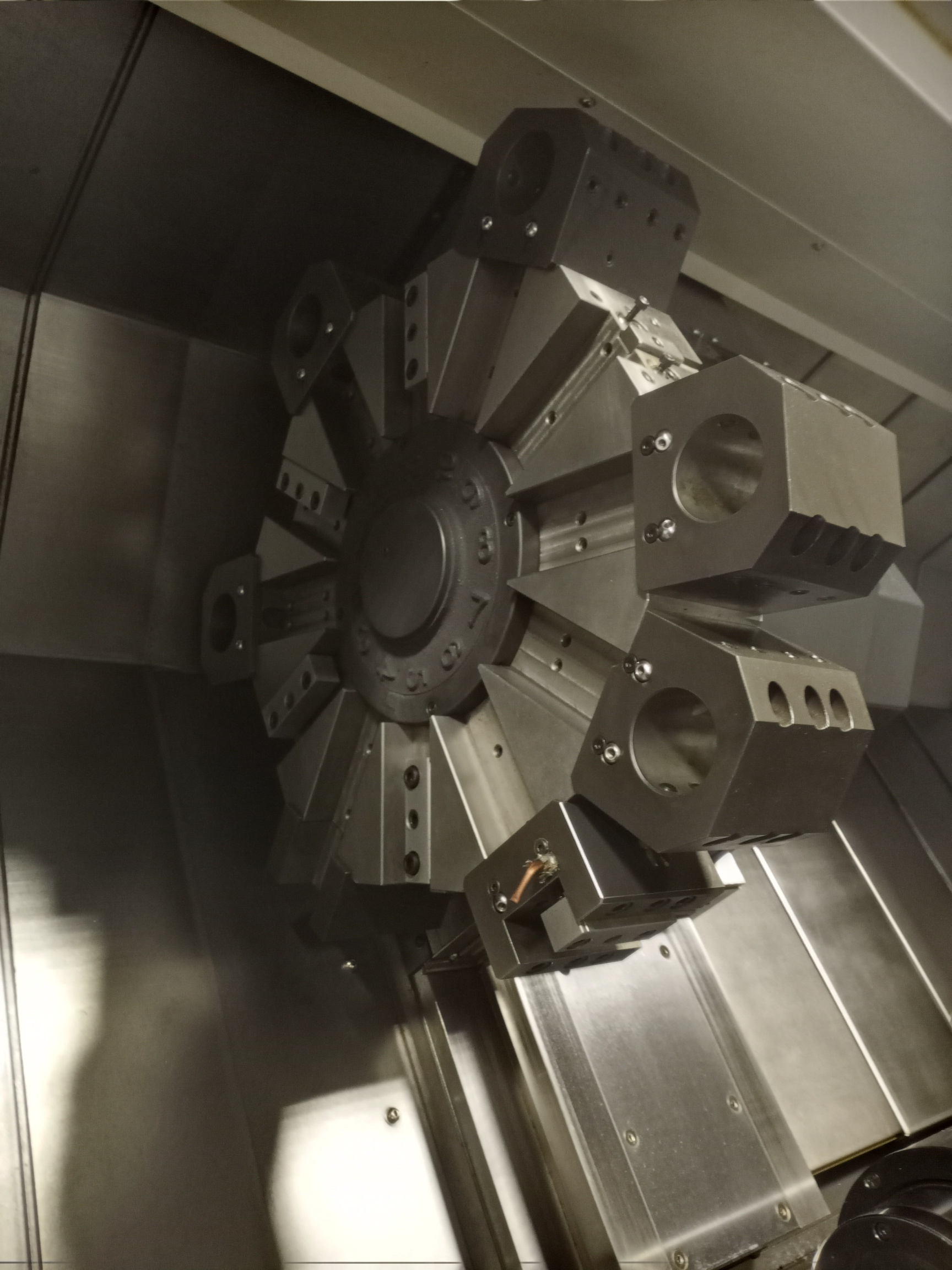

Turret 12 Tools Std
Tool Size (Square Shank) 1.25 in sq Std
Tool Size (Round Shank) 2 in Std
Index Time Tool to Next Tool .2 sec Std

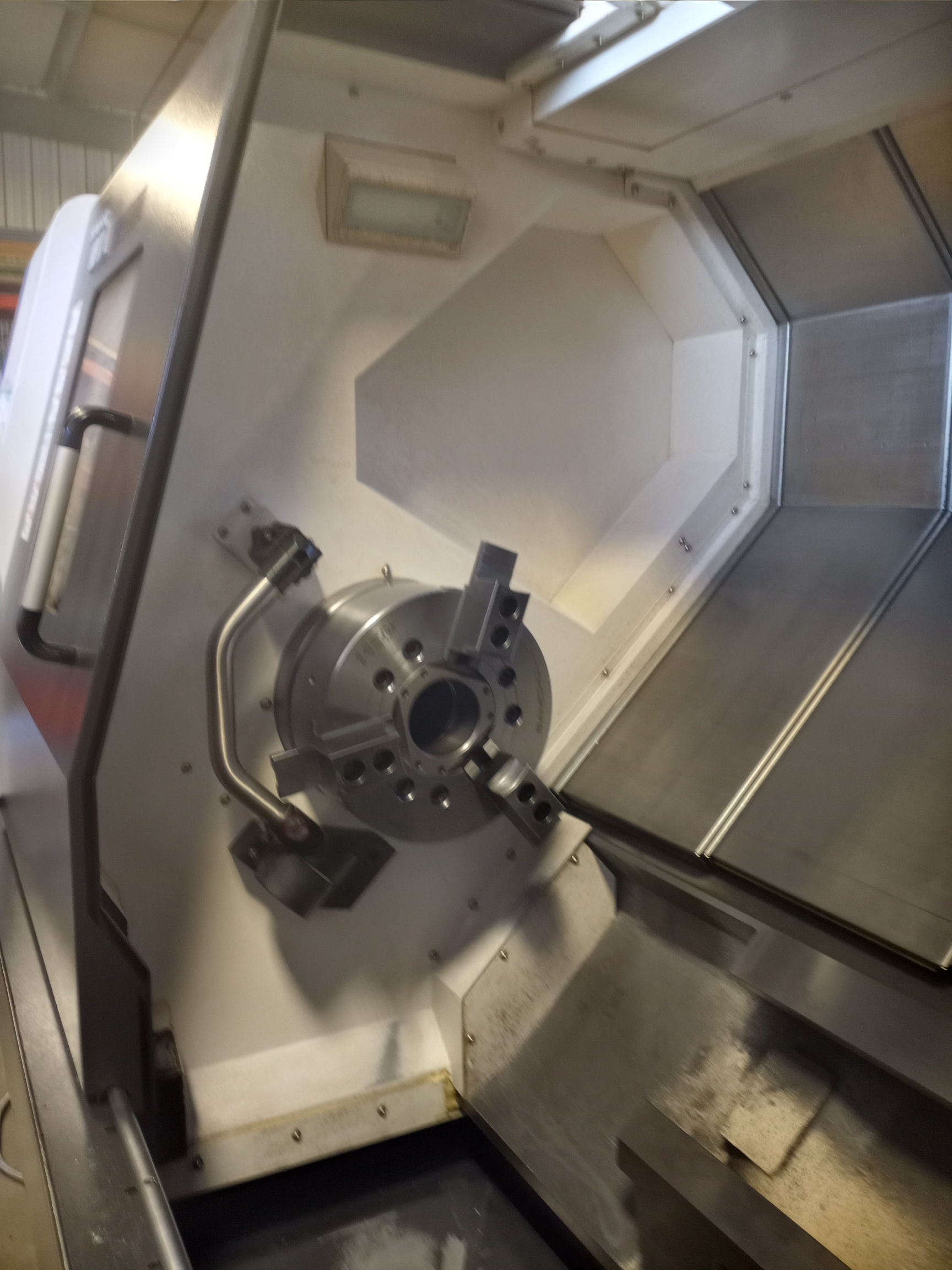

Chuck 15 in Std

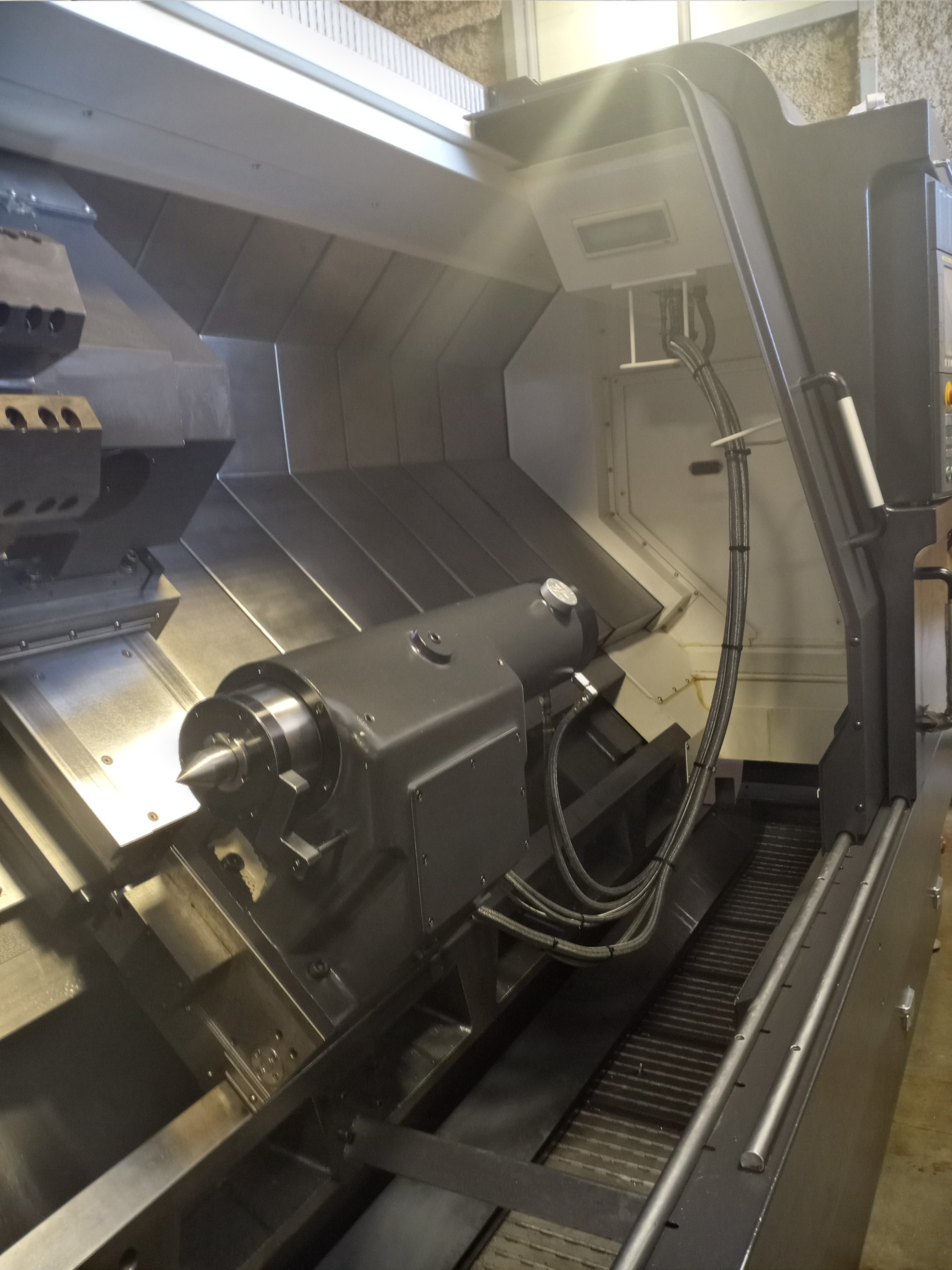

Tailstock Quill Diameter 5.9 in Std
Tailstock Quill Travel (Programmable) 5.9 in Std
Tailstock Body Travel (Programmable) 82.7 in Std
Tailstock Quill Internal Taper (Built-In Type) MT #5 Std
Gear Box 2 Std
Horsepower 50 Hp Std
Torque 2,242 Ft-lbs Std
Weight 24,250 lbs Std
Bed 45 deg Std
Standard Tooling Package Yes Std
Q Setter Touch Std
Chip Conveyor Hinge Right Inc
Options Included with Machine
Manual Guide I w/ Thread Pick up Cycle Control Option Inc
Schmidt Tool RIP-216 Pass Thru Flip Top Manual Steady Rest
Inc
mounted to L400LC Tailstock box ways Range 1 in to 16 in capacity
Total $
F.O.B- EDMONTON, AB Freight
Total USA Funds
