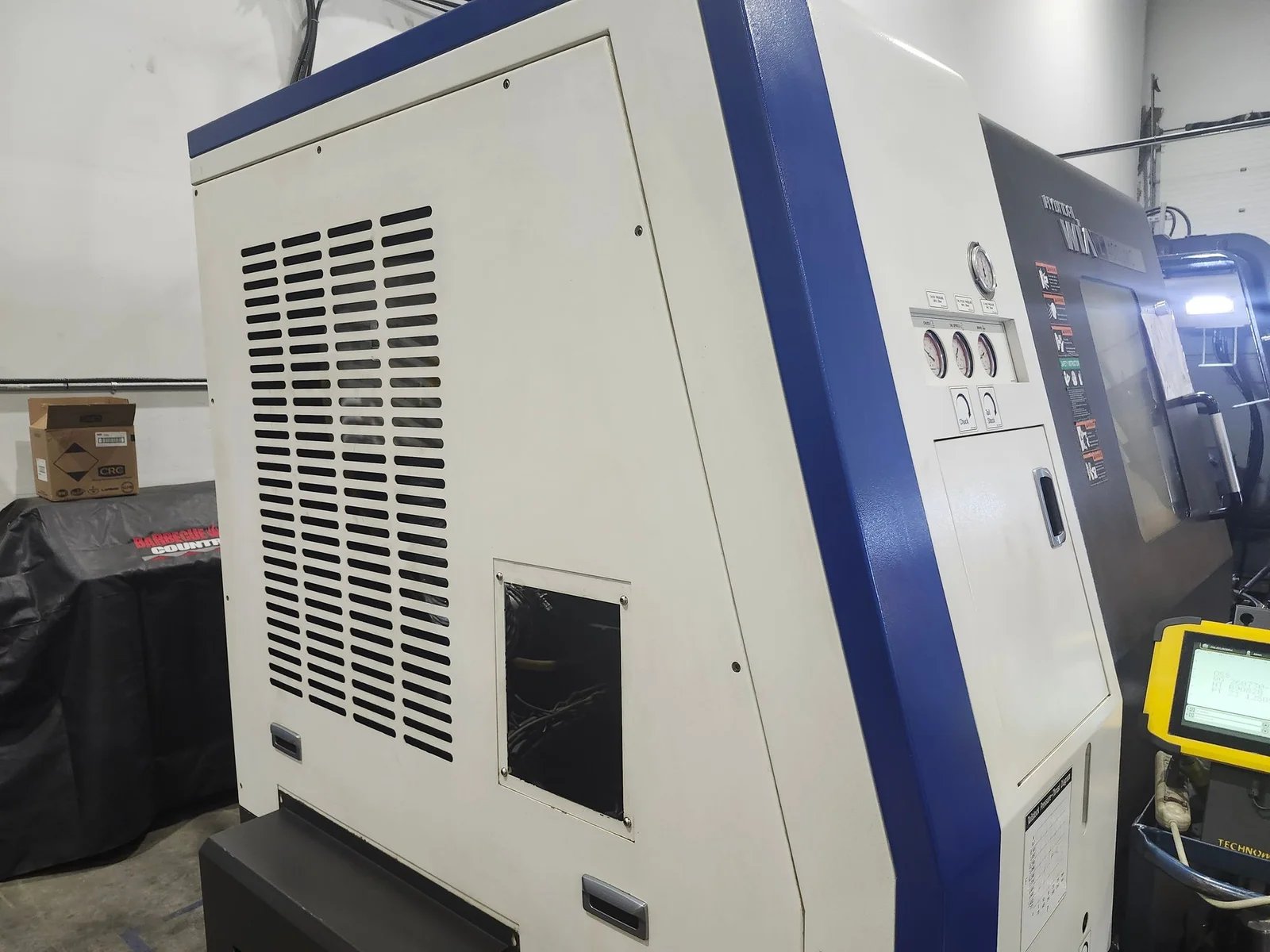

2014 Hyundai WIA L400LM Horizontal Lathe

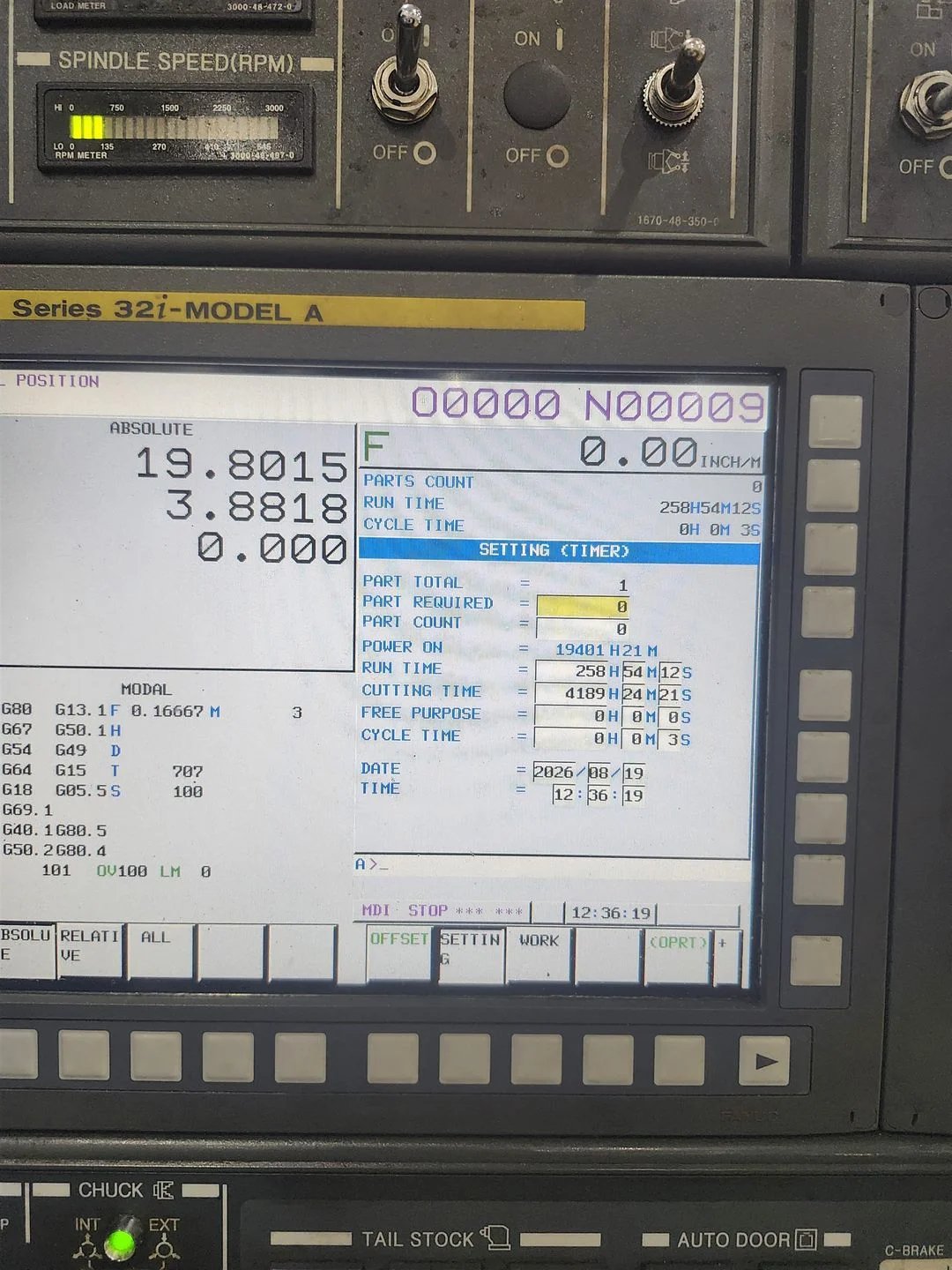

Controller Fanuc 32i-A Std
Swing 28.5" Std
Maximum Cutting Diameter 22" Std
Maximum Workpiece Length 82.7" Std
Mill Turret BMT 75 10 HP Std
Mill Turret RPM 4,000 rpm Std
Travel X Axis 12.6" Std
Travel Z Axis 86.6" Std
Guide Ways Boxed Std
Spindle A2 11 Std
Max Bar Work Diameter 4.6" Std
Max RPM 2,000 rpm Std
Rapid Traverse X Axis 787 ipm Std
Rapid Traverse Z Axis 944 ipm Std

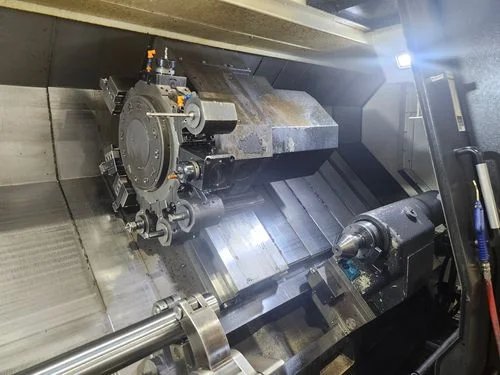

Turret 12 Tools Std
Tool Size (Square Shank) 1.25" sq Std
Tool Size (Round Shank) 2.5" Std
Index Time Tool to Next Tool .2 sec Std
Chuck 15" Std
Tailstock Quill Diameter 5.9" Std
Tailstock Quill Travel (Programmable) 5.9" Std
Tailstock Body Travel 82.7" Std
Tailstock Quill Internal Taper Built-In Type MT #5 Std
Horsepower 50 HP, 2-Geared Head Std
Torque 2,242 Ft-Lbs Std
Work Light Yes Std
Weight 24,250 lbs Std
C Axis Indexing 0.001 Degree Std
Bed 45 deg Std
Standard Tooling Package Yes Std
Tool Setter Std
Axial Milling / Drilling Unit 1 Inc
Radial Milling / Drilling Unit 1 Inc
Optional Equipment Included
Chip Conveyor Hinge Right Inc
SLU 4 Programmable Steady Rest 1.18" to 9.65" Inc
Manual Clamp Base Inc
Pin Engages and Moves Base with Turret Inc
