Capacity:

• Maximum Swing: 42.13"
• Maximum Machining Diameter: 42,130"
• Maximum Machining Length: 166.780"

Main Spindle:

• Chuck Size: 18"
• Maximum Speed: 1600 RPM
• Motor Output (30 minutes): 60,0 HP
• Spindle Nose: A2-15
• Spindle Bearing (ID): 8.66"
• Maximum Support Load (Chuck/Shaft): 9480 / 6614 LBS

Second Spindle:

• Chuck Size: 18"
• Maximum Speed: 1600 RPM
• Motor Output (30 minutes): 60.0 HP

Milling Spindle:

• B-Axis Travel: 240 degrees
• Magazine Capacity: 40
• Maximum Speed: 10,000 RPM
• Motor Outpiut (16 minutes): 50 HP
• Spindle Bore: 6.69"
• Milling Spindle Taper: BT 50
• 90 Degree Indexing Time: 0.7 seconds
• Maximum Rotary Tool Torque: 372.5 FT-LBS

Feed Axes:

• Travel (X-Axis): 40.36"
• Travel (Y-Axis): 26.38"
• Travel (Z-Axis): 162.91"
• Travel (W-Axis): 126.54"

Tailstock:

• Taper: MT #6

Equipped With:

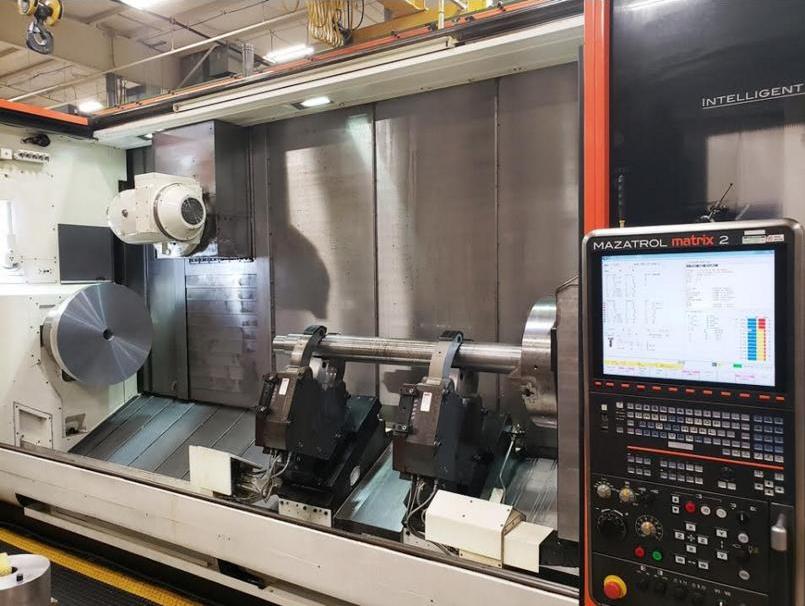

• Mazatrol Matrix 2 Control
• MT Connect Preperation
• Manual Pulse Generator 1 Detachable
• Auto Door w with Start SW by Both Hands / 160" (4000U)
• Overload Detection System
• Signal Tower (3 Colors Lights, Square)
• Turret Air Blast
• Fkiood Coolant Nozzle
• Scale Feedback System (X, Y, Z Axes)
• Prepared for Visual Tool ID/Data Management/For CAT Magazines
• Tool Eye (Automatic) for 24" Chuck
• Raise Spindle Center Line by 130MM (HD#1 & HD#2)

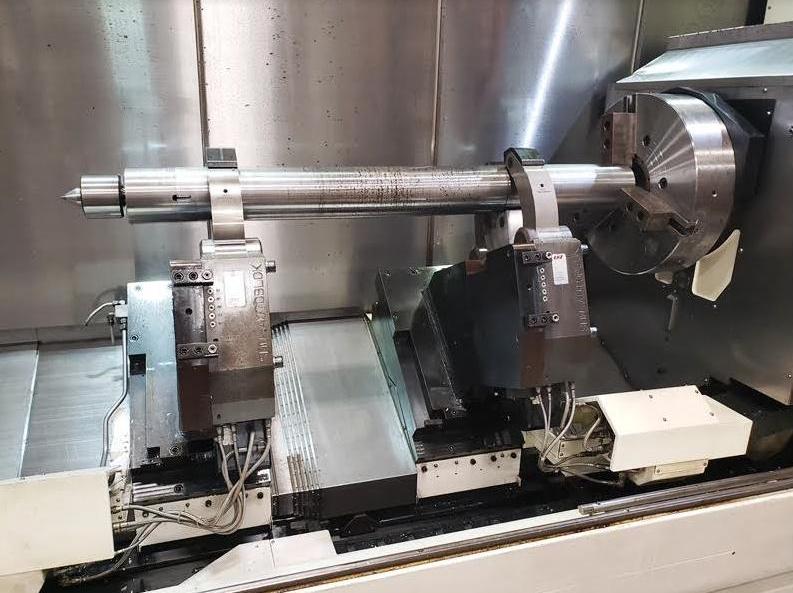

• SMW Auto Steady Rest
• Prep (For 2 Bases)
• 1378 W Axis Brake with Programmable Work Push Function
• Prepared for Niagara Coolant (no pump)
• Prepared for Increased Coolant to Steady Rest (no pump)
• Mechanical prep for McClean AC for SF1 Cabinet
• Central Coolant Preparation (Manifold Hook Up)
• Preparation for 70 KG/1000 PSI
• Super Flow Thru Coolant
• Relocate C1/C2 Axos Home Position
• Retrofit Kit for Steady Rest Coolant Pump
• Retrofit Kit for Nigara Coolant Pump
• Retrofit Kit Sub-Tank for Steady Rest Pumps
• Retrofit Kit Chip Conveyor Concept 160" with Coolant Tank Retrofit Kit Hoses
• and Interface for Mill thru, Fllood Coolant, amd Cover Coolant
• Retrofit Kit Hoes and Interface for 1000 PSI Super-Flow
• Certified Foundation Drawing Porposal is only valiud for the address specified
• Buyer Must Comply with Export Law #22
• Kitagawa B-24A11 Chuck with F2511 HD #1
• Kitagawa B-24A11 with Y-2035RE Non-Thru-Cyl HD #2
• Mazak Superflow V8M Variable High Pressure Coolant
• LNS/SMW Autoblock Steady Rest with 2 K5 1 Rest
• 2 Customer Brackets Installed by LNS
• LNS Supplied Manually Loaded Spring, Loaded Center
• Retrofit Parts of Milling Spindle thru Air Blast While Spindle is Rotating
• Hi-Torque Milling Spindle Speed 5000 RPM / 369 FT-LBS Continuous

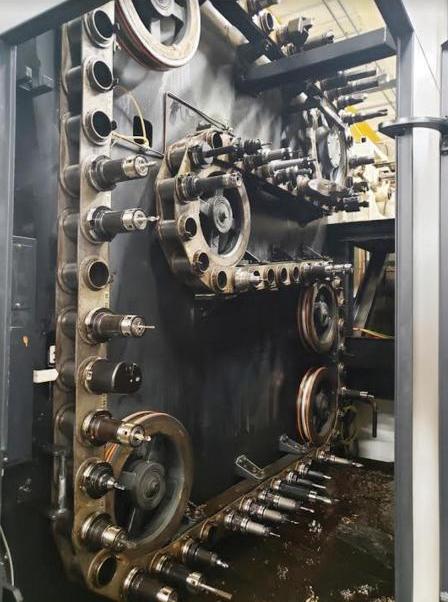

• 80 Tool Magazine (CAT)
• Additional Set of Manuals

Comments:

• New in 2011 - Delivered in 2013
