Updated on October 3, 2025 at 5:21 pm
Listing ID: KH80G
Year Built: 2011
Description

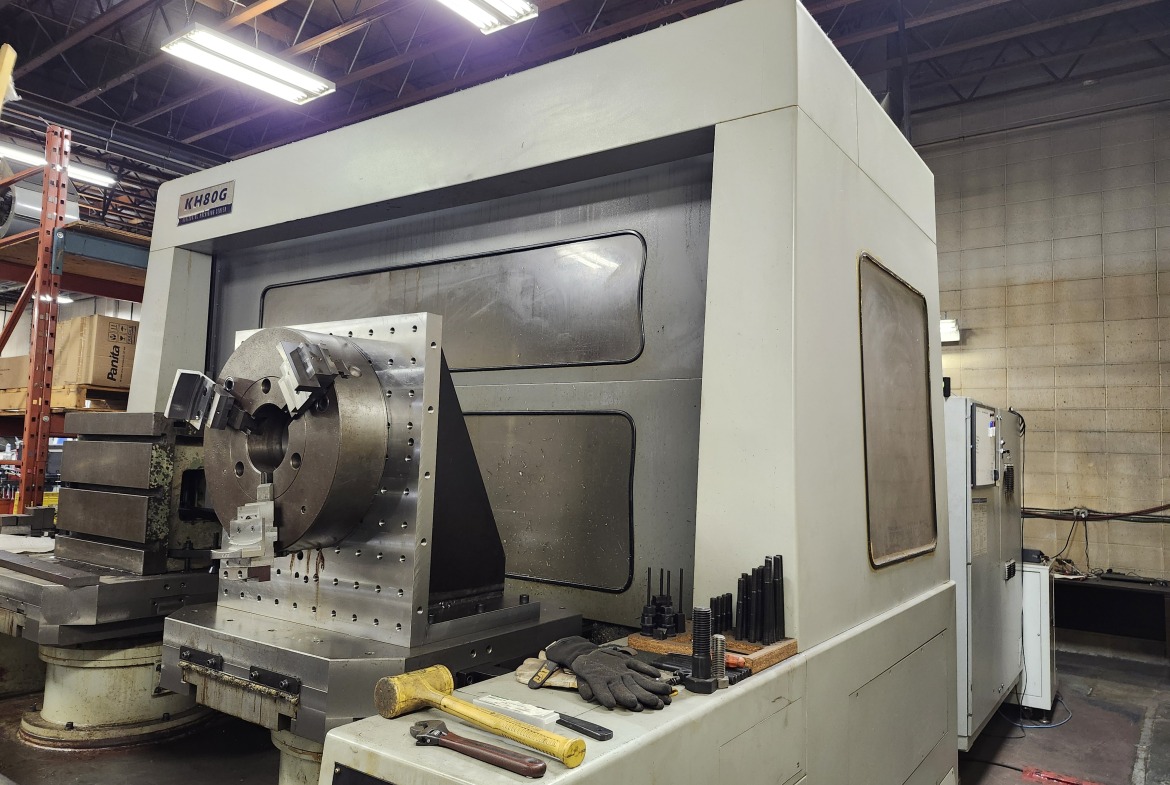

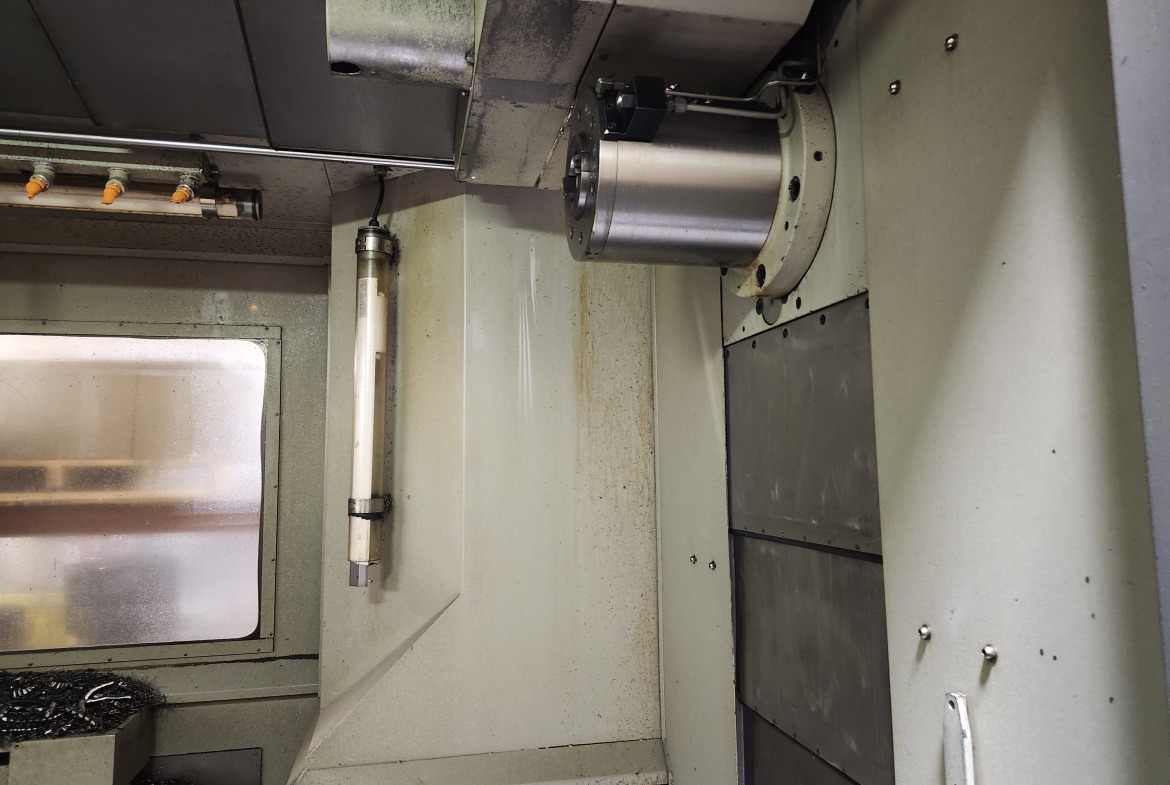

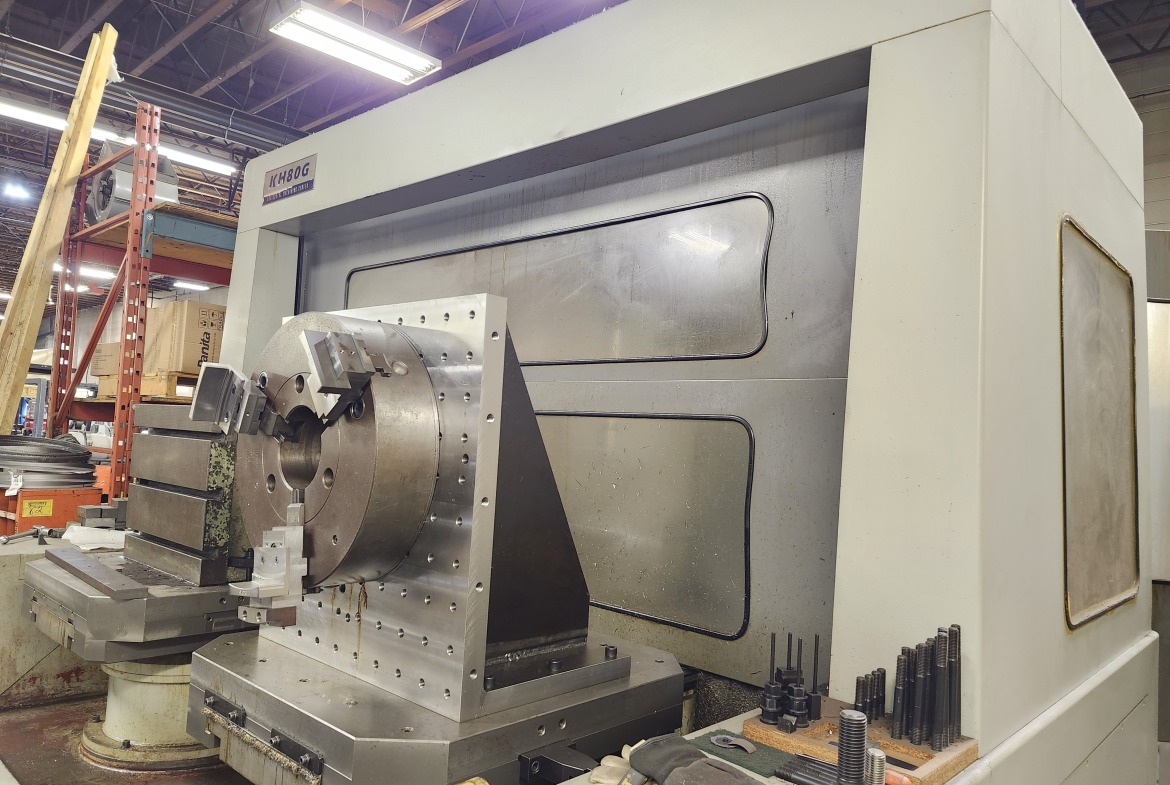

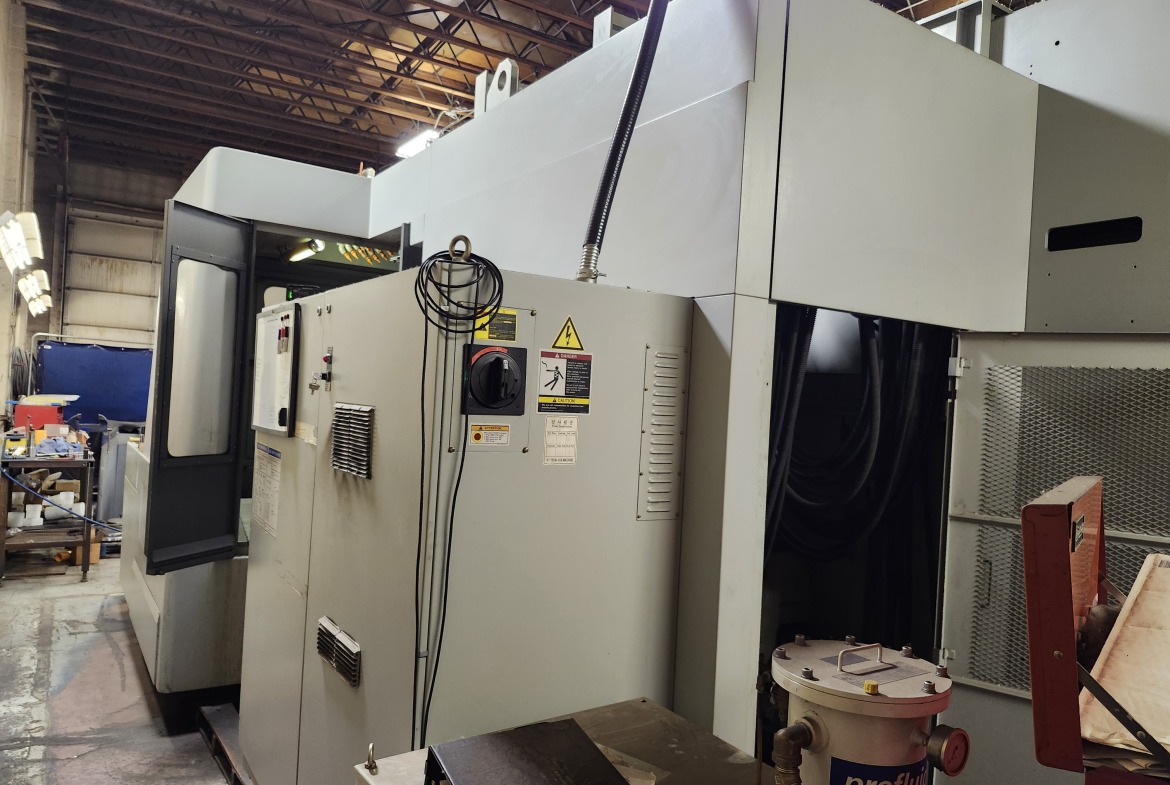

2011 USED KH80G Horizontal Machining Center

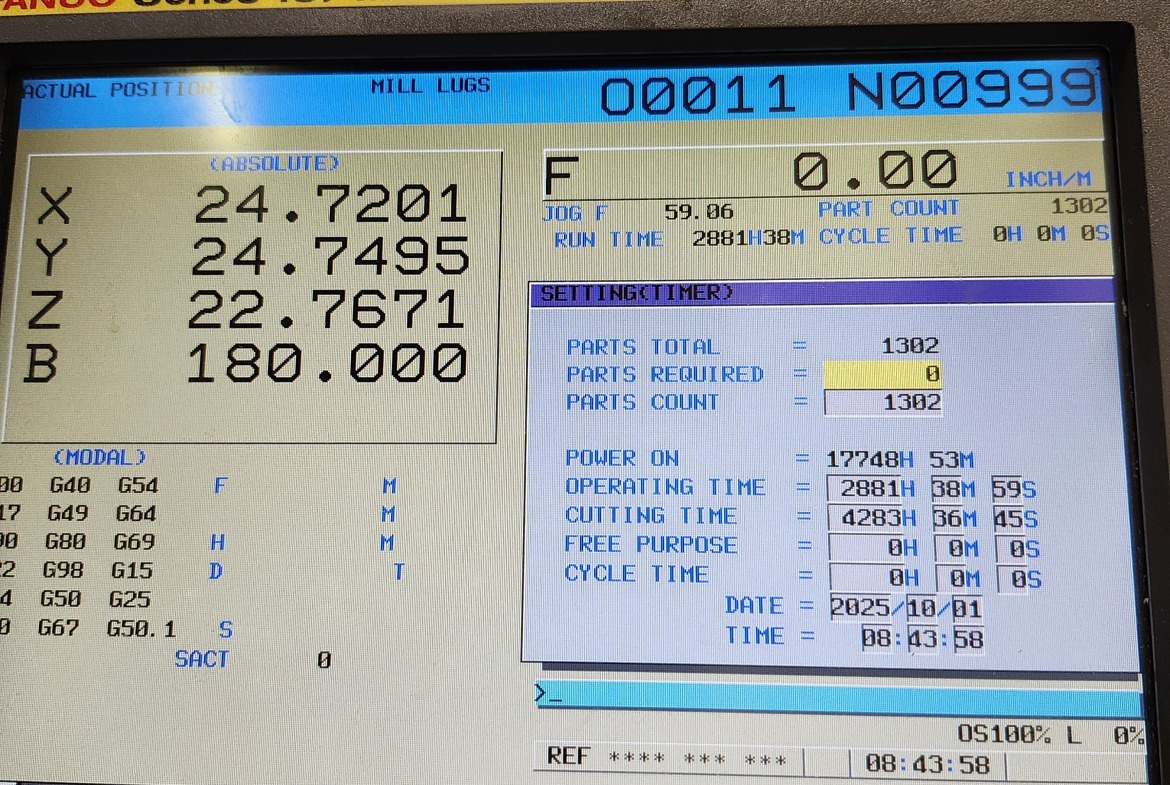

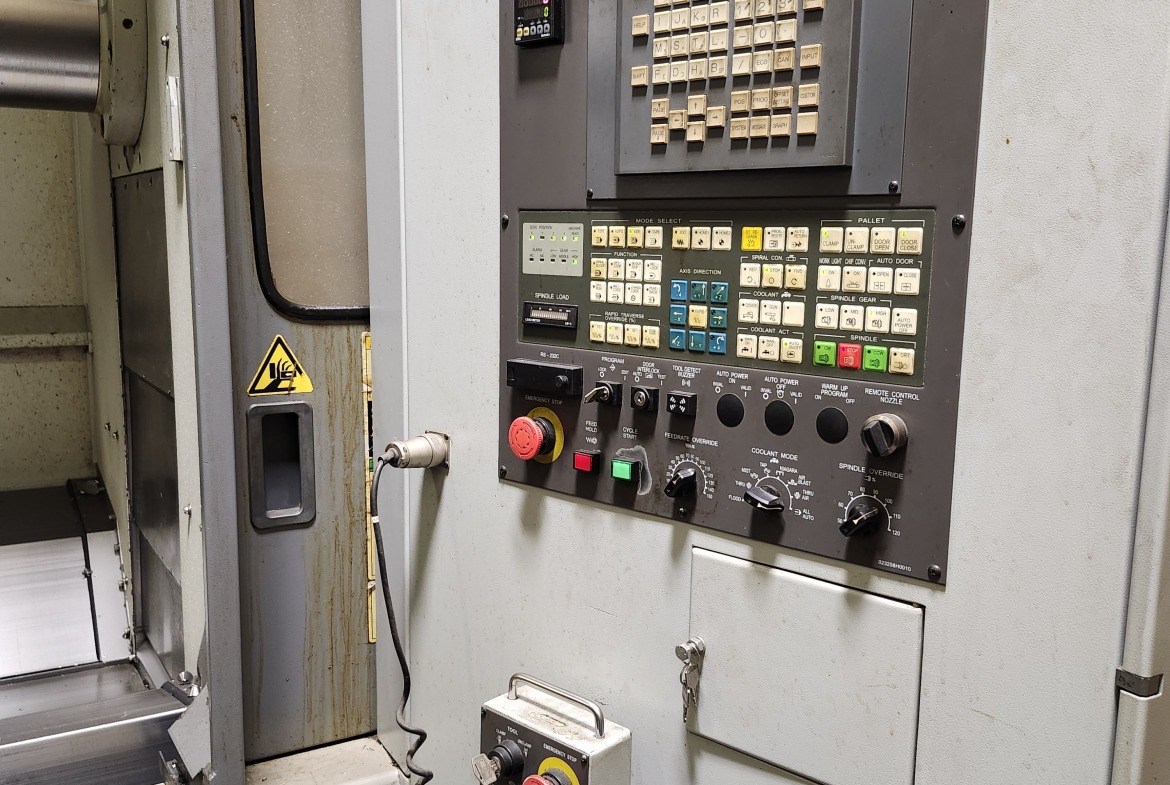

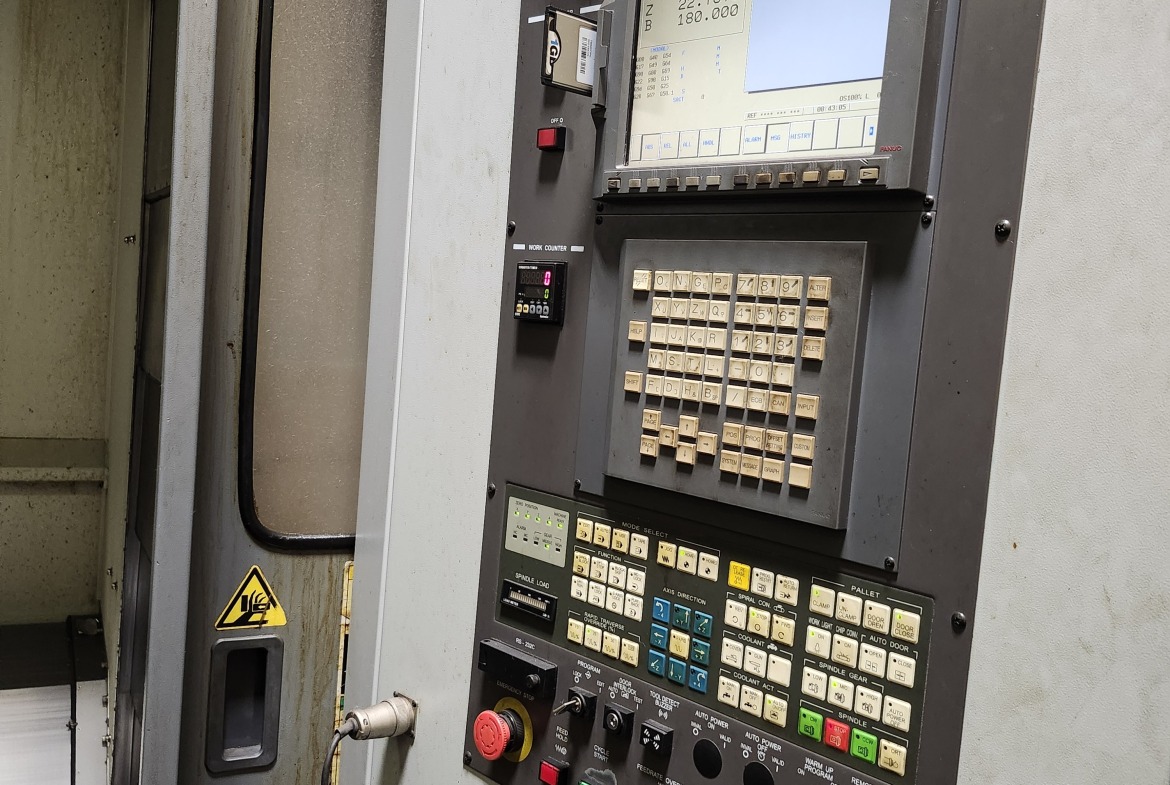

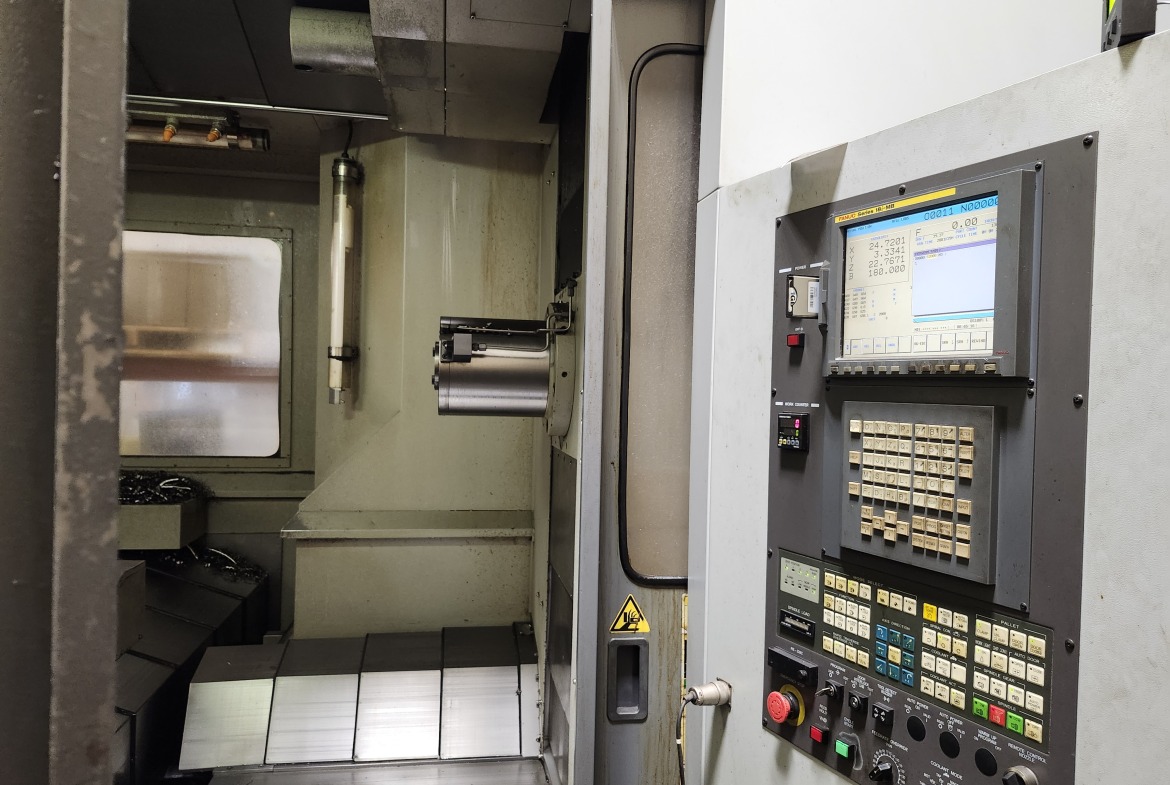

Controller with 10.4 in Color LCD Fanuc 31i-B 10.4 in
Travel X,Y,Z 49.2 in x 39.4 in x 33.5 in
Table (2) 31.5 in x31.5 in
Max Table Weight Per Table (2) 4,850 lbs
Work Piece ( Dia X Height ) 45.3 in X 45.3 in
Indexing 0.001 degree
Pallet Changing Method Shuttle Type
Pallet Change time 28 seconds
Spindle Center to Table Surface Distance 1.97 in to 41.3 in
Spindle Nose to Table Centre Distance 19.8 in ~ 43.3 in
Spindle Taper CAT 50
Spindle Speed 4,500 rpm
Horsepower 35 HP (26KW)
Number of Gear Ranges 3 Speed Geared Head
Spindle Torque 1,110 Ft-lbs
Tool Magazine Twin Arm 80 Tool
Tool Change Time 3.5 Sec
X,Y, and Z axis rapid travers rate 709 ipm
Cutting Feed .04-315 ipm
Weight 47,399 lbs
Floor Space (L) w/ Chip conveyor & Tank 159.4 in
Floor space (W) 263.7

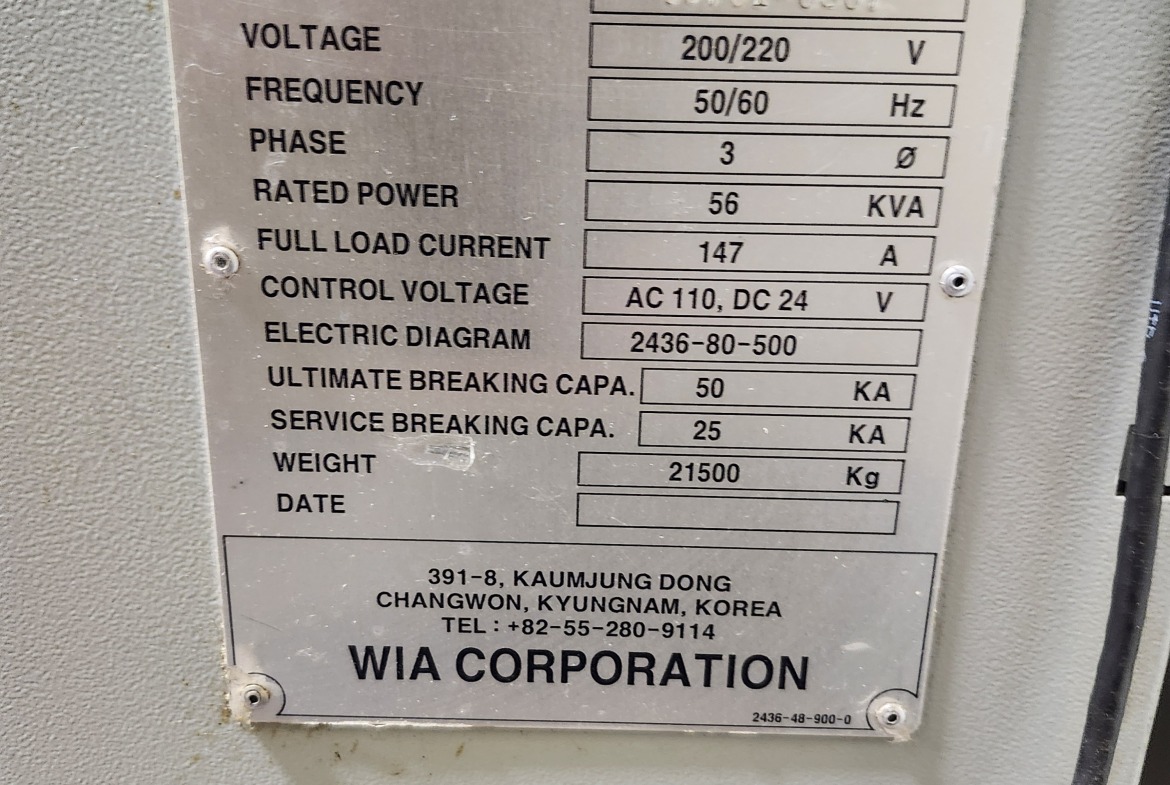

Power required 56kva/147 amp @ 220v
Voltage 205-235 volts / 3 phase
Coolant Thru Spindle 6bar (87 psi)
Optional Equipment Included
Chip Conveyor Rear
Remote MPG Pulse Generator
A02B-0284-J919 Additional Work Coordinate System(300 Pairs)
Additional work coordinates 48 pair
Spiral / conical Interpolation
Coordinate System Rotation
Part program storage
MODULE, (FROM 32MB, SRAM 3MB)
UPGRADE PART PROG STORAGE 2560 M
