2009 HYUNDAI SKT 300L TURNING CENTER
SKT 300L
Lathes and Turning Centers CNC
Slant Bed Turning center
used
14787 (LB)
2009
$0.00

Description

2009 Hyundai Kia SKT 300L

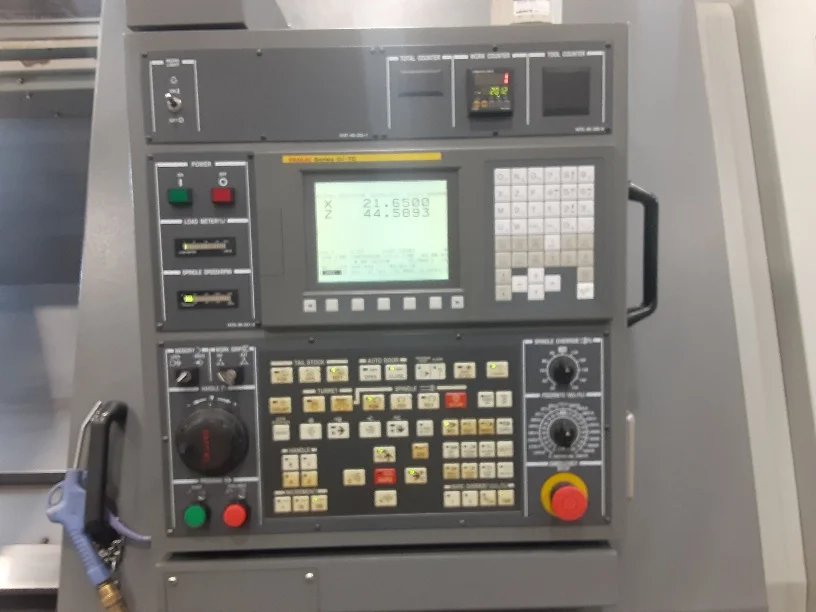

CNC Controller Fanuc 0iT Std
Swing 29.5" Std
Maximum Cutting Diameter 22" Std
Maximum Workpiece Length 49.3" Std
Travel X Axis 14" Std
Travel Z Axis 52.5" Std
Ways Boxed Std
Spindle A2-8 Std
Max Bar Work Diameter 3.54" Std
Spindle Bore 4.02" Std
Max RPM 3,600 rpm Std
Rapid Traverse X Axis 787 ipm Std
Rapid Traverse Z Axis 945 ipm Std

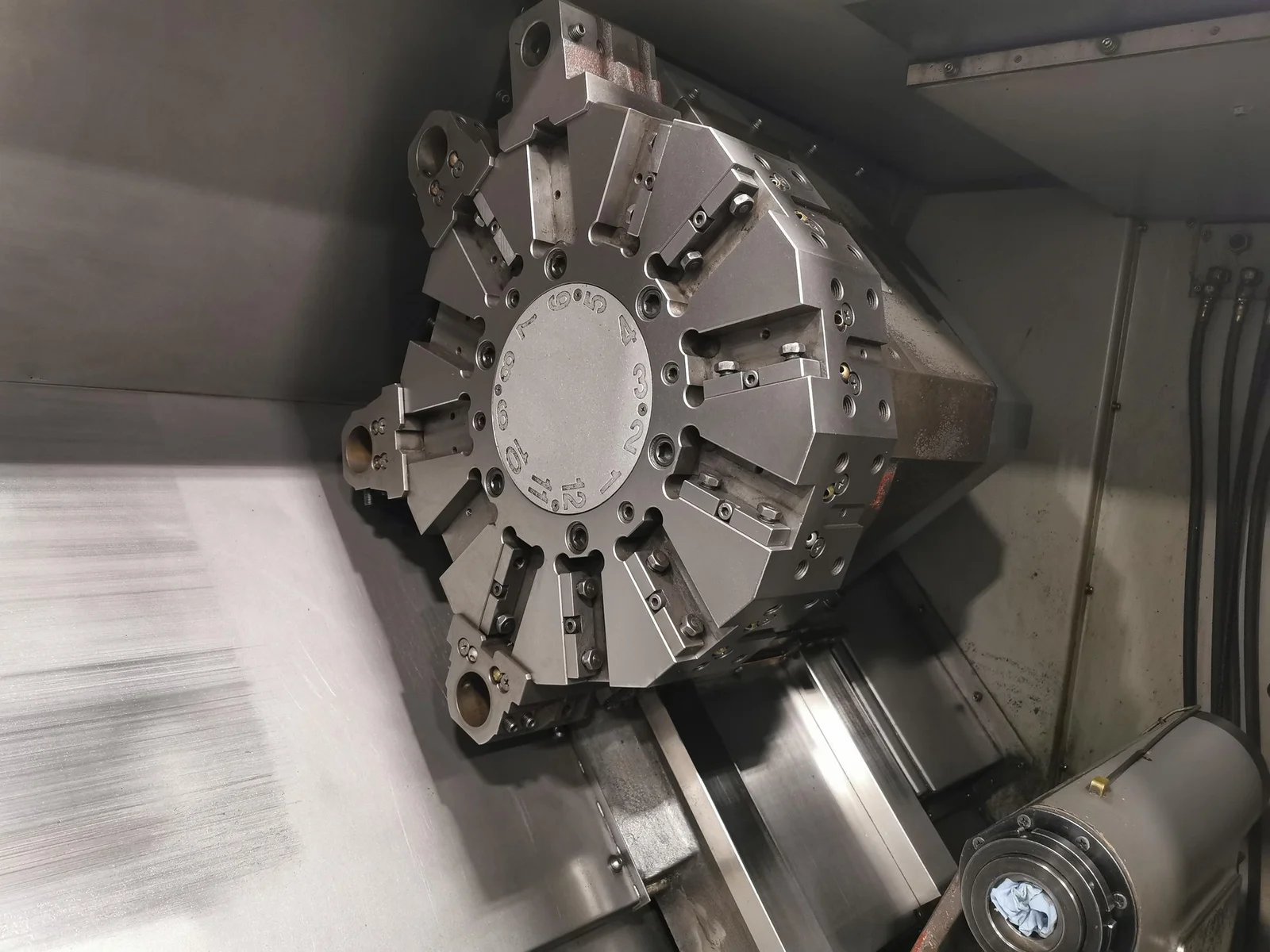

Turret 12 Tools Std
Tool Size (Square Shank) 1" sq Std
Tool Size (Round Shank) 2" Std
Index Time  1 Station .3 sec Std

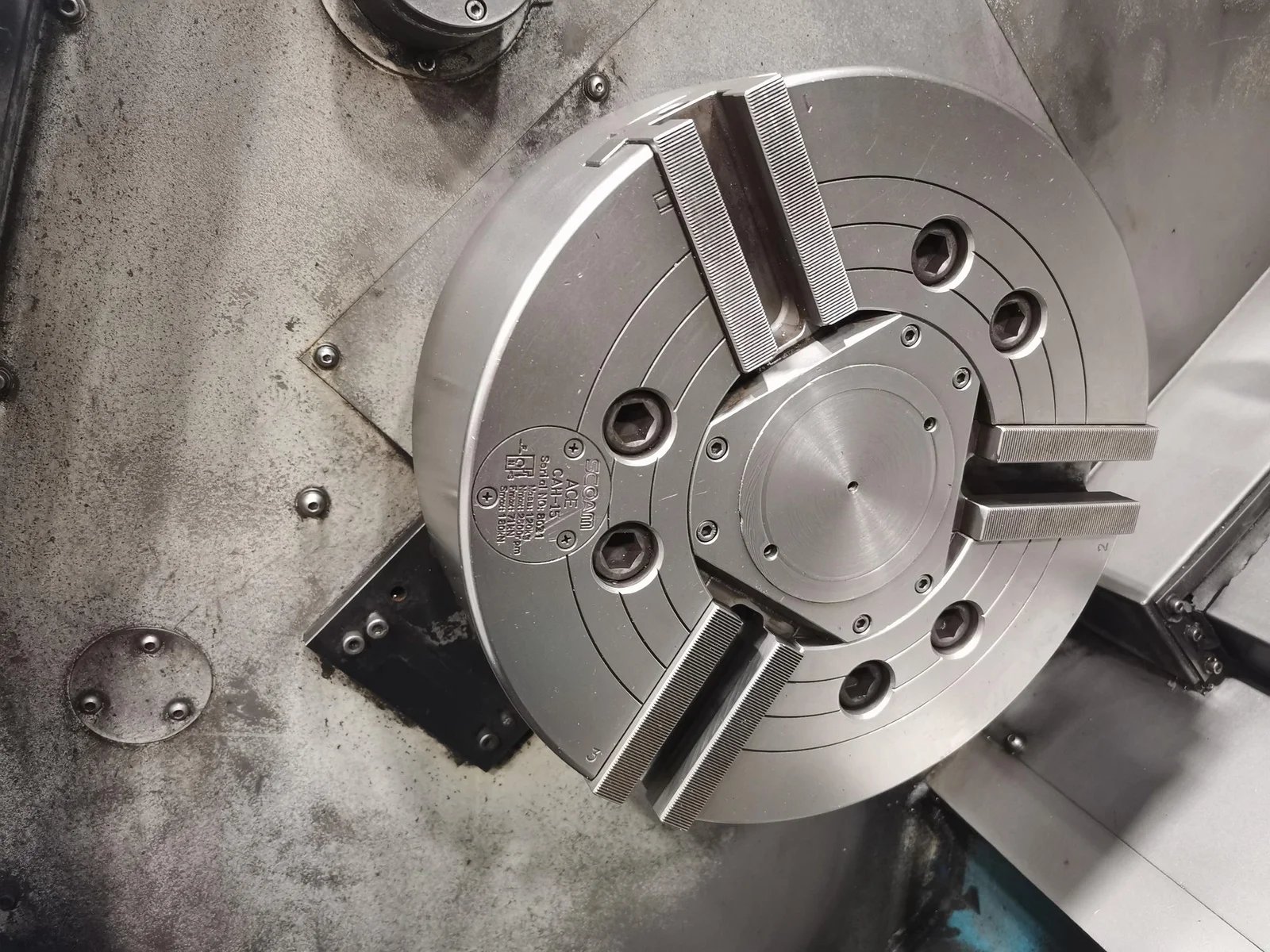

Chuck 15" Std
Horsepower 35 HP Std
Geared Head 2 Gear Ranges Std
Torque 810 Ft-Lbs Std
Work Light Yes Std
Weight 14,787 lbs Std
Bed 45 deg Std
Coolant System 63 psi Std
Automatic Tool Setter No Std
Tailstock
Tailstock Quill Diameter 3.9" Std
Tailstock Quill Travel (Programmable) 5.1" Std
Tailstock Body Programmable Position with Turret Std
Tailstock Quill Internal Taper MT #5 Std
Chip Conveyor Side Discharge Std
