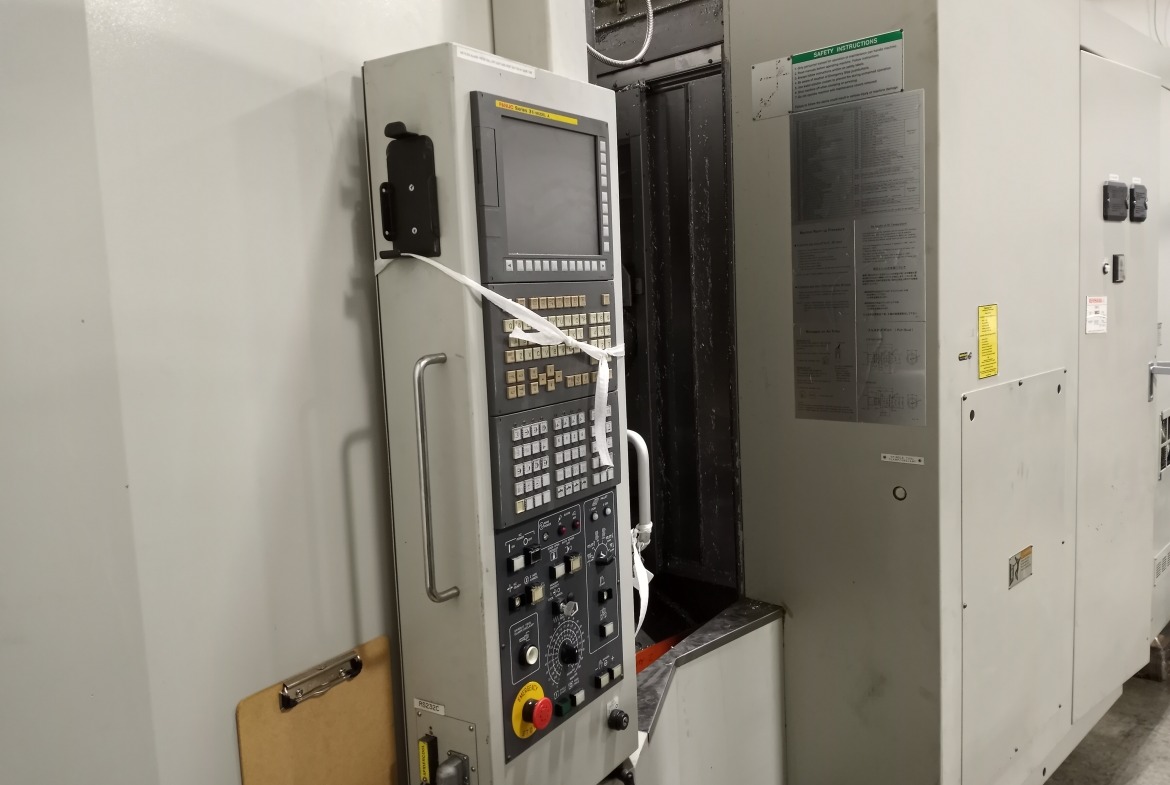

CONTROLLER Fanuc 31i-MA
Table Size L x W (in.) 15.750 x 15.750
Max. Workpiece Weight l1100 lbs.
Pallet Changer No. of Pallet 2

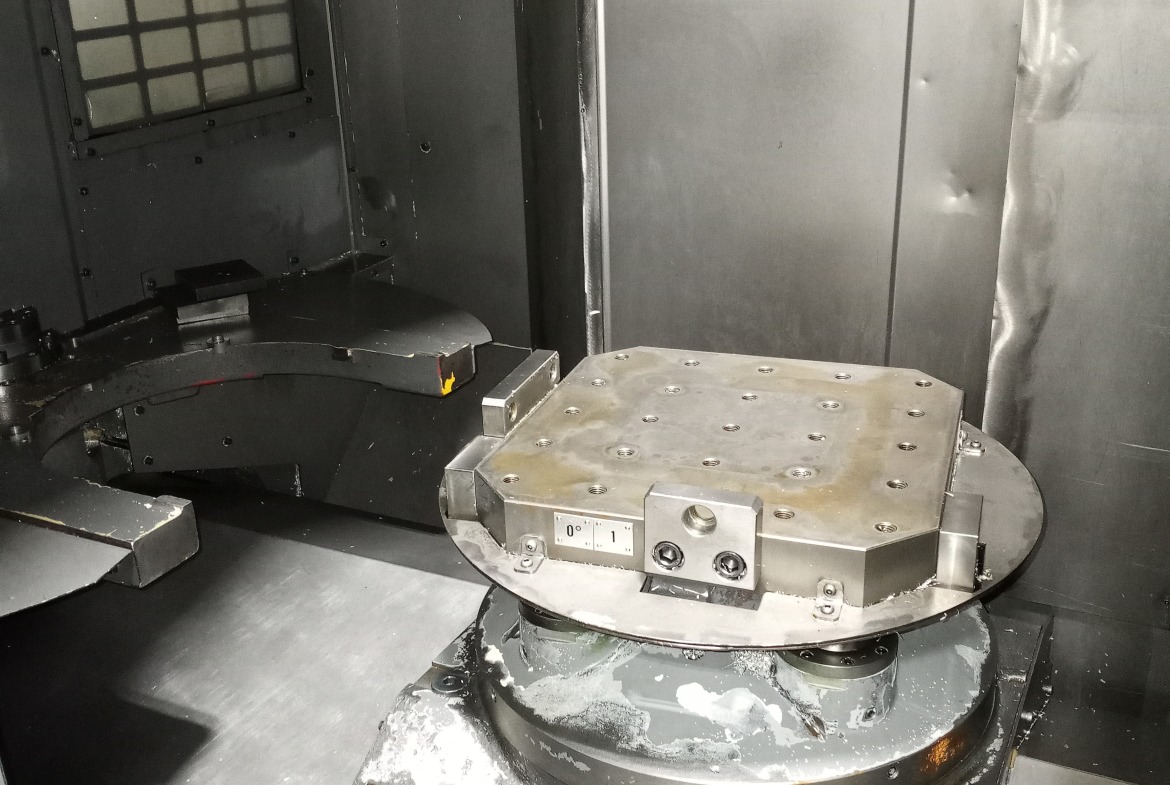

Rotary Table Full 4th
Num. Main Spindles 1
Taper Cat 40
Spindle Speed 12,000 Rpm
Horse Power (30 min rating 30hp
# Speed Ranges 1
Type Fixed
Primary Tool Carrier(s) ATC 60 TOOLS
Tool Change Time C to C 0.90 sec tool-to-tool
Max. Tool Length 15.700 in
Max. Tool Diameter 2.800 in (with empty adjacent pockets
2.800 in (with empty adjacent pockets 17.60 LBS
Number of Axes 4 / U Axis: None
X1 Std. 25.200 in 1,181 ipm/2,362 ipm
Y1 Std. 24.000 in 1,181 ipm/2,362 ipm
Z1 Std. 26.800 in 1,181 ipm/2,362 ipm
B1 Std. 360,000 deg 33 rpm 33 rpm
Machine Dimensions (L x W x H 95 in x 179 in x 109 in)
Machine Weight 20,240 LBS
Spindle Nose To Table Edge 30.7
Spindle To Table Center 3.9
EQUIPPED WITH:
CHIP CONVEYOR
To view more information on the 2008 KIWA KH45 HORIZONTAL MACHINING CENTER, including reviews, brand information, photos, videos, and more,
