Description

Reference #:	6979
Machine Type:	CNC Verticals
Year:	2008
Manufacturer:	Johnford
Model:	DMC-1500H Double Column Machining Center

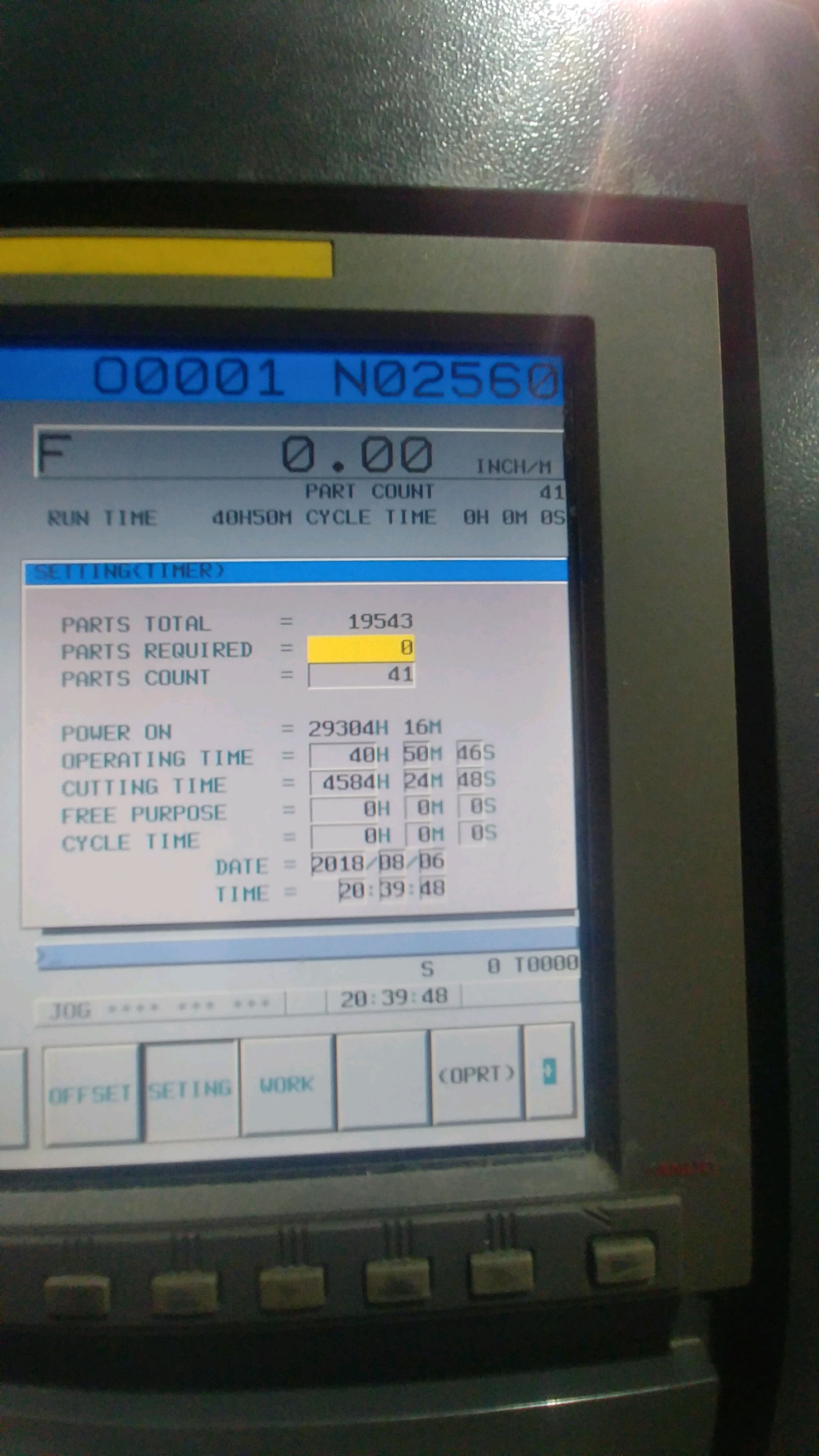

Control:	Fanuc 18iMB
Condition:	Very Good
Under Power:	Yes
Code:	M0120

Travels:

Travels X-Axis (Longitudinal): 59.1" Travels Y-Axis (Cross): 35.4" Z-Axis (Vertical): 30" Table to Spindle distance: 5.9" min - 35.9" max Distance Between Columns: 43.3"

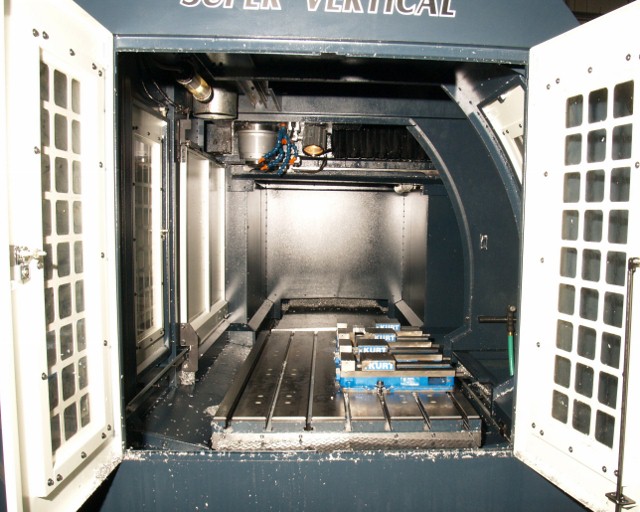

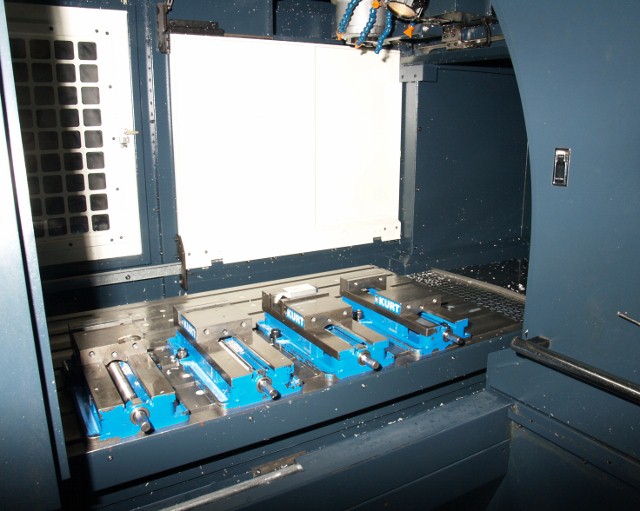

Table:

Table Working Surface: 63" x 33.5" Maximum Workload on Table: 10,120 Lbs Table Surface: Ground / T-Slotted No. of T-Slots x Width: 7 x 22 mm

Spindle:

Speed: 0 - 8,000 RPM Spindle Motor: 25 HP Spindle Taper: ISO 50 Spindle Drive System: 2 Speed Gear Box

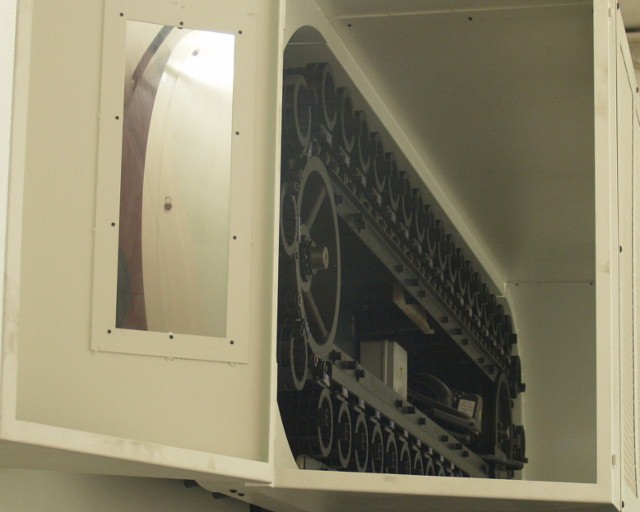

ATC:

Number of Tools: 40 (added option) Tool Selection: Bi-Directional-Random Tool Change Time: 3.5 sec tool-tool Maximum Tool Diameter: 5.3" w/adjacent Tools Maximum Tool Diameter: 7.8: w/o adjacent Maximum Tool Weight: 33 Lbs Tool Type: CAT 50 Maximum Tool Length: 15.7"

Ballscrews:

X-Y-Z Ballscrew Diameter: 2.0" X,Y,Z x 10 pitch Ballscrew Type (pre-loaded): Class 3 double nut Ballscrew Mounting Type: Pre-tensioned

Servo Motors:

X-Y-Z Servo HP: 5.2 - 5.2 - 5.2 HP Servo Motor Mounting (X/Y): Direct coupled Servo Motor Mounting (Z): 3.5

Feeds:

Rapid Traverse Rate (X,Y,Z): 944, 944, 590 IPM Cutting Feed Rate: 0.01 - 394 IPM Positioning Accuracy: +/- .0003" Full Stroke Repeatability: +/- .0002"

General:

Coolant Tank Capacity: 120 gallons Machine Weight (base machine only): 33,000 Lbs Floor Space: 186" x 118" x 148" Machine Power Source: 208/220/3/125A Air Source: 90 PSI

Equipped With:

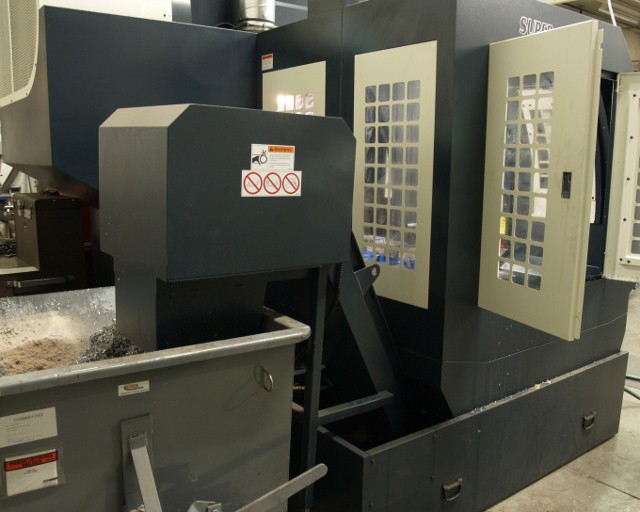

Moving Table and Fixed Column X-Axis has Schneeberger roller linear ways 8,000 RPM Johnford ceramic bearing spindle (added option) Flood Coolant System with programmable air blast Air blast for spindle Auto Lubrication with Alarm Automated chip removal system with chip conveyors Halogen work lamp 2 Speed geared head with spindle / headstock cooler Remote Handwheel Heat exchangers for control cabinets Hydraulic counterbalance for headstock Rigid Tapping 1,000 PSI High Pressure Coolant Through Spindle including the Pump Fanuc 18iMB control 40 Tool ATC Heidenhain linear scales on X,Y,Z High Speed Machining Option #2 (AI NANO Contour Control, AI NANO HPCC, ATA Card, Ethernet, etc)

Comments:

1.5 years of use Current owner is shifting to all 5-Axis machines Original Purchase Price $280,355
