Description

Reference #:	6328
Machine Type:
Year:	2004
Manufacturer:	Mazak

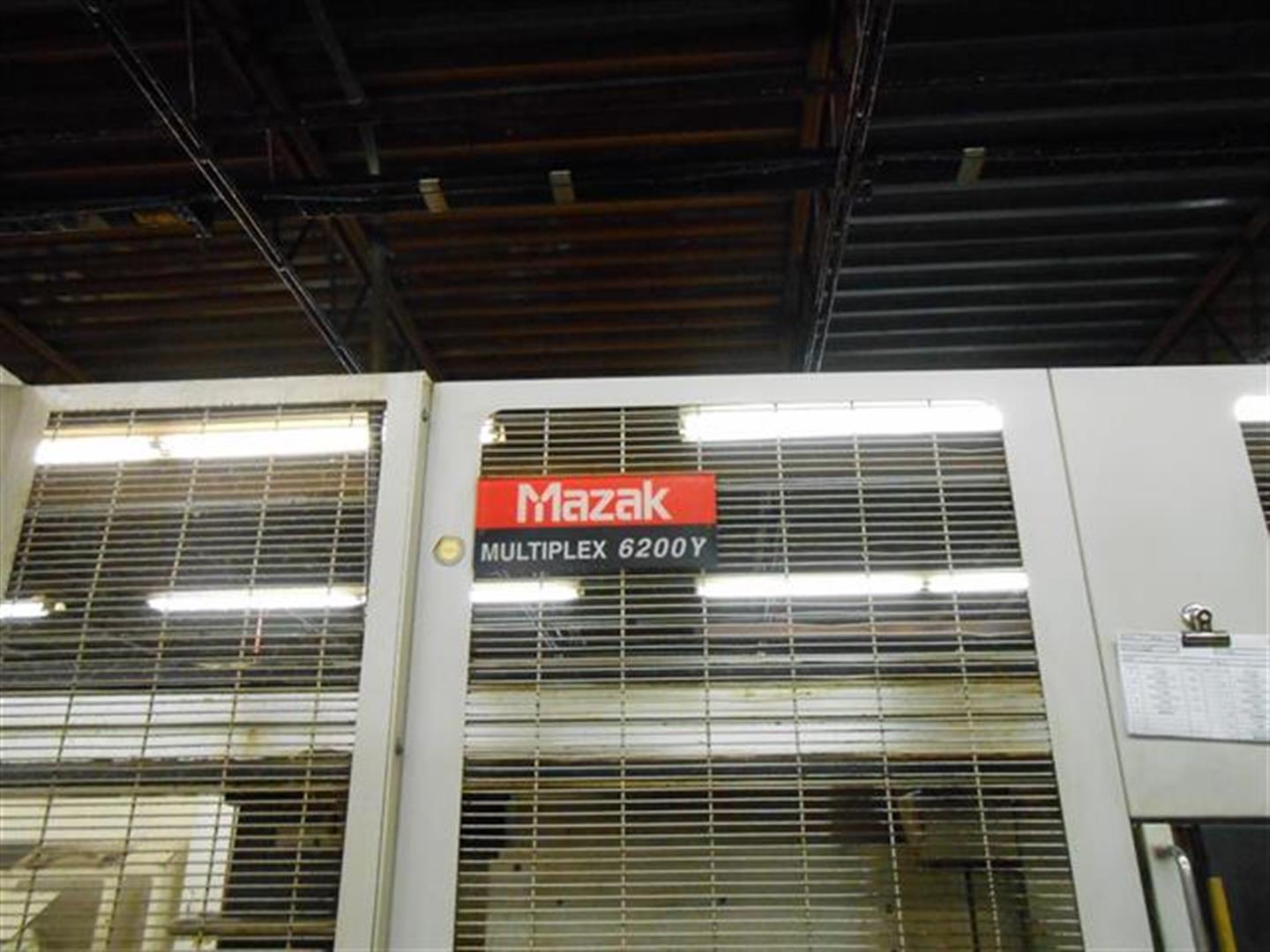

Model:	Multiplex 6200Y
Control:	Fusion 640T
Condition:	Used
Under Power:	Yes
Code:	L21258MSY

Spindles:

Number of Main Spindles: 2 Turning Diameters (Nominal): 7" Turning Diameters (Maximum): 10.24" Turning Lengths (Nominal): 7.5" Turning Lengths (Maximum): 46" Maximum Swing: 12.5" Chuck Diameter: 8" Bar Capacity: 2"

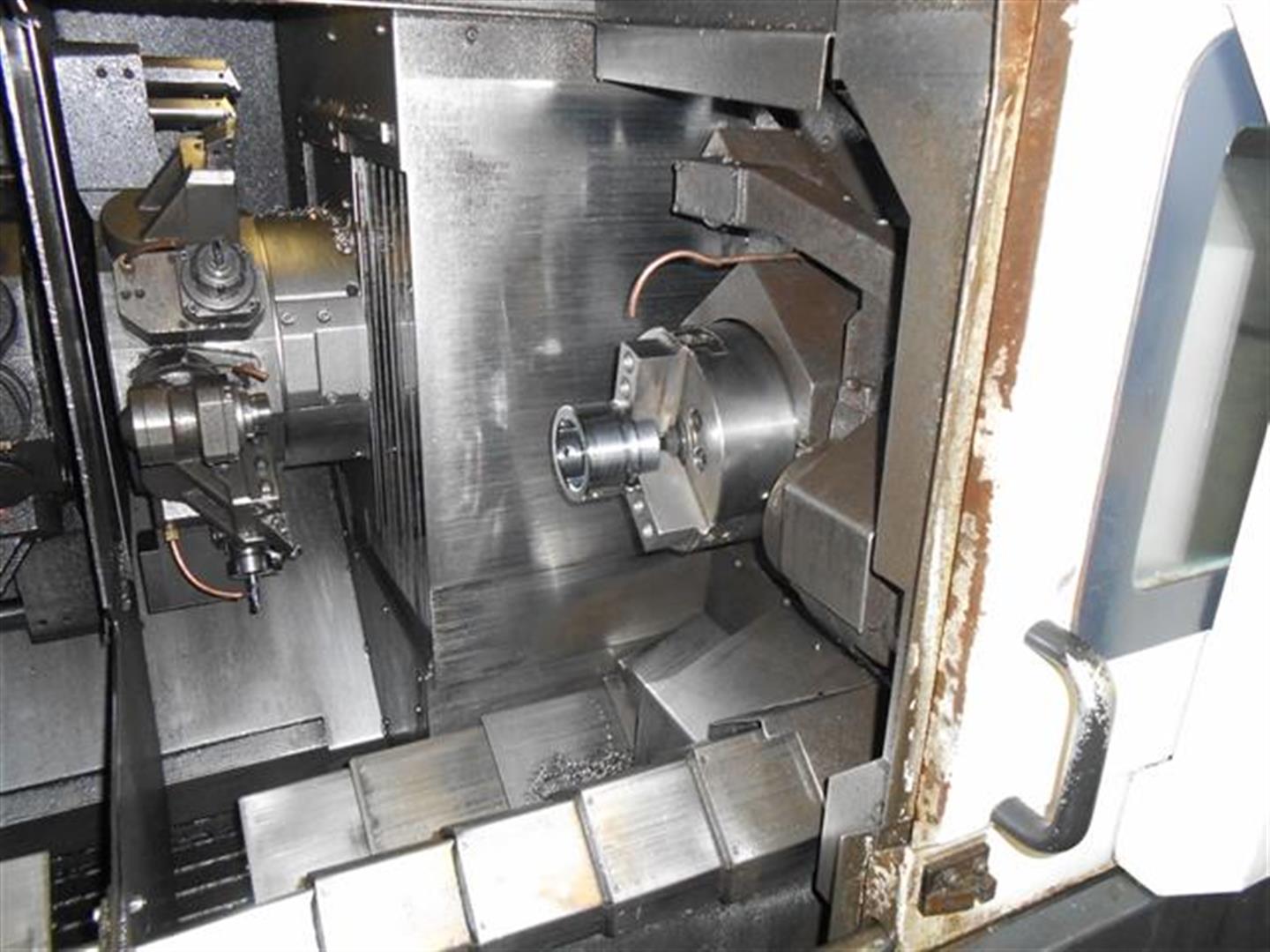

Spindle #1:

Nose: A2-6 Bore Diameter: 2.4" Speed: 35 - 5000 RPM Drive Motor: 30 HP Index Increment: 0.001 degrees

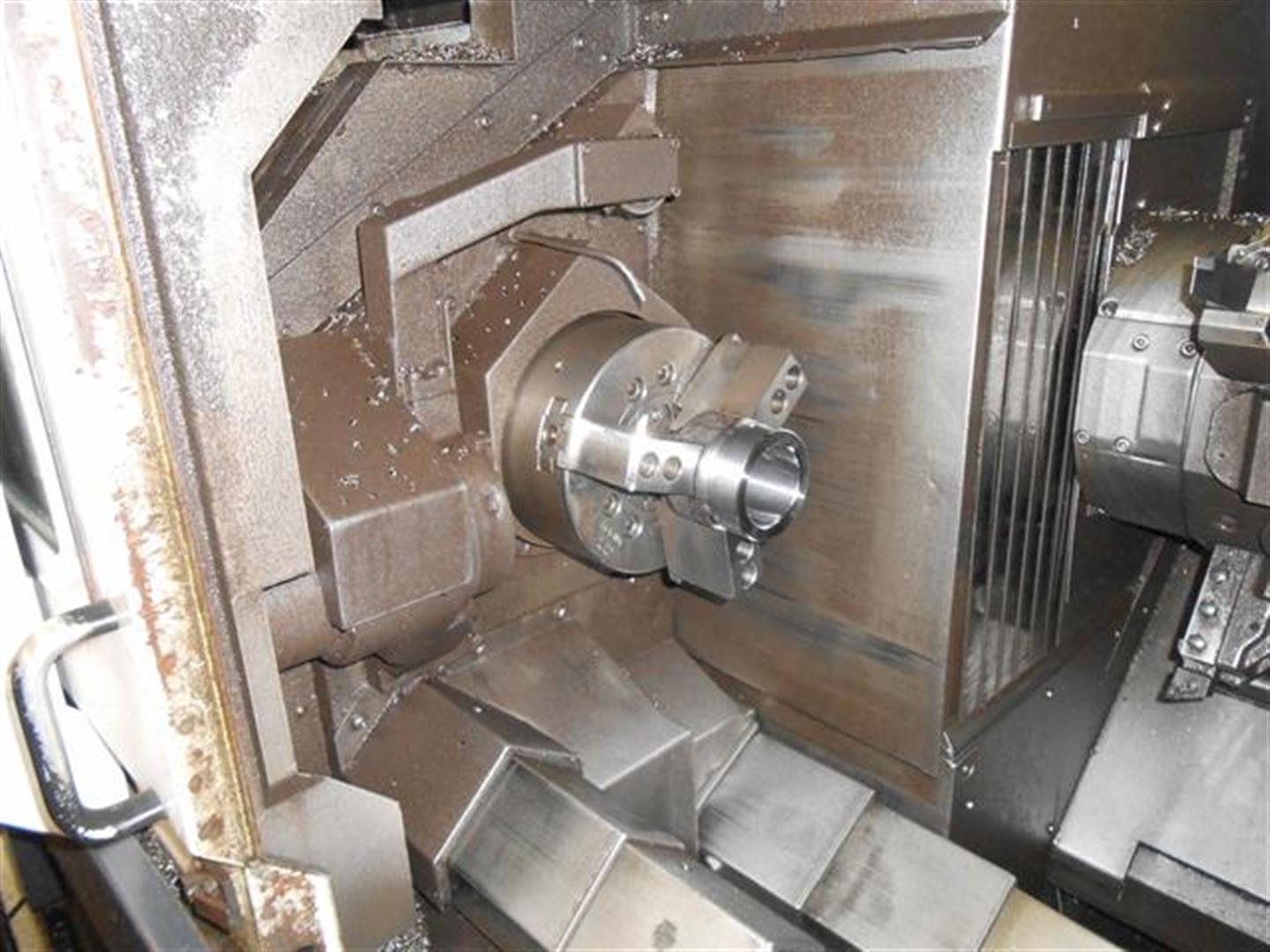

Spindle #2:

Nose: A2-6 Bore Diameter: 2.4" Speed: 35 - 5000 RPM Drive Motor: 30 HP Index Increment: 0.001 degrees

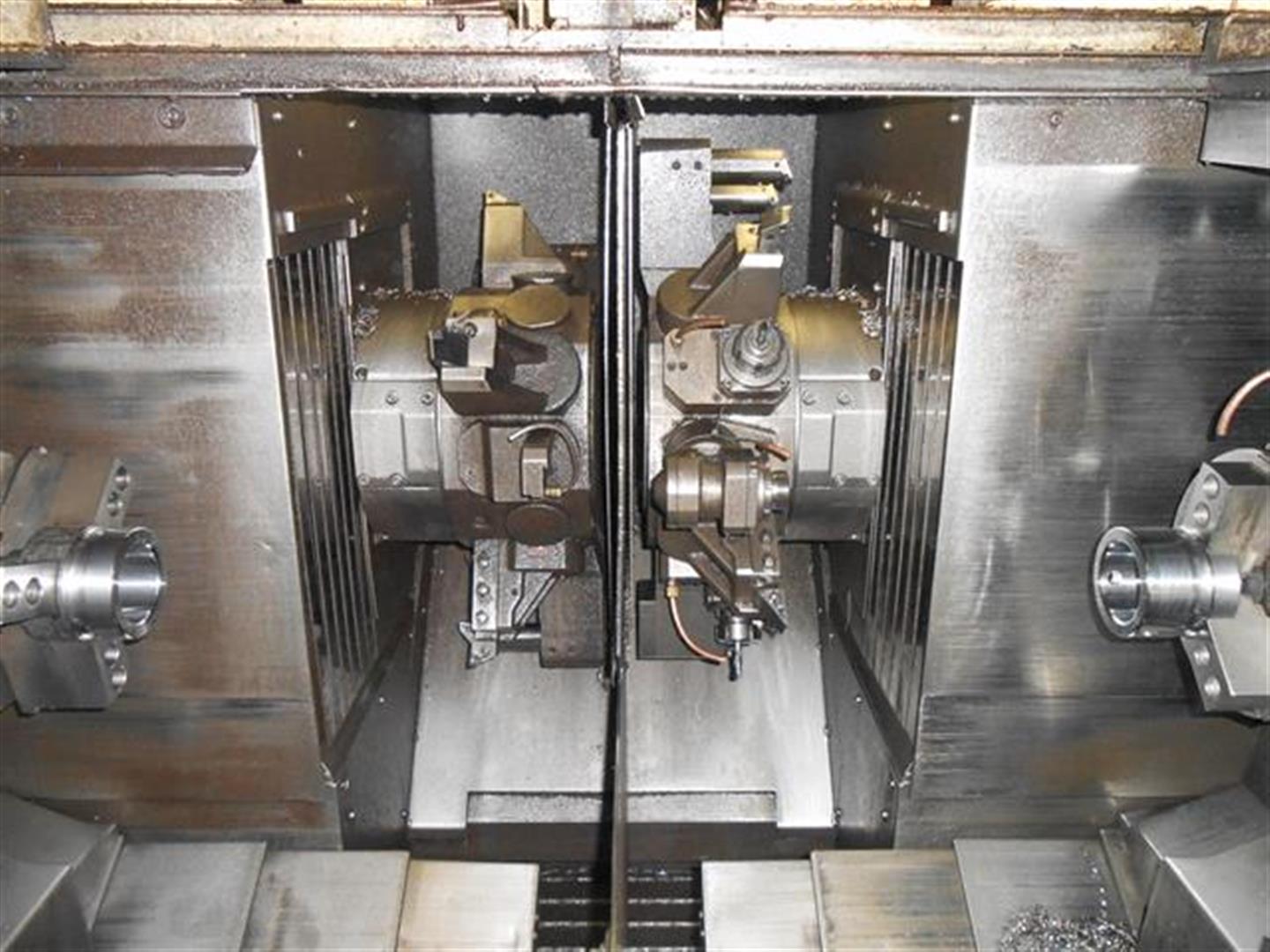

Turret #1:

Turning Positions: 12 Rotary Positions: 12 Tool Shank Size - Square: 1" Tool Shank Size - Round: 1" Rotary Tooling Horse Power (30 min): 5.0 HP Rotary Tooling Speed: 4500 RPM X-Axis Travel: 9.44" X-Axis Traverse Rate: 1200 IPM Z-Axis Travel: 17.32" Z-Axis Traverse Rate: 1300 IPM C-Axis Travel: 360 degrees C-Axis Traverse Rate: 400 RPM Y-Axis Travel: 2" Y-Axis Traverse Rate: 393 IPM

Turret #2:

Turning Positions: 12 Rotary Positions: 12 Tool Shank Size - Square: 1" Tool Shank Size - Round: 1" Rotary Tooling Horse Power (30 min): 5.0 HP Rotary Tooling Speed: 4500 RPM X-Axis Travel: 9.44" X-Axis Traverse Rate: 1200 IPM Z-Axis Travel: 17.32" Z-Axis Traverse Rate: 1300 IPM C-Axis Travel: 360° C-Axis Traverse Rate: 400 RPM Y-Axis Travel: 2" Y-Axis Traverse Rate: 393 IPM

Cutting:

Max. Number of Simultaneous Cutting Tools: 2

Machine:

Net Weight: 18,520 Lbs Length: 141" Width: 78" Height: 82"

Equipped With:

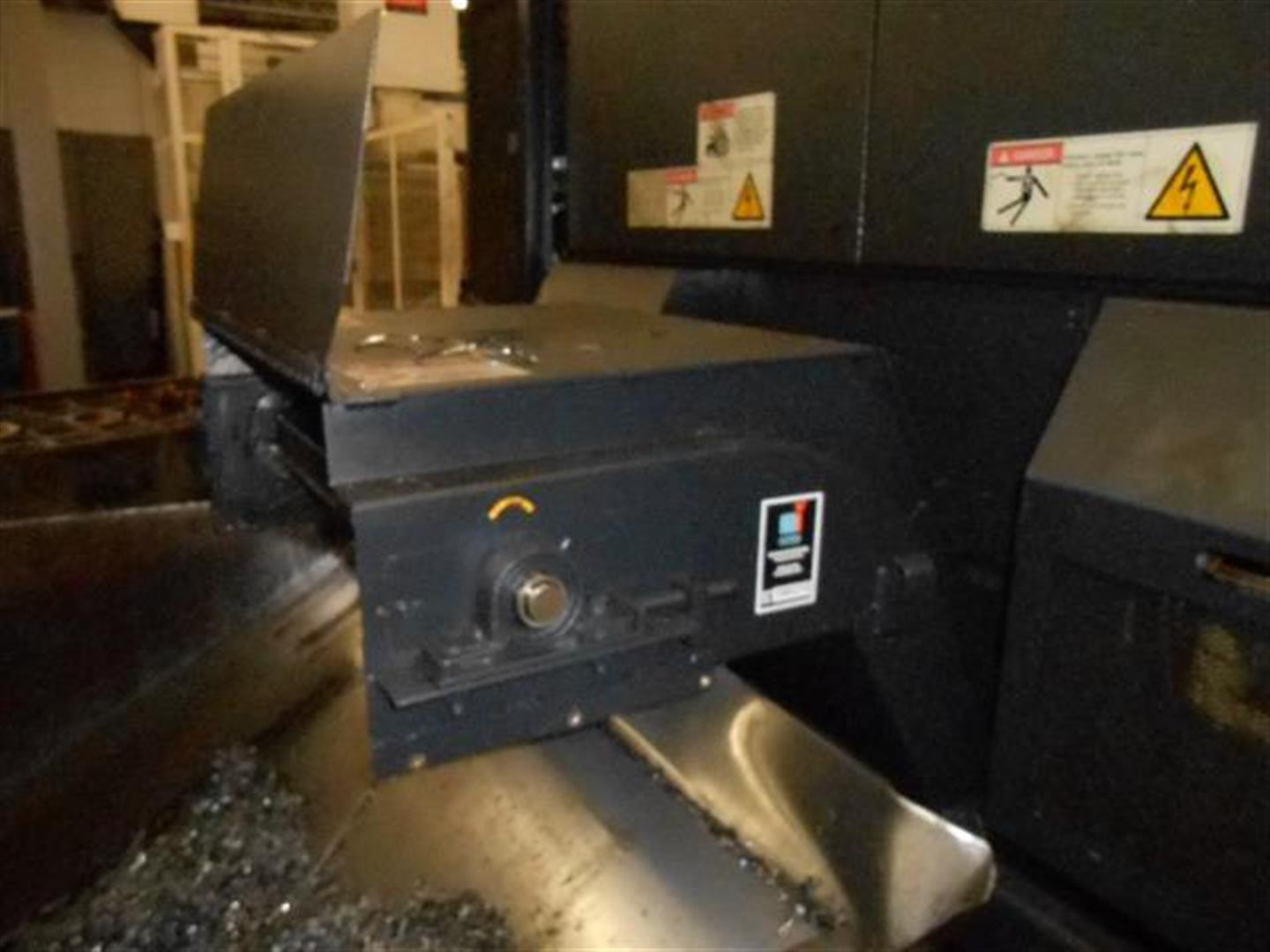

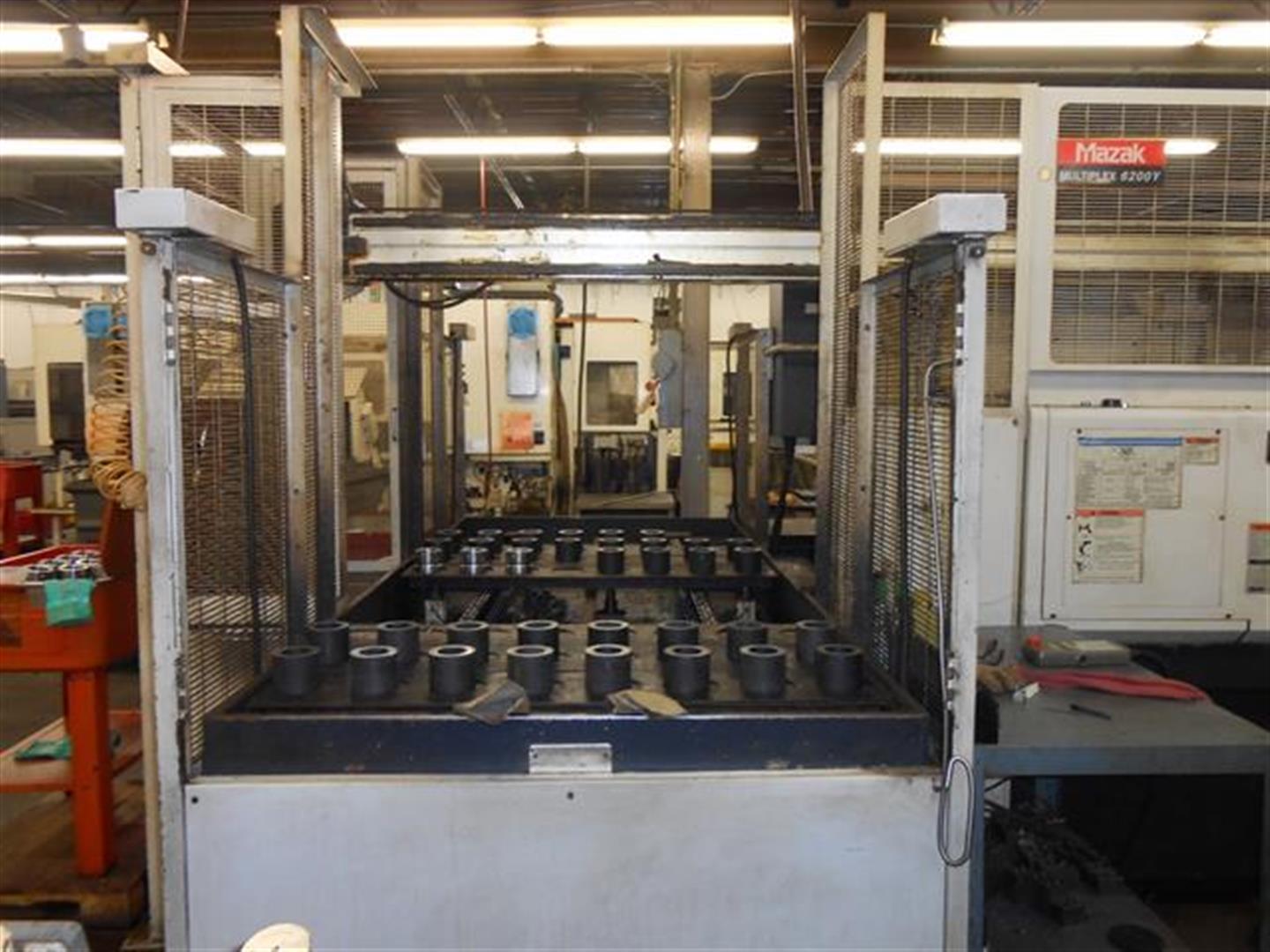

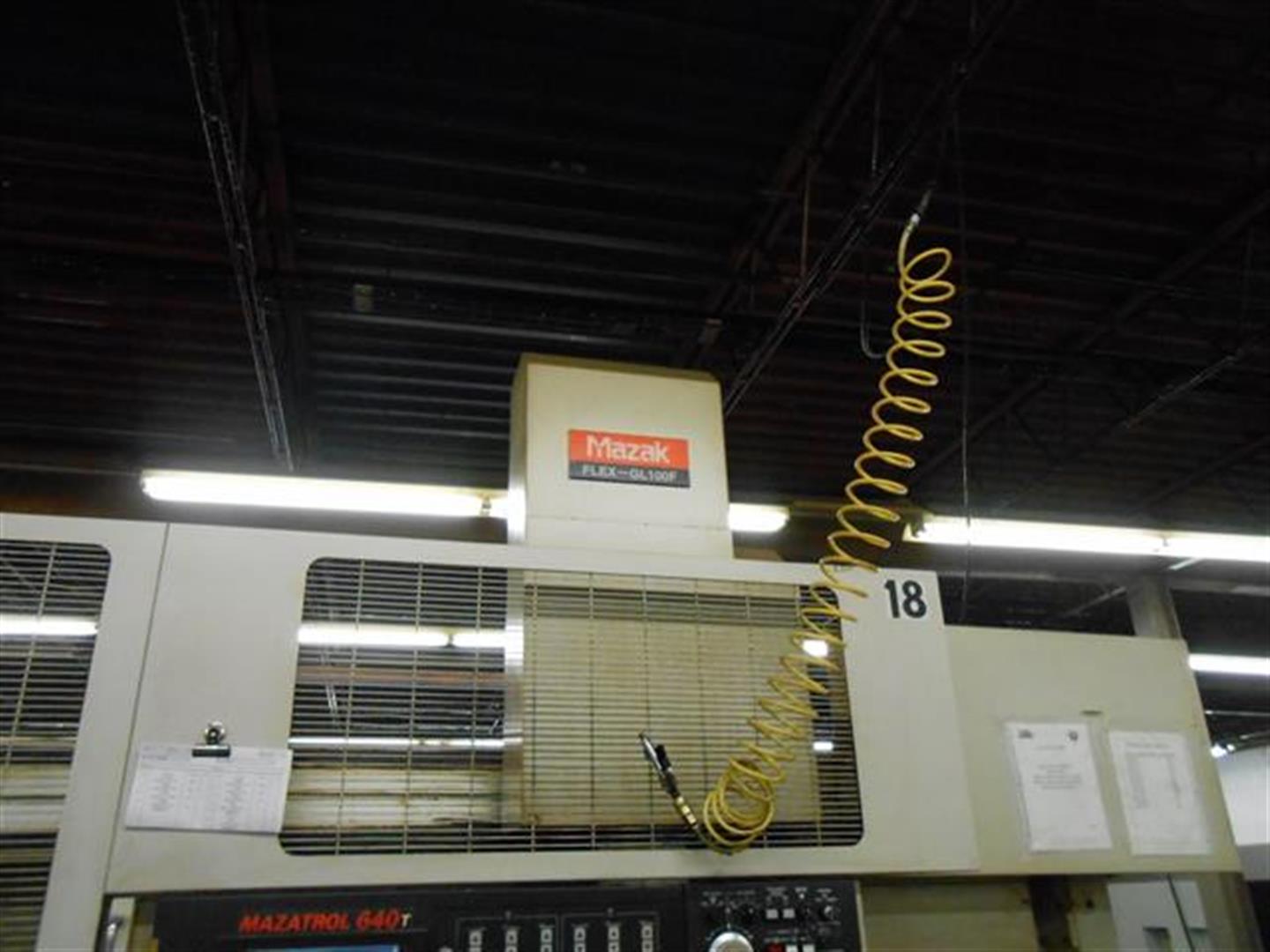

Twin Spindles Twin Turrets Fusion 640T Control On-Center Mill Drill Capabiity with C-Axis Off-Center Mill Drill with Y-Axis Chip Conveyor GL100F Gantry W/ Robot Loading/Unloading Two (2) 8 inch Chucks Chip Conveyor New 9/2014 Standard Tooling Package Multiplex 6200Y is covered under Extended warranty from Mitsubishi until 3-15-2018 and it is transferrable

Comments:

New January, 2004
