20 TON TRUMPF TRUPUNCH 2020R,50" X 50",MFG:2007 OUR STOCK NUMBER: 12838
TruPunch 2020
Punches
PUNCHES, FABRICATING, NC and CNC
used
(LB)
2007
$0.00

Description

Technical Data

Model: Trumpf TruPunch 2020
Work area (X x Y): 100" x 50"
Capacity
Maximum Sheet Thickness: 0.25"
Maximum Punching Force: 20 Tons
Active Presser Foot: Up to 2.5 Tons
Maximum Workpiece Weight: 330 lbs.
Speeds
X axis: 3543 ipm
Y axis: 2362 ipm
Simultaneous (X and Y): 4252 ipm
C axis: 180 rpm
Maximum stroke rate when punching (E=1 mm): 900 1/min
Maximum stroke rate when marking (approximate): 2,200 1/min
Maximum Acceleration
X axis: 472 in/s
Y axis: 315 in/s
C axis: 200 1/s
Tools

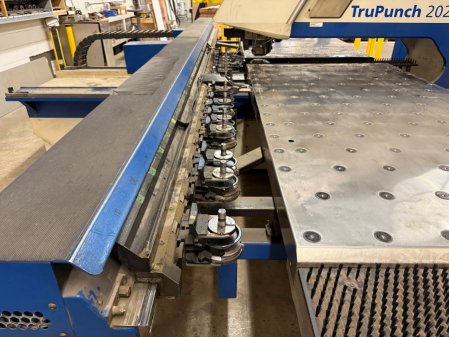

Linear Magazine: 19 tools with 2 clamps
No. when using Multitool: 19-190 tools
Multitool: 5/10 station

Tool Change Time
Single tool: < 3.5s
MultiTool: < 0.9s
Accuracy
Positioning accuracy Pa: +/- 0.004 in.
Repeatability Ps: +/- 0.001 in.

Programmable Parts Chute
Maximum part size when using fixed chute: 8 x 8 in.

Space Requirements
Including safety: 293 x 254 in.
Power Consumption
Average power consumption (approximate): 9 kW
In standby mode (approximate): 0.7 kW
Main Supply: 460V/60Hz
Connected Load: 22 kVA
Control Voltage: 24 V=
Air Supply: 95 P.S.I.
