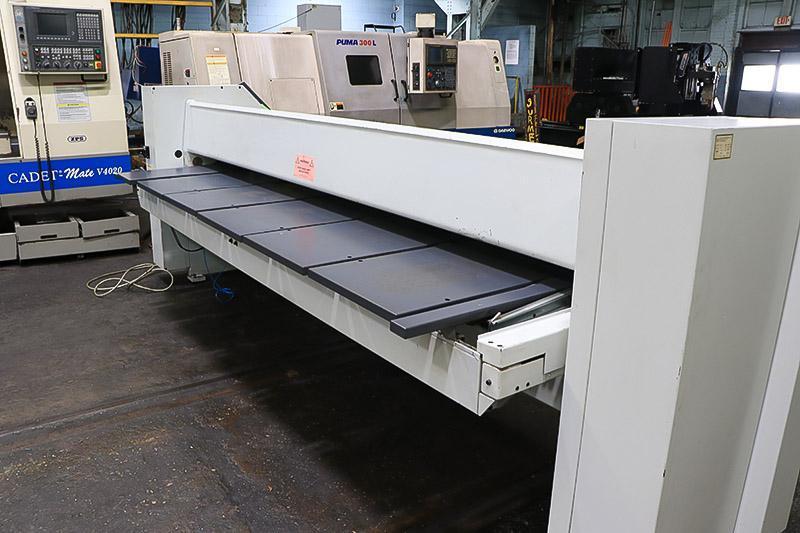

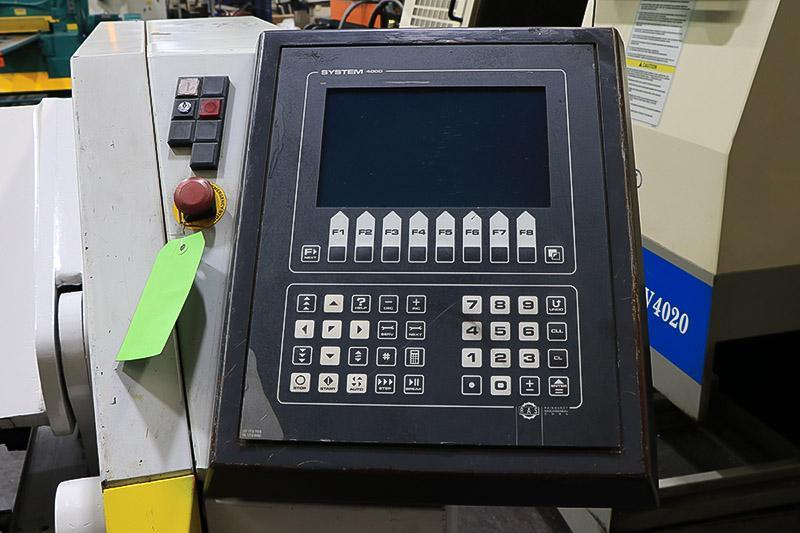

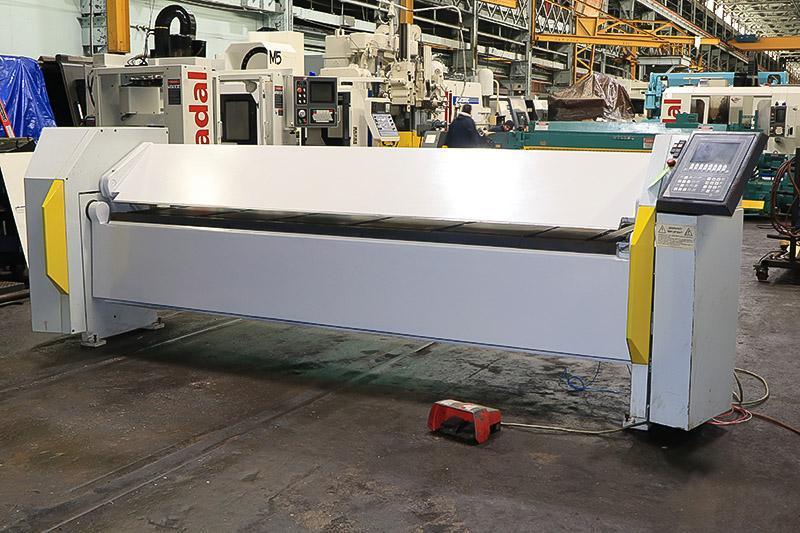

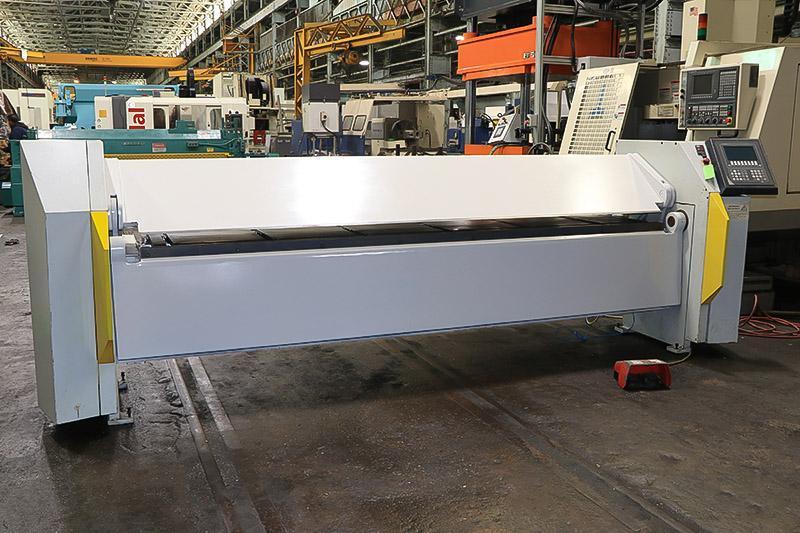

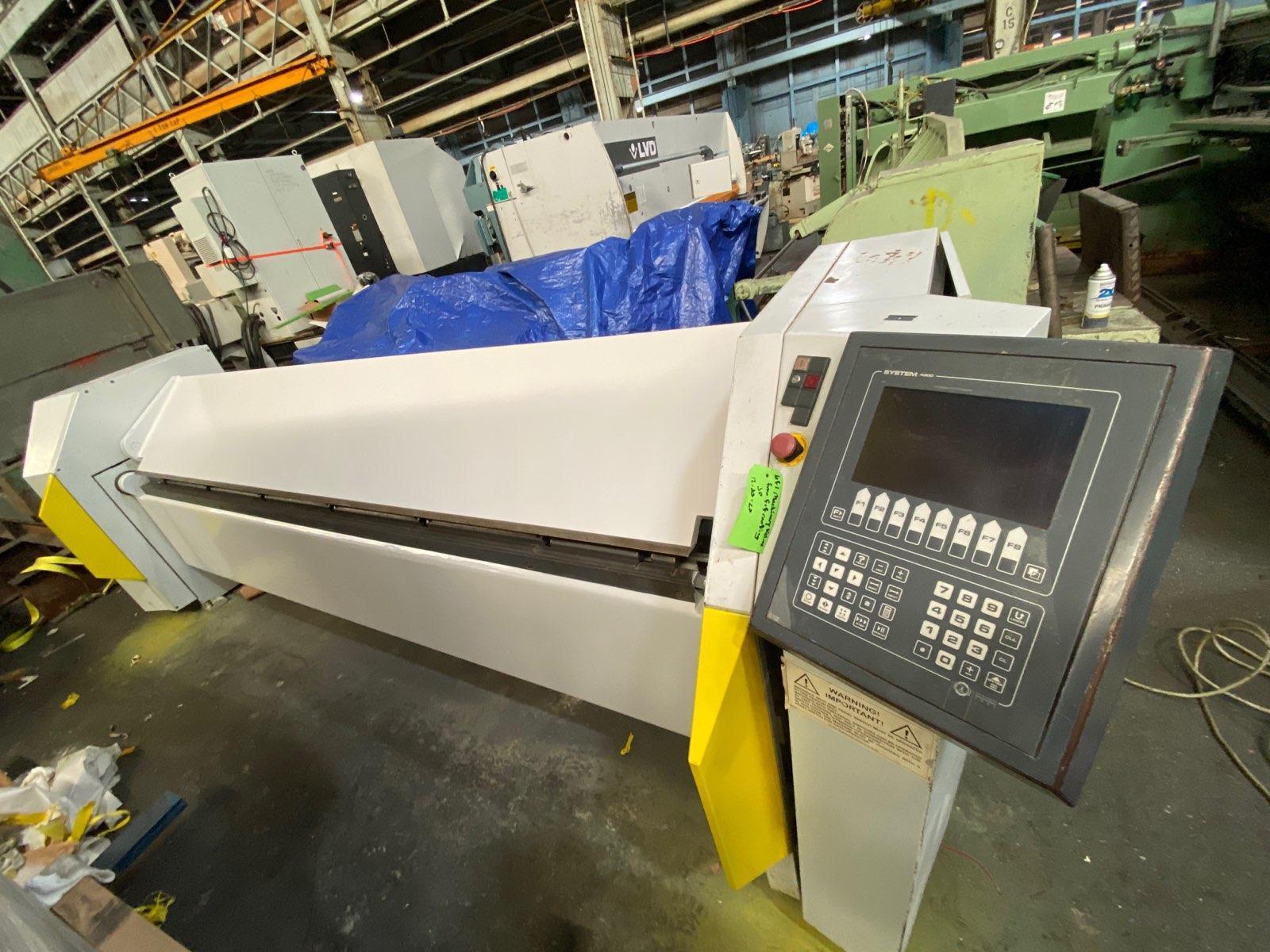

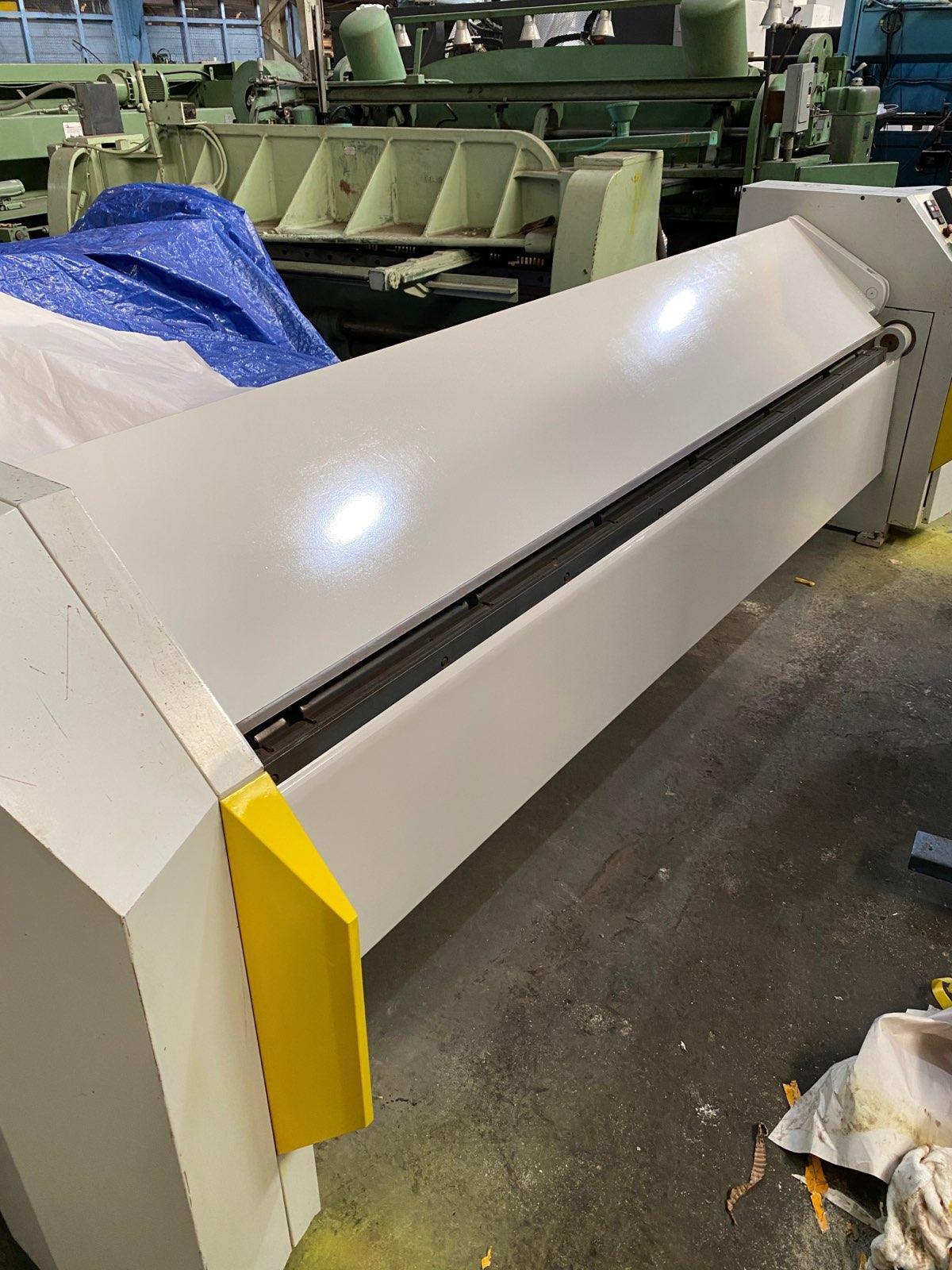

Used RAS Turbobend CNC Folder

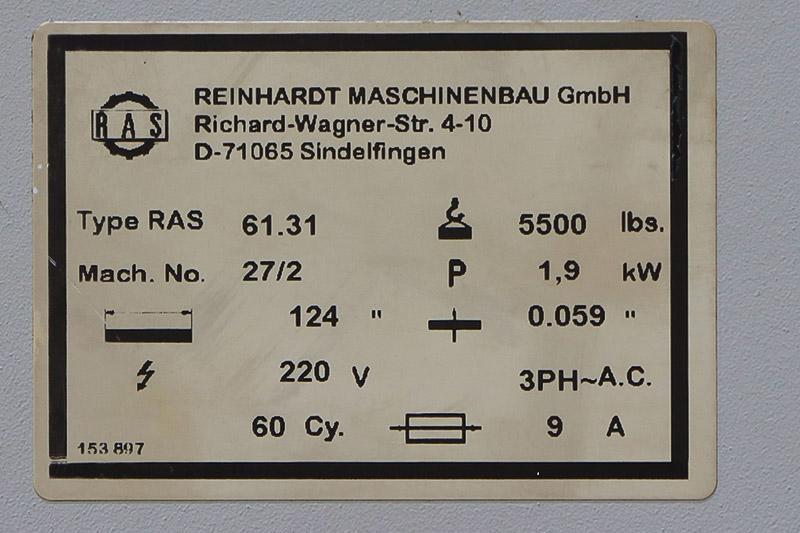

Model 61.31
New 1997
Stock#: 4202
Catalog Specifications:
Working Width.........................................124"
Maximum Sheet Thickness...............................16 Gauge
Minimum Inner Bend Radius.............................1.5 x Thickness
Minimum Flange Height Inside..............6 x Thickness
Maximum Upstroke......................................4.72"
Maximum Folding Beam Adjustment.......................0.19"
Backgauge Depth.....................................0.31" - 39.4"
Working Height......................................33"
Downstroke Speed.....................................2.5"/second
Maximum Folding Beam Speed............................80 Deg./second
Backgauge Speed (.31"-30.4")..........................1.9 Seconds
Electrical System ....................................220/3/60
Approximate Machine Dimensions........................170" x 56"
Approximate Machine Height............................55"
Approximate Machine Weight............................5,500 Lbs
FOB: New Jersey
